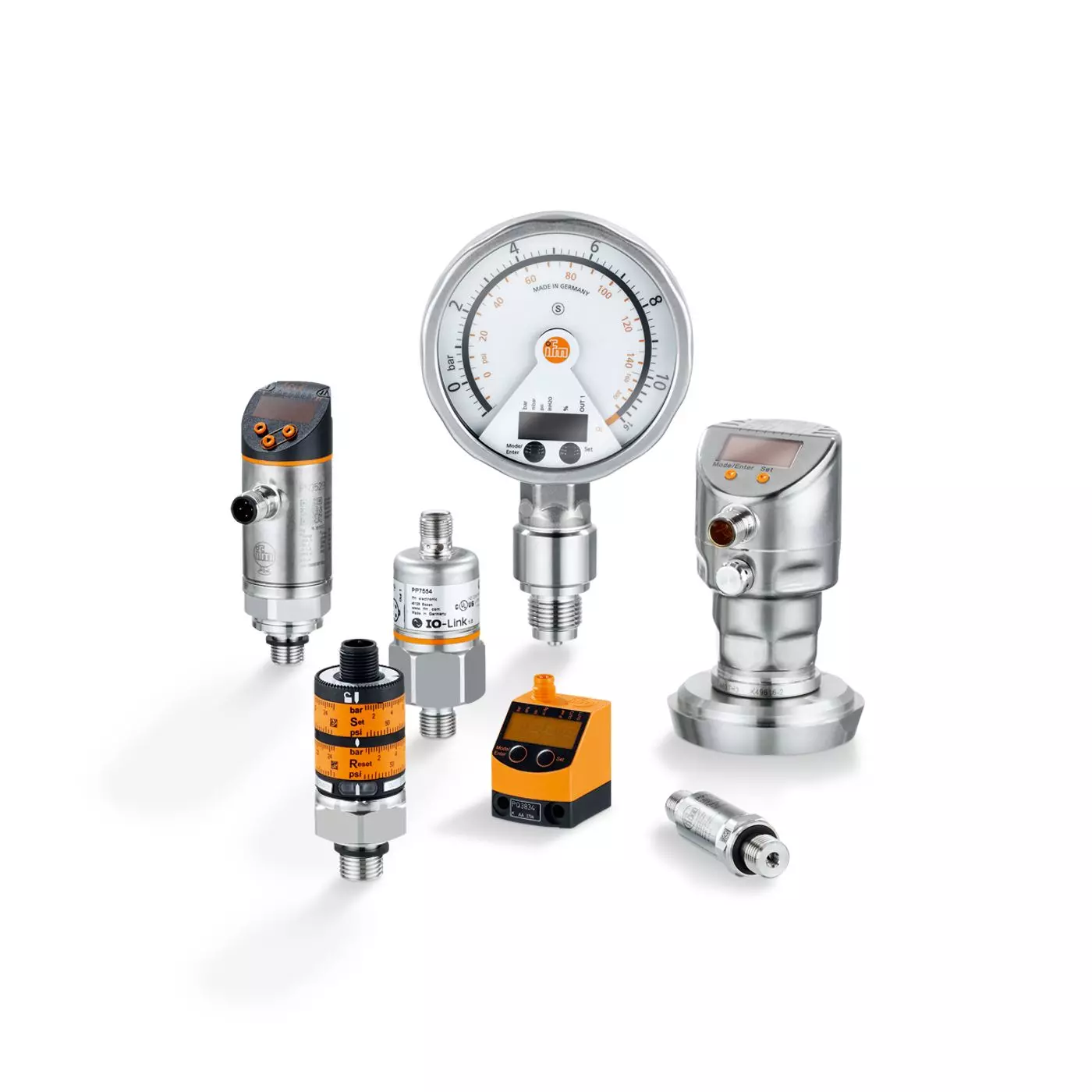

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Transmitters for mobile applications
The PU series pressure transmitters reliably detect the system pressure in mobile machines. They are particularly suited for hydraulic and pneumatic applications with high operating pressures. The compact housing ensures flexible integration even where space is limited. The robust units offer high shock, vibration and pressure resistance and excellent electromagnetic stability. They ensure wear-free operation over millions of pressure cycles. The high repeatability and minimal conformity errors of the analogue measured values ensure good long-term stability. These sensors provide excellent measurement dynamics with a very short step response time for immediate reaction to fast pressure changes. DEUTSCH and AMP connectors allow fast and easy connection of the units to the cable harness of mobile machines. The technical data of the sensors conform to e1.
Features & Benefits
- Space-saving design for limited space
- Fast reaction due to short response time
- Measuring accuracy < ± 0.8 %, repeatability < ± 0.05 %
- Easy connection via M12, DEUTSCH or AMP connector
- Compact and robust stainless steel housing
Additional Notes
| MPN | Measuring range | Process connection | Output signal | Analog output | Medium temperature |
|---|---|---|---|---|---|
| PT5000 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5001 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5002 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5003 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5004 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT500E | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5012 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5014 | 0...16 bar / 0...232 psi / 0...1.6 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5015 | 0...6 bar / 0...87 psi / 0...600 kPa / 0...0.6 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT501E | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5023 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT502E | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT503E | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5043 | 0...40 bar / 0...580 psi / 0...4 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT504E | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5060 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5500 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5501 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5502 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5503 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5504 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5560 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT560E | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5700 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5701 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5702 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5703 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5704 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT5760 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT700E | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT701E | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT702E | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT703E | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT704E | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT760E | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | 4...20 mA | -40...125 °C |
| PT9550 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 0...10 V | -25...90; (on request: -40...100 °C) °C |
| PT9551 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | 0...10 V | -25...90; (on request: -40...100 °C) °C |
| PT9552 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 0...10 V | -25...90; (on request: -40...100 °C) °C |
| PT9553 | 0...25 bar / 0...363 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 0...10 V | -25...90; (on request: -40...100 °C) °C |
| PT9554 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 0...10 V | -25...90; (on request: -40...100 °C) °C |
| PU1700 | 0...5000 psi | 9/16" - 18 UNF external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU1701 | 0...3600 psi | 9/16" - 18 UNF external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU1702 | 0...1000 psi | 9/16" - 18 UNF external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU1732 | 0...3000 psi | 9/16" - 18 UNF external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU1743 | 0...500 psi | 9/16" - 18 UNF external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU1760 | 0...8000 psi | 9/16" - 18 UNF external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU500E | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU501E | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU502E | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU503E | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU504E | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU523E | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU5603 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 0...10 V | -40...125 °C |
| PU5604 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 0...10 V | -40...125 °C |
| PU560E | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU5700 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 0...10 V | -40...125 °C |
| PU5701 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | 0...10 V | -40...125 °C |
| PU5702 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 0...10 V | -40...125 °C |
| PU5703 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | 0...10 V | -40...125 °C |
| PU5704 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 0...10 V | -40...125 °C |
| PU5760 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | 0...10 V | -40...125 °C |
| PU8500 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU8504 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU8702 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
| PU8704 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | 0.5...4.5 V | -40...125 °C |
