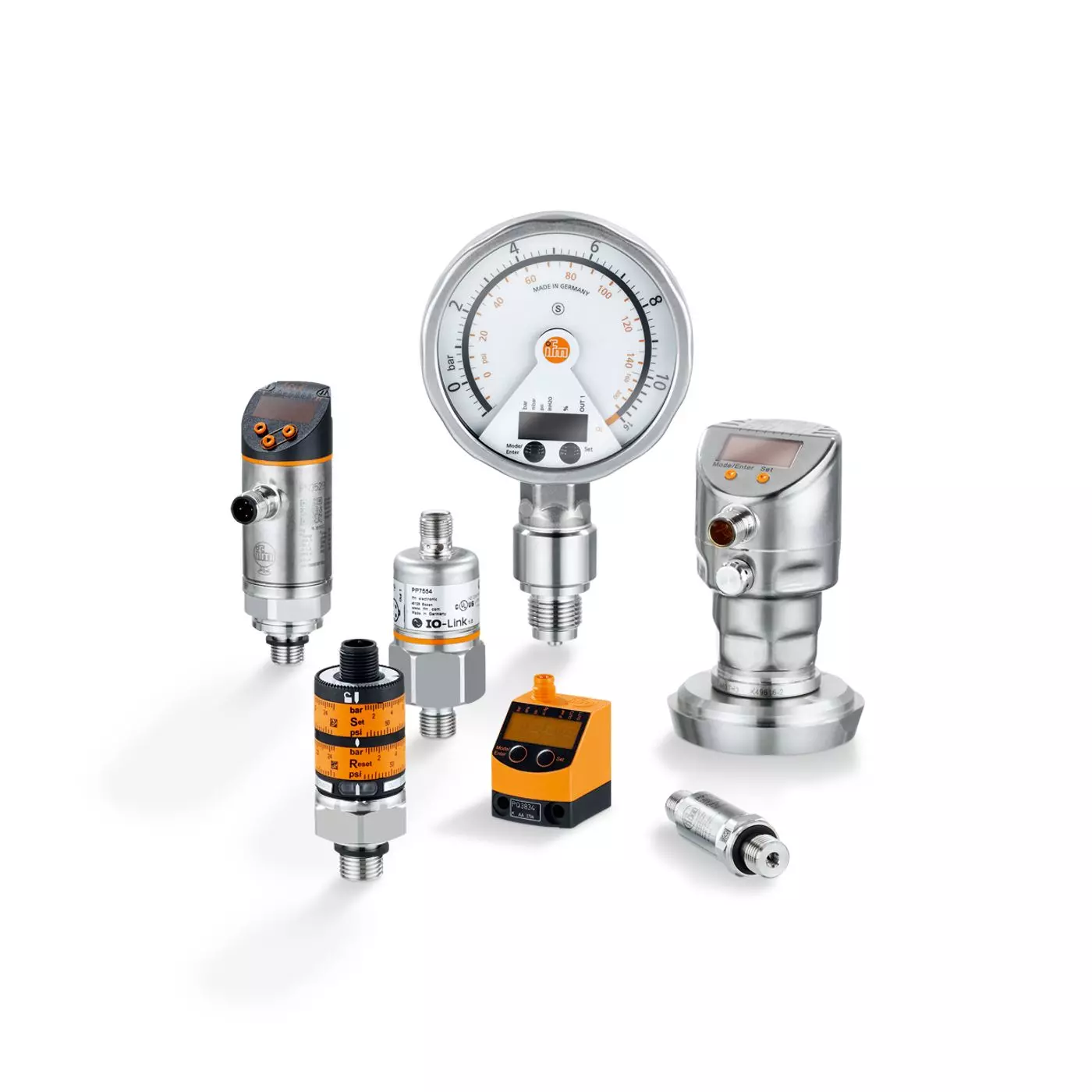

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Use in high-temperature process applications
The PI22/PI23 series pressure sensors are designed for high-temperature applications in the food and beverage industry such as UHT (ultra high temperature) plants. A 4-digit LED display, which is visible from all sides even at greater distances, facilitates set-up, maintenance and operation. The sensors can not only be connected as 3- or 4-wire units but also as loop-powered 2-wire units. This reduces the wiring complexity in new installations and facilitates exchange in existing 2-wire connections. Parameter setting is effected via the buttons on the sensor or via IO-Link, e.g. using a USB interface. The LINERECORDER SENSOR software is used to visualise, transfer and archive parameter sets.
Features & Benefits
- Use in temperature ranges from -25...200 °C
- Integrated clamp diaphragm seal with stainless steel membrane
- All wetted parts made of stainless steel
- Reduced wiring complexity when operated as two-wire current loop
- Factory calibration certificate enclosed
Additional Notes
| MPN | Measuring range | Process connection | Output signal | Electrical design | Medium temperature |
|---|---|---|---|---|---|
| PI2203 | -1...25 bar / -14.4...362.7 psi / -0.1...2.5 MPa | Clamp DN40 (1,5") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2204 | -1...10 bar / -14.5...145 psi / -0.1...1 MPa | Clamp DN40 (1,5") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2205 | -1...4 bar / -14.5...58 psi / -100...400 kPa | Clamp DN40 (1,5") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2206 | -0.124...2.5 bar / -1.8...36.27 psi / -12.4...250 kPa | Clamp DN40 (1,5") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2207 | -50...1000 mbar / -0.73...14.5 psi / -5...100 kPa | Clamp DN40 (1,5") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2209 | -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | Clamp DN40 (1,5") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2214 | -1...10 bar / -14.5...145 psi / -0.1...1 MPa | Clamp DN40 (1,5") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2303 | -1...25 bar / -14.4...362.7 psi / -0.1...2.5 MPa | Clamp DN50 (2") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2304 | -1...10 bar / -14.5...145 psi / -0.1...1 MPa | Clamp DN50 (2") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2305 | -1...4 bar / -14.5...58 psi / -100...400 kPa | Clamp DN50 (2") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2306 | -0.124...2.5 bar / -1.8...36.27 psi / -12.4...250 kPa | Clamp DN50 (2") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2307 | -50...1000 mbar / -0.73...14.5 psi / -5...100 kPa | Clamp DN50 (2") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
| PI2309 | -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | Clamp DN50 (2") | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...200 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040010010 | Process Sensors - Pressure & Vacuum - Types PN / PE with digital display | $0.01 | |
| IFM-040010020 | Process Sensors - Pressure & Vacuum - Sensors with gauge display for Industrial and sanitary applications - Type PG | $0.01 | |
| IFM-040010030 | Process Sensors - Pressure & Vacuum - Sensors with digital display for sanitary applications - Type PI | $0.01 | |
| IFM-040010050 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for sanitary applications - Type PM | $0.01 | |
| IFM-040010060 | Process Sensors - Pressure & Vacuum - Pressure sensors / Vacuum sensors with display for pneumatic applications - Type PQ | $0.01 | |
| IFM-040010070 | Process Sensors - Pressure & Vacuum - Switches with adjustment dials - Type PK | $0.01 | |
| IFM-040010075 | Process Sensors - Pressure & Vacuum - Flush mountable for industrial applications | $0.01 | |
| IFM-040010080 | Process Sensors - Pressure & Vacuum - Transmitters with strain gauge technology - Type PT / PU | $0.01 | |
| IFM-040010090 | Process Sensors - Pressure & Vacuum - Transmitter with ceramic capacitive technology - Type PA and PX | $0.01 | |
| IFM-040010100 | Process Sensors - Pressure & Vacuum - Switches with ceramic capacitive technology - Type PP and PV | $0.01 | |
| IFM-040010110 | Process Sensors - Pressure & Vacuum - Transmitters for mobile applications | $0.01 | |
| IFM-040010120 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for hydrostatic level applications - Type PI, PG and PM | $0.01 | |
| IFM-040010140 | Process Sensors - Pressure & Vacuum - Submersible transmitters for hydrostatic level - Type PS | $0.01 | |
| IFM-040010150 | Process Sensors - Pressure & Vacuum - Switches for differential pressure - Type PNI | $0.01 | |
| IFM-040010160 | Process Sensors - Pressure & Vacuum - Switches for gap detection | $0.01 |
