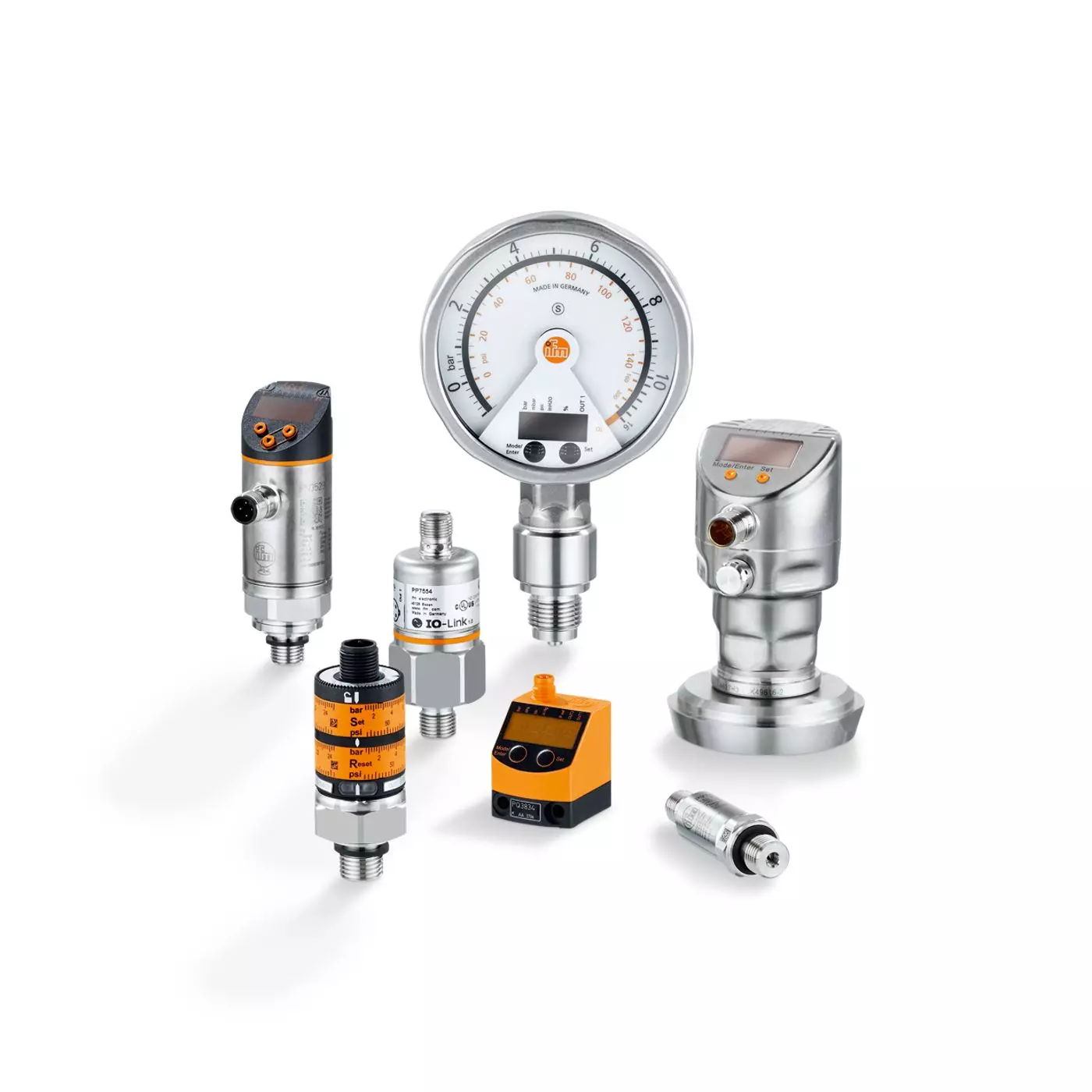

Pressure sensors
ifm's product range of pressure sensors offer different measuring principles, materials, and displays to meet the requirements of different industrial manufacturing plant operations across the United States. For pneumatic applications, ceramic-capacitive measuring cell is complemented by a stainless steel measuring cell with thin-film or thick-film wire strain gauges (series PK, PV, PT) and a piezoresistive measuring technique. ifm Pressure sensors are resistant to dynamic pressure peaks and guarantee high overload resistance even in the case of extreme pressure peaks that occur for example with fast closing valves. Electronic pressure sensors can prevent damage or downtime caused by wear and tear of mechanical moving parts, offering a longer lifecycle than traditional sensors that have critical failure points. Their application areas range from simple monitoring tasks as an on/off switch to precise digital pressure rating measurements. Use the “Select By Application” tool to narrow your search for a pressure sensor based on media type, and read more about the underlying measuring principles and technology of a sensor group by accessing the orange “Learn More” button on the product group level.
Almost all ifm pressure sensors have come equipped with IO-Link technology for close to a decade, allowing you to increase the amount of process data available to you and to log that data over time for trend analysis. This technology is truly plug and play for whenever you want to harness its power. Simply plug your sensor into ifm’s IO-Link masters and send your sensor data directly to your SCADA, MES, ERP, or CMMS systems for analysis through the IoT port without interfering with your existing PLC infrastructure. IO-Link is the foundation of the fourth industrial revolution, commonly referred to as the Industrial Internet of Things (IIoT), underlying concepts like predictive maintenance.
- Suited for use in mobile machines
- Two switching outputs, one of which can be configured as diagnostic output
- Integrated diagnostic function
- Excellent EMC resistance
- User-friendly communication via IO-Link
MPN | Measuring range | Process connection | Output signal | Electrical design | Medium temperature |
---|---|---|---|---|---|
PP0520 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | switching signal | NPN | -25...90 °C |
PP0521 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | switching signal | NPN | -25...90 °C |
PP0522 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal | NPN | -25...90 °C |
PP0523 | 0...25 bar / 0...363 psi / 0...2.5 MPa | G 1/4 external thread | switching signal | NPN | -25...90 °C |
PP0524 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1/4 external thread | switching signal | NPN | -25...90 °C |
PP7550 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
PP7551 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
PP7552 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
PP7553 | 0...25 bar / 0...363 psi / 0...2.5 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
PP7554 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
PP7556 | 0...2.5 bar / 0...2500 mbar / 0...36.3 psi / 0...250 kPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP | -25...90 °C |
PV7000 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7001 | 0...250 bar / 0...3626 psi / 0...25 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7002 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7003 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7004 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7023 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7060 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7600 | 0...400 bar / 0...5800 psi / 0...40 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7601 | 0...250 bar / 0...3626 psi / 0...25 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7602 | 0...100 bar / 0...1450 psi / 0...10 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7603 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7604 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV7623 | 0...60 bar / 0...870 psi / 0...6 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV8000 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV8001 | 0...250 bar / 0...3626 psi / 0...25 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV8002 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV8003 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV8004 | -1...10 bar / -14.5...145 psi / -0.1...1 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV8023 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
PV8060 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -40...90 °C |
SKU | Description | List price | - |
---|---|---|---|
IFM-040010010 | Process Sensors - Pressure & Vacuum - Types PN / PE with digital display | $0.01 | |
IFM-040010020 | Process Sensors - Pressure & Vacuum - Sensors with gauge display for Industrial and sanitary applications - Type PG | $0.01 | |
IFM-040010030 | Process Sensors - Pressure & Vacuum - Sensors with digital display for sanitary applications - Type PI | $0.01 | |
IFM-040010040 | Process Sensors - Pressure & Vacuum - Sensors for high temperature with integrated triclamp for sanitary applications - Type PI | $0.01 | |
IFM-040010050 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for sanitary applications - Type PM | $0.01 | |
IFM-040010060 | Process Sensors - Pressure & Vacuum - Pressure sensors / Vacuum sensors with display for pneumatic applications - Type PQ | $0.01 | |
IFM-040010070 | Process Sensors - Pressure & Vacuum - Switches with adjustment dials - Type PK | $0.01 | |
IFM-040010075 | Process Sensors - Pressure & Vacuum - Flush mountable for industrial applications | $0.01 | |
IFM-040010080 | Process Sensors - Pressure & Vacuum - Transmitters with strain gauge technology - Type PT / PU | $0.01 | |
IFM-040010090 | Process Sensors - Pressure & Vacuum - Transmitter with ceramic capacitive technology - Type PA and PX | $0.01 | |
IFM-040010110 | Process Sensors - Pressure & Vacuum - Transmitters for mobile applications | $0.01 | |
IFM-040010120 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for hydrostatic level applications - Type PI, PG and PM | $0.01 | |
IFM-040010140 | Process Sensors - Pressure & Vacuum - Submersible transmitters for hydrostatic level - Type PS | $0.01 | |
IFM-040010150 | Process Sensors - Pressure & Vacuum - Switches for differential pressure - Type PNI | $0.01 | |
IFM-040010160 | Process Sensors - Pressure & Vacuum - Switches for gap detection | $0.01 |
