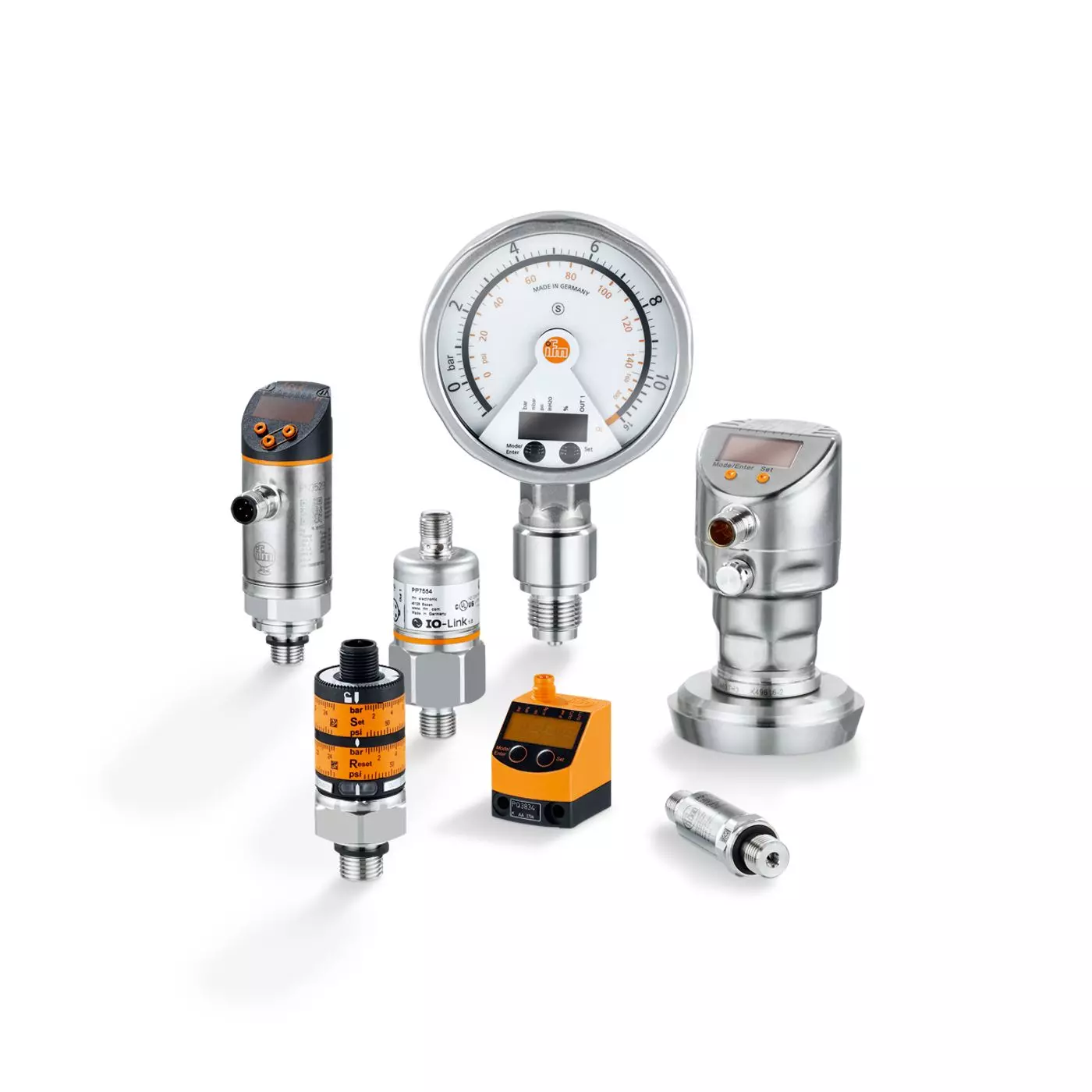

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
PN series with digital display
The pressure sensors of the PN series are characterised by a modern and user-friendly design. The maximum robustness, high protection rating and captive laser labelling ensure reliable operation of the sensors even in in harsh industrial environments. The ceramic-capacitive measuring principle with a special support of the measuring diaphragm makes the sensors immune to overload operation and high pressure peaks, ensuring outstanding long-term stability. Set-up, maintenance and operation are facilitated by a 4-digit LED display, which is visible from all sides even at greater distances, and two switching status LEDs on the sensor head. The display can be switched from the indication of “red” to an alternating indication of “red – green”. So, switching states can be highlighted or an independent colour window can be created. The screwed-on sensor can be rotated in any direction. Mounting brackets, which can be obtained as an option, allow installation in any position.
Features & Benefits
- Clearly indicate the acceptable ranges: programmable red/green display
- The process connection can be rotated for optimum alignment
- Intuitive, user-friendly handling
- Clearly visible indication of the switching status
- Permanently legible laser type label
Additional Notes
| MPN | Measuring range (bar) | Process connection | Output signal | Electrical design | Medium temperature |
|---|---|---|---|---|---|
| PE2091 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2092 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2093 | -1...25 bar / -14.5...362.5 psi / -0.1...2.5 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2094 | -1...10 bar / -14.6...145 psi / -0.1...1 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2096 | -0.125...2.5 bar / -125...2500 mbar / -1.8...36.25 psi / -12.5...250 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2099 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2591 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2592 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2593 | -1...25 bar / -14.5...362.5 psi / -0.1...2.5 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2594 | -1...10 bar / -14.6...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2596 | -0.125...2.5 bar / -125...2500 mbar / -1.8...36.25 psi / -12.5...250 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PE2599 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2012 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2014 | 0...16 bar / 0...232 psi / 0...1.6 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2015 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2070 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2071 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2091 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2092 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2093 | -1...25 bar / -14.5...362.5 psi / -0.1...2.5 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2094 | -1...10 bar / -14.6...145 psi / -0.1...1 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2096 | -0.125...2.5 bar / -125...2500 mbar / -1.8...36.25 psi / -12.5...250 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2097 | -0.05...1 bar / -50...1000 mbar / -0.72...14.5 psi / -20.1...401.5 inH2O / -5...100 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2098 | -0.0125...0.25 bar / -12.5...250 mbar / -5...100.4 inH2O / -1.25...25 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2099 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -29.5...29.5 inHg / -401...401 inH2O / -100...100 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2160 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2169 | -0.5...0.5 bar / -500...500 mbar / -7.26...7.26 psi / -201...201 inH2O / -50...50 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2270 | 0...400 bar / 0...5800 psi / 0...40 MPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2271 | 0...250 bar / 0...3625 psi / 0...25 MPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2292 | 0...100 bar / 0...1450 psi / 0...10 MPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2293 | -1...25 bar / -14.5...362.5 psi / -0.1...2.5 MPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2294 | -1...10 bar / -14.6...145 psi / -100...1000 kPa / -0.1...1 MPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2296 | -0.125...2.5 bar / -125...2500 mbar / -1.8...36.25 psi / -12.5...250 kPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2297 | -0.05...1 bar / -50...1000 mbar / -0.72...14.5 psi / -20.1...401.5 inH2O / -5...100 kPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2298 | -0.0125...0.25 bar / -12.5...250 mbar / -5...100.4 inH2O / -1.25...25 kPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2299 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -29.5...29.5 inHg / -401...401 inH2O / -100...100 kPa | 1/4" NPT Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2512 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2514 | 0...16 bar / 0...232 psi / 0...1.6 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2515 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2560 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2569 | -0.5...0.5 bar / -500...500 mbar / -7.26...7.26 psi / -201...201 inH2O / -50...50 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2570 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2571 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2592 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2593 | -1...25 bar / -14.5...362.5 psi / -0.1...2.5 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2594 | -1...10 bar / -14.6...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2596 | -0.125...2.5 bar / -125...2500 mbar / -1.8...36.25 psi / -12.5...250 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2597 | -0.05...1 bar / -50...1000 mbar / -0.72...14.5 psi / -20.1...401.5 inH2O / -5...100 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2598 | -0.0125...0.25 bar / -12.5...250 mbar / -5...100.4 inH2O / -1.25...25 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2599 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -29.5...29.5 inHg / -401...401 inH2O / -100...100 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2670 | 0...400 bar / 0...5800 psi / 0...40 MPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2671 | 0...250 bar / 0...3625 psi / 0...25 MPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2692 | 0...100 bar / 0...1450 psi / 0...10 MPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2693 | -1...25 bar / -14.5...362.5 psi / -0.1...2.5 MPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2694 | -1...10 bar / -14.6...145 psi / -100...1000 kPa / -0.1...1 MPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2696 | -0.125...2.5 bar / -125...2500 mbar / -1.8...36.25 psi / -12.5...250 kPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2697 | -0.05...1 bar / -50...1000 mbar / -0.72...14.5 psi / -20.1...401.5 inH2O / -5...100 kPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2698 | -0.0125...0.25 bar / -12.5...250 mbar / -5...100.4 inH2O / -1.25...25 kPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN2699 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -29.5...29.5 inHg / -402...402 inH2O / -100...100 kPa | 1/4" NPT external thread | switching signal; analog signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN3070 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3071 | 0...250 bar / 0...3620 psi / 0...25 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3092 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3093 | 0...25 bar / 0...362 psi / 0...2.5 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3094 | -1...10 bar / -14.5...145 psi / -0.1...1 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3096 | 0...2.5 bar / 0...2500 mbar / 0...36.2 psi / 0...250 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3097 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...29.5 inHg / 0...100 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3129 | -1...0 bar / -1000...0 mbar / -14.5...0 psi / -29.5...0 inHg / -100...0 kPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3160 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 Internal thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3529 | -1...0 bar / -1000...0 mbar / -14.5...0 psi / -29.5...0 inHg / -100...0 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3560 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3570 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3571 | 0...250 bar / 0...3620 psi / 0...25 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3592 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3593 | 0...25 bar / 0...362 psi / 0...2.5 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3594 | -1...10 bar / -14.5...145 psi / -100...1000 kPa/ -0.1...1 MPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3596 | 0...2.5 bar / 0...2500 mbar / 0...36.2 psi / 0...250 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN3597 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...29.5 inHg / 0...100 kPa | G 1/4 external thread | switching signal; analog signal; IO-Link; (configurable) | PNP | -25...80 °C |
| PN7012 | 0...160 bar / 0...2322 psi / 0...16 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7014 | -1...16 bar / -14.6...232 psi / -0.1...1.6 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7015 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7070 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7071 | 0...250 bar / 0...3620 psi / 0...25 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7072 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7092 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7093 | 0...25 bar / 0...362 psi / 0...2.5 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7094 | -1...10 bar / -14.5...145 psi / -0.1...1 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7096 | 0...2.5 bar / 0...2500 mbar / 0...36.2 psi / 0...250 kPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7097 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...29.5 inHg / 0...100 kPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7099 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -29.4...29.4 inHg / -100...100 kPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7160 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7270 | 0...400 bar / 0...5800 psi / 0...40 MPa | 1/4" NPT Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7271 | 0...250 bar / 0...3620 psi / 0...25 MPa | 1/4" NPT Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7292 | 0...100 bar / 0...1450 psi / 0...10 MPa | 1/4" NPT Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7293 | 0...25 bar / 0...362 psi / 0...2.5 MPa | 1/4" NPT Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7294 | -1...10 bar / -14.5...145 psi / -100...1000 kPa/ -0.1...1 MPa | 1/4" NPT Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7296 | 0...2.5 bar / 0...2500 mbar / 0...36.2 psi / 0...250 kPa | 1/4" NPT Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7297 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...29.5 inHg / 0...100 kPa | 1/4" NPT Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7299 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -29.4...29.4 inHg / -100...100 kPa | 1/4" NPT Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7370 | 0...400 bar / 0...5800 psi / 0...40 MPa | 7/16" - 20 UNF Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7392 | 0...100 bar / 0...1450 psi / 0...10 MPa | 7/16" - 20 UNF Internal thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7512 | 0...160 bar / 0...2322 psi / 0...16 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7514 | -1...16 bar / -14.6...232 psi / -0.1...1.6 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7515 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7560 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7570 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7571 | 0...250 bar / 0...3620 psi / 0...25 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7572 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7592 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7593 | 0...25 bar / 0...362 psi / 0...2.5 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7594 | -1...10 bar / -14.5...145 psi / -100...1000 kPa/ -0.1...1 MPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7596 | 0...2.5 bar / 0...2500 mbar / 0...36.2 psi / 0...250 kPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7597 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...29.5 inHg / 0...100 kPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7599 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -29.4...29.4 inHg / -100...100 kPa | G 1/4 external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7670 | 0...400 bar / 0...5800 psi / 0...40 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7671 | 0...250 bar / 0...3620 psi / 0...25 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7692 | 0...100 bar / 0...1450 psi / 0...10 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7693 | 0...25 bar / 0...362 psi / 0...2.5 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7694 | -1...10 bar / -14.5...145 psi / -100...1000 kPa/ -0.1...1 MPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7696 | 0...2.5 bar / 0...2500 mbar / 0...36.2 psi / 0...250 kPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7697 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...29.5 inHg / 0...100 kPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PN7699 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -29.4...29.4 inHg / -100...100 kPa | 1/4" NPT external thread | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PY2033 | -1...25 bar / -14.5...362.5 psi / -0.1...2.5 MPa | G 1/2 external thread | switching signal; analog signal; (configurable) | PNP/NPN | -25...80 °C |
| PY2068 | -0.25...0.25 bar / -250...250 mbar / -3.63...3.63 psi / -25...25 kPa | G 1/4 Internal thread | switching signal; analog signal; (configurable) | PNP/NPN | -25...80 °C |
| PY2209 | -15...15 psi | 1/4" NPT Internal thread | switching signal; analog signal; (configurable) | PNP/NPN | -25...80 °C |
| PY7000 | 0...400 bar / 0...5800 psi / 0...40 MPa | flange | switching signal; IO-Link; (configurable) | PNP/NPN | -25...80 °C |
| PY9292 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 Internal thread | switching signal | PNP/NPN | -25...80 °C |
| PY9294 | -1...10 bar / -14.5...145 psi / -100...1000 kPa/ -0.1...1 MPa | G 1/4 Internal thread | switching signal | PNP/NPN | -25...80 °C |
| PY9920 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 Internal thread | switching signal | Triac | -25...80 °C |
| PY9961 | 0...250 bar / 0...3620 psi / 0...25 MPa | G 1/4 Internal thread | switching signal | PNP | -25...80 °C |
| PY9964 | -1...10 bar / -14.5...145 psi / -100...1000 kPa/ -0.1...1 MPa | G 3/4 external thread | switching signal; analog signal; (configurable) | PNP | -15...80 °C |
