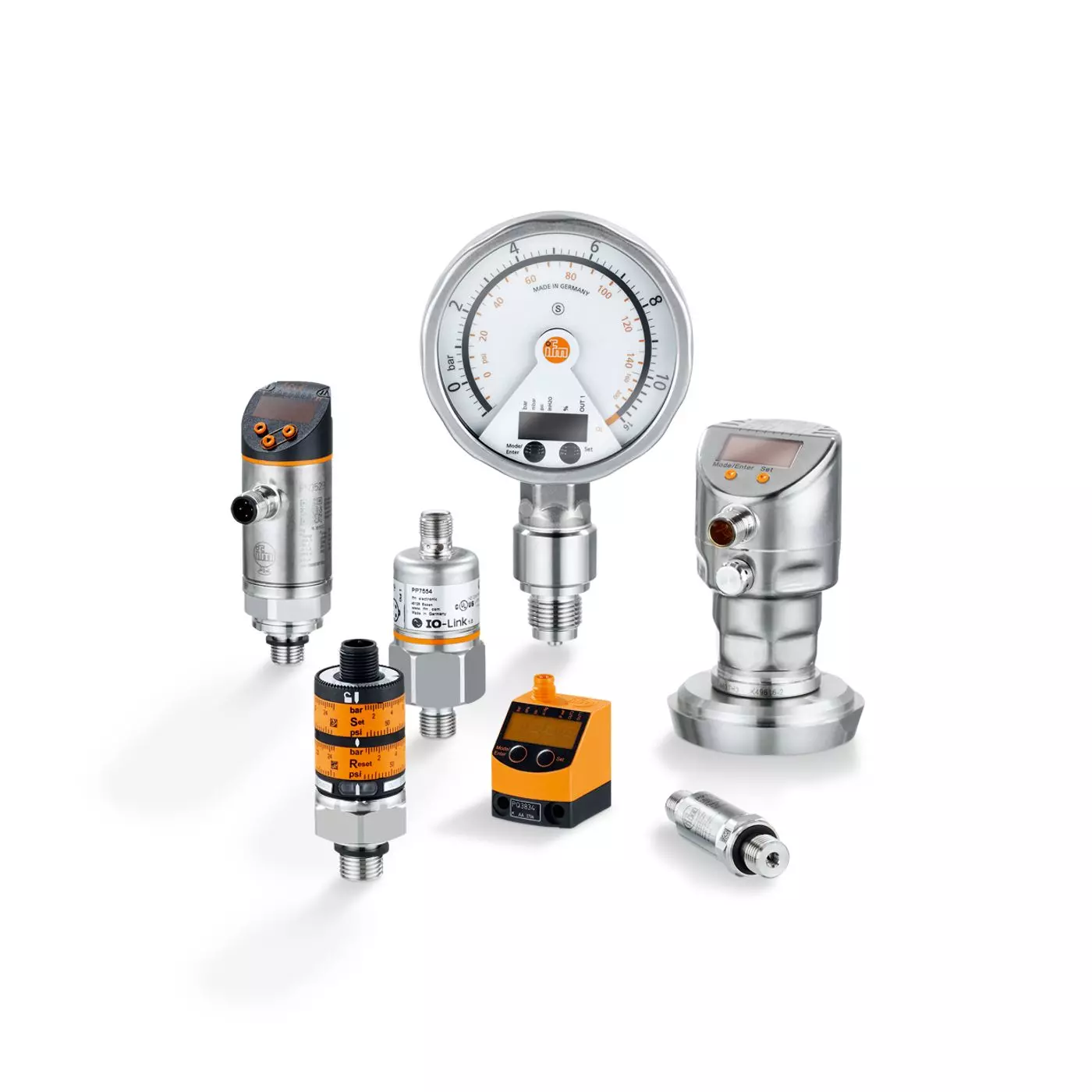

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Compact PT and PU type transmitters
The pressure transmitters of the PT and PU series reliably detect the system pressure in machines, plants and hydraulic power units of industrial and mobile applications. Designed without any seals, the transmitters can also be used in gaseous media. The compact housing ensures flexible integration even where space is limited. The robust units offer high shock, vibration and pressure resistance and ensure wear-free operation over millions of pressure cycles. The high repeatability and minimal conformity errors of the analogue measured values ensure good long-term stability. These sensors provide excellent measurement dynamics with a very short step response time for immediate reaction to fast pressure changes.
Features & Benefits
- Space-saving design for limited space
- Fast reaction due to short response time
- Measuring accuracy < ± 0.5 %, repeatability < ± 0.05 %
- Industry standard M12 connection for simple wiring
- Compact and robust stainless steel housing
Additional Notes
| MPN | Measuring range | Process connection | Output signal | Electrical design | Medium temperature |
|---|---|---|---|---|---|
| PL5400 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PL5401 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PL5402 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PL5412 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PL5423 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PT2334 | 0...300 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT2400 | 0...5000 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT2402 | 0...1000 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT2415 | 0...100 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT2424 | 0...200 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT2432 | 0...3000 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT2434 | 0...300 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT2443 | 0...500 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT2494 | -14.5...200 psi | 1/4" NPT external thread | analog signal | -40...90 °C | |
| PT5000 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5001 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5002 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5003 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5004 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT500E | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5012 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5014 | 0...16 bar / 0...232 psi / 0...1.6 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5015 | 0...6 bar / 0...87 psi / 0...600 kPa / 0...0.6 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT501E | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5023 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT502E | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT503E | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5043 | 0...40 bar / 0...580 psi / 0...4 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT504E | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5060 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5301 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5302 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5303 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5312 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5315 | 0...6 bar / 0...87 psi / 0...600 kPa / 0...0.6 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5343 | 0...40 bar / 0...580 psi / 0...4 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5400 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5401 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5402 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5403 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5404 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5412 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5414 | 0...16 bar / 0...232 psi / 0...1.6 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5415 | 0...6 bar / 0...87 psi / 0...600 kPa / 0...0.6 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5423 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5443 | 0...40 bar / 0...580 psi / 0...4 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5453 | 0...30 bar / 0...435 psi / 0...3 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5460 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5494 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PT5500 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5501 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5502 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5503 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5504 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5560 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT560E | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5700 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5701 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5702 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5703 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5704 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT5760 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT700E | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT701E | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT702E | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT703E | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT704E | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT760E | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PT9550 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...100 °C) °C | |
| PT9551 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...100 °C) °C | |
| PT9552 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...100 °C) °C | |
| PT9553 | 0...25 bar / 0...363 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...100 °C) °C | |
| PT9554 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...100 °C) °C | |
| PU5400 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5401 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5402 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5403 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5404 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5412 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5414 | 0...16 bar / 0...232 psi / 0...1.6 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5415 | 0...6 bar / 0...87 psi / 0...600 kPa / 0...0.6 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5423 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5443 | 0...40 bar / 0...580 psi / 0...4 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5460 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | -40...90 °C | |
| PU5603 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PU5604 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PU5700 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PU5701 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PU5702 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PU5703 | 0...25 bar / 0...360 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PU5704 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -40...125 °C | |
| PU5760 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 external thread | analog signal | -40...125 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040010010 | Process Sensors - Pressure & Vacuum - Types PN / PE with digital display | $0.01 | |
| IFM-040010020 | Process Sensors - Pressure & Vacuum - Sensors with gauge display for Industrial and sanitary applications - Type PG | $0.01 | |
| IFM-040010030 | Process Sensors - Pressure & Vacuum - Sensors with digital display for sanitary applications - Type PI | $0.01 | |
| IFM-040010040 | Process Sensors - Pressure & Vacuum - Sensors for high temperature with integrated triclamp for sanitary applications - Type PI | $0.01 | |
| IFM-040010050 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for sanitary applications - Type PM | $0.01 | |
| IFM-040010060 | Process Sensors - Pressure & Vacuum - Pressure sensors / Vacuum sensors with display for pneumatic applications - Type PQ | $0.01 | |
| IFM-040010070 | Process Sensors - Pressure & Vacuum - Switches with adjustment dials - Type PK | $0.01 | |
| IFM-040010075 | Process Sensors - Pressure & Vacuum - Flush mountable for industrial applications | $0.01 | |
| IFM-040010090 | Process Sensors - Pressure & Vacuum - Transmitter with ceramic capacitive technology - Type PA and PX | $0.01 | |
| IFM-040010100 | Process Sensors - Pressure & Vacuum - Switches with ceramic capacitive technology - Type PP and PV | $0.01 | |
| IFM-040010110 | Process Sensors - Pressure & Vacuum - Transmitters for mobile applications | $0.01 | |
| IFM-040010120 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for hydrostatic level applications - Type PI, PG and PM | $0.01 | |
| IFM-040010140 | Process Sensors - Pressure & Vacuum - Submersible transmitters for hydrostatic level - Type PS | $0.01 | |
| IFM-040010150 | Process Sensors - Pressure & Vacuum - Switches for differential pressure - Type PNI | $0.01 | |
| IFM-040010160 | Process Sensors - Pressure & Vacuum - Switches for gap detection | $0.01 |
