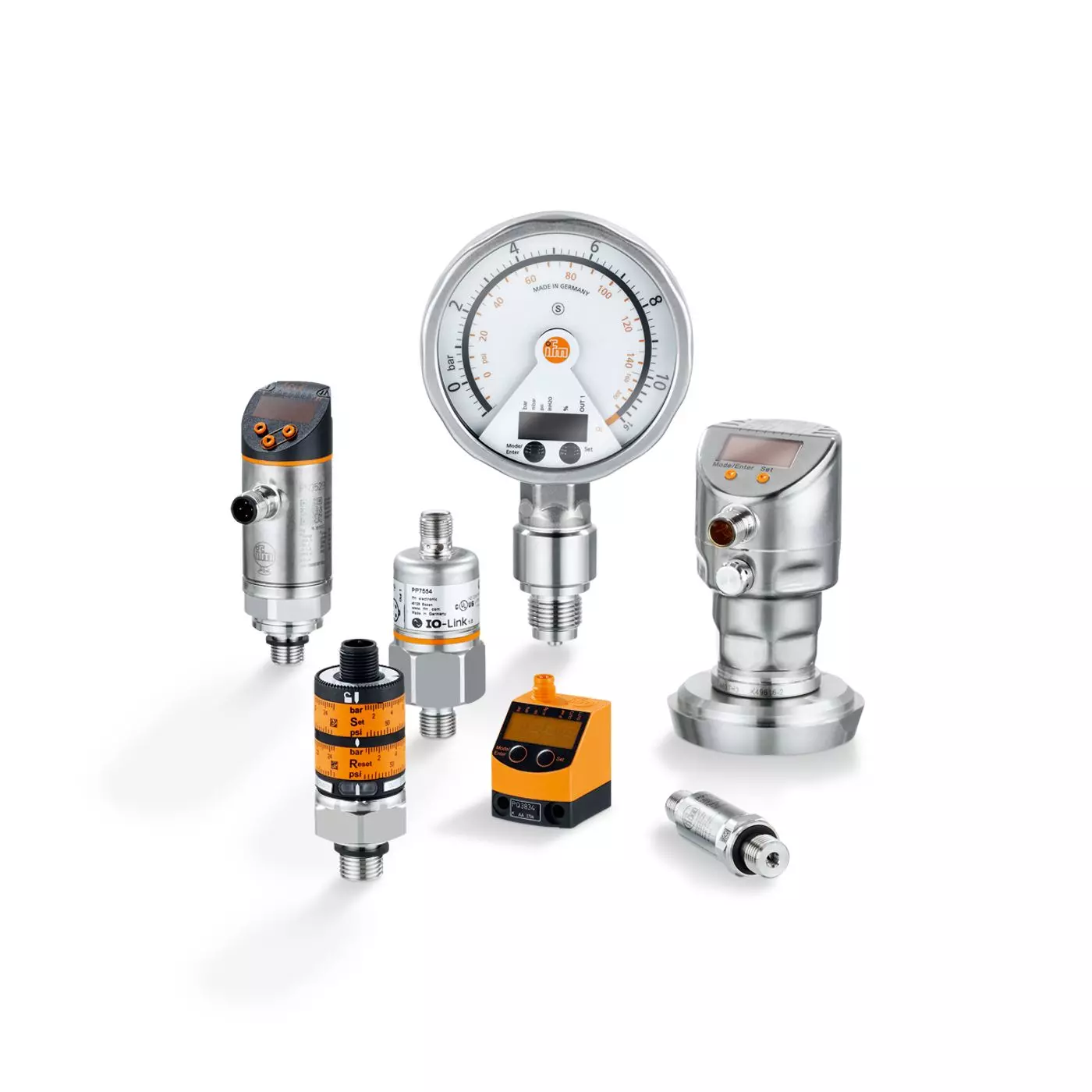

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
PA type transmitters
The pressure transmitters of the PA series reliably detect the system pressure in machines, plants and hydraulic power units of industrial and mobile applications. The compact housing ensures flexible integration even where space is limited. The robust units offer high shock and vibration resistance and ensure wear-free operation over millions of pressure cycles. The high repeatability and minimal conformity errors of the analogue measured values ensure good long-term stability.
Features & Benefits
- High total accuracy of 0.5 %
- Variants with 4...20 mA or 0...10 V analog output
- Excellent overload protection and long-term stability
- Excellent price/performance ratio
Additional Notes
| MPN | Measuring range | Process connection | Output signal | Electrical design | Medium temperature |
|---|---|---|---|---|---|
| PA3020 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3021 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3022 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3023 | 0...25 bar / 0...363 psi / 0...2.5 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3024 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3026 | 0...2.5 bar / 0...2500 mbar / 0...36 psi / 0...250 kPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3027 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...100 kPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3028 | 0...0.25 bar / 0...250 mbar / 0...100.3 inH2O / 0...25 kPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3029 | -1...0 bar / -1000...0 mbar / -14.5...0 psi / -100...0 kPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3060 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3220 | 0...400 bar / 0...5800 psi / 0...40 MPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3221 | 0...250 bar / 0...3625 psi / 0...25 MPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3222 | 0...100 bar / 0...1450 psi / 0...10 MPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3223 | 0...25 bar / 0...363 psi / 0...2.5 MPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3224 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3226 | 0...2.5 bar / 0...2500 mbar / 0...36 psi / 0...250 kPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3227 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...100 kPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3228 | 0...0.25 bar / 0...250 mbar / 0...100.3 inH2O / 0...25 kPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3509 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3521 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3522 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3523 | 0...25 bar / 0...363 psi / 0...2.5 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3524 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3526 | 0...2.5 bar / 0...2500 mbar / 0...36 psi / 0...250 kPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3528 | 0...0.25 bar / 0...250 mbar / 0...100.3 inH2O / 0...25 kPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA3589 | 0...0.1 bar / 0...100 mbar / 0...40.16 inH2O / 0...10 kPa | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA6229 | -1...0 bar / -1000...0 mbar / -14.5...0 psi / -100...0 kPa | 1/4" NPT Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9020 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9021 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9022 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9023 | 0...25 bar / 0...363 psi / 0...2.5 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9024 | 0...10 bar / 0...145 psi / 0...1000 kPa / 0...1 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9026 | 0...2.5 bar / 0...2500 mbar / 0...36 psi / 0...250 kPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9027 | 0...1 bar / 0...1000 mbar / 0...14.5 psi / 0...100 kPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9028 | 0...0.25 bar / 0...250 mbar / 0...100.3 inH2O / 0...25 kPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9029 | -1...0 bar / -1000...0 mbar / -14.5...0 psi / -100...0 kPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PA9060 | 0...600 bar / 0...8700 psi / 0...60 MPa | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PX3111 | 0...3000 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3220 | 0...5000 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3222 | 0...1000 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3223 | 0...500 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3224 | 0...100 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3226 | 0...30 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3227 | 0...15 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3228 | 0...100 inH2O | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3229 | -14.5...0 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3233 | 0...250 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3234 | 0...200 psi | 1/4" NPT external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PX3237 | 0...20 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3238 | 0...5 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3244 | 0...150 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX3524 | -1...10 bar | G 1/4 external thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PX3980 | 0...400 bar | G 1/4 external thread | analog signal | -25...90 °C | |
| PX3981 | 0...160 bar | G 1/4 external thread | analog signal | -25...90 °C | |
| PX9020 | 0...400 bar | G 1/4 Internal thread | analog signal | -25...90; (on request: -40...90 °C) °C | |
| PX9110 | 0...5000 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX9111 | 0...3000 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX9112 | 0...1000 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX9114 | 0...100 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX9116 | 0...30 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX9117 | 0...15 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX9119 | -14.5...0 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX9134 | 0...200 psi | 1/4" NPT external thread | analog signal | -25...90 °C | |
| PX9224 | 0...100 psi | 1/4" NPT Internal thread | analog signal | -25...90 °C | |
| PX9227 | 0...15 psi | 1/4" NPT Internal thread | analog signal | -25...90 °C |
