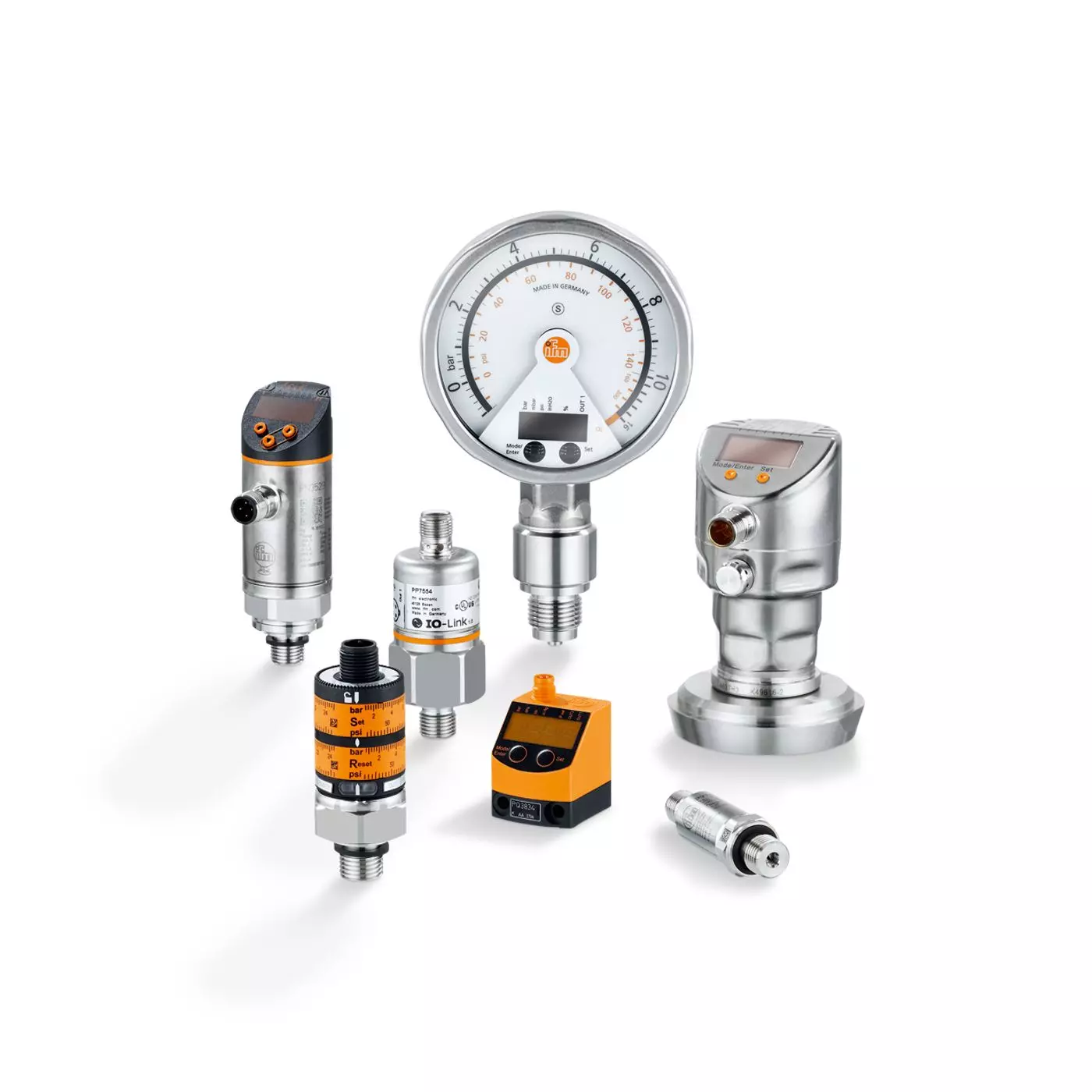

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Flush sensors for industrial applications
Flush pressure sensors for non-hygienic applications are especially used for pressure measurement in applications where adhesives, glues, sealants, foams and other viscous media would cure in dead spaces.
The flush connection also prevents clogging of the process connection with contaminated media.
Features & Benefits
- Flush mount installation in containers, tanks and pipes
- Resistant to pressure peaks and vacuum
- Fast installation and maintenance-free operation
- Space-saving design for limited space
- Industry standard M12 connection for simple wiring
Additional Notes
| MPN | Measuring range | Process connection | Output signal | Electrical design | Medium temperature |
|---|---|---|---|---|---|
| PL5400 | 0...400 bar / 0...5800 psi / 0...40 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PL5401 | 0...250 bar / 0...3625 psi / 0...25 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PL5402 | 0...100 bar / 0...1450 psi / 0...10 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PL5412 | 0...160 bar / 0...2320 psi / 0...16 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PL5423 | 0...60 bar / 0...870 psi / 0...6 MPa | G 1/4 external thread | analog signal | -25...90 °C | |
| PY2033 | -1...25 bar / -14.5...362.5 psi / -0.1...2.5 MPa | G 1/2 external thread | switching signal; analog signal; (configurable) | PNP/NPN | -25...80 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040010010 | Process Sensors - Pressure & Vacuum - Types PN / PE with digital display | $0.01 | |
| IFM-040010020 | Process Sensors - Pressure & Vacuum - Sensors with gauge display for Industrial and sanitary applications - Type PG | $0.01 | |
| IFM-040010030 | Process Sensors - Pressure & Vacuum - Sensors with digital display for sanitary applications - Type PI | $0.01 | |
| IFM-040010040 | Process Sensors - Pressure & Vacuum - Sensors for high temperature with integrated triclamp for sanitary applications - Type PI | $0.01 | |
| IFM-040010050 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for sanitary applications - Type PM | $0.01 | |
| IFM-040010060 | Process Sensors - Pressure & Vacuum - Pressure sensors / Vacuum sensors with display for pneumatic applications - Type PQ | $0.01 | |
| IFM-040010070 | Process Sensors - Pressure & Vacuum - Switches with adjustment dials - Type PK | $0.01 | |
| IFM-040010080 | Process Sensors - Pressure & Vacuum - Transmitters with strain gauge technology - Type PT / PU | $0.01 | |
| IFM-040010090 | Process Sensors - Pressure & Vacuum - Transmitter with ceramic capacitive technology - Type PA and PX | $0.01 | |
| IFM-040010100 | Process Sensors - Pressure & Vacuum - Switches with ceramic capacitive technology - Type PP and PV | $0.01 | |
| IFM-040010110 | Process Sensors - Pressure & Vacuum - Transmitters for mobile applications | $0.01 | |
| IFM-040010120 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for hydrostatic level applications - Type PI, PG and PM | $0.01 | |
| IFM-040010140 | Process Sensors - Pressure & Vacuum - Submersible transmitters for hydrostatic level - Type PS | $0.01 | |
| IFM-040010150 | Process Sensors - Pressure & Vacuum - Switches for differential pressure - Type PNI | $0.01 | |
| IFM-040010160 | Process Sensors - Pressure & Vacuum - Switches for gap detection | $0.01 |
