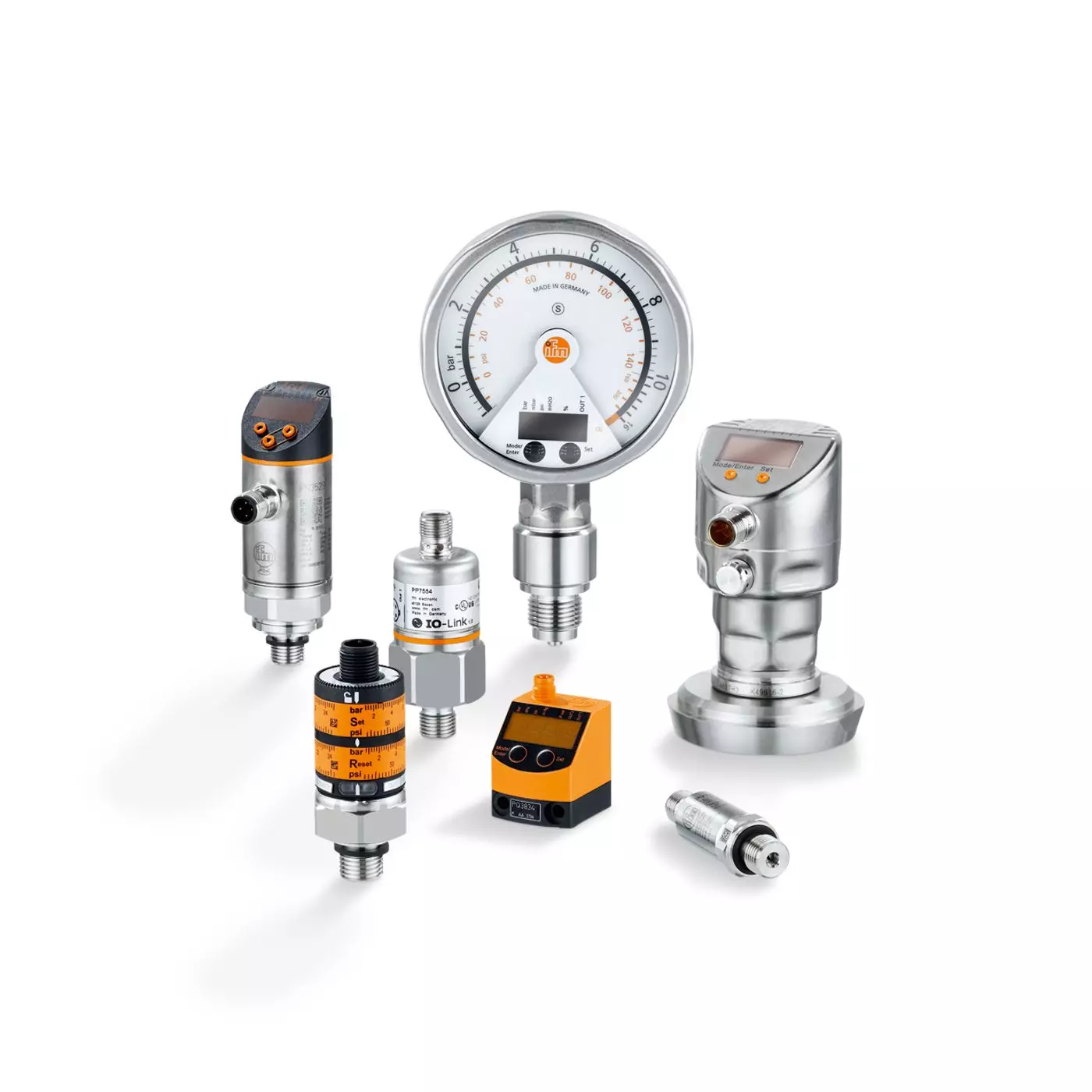

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Flush-mount transmitters for process technology
Flush-mount transmitters of the PL and PM series are used for reliable hydrostatic level measurement and system pressure measurement in pipes. Flush-mount installation in the tank or vessel wall ensures reliable cleaning and sterilisation in the process. The compact stainless steel housing is potted, offering optimum protection against ingress of moisture and aggressive media. Thanks to a broad selection of process adapters, the sensors can be used in nearly all industrial applications. Remote parameter setting of the units is possible. The measuring range is defined by setting the zero point and the span.
Features & Benefits
- Overload-resistant ceramic measuring cell
- Resistant to pressure peaks and vacuum
- Fast installation and maintenance-free operation
- Scalable analog output
- Intuitive, user-friendly handling
Additional Notes
| MPN | Measuring range | Process connection | Output signal | Temperature monitoring | Medium temperature |
|---|---|---|---|---|---|
| PM1503 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1/2 external thread sealing cone | analog signal; IO-Link | yes | -25...125; (150 max. 1h) °C |
| PM1504 | -1...10 bar / -14.5...145 psi / -0.1...1 MPa | G 1/2 external thread sealing cone | analog signal; IO-Link | yes | -25...125; (< 1 h: 150) °C |
| PM1505 | -1...4 bar / -14.5...58 psi / -100...400 kPa | G 1/2 external thread sealing cone | analog signal; IO-Link | yes | -25...125; (< 1 h: 150) °C |
| PM1506 | -125...2500 mbar / -1.82...36.26 psi / -12.5...250 kPa | G 1/2 external thread sealing cone | analog signal; IO-Link | yes | -25...125; (< 1 h: 150) °C |
| PM1514 | -1...16 bar / -14.6...232 psi / -0.1...1.6 MPa | G 1/2 external thread sealing cone | analog signal; IO-Link | yes | -25...125; (< 1 h: 150) °C |
| PM1515 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1/2 external thread sealing cone | analog signal; IO-Link | yes | -25...125; (< 1 h: 150) °C |
| PM1543 | -1...40 bar / -14.6...580.2 psi / -0.1...4 MPa | G 1/2 external thread sealing cone | analog signal; IO-Link | yes | -25...125; (< 1 h: 150) °C |
| PM1602 | -1...100 bar / -15...1450 psi / -0.1...10 MPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1603 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1604 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1605 | -1...4 bar / -14.5...58 psi / -100...400 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1606 | -0.125...2.5 bar / -125...2500 mbar / -1.82...36.26 psi / -12.5...250 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1607 | -0.05...1 bar / -50...1000 mbar / -0.73...14.5 psi / -5...100 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1608 | -0.0125...0.25 bar / -12.5...250 mbar / -0.182...3.626 psi / -1.25...25 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1609 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1614 | -1...16 bar / -14.6...232 psi / -0.1...1.6 MPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1615 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1617 | -0.1...1.6 bar / -100...1600 mbar / -1.45...23.21 psi / -10...160 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1618 | -0.05...0.4 bar / -50...400 mbar / -0.725...5.8 psi / -5...40 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1689 | -0.005...0.1 bar / -5...100 mbar / -0.073...1.45 psi / -0.5...10 kPa | G 1 external thread sealing cone | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1703 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1704 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1705 | -1...4 bar / -14.5...58 psi / -100...400 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1706 | -0.125...2.5 bar / -125...2500 mbar / -1.82...36.26 psi / -12.5...250 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1707 | -0.05...1 bar / -50...1000 mbar / -0.73...14.5 psi / -5...100 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1708 | -0.0125...0.25 bar / -12.5...250 mbar / -0.182...3.626 psi / -1.25...25 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1709 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1714 | -1...16 bar / -14.6...232 psi / -0.1...1.6 MPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1715 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1717 | -0.1...1.6 bar / -100...1600 mbar / -1.45...23.21 psi / -10...160 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1718 | -0.05...0.4 bar / -50...400 mbar / -0.725...5.8 psi / -5...40 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PM1789 | -0.005...0.1 bar / -5...100 mbar / -0.073...1.45 psi / -0.5...10 kPa | G 1 external thread Aseptoflex Vario | analog signal; IO-Link; (configurable) | no | -25...125; (150 max. 1h) °C |
| PY2006 | -125...2500 mbar / -1.82...36.26 psi / -12.5...250 kPa | G 1 external thread Aseptoflex Vario | analog signal; (configurable) | -25...85; (125: < 1 h) °C | |
| PY2007 | -50...1000 mbar / -0.73...14.5 psi / -5...100 kPa | G 1 external thread Aseptoflex Vario | analog signal; (configurable) | -25...85; (125: < 1 h) °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040010010 | Process Sensors - Pressure & Vacuum - Types PN / PE with digital display | $0.01 | |
| IFM-040010020 | Process Sensors - Pressure & Vacuum - Sensors with gauge display for Industrial and sanitary applications - Type PG | $0.01 | |
| IFM-040010030 | Process Sensors - Pressure & Vacuum - Sensors with digital display for sanitary applications - Type PI | $0.01 | |
| IFM-040010040 | Process Sensors - Pressure & Vacuum - Sensors for high temperature with integrated triclamp for sanitary applications - Type PI | $0.01 | |
| IFM-040010060 | Process Sensors - Pressure & Vacuum - Pressure sensors / Vacuum sensors with display for pneumatic applications - Type PQ | $0.01 | |
| IFM-040010070 | Process Sensors - Pressure & Vacuum - Switches with adjustment dials - Type PK | $0.01 | |
| IFM-040010075 | Process Sensors - Pressure & Vacuum - Flush mountable for industrial applications | $0.01 | |
| IFM-040010080 | Process Sensors - Pressure & Vacuum - Transmitters with strain gauge technology - Type PT / PU | $0.01 | |
| IFM-040010090 | Process Sensors - Pressure & Vacuum - Transmitter with ceramic capacitive technology - Type PA and PX | $0.01 | |
| IFM-040010100 | Process Sensors - Pressure & Vacuum - Switches with ceramic capacitive technology - Type PP and PV | $0.01 | |
| IFM-040010110 | Process Sensors - Pressure & Vacuum - Transmitters for mobile applications | $0.01 | |
| IFM-040010120 | Process Sensors - Pressure & Vacuum - Flush mount transmitters for hydrostatic level applications - Type PI, PG and PM | $0.01 | |
| IFM-040010140 | Process Sensors - Pressure & Vacuum - Submersible transmitters for hydrostatic level - Type PS | $0.01 | |
| IFM-040010150 | Process Sensors - Pressure & Vacuum - Switches for differential pressure - Type PNI | $0.01 | |
| IFM-040010160 | Process Sensors - Pressure & Vacuum - Switches for gap detection | $0.01 |
