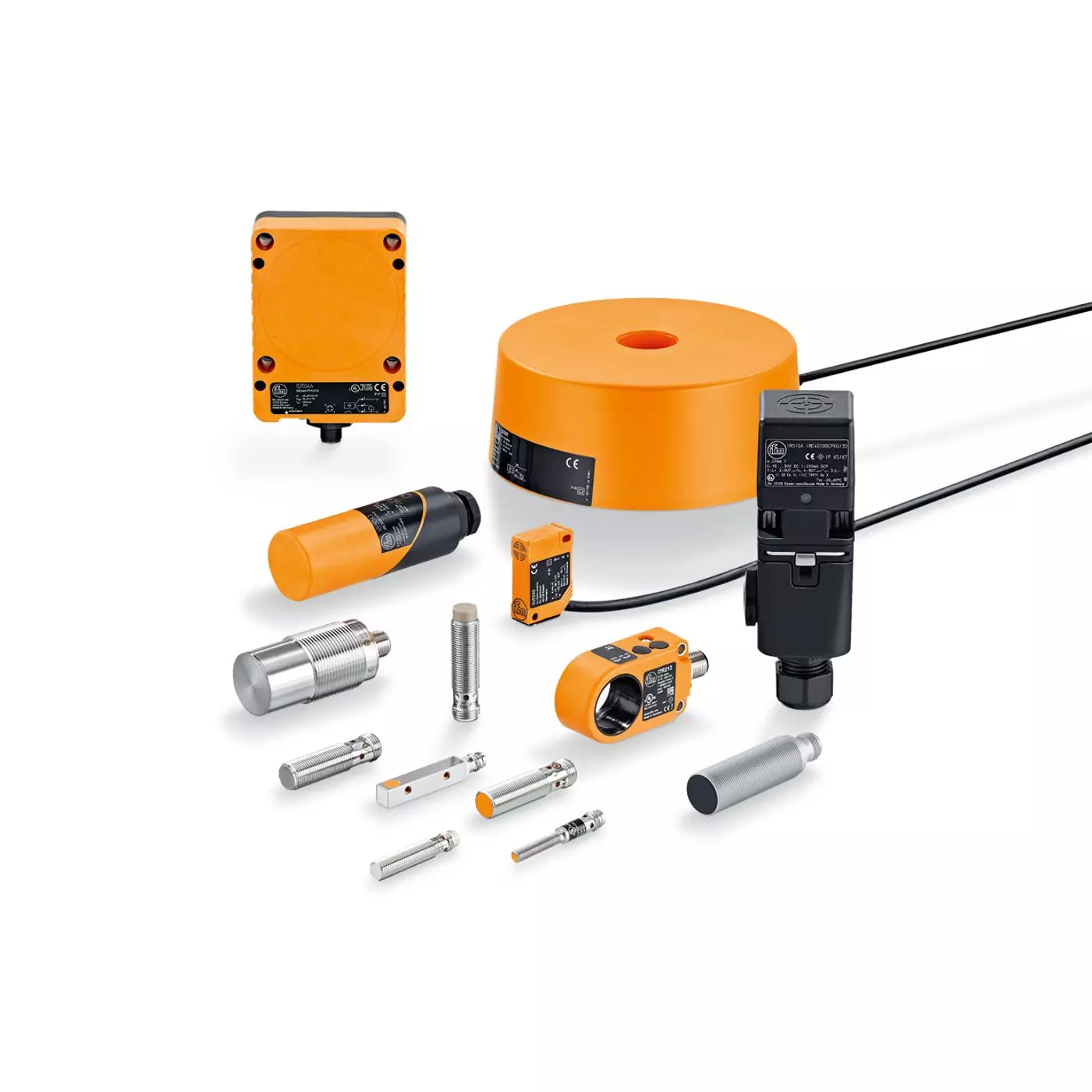

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Use at high ambient temperatures up to 180 °C
The high-temperature inductive sensors are specially designed for the steel and glass industries, but they are also suited for other hot environments and applications, such as industrial furnaces, burners and incinerators.
Standard sensors are not conceived for temperatures above 100 °C. Electronic components and tin solder would be damaged. Thanks to their special mechanical construction and the use of select materials and electronic components, the high-temperature inductive sensors are perfectly suited for temperatures up to 180 °C. With its compact and sturdy design, this series offers maximum long-term stability and reliability even under the most challenging operating conditions.
Features & Benefits
- For use in temperatures up to 180 °C
- For applications in the steel and glass industries
- Sensor and evaluation unit in one housing
- Wide range of variants
- 5 m silicone cable for termination outside high temperature environment
Additional Notes
| MPN | Sensing range | Switching frequency | Output function | Output | Dimensions |
|---|---|---|---|---|---|
| IF6074 | 3 mm flush mountable | 500 Hz | normally open | DC PNP | M12 x 1 / L = 56 mm |
| IG6119 | 8 mm non-flush mountable | 400 Hz | normally open | DC PNP | M18 x 1 / L = 77 mm |
| IG6614 | 5 mm flush mountable | 400 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| II5930 | 15 mm non-flush mountable | 200 Hz | normally open | DC PNP | M30 x 1.5 / L = 79 mm |
| II5961 | 10 mm flush mountable | 200 Hz | normally open | DC PNP | M30 x 1.5 / L = 70 mm |
| I95045 | 20 mm flush mountable | 100 Hz | normally open | DC PNP | M50 x 1.5 / L = 70 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010010010 | Position Sensors - Inductive - Industrial automation applications | $0.01 | |
| IFM-010010020 | Position Sensors - Inductive - Kplus - No correction factor | $0.01 | |
| IFM-010010025 | Position Sensors - Inductive - IO-Link enabled sensors | $0.01 | |
| IFM-010010030 | Position Sensors - Inductive - Coolant and machining applications | $0.01 | |
| IFM-010010040 | Position Sensors - Inductive - High pressure cleaning applications | $0.01 | |
| IFM-010010050 | Position Sensors - Inductive - Welding applications | $0.01 | |
| IFM-010010060 | Position Sensors - Inductive - Mobile equipment applications | $0.01 | |
| IFM-010010070 | Position Sensors - Inductive - Metal face solutions | $0.01 | |
| IFM-010010080 | Position Sensors - Inductive - Ring and tube sensors | $0.01 | |
| IFM-010010090 | Position Sensors - Inductive - Slot sensors | $0.01 | |
| IFM-010010100 | Position Sensors - Inductive - Analog sensors | $0.01 | |
| IFM-010010110 | Position Sensors - Inductive - Hazardous area applications | $0.01 | |
| IFM-010010120 | Position Sensors - Inductive - Fail-safe | $0.01 | |
| IFM-010010130 | Position Sensors - Inductive - Ferrous only solutions | $0.01 | |
| IFM-010010145 | Position Sensors - Inductive - Sensors for limited space | $0.01 |
