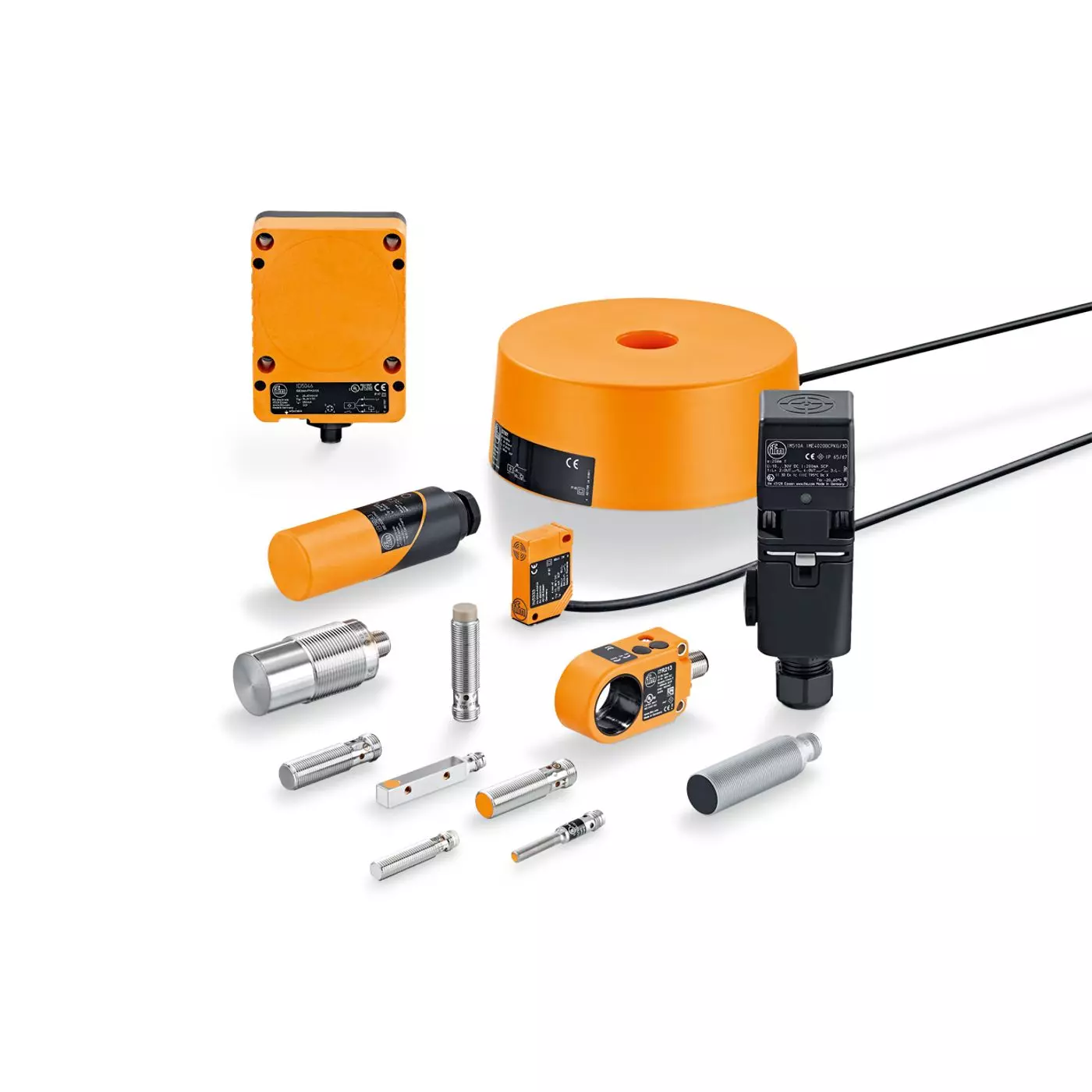

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Selective detection of ferrous metals
These inductive sensors only detect ferrous metals. Aluminium chips which build up on the active face during the process and lead to incorrect switching of conventional sensors are ignored due to this principle. The sensor is resistant to oil and coolants thanks to a special design, additional seals and a stainless steel sensing face. This results in a long life. During installation, the reinforced housing allows a tightening torque which is up to two times higher than that of standard sensors. Due to the permanently legible laser type label the unit can still be clearly identified after many years.
Features & Benefits
- Selective detection of ferrous metals
- Faulty switching due to aluminium chips excluded
- Resistant to oils and coolants
- High shock and vibration resistance
- Compact and robust stainless steel housing
Additional Notes
| MPN | Sensing range | Switching frequency | Output function | Output | Dimensions |
|---|---|---|---|---|---|
| IFC263 | 2.5 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFC264 | 2.5 mm flush mountable | 100 Hz | normally closed | DC PNP | M12 x 1 / L = 60 mm |
| IGC249 | 4.5 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGC250 | 4.5 mm flush mountable | 100 Hz | normally closed | DC PNP | M18 x 1 / L = 70 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010010010 | Position Sensors - Inductive - Industrial automation applications | $0.01 | |
| IFM-010010020 | Position Sensors - Inductive - Kplus - No correction factor | $0.01 | |
| IFM-010010025 | Position Sensors - Inductive - IO-Link enabled sensors | $0.01 | |
| IFM-010010030 | Position Sensors - Inductive - Coolant and machining applications | $0.01 | |
| IFM-010010040 | Position Sensors - Inductive - High pressure cleaning applications | $0.01 | |
| IFM-010010050 | Position Sensors - Inductive - Welding applications | $0.01 | |
| IFM-010010060 | Position Sensors - Inductive - Mobile equipment applications | $0.01 | |
| IFM-010010070 | Position Sensors - Inductive - Metal face solutions | $0.01 | |
| IFM-010010080 | Position Sensors - Inductive - Ring and tube sensors | $0.01 | |
| IFM-010010090 | Position Sensors - Inductive - Slot sensors | $0.01 | |
| IFM-010010100 | Position Sensors - Inductive - Analog sensors | $0.01 | |
| IFM-010010110 | Position Sensors - Inductive - Hazardous area applications | $0.01 | |
| IFM-010010120 | Position Sensors - Inductive - Fail-safe | $0.01 | |
| IFM-010010145 | Position Sensors - Inductive - Sensors for limited space | $0.01 | |
| IFM-010010165 | Position Sensors - Inductive - Sensors with long sensing range | $0.01 |
