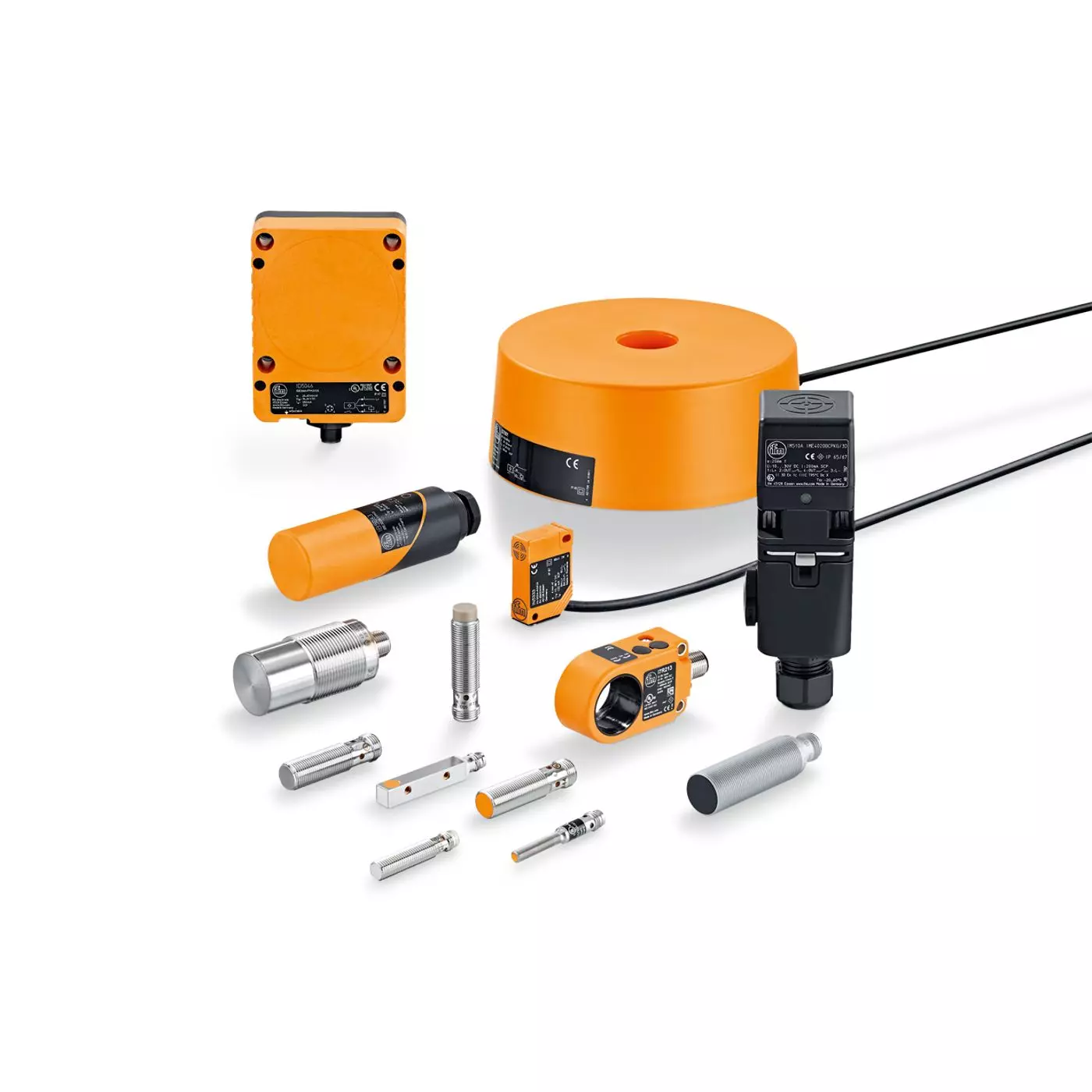

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Material-independent recognition
No matter whether steel, aluminium, copper or other non-ferrous metals: The "K=1" sensors have the same sensing range on all metals, i.e. the correction factor is constantly 1. The increased sensing range is ensured across the whole temperature range, giving better protection against failure due to mechanical damage. As compared to standard sensors of this type the switching frequency of 2000 Hz means a more-than-average rate. ifm sensors have been designed for a service life of many years. This is also reflected by the details. For example the captive laser type label means the units can still be clearly identified after years of use.
Features & Benefits
- Resistant to oils and coolants
- Correction factor K=1: Constant sensing range on all metals
- Very high switching frequency
- Permanently legible laser type label
- Long sensing range minimizes physical damage
Additional Notes
| MPN | Dimensions | Sensing range | Output function | Output | Connection |
|---|---|---|---|---|---|
| IE5390 | M8 x 1 / L = 60 mm | 1.5 mm flush mountable | normally open | DC PNP | M8 Connector |
| IE5391 | M8 x 1 / L = 60 mm | 4 mm non-flush mountable | normally open | DC PNP | M8 Connector |
| IES200 | M8 x 1 / L = 40 mm | 3 mm flush mountable | normally open | DC PNP | M8 Connector |
| IES201 | M8 x 1 / L = 40 mm | 6 mm non-flush mountable | normally open | DC PNP | M8 Connector |
| IES203 | M8 x 1 / L = 37.5 mm | 6 mm non-flush mountable | normally open | DC PNP | 2 m PUR-Cable |
| IES204 | M8 x 1 / L = 37.5 mm | 3 mm flush mountable | normally closed | DC PNP | 2 m PUR-Cable |
| IES205 | M8 x 1 / L = 37.5 mm | 6 mm non-flush mountable | normally closed | DC PNP | 2 m PUR-Cable |
| IES206 | M8 x 1 / L = 37.5 mm | 3 mm flush mountable | normally closed | DC NPN | 2 m PUR-Cable |
| IES207 | M8 x 1 / L = 37.5 mm | 6 mm non-flush mountable | normally closed | DC NPN | 2 m PUR-Cable |
| IES208 | M8 x 1 / L = 37.5 mm | 3 mm flush mountable | normally open | DC NPN | 2 m PUR-Cable |
| IES209 | M8 x 1 / L = 37.5 mm | 6 mm non-flush mountable | normally open | DC NPN | 2 m PUR-Cable |
| IES214 | M8 x 1 mm | 3 mm flush mountable | normally open | DC PNP | 0.3 m PUR-Cable; M12 Connector |
| IES228 | M8 x 1 / L = 37.5 mm | 6 mm non-flush mountable | normally closed | DC PNP | 10 m PUR-Cable |
| IES229 | M8 x 1 / L = 37.5 mm | 3 mm flush mountable | normally open | DC PNP | 0.5 m PUR-Cable; M12 Connector |
| IEW200 | M8 x 1 / L = 40 mm | 3 mm flush mountable | normally open | DC PNP | M8 Connector |
| IEW201 | M8 x 1 / L = 40 mm | 6 mm non-flush mountable | normally open | DC PNP | M8 Connector |
| IFC246 | M12 x 1 / L = 65 mm | 8 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFC259 | M12 x 1 / L = 65 mm | 3 mm flush mountable | normally open | DC PNP | M12 Connector |
| IFS230 | M12 x 1 / L = 45 mm | 10 mm non-flush mountable | normally closed | DC PNP | M12 Connector |
| IFS285 | M12 x 1 / L = 60 mm | 4 mm flush mountable | normally open | DC PNP | M12 Connector |
| IFS286 | M12 x 1 / L = 60 mm | 10 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFS289 | M12 x 1 / L = 45 mm | 4 mm flush mountable | normally open | DC PNP | M12 Connector |
| IFS290 | M12 x 1 / L = 45 mm | 10 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFS297 | M12 x 1 / L = 45 mm | 4 mm flush mountable | normally open | DC PNP | M12 Connector |
| IFS298 | M12 x 1 / L = 45 mm | 8 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFS299 | M12 x 1 / L = 45 mm | 10 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFS304 | M12 x 1 / L = 60 mm | 4 mm flush mountable | normally open | DC PNP | M12 Connector |
| IFS305 | M12 x 1 / L = 60 mm | 8 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFS306 | M12 x 1 / L = 60 mm | 10 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFW200 | M12 x 1 / L = 65 mm | 3 mm flush mountable | normally open | DC PNP | M12 Connector |
| IFW201 | M12 x 1 / L = 65 mm | 8 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFW203 | M12 x 1 / L = 65 mm | 8 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IFW204 | M12 x 1 / L = 65 mm | 4 mm flush mountable | normally open | DC PNP | M12 Connector |
| IGC232 | M18 x 1 / L = 65 mm | 5 mm flush mountable | normally open | DC PNP | M12 Connector |
| IGC233 | M18 x 1 / L = 65 mm | 12 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IGS277 | M18 x 1 / L = 60 mm | 8 mm flush mountable | normally open | DC PNP | M12 Connector |
| IGS278 | M18 x 1 / L = 60 mm | 15 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IGS279 | M18 x 1 / L = 45 mm | 8 mm flush mountable | normally open | DC PNP | M12 Connector |
| IGS280 | M18 x 1 / L = 45 mm | 15 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IGS287 | M18 x 1 / L = 45 mm | 8 mm flush mountable | normally open | DC PNP | M12 Connector |
| IGS288 | M18 x 1 / L = 45 mm | 12 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IGS289 | M18 x 1 / L = 45 mm | 15 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IGS290 | M18 x 1 / L = 60 mm | 8 mm flush mountable | normally open | DC PNP | M12 Connector |
| IGS291 | M18 x 1 / L = 60 mm | 12 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IGS292 | M18 x 1 / L = 60 mm | 15 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IGS293 | M18 x 1 / L = 45 mm | 15 mm non-flush mountable | normally closed | DC PNP | M12 Connector |
| IGS306 | M18 x 1 / L = 60 mm | 8 mm flush mountable | normally closed | DC PNP | M12 Connector |
| IGS307 | M18 x 1 / L = 60 mm | 15 mm non-flush mountable | normally closed | DC PNP | M12 Connector |
| IGW200 | M18 x 1 / L = 65 mm | 5 mm flush mountable | normally open | DC PNP | M12 Connector |
| IGW201 | M18 x 1 / L = 65 mm | 12 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IGW202 | M18 x 1 / L = 65 mm | 8 mm flush mountable | normally open | DC PNP | M12 Connector |
| IIC218 | M30 x 1.5 / L = 65 mm | 10 mm flush mountable | normally open | DC PNP | M12 Connector |
| IIC219 | M30 x 1.5 / L = 65 mm | 22 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IIS267 | M30 x 1.5 / L = 60 mm | 15 mm flush mountable | normally open | DC PNP | M12 Connector |
| IIS268 | M30 x 1.5 / L = 60 mm | 30 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IIS269 | M30 x 1.5 / L = 45 mm | 15 mm flush mountable | normally open | DC PNP | M12 Connector |
| IIS281 | M30 x 1.5 / L = 45 mm | 15 mm flush mountable | normally open | DC PNP | M12 Connector |
| IIS282 | M30 x 1.5 / L = 60 mm | 15 mm flush mountable | normally open | DC PNP | M12 Connector |
| IIS283 | M30 x 1.5 / L = 60 mm | 22 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IIS284 | M30 x 1.5 / L = 60 mm | 30 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IIS301 | M30 x 1.5 / L = 60 mm | 15 mm flush mountable | normally closed | DC PNP | M12 Connector |
| IIS302 | M30 x 1.5 / L = 60 mm | 30 mm non-flush mountable | normally closed | DC PNP | M12 Connector |
| IIS315 | M30 x 1.5 / L = 60 mm | 15 mm flush mountable | normally open | DC PNP | M12 Connector |
| IIW200 | M30 x 1.5 / L = 65 mm | 10 mm flush mountable | normally open | DC PNP | M12 Connector |
| IIW201 | M30 x 1.5 / L = 65 mm | 22 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IIW202 | M30 x 1.5 / L = 65 mm | 15 mm flush mountable | normally open | DC PNP | M12 Connector |
| IM5084 | 40 x 40 x 66 mm | 20 mm flush mountable | complementary | DC PNP | M12 Connector |
| IM5098 | 40 x 40 x 66 mm | 35 mm non-flush mountable | complementary | DC PNP | M12 Connector |
| IM5119 | 40 x 40 x 54 mm | 20 mm flush mountable | normally open | DC PNP | M12 Connector |
| IM5120 | 40 x 40 x 54 mm | 35 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IM5124 | 40 x 40 x 54 mm | 20 mm flush mountable | complementary | DC PNP | M12 Connector |
| IM5125 | 40 x 40 x 54 mm | 35 mm non-flush mountable | complementary | DC PNP | M12 Connector |
| IM5126 | 40 x 40 x 54 mm | 40 mm non-flush mountable | complementary | DC PNP | M12 Connector |
| IM5128 | 40 x 40 x 54 mm | 20 mm flush mountable | normally open | DC PNP | M12 Connector |
| IM5129 | 40 x 40 x 54 mm | 40 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IM5130 | 40 x 40 x 54 mm | 35 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IM5131 | 40 x 40 x 54 mm | 40 mm non-flush mountable | normally open | DC PNP | M12 Connector |
| IM5132 | 40 x 40 x 54 mm | 20 mm flush mountable | complementary | DC PNP | M12 Connector |
| IM5133 | 40 x 40 x 54 mm | 35 mm non-flush mountable | complementary | DC PNP | M12 Connector |
| IM5135 | 40 x 40 x 54 mm | 40 mm non-flush mountable | complementary | DC PNP | M12 Connector |
| IQ2010 | 20 x 8 x 32 mm | 8 mm flush mountable | normally open | DC PNP | 2 m PUR-Cable |
| IQ2011 | 20 x 8 x 32 mm | 8 mm flush mountable | normally closed | DC PNP | 2 m PUR-Cable |
| IQ2012 | 20 x 8 x 32 mm | 8 mm flush mountable | normally open | DC PNP | 0.3 m PUR-Cable; M12 Connector |
| IQ2013 | 20 x 8 x 32 mm | 8 mm flush mountable | normally closed | DC PNP | 0.3 m PUR-Cable; M12 Connector |
| IQ2014 | 20 x 8 x 32 mm | 8 mm flush mountable | normally closed | DC NPN | 2 m PUR-Cable |
| IQ2015 | 20 x 8 x 32 mm | 8 mm flush mountable | normally open | DC NPN | 2 m PUR-Cable |
| IQ2016 | 20 x 8 x 32 mm | 8 mm flush mountable | normally closed | DC NPN | 0.3 m PUR-Cable; M12 Connector |
| IQ2017 | 20 x 8 x 32 mm | 8 mm flush mountable | normally open | DC NPN | 0.3 m PUR-Cable; M12 Connector |
| IQW200 | 20 x 8 x 32 mm | 8 mm flush mountable | normally open | DC PNP | 2 m PUR-Cable |
| IQW201 | 20 x 8 x 32 mm | 8 mm flush mountable | normally open | DC PNP | 0.3 m PUR-Cable; M12 Connector |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010010010 | Position Sensors - Inductive - Industrial automation applications | $0.01 | |
| IFM-010010025 | Position Sensors - Inductive - IO-Link enabled sensors | $0.01 | |
| IFM-010010030 | Position Sensors - Inductive - Coolant and machining applications | $0.01 | |
| IFM-010010040 | Position Sensors - Inductive - High pressure cleaning applications | $0.01 | |
| IFM-010010050 | Position Sensors - Inductive - Welding applications | $0.01 | |
| IFM-010010060 | Position Sensors - Inductive - Mobile equipment applications | $0.01 | |
| IFM-010010070 | Position Sensors - Inductive - Metal face solutions | $0.01 | |
| IFM-010010080 | Position Sensors - Inductive - Ring and tube sensors | $0.01 | |
| IFM-010010090 | Position Sensors - Inductive - Slot sensors | $0.01 | |
| IFM-010010100 | Position Sensors - Inductive - Analog sensors | $0.01 | |
| IFM-010010110 | Position Sensors - Inductive - Hazardous area applications | $0.01 | |
| IFM-010010120 | Position Sensors - Inductive - Fail-safe | $0.01 | |
| IFM-010010130 | Position Sensors - Inductive - Ferrous only solutions | $0.01 | |
| IFM-010010145 | Position Sensors - Inductive - Sensors for limited space | $0.01 | |
| IFM-010010165 | Position Sensors - Inductive - Sensors with long sensing range | $0.01 |
