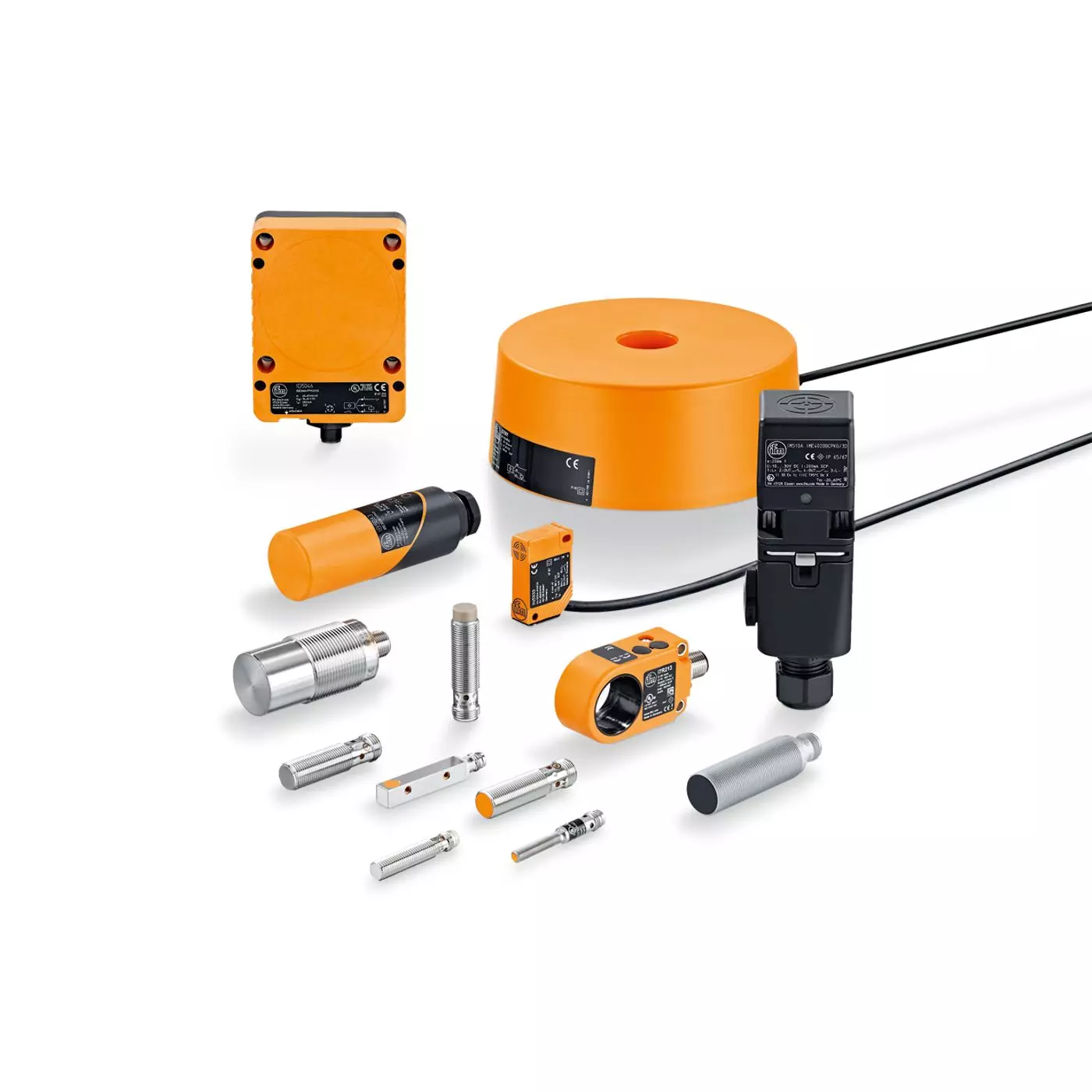

Pictures may not be actual SKU

Position Sensors - Inductive - Coolant and machining applications

Product info
IFM | ifm
010 | Position Sensors
Position Sensors - Inductive
IFM-010010030
ifm Logo
Description
IFM's 010.010.030 group of Position Sensors - Inductive sensors - Coolant and machining applications
Configuration
Base Model
Collection
010 | Position Sensors
Group
010 | Inductive Sensors
Options
Options
030
Additional Options
_ | N/A
Availability Call to confirm
Available to Order
Ships from PA
Typically ships within [ 2 ] days
24/7 Sales & Support 484-544-0506
Price
Save Compare
− +
Get a Quote
Product details Spot an error? Let us know!
Headline

Use in applications with coolants and lubricants

These unit series were specially developed for metalworking applications.

Oils and coolants heavily impact the machine components installed in machine tools. Standard sensors are insufficient in many applications. The C series has been specially designed for this industry segment. The sealing concept of the sensors combined with the suitable ecolink connector ensures maximum protection against malfunctions. The threaded body and the sensing face of the one-piece housing of the full-metal sensors are made of high-grade stainless steel. The robust material is corrosion-resistant and allows installation of the sensors in extreme applications. Sensors with increased sensing range, correction factor K = 1 (same sensing range on all metals) or K = 0 ( only detects ferrous metals) are ideal for metalworking applications. Sensors with K = 0 are insensitive to aluminium chips. This is a special advantage when engine parts made from aluminium are machined and the chips must not influence the sensors.

Features & Benefits
  • For metalworking applications
  • Sensors and connectors in perfect combination for use in oils
  • Metal sensing face for heavy duty
  • High shock and vibration resistance
  • Permanently legible laser type label
Additional Notes
MPN Sensing range Switching frequency Output function Output Dimensions
IE5328 2 mm flush mountable 1300 Hz normally open DC PNP M8 x 1 / L = 50 mm
IE5366 2 mm flush mountable 800 Hz normally open DC PNP M8 x 1 / L = 30 mm
IE5381 2 mm flush mountable 1000 Hz normally open DC PNP M8 x 1 / L = 50 mm
IE5382 4 mm non-flush mountable 700 Hz normally open DC PNP M8 x 1 / L = 50 mm
IE5390 1.5 mm flush mountable 1000 Hz normally open DC PNP M8 x 1 / L = 60 mm
IE5391 4 mm non-flush mountable 1000 Hz normally open DC PNP M8 x 1 / L = 60 mm
IE5394 2 mm flush mountable 800 Hz normally open DC PNP M8 x 1 / L = 50 mm
IEC200 2 mm flush mountable 100 Hz normally open DC PNP M8 x 1 / L = 60 mm
IEC201 2 mm flush mountable 100 Hz normally open DC PNP M8 x 1 / L = 50 mm
IEC202 2 mm flush mountable 100 Hz normally open DC NPN M8 x 1 / L = 50 mm
IEC203 2 mm flush mountable 100 Hz normally open DC NPN M8 x 1 / L = 60 mm
IEC210 2 mm flush mountable 100 Hz normally closed DC PNP M8 x 1 / L = 60 mm
IEC211 3 mm quasi flush 250 Hz normally open DC PNP M8 x 1 / L = 45 mm
IEC212 5 mm non-flush mountable 500 Hz normally open DC PNP M8 x 1 / L = 45 mm
IEC213 2 mm flush mountable 100 Hz normally open DC PNP M8 x 1 / L = 37.5 mm
IEC214 2 mm flush mountable 100 Hz normally closed DC PNP M8 x 1 / L = 37.5 mm
IEC215 2 mm flush mountable 100 Hz normally open DC NPN M8 x 1 / L = 37.5 mm
IEC216 2 mm flush mountable 100 Hz normally closed DC NPN M8 x 1 / L = 37.5 mm
IES200 3 mm flush mountable 2000 Hz normally open DC PNP M8 x 1 / L = 40 mm
IES201 6 mm non-flush mountable 2000 Hz normally open DC PNP M8 x 1 / L = 40 mm
IES203 6 mm non-flush mountable 2000 Hz normally open DC PNP M8 x 1 / L = 37.5 mm
IES204 3 mm flush mountable 2000 Hz normally closed DC PNP M8 x 1 / L = 37.5 mm
IES205 6 mm non-flush mountable 2000 Hz normally closed DC PNP M8 x 1 / L = 37.5 mm
IES206 3 mm flush mountable 2000 Hz normally closed DC NPN M8 x 1 / L = 37.5 mm
IES207 6 mm non-flush mountable 2000 Hz normally closed DC NPN M8 x 1 / L = 37.5 mm
IES208 3 mm flush mountable 2000 Hz normally open DC NPN M8 x 1 / L = 37.5 mm
IES209 6 mm non-flush mountable 2000 Hz normally open DC NPN M8 x 1 / L = 37.5 mm
IES214 3 mm flush mountable 2000 Hz normally open DC PNP M8 x 1 mm
IES228 6 mm non-flush mountable 2000 Hz normally closed DC PNP M8 x 1 / L = 37.5 mm
IES229 3 mm flush mountable 2000 Hz normally open DC PNP M8 x 1 / L = 37.5 mm
IF5775 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IF5906 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IF5917 4 mm flush mountable 250 Hz normally open DC PNP M12 x 1 / L = 70 mm
IF5957 4 mm flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 60 mm
IFC200 4 mm flush mountable 700 Hz normally open DC PNP/NPN M12 x 1 / L = 45 mm
IFC201 7 mm non-flush mountable 700 Hz normally open DC PNP/NPN M12 x 1 / L = 50 mm
IFC202 4 mm flush mountable 700 Hz normally open DC PNP/NPN M12 x 1 / L = 45 mm
IFC203 7 mm non-flush mountable 700 Hz normally open DC PNP/NPN M12 x 1 / L = 50 mm
IFC204 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFC205 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 50 mm
IFC206 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFC207 4 mm flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 45 mm
IFC208 7 mm non-flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 50 mm
IFC209 4 mm flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 45 mm
IFC210 4 mm flush mountable 500 Hz normally open DC PNP/NPN M12 x 1 / L = 70 mm
IFC229 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFC230 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFC234 4 mm flush mountable 700 Hz normally open / closed; (selectable) DC PNP/NPN M12 x 1 / L = 60 mm
IFC235 7 mm non-flush mountable 500 Hz normally open / closed; (selectable) DC PNP/NPN M12 x 1 / L = 60 mm
IFC237 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 70 mm
IFC238 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 70 mm
IFC239 2 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFC240 4 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 50 mm
IFC241 2 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 70 mm
IFC243 2 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFC246 8 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 65 mm
IFC247 4 mm flush mountable 100 Hz DC AS-i M12 x 1 / L = 60 mm
IFC248 7 mm non-flush mountable 100 Hz DC AS-i M12 x 1 / L = 60 mm
IFC258 3 mm flush mountable 100 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFC259 3 mm flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 65 mm
IFC261 3 mm flush mountable 100 Hz normally closed DC PNP M12 x 1 / L = 60 mm
IFC262 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 mm
IFC263 2.5 mm flush mountable 100 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFC264 2.5 mm flush mountable 100 Hz normally closed DC PNP M12 x 1 / L = 60 mm
IFC266 3 mm flush mountable 100 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFC275 4 mm flush mountable 100 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFC276 4 mm flush mountable 100 Hz normally open DC PNP M12 x 1 / L = 70 mm
IFC277 100 Hz normally open / closed; (configurable) DC PNP/NPN M12 x 1 / L = 60 mm
IFC278 4 mm flush mountable 100 Hz normally open DC PNP M12 x 1 / L = 40 mm
IFC279 4 mm flush mountable 100 Hz normally open DC PNP M12 x 1 / L = 40 mm
IFS240 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS241 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS242 4 mm flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFS243 7 mm non-flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFS244 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS245 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS246 4 mm flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 45 mm
IFS247 7 mm non-flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 45 mm
IFS248 4 mm flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 60 mm
IFS249 4 mm flush mountable 700 Hz normally closed DC NPN M12 x 1 / L = 60 mm
IFS250 7 mm non-flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 60 mm
IFS251 7 mm non-flush mountable 700 Hz normally closed DC NPN M12 x 1 / L = 60 mm
IFS252 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS253 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS254 4 mm flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFS255 7 mm non-flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFS256 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 40 mm
IFS257 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 40 mm
IFS258 4 mm flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 40 mm
IFS259 7 mm non-flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 40 mm
IFS260 4 mm flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 45 mm
IFS261 7 mm non-flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 45 mm
IFS262 4 mm flush mountable 700 Hz normally closed DC NPN M12 x 1 / L = 45 mm
IFS263 7 mm non-flush mountable 700 Hz normally closed DC NPN M12 x 1 / L = 45 mm
IFS268 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS285 4 mm flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS286 10 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS289 4 mm flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS290 10 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS297 4 mm flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS298 8 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS299 10 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS304 4 mm flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS305 8 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS306 10 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 60 mm
IGC001 8 mm flush mountable 25 Hz AC / 500 Hz DC normally open AC/DC M18 x 1 mm
IGC002 12 mm non-flush mountable 25 Hz AC / 400 Hz DC normally open AC/DC M18 x 1 mm
IGC200 8 mm flush mountable 400 Hz normally open DC PNP/NPN M18 x 1 / L = 46 mm
IGC201 12 mm non-flush mountable 250 Hz normally open DC PNP/NPN M18 x 1 / L = 51 mm
IGC202 8 mm flush mountable 300 Hz normally open DC PNP/NPN M18 x 1 / L = 46 mm
IGC203 12 mm non-flush mountable 250 Hz normally open DC PNP/NPN M18 x 1 / L = 51 mm
IGC204 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGC205 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 50 mm
IGC206 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 46 mm
IGC207 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 45 mm
IGC208 12 mm non-flush mountable 300 Hz normally closed DC PNP M18 x 1 / L = 51 mm
IGC209 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 46 mm
IGC210 8 mm flush mountable 400 Hz normally open DC PNP/NPN M18 x 1 / L = 70 mm
IGC211 5 mm flush mountable 25 Hz normally open DC PNP M18 x 1 / L = 70 mm
IGC213 12 mm non-flush mountable 300 Hz normally open DC PNP/NPN M18 x 1 / L = 70 mm
IGC220 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGC221 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGC222 8 mm flush mountable 400 Hz normally open / closed; (selectable) DC PNP/NPN M18 x 1 / L = 70 mm
IGC223 12 mm non-flush mountable 300 Hz normally open / closed; (selectable) DC PNP/NPN M18 x 1 / L = 70 mm
IGC224 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 70 mm
IGC226 5 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 46 mm
IGC232 5 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 65 mm
IGC233 12 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 65 mm
IGC234 8 mm flush mountable 100 Hz DC AS-i M18 x 1 / L = 60 mm
IGC235 12 mm non-flush mountable 100 Hz DC AS-i M18 x 1 / L = 60 mm
IGC236 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 60 mm
IGC248 5 mm flush mountable 100 Hz normally open DC PNP M18 x 1 / L = 70 mm
IGC249 4.5 mm flush mountable 100 Hz normally open DC PNP M18 x 1 / L = 70 mm
IGC250 4.5 mm flush mountable 100 Hz normally closed DC PNP M18 x 1 / L = 70 mm
IGC252 5 mm flush mountable 100 Hz normally open DC NPN M18 x 1 / L = 70 mm
IGC258 8 mm flush mountable 100 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGC260 100 Hz normally open / closed; (configurable) DC PNP/NPN M18 x 1 / L = 60 mm
IGC261 8 mm flush mountable 100 Hz normally open DC PNP M18 x 1 / L = 40 mm
IGS232 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS233 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS234 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 60 mm
IGS235 12 mm non-flush mountable 300 Hz normally open DC NPN M18 x 1 / L = 60 mm
IGS236 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS237 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS238 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 45 mm
IGS239 12 mm non-flush mountable 300 Hz normally open DC NPN M18 x 1 / L = 45 mm
IGS240 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 60 mm
IGS241 8 mm flush mountable 400 Hz normally closed DC NPN M18 x 1 / L = 60 mm
IGS242 12 mm non-flush mountable 300 Hz normally closed DC PNP M18 x 1 / L = 60 mm
IGS243 12 mm non-flush mountable 300 Hz normally closed DC NPN M18 x 1 / L = 60 mm
IGS244 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS245 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS246 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 60 mm
IGS247 12 mm non-flush mountable 300 Hz normally open DC NPN M18 x 1 / L = 60 mm
IGS248 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 40 mm
IGS249 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 40 mm
IGS250 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 40 mm
IGS251 12 mm non-flush mountable 300 Hz normally open DC NPN M18 x 1 / L = 40 mm
IGS252 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 45 mm
IGS253 12 mm non-flush mountable 300 Hz normally closed DC PNP M18 x 1 / L = 45 mm
IGS254 8 mm flush mountable 400 Hz normally closed DC NPN M18 x 1 / L = 45 mm
IGS255 12 mm non-flush mountable 300 Hz normally closed DC NPN M18 x 1 / L = 45 mm
IGS267 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS269 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 60 mm
IGS277 8 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS278 15 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS279 8 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS280 15 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS287 8 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS288 12 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS289 15 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS290 8 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS291 12 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS292 15 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS320 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 60 mm
IIC200 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 50 mm
IIC201 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 50 mm
IIC206 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIC207 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIC208 15 mm flush mountable 100 Hz normally open / closed; (selectable) DC PNP/NPN M30 x 1.5 / L = 70 mm
IIC209 22 mm non-flush mountable 100 Hz normally open / closed; (selectable) DC PNP/NPN M30 x 1.5 / L = 70 mm
IIC210 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 70 mm
IIC211 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 70 mm
IIC218 10 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 65 mm
IIC219 22 mm non-flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 65 mm
IIC220 14 mm flush mountable 100 Hz DC AS-i M30 x 1.5 / L = 60 mm
IIC221 22 mm non-flush mountable 100 Hz DC AS-i M30 x 1.5 / L = 60 mm
IIC222 15 mm flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 60 mm
IIC224 10 mm flush mountable 50 Hz normally open DC PNP M30 x 1.5 / L = 65 mm
IIC226 10 mm flush mountable 50 Hz normally open DC NPN M30 x 1.5 / L = 65 mm
IIC228 10 mm flush mountable 50 Hz normally closed DC PNP M30 x 1.5 / L = 65 mm
IIC233 15 mm flush mountable 50 Hz normally open DC PNP M30 x 1.5 / L = 50 mm
IIC236 50 Hz normally open / closed; (configurable) DC PNP/NPN M30 x 1.5 / L = 65 mm
IIC237 15 mm flush mountable 50 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS226 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS227 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS228 15 mm flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 60 mm
IIS229 22 mm non-flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 60 mm
IIS230 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 50 mm
IIS231 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 50 mm
IIS232 15 mm flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 50 mm
IIS233 22 mm non-flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 50 mm
IIS234 15 mm flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 60 mm
IIS235 15 mm flush mountable 100 Hz normally closed DC NPN M30 x 1.5 / L = 60 mm
IIS236 22 mm non-flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 60 mm
IIS237 22 mm non-flush mountable 100 Hz normally closed DC NPN M30 x 1.5 / L = 60 mm
IIS238 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS239 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS240 15 mm flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 60 mm
IIS241 22 mm non-flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 60 mm
IIS242 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS243 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS244 15 mm flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 45 mm
IIS245 22 mm non-flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 45 mm
IIS246 15 mm flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 50 mm
IIS247 22 mm non-flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 50 mm
IIS248 15 mm flush mountable 100 Hz normally closed DC NPN M30 x 1.5 / L = 50 mm
IIS249 22 mm non-flush mountable 100 Hz normally closed DC NPN M30 x 1.5 / L = 50 mm
IIS260 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 75 mm
IIS261 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS264 15 mm flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 60 mm
IIS267 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS268 30 mm non-flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS269 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS281 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS282 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS283 22 mm non-flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS284 30 mm non-flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS315 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS316 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IO5016 10 mm flush mountable 250 Hz normally open DC PNP/NPN 26 x 26 x 43 mm
IO5017 10 mm flush mountable 250 Hz normally open DC PNP/NPN 26 x 26 x 26 mm
IO5018 10 mm flush mountable 250 Hz normally open DC PNP/NPN 26 x 26 x 26 mm
IT5040 2 mm flush mountable 800 Hz normally open DC PNP Ø 6.5 / L = 30.5 mm
IT5044 4 mm non-flush mountable 750 Hz normally open DC PNP Ø 6.5 / L = 50 mm
Alternate configurations
SKU Description List price -
IFM-010010010 Position Sensors - Inductive - Industrial automation applications $0.01
IFM-010010010 Detail
IFM-010010020 Position Sensors - Inductive - Kplus - No correction factor $0.01
IFM-010010020 Detail
IFM-010010025 Position Sensors - Inductive - IO-Link enabled sensors $0.01
IFM-010010025 Detail
IFM-010010040 Position Sensors - Inductive - High pressure cleaning applications $0.01
IFM-010010040 Detail
IFM-010010050 Position Sensors - Inductive - Welding applications $0.01
IFM-010010050 Detail
IFM-010010060 Position Sensors - Inductive - Mobile equipment applications $0.01
IFM-010010060 Detail
IFM-010010070 Position Sensors - Inductive - Metal face solutions $0.01
IFM-010010070 Detail
IFM-010010080 Position Sensors - Inductive - Ring and tube sensors $0.01
IFM-010010080 Detail
IFM-010010090 Position Sensors - Inductive - Slot sensors $0.01
IFM-010010090 Detail
IFM-010010100 Position Sensors - Inductive - Analog sensors $0.01
IFM-010010100 Detail
IFM-010010110 Position Sensors - Inductive - Hazardous area applications $0.01
IFM-010010110 Detail
IFM-010010120 Position Sensors - Inductive - Fail-safe $0.01
IFM-010010120 Detail
IFM-010010130 Position Sensors - Inductive - Ferrous only solutions $0.01
IFM-010010130 Detail
IFM-010010145 Position Sensors - Inductive - Sensors for limited space $0.01
IFM-010010145 Detail
IFM-010010165 Position Sensors - Inductive - Sensors with long sensing range $0.01
IFM-010010165 Detail
1 2
Next
Call or text: +1 (484) 544-0506

The Supplyline team is here to help!

Click to Call
Tap to Text
Live Chat
Email Us
