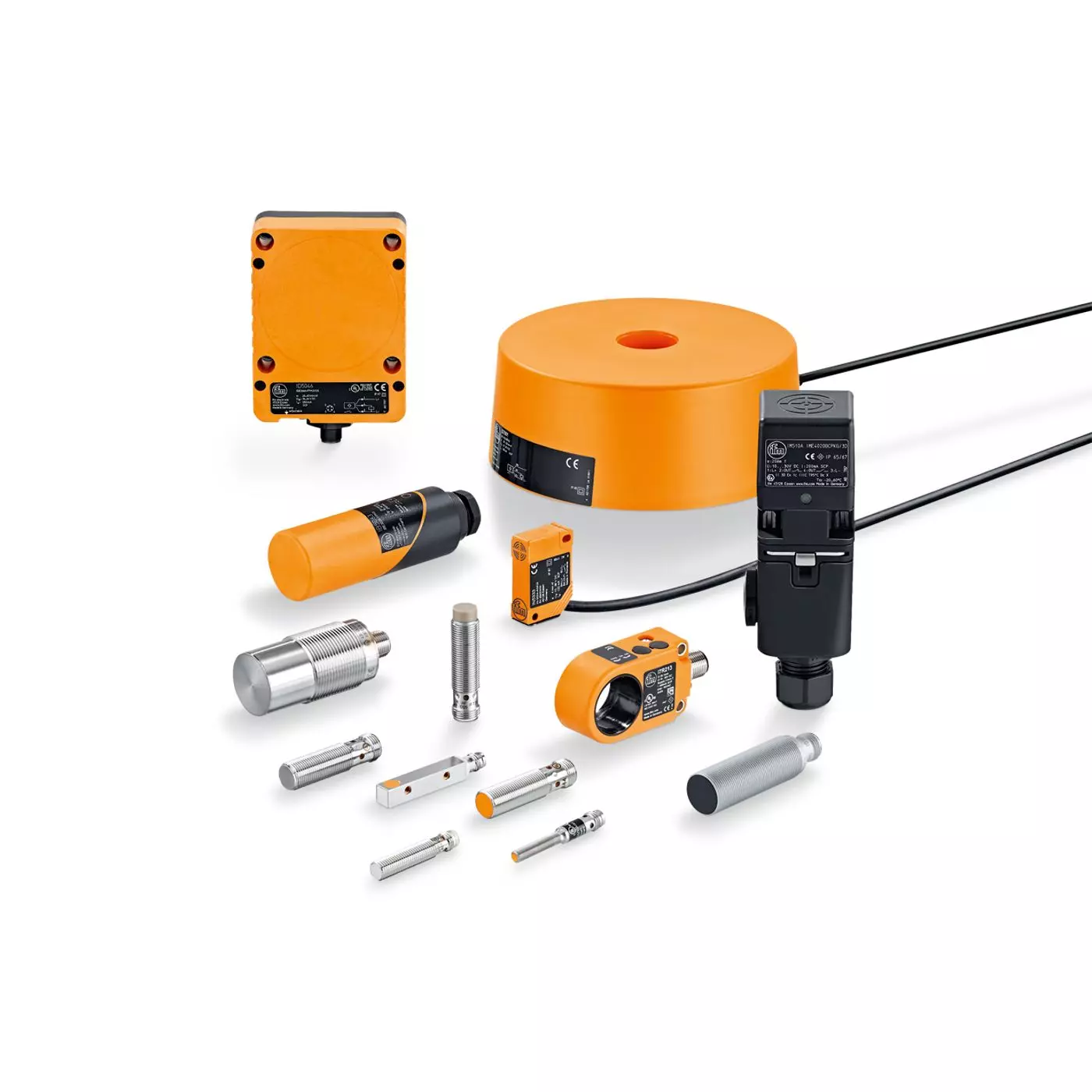

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Analogue sensors
Inductive analogue sensors can be used where distances up to 26 mm need to be measured without contact and wear. The process is monitored and controlled by means of the standard signals 4...20 mA or 0...10 V. The analogue sensors attain high repeatability and a very small linearity error.
Features & Benefits
- Converts distances in analog signals
- Large variety of sensor types
- Linear current or voltage output
- Wide operating temperature range
- High repeatability
Additional Notes
| MPN | Measuring range | Material | Ambient temperature | Protection | Dimensions |
|---|---|---|---|---|---|
| IF6028 | 0.2...2 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M12 x 1 / L = 70 mm |
| IF6029 | 0.2...2 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M12 x 1 / L = 70 mm |
| IF6030 | 0.4...4 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M12 x 1 / L = 70 mm |
| IF6031 | 0.4...4 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M12 x 1 / L = 70 mm |
| IG6083 | 0.8...8 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M18 x 1 / L = 60 mm |
| IG6084 | 0.8...8 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M18 x 1 / L = 60 mm |
| IG6086 | 0.5...5 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M18 x 1 / L = 60 mm |
| IG6087 | 0.5...5 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M18 x 1 / L = 60 mm |
| IG6621 | 0.8...8 mm | housing: brass white bronze coated; sensing face: PBT | -40...80 °C | IP 67 | M18 x 1 / L = 54 mm |
| II5913 | 1...15 mm | housing: brass white bronze coated; sensing face: PBT | -25...80 °C | IP 67 | M30 x 1.5 / L = 70 mm |
| II5914 | 1...15 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M30 x 1.5 / L = 65 mm |
| II5916 | 1...10 mm | housing: brass white bronze coated; sensing face: PBT | -25...80 °C | IP 67 | M30 x 1.5 / L = 70 mm |
| II5917 | 1...10 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M30 x 1.5 / L = 65 mm |
| II6913 | 1...15 mm | Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated | -25...80 °C | IP 65, IP 66, IP 67, IP 68, IP 69K | M30 x 1.5 / L = 65 mm |
| IM5139 | 1...15 mm | PA; brass white bronze coated | -25...80 °C | IP 67 | 40 x 40 x 54 mm |
| IM5140 | 1...15 mm | PA; brass white bronze coated | -25...80 °C | IP 67 | 40 x 40 x 54 mm |
| IM5141 | 1...26 mm | PA; brass white bronze coated | -25...80 °C | IP 67 | 40 x 40 x 54 mm |
| IM5142 | 1...26 mm | PA; brass white bronze coated | -25...80 °C | IP 67 | 40 x 40 x 54 mm |
