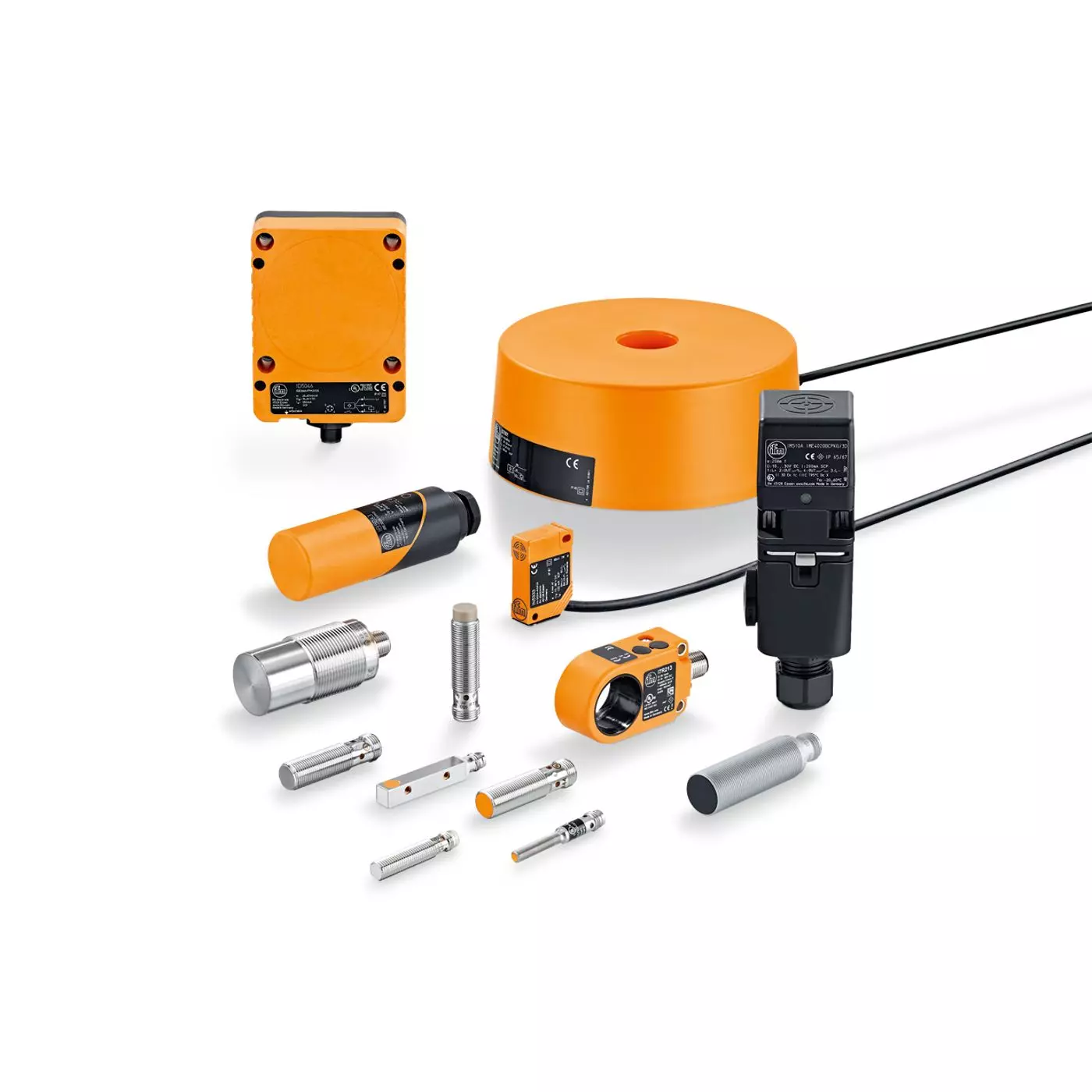

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Use in hygienic areas
Inductive sensors with protection rating IP 68 or IP 69K guarantee high ingress-resistance even in extremely demanding applications in the food and pharma industries. Ingress resistance is also given in contact with aggressive cleaning agents (COP compatible), which is confirmed by the Henkel certificate. The permissible application range of the sensors covers 0 °C to 100 °C. Furthermore, the units are exceptionally resistant to temperature shocks. The increased sensing range increases safety, ensuring higher plant uptime. It is guaranteed over the whole temperature range. The high-grade stainless steel housing ensures higher tightening torques for mounting. The sensing face made of PEEK or stainless steel meets the special requirements of the application. Due to the laser type label the unit can still be clearly identified after years.
Features & Benefits
- Wide operating temperature range
- Temperature shock resistant even in case of frequent temperature fluctuations
- Food-grade housing materials
- Resistant to high-pressure cleaning with aggressive cleaning agents
- Sensing face made of full metal or PEEK
Additional Notes
| MPN | Sensing range | Switching frequency | Output function | Output | Dimensions |
|---|---|---|---|---|---|
| IE5215 | 1 mm flush mountable | 2000 Hz | normally open | DC PNP | M8 x 1 / L = 70 mm |
| IE5295 | 2 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M8 x 1 / L = 55 mm |
| IE5379 | 2 mm flush mountable | 1000 Hz | normally open | DC PNP | M8 x 1 / L = 50 mm |
| IE5392 | 2 mm flush mountable | 1000 Hz | normally open | DC PNP | M8 x 1 / L = 70 mm |
| IES200 | 3 mm flush mountable | 2000 Hz | normally open | DC PNP | M8 x 1 / L = 40 mm |
| IES201 | 6 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M8 x 1 / L = 40 mm |
| IET200 | 3 mm quasi flush | 250 Hz | normally open | DC PNP | M8 x 1 / L = 45 mm |
| IET201 | 5 mm non-flush mountable | 500 Hz | normally open | DC PNP | M8 x 1 / L = 45 mm |
| IF5394 | 4 mm non-flush mountable | 400 Hz | normally open | DC PNP | M12 x 1 / L = 71 mm |
| IF5395 | 2 mm flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 71 mm |
| IF5514 | 2 mm flush mountable | 200 Hz | normally open | DC PNP | M12 x 1 / L = 59 mm |
| IF5759 | 2 mm flush mountable | 1100 Hz | normally open / closed; (selectable) | DC PNP/NPN | M12 x 1 / L = 83 mm |
| IF5760 | 4 mm non-flush mountable | 1500 Hz | normally open / closed; (selectable) | DC PNP/NPN | M12 x 1 / L = 83 mm |
| IF5796 | 4 mm non-flush mountable | 1400 Hz | normally open | DC PNP | M12 x 1 / L = 44 mm |
| IF5807 | 4 mm non-flush mountable | 1400 Hz | normally open | DC PNP | Ø 11 / L = 60 mm |
| IF5813 | 4 mm non-flush mountable | 1400 Hz | normally open | DC PNP | M12 x 1 / L = 59 mm |
| IF5815 | 2 mm flush mountable | 1200 Hz | normally open | DC PNP | M12 x 1 / L = 44 mm |
| IF5851 | 2 mm flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 83 mm |
| IF5878 | 3 mm flush mountable | 400 Hz | normally open | DC PNP | M12 x 1 mm |
| IFS297 | 4 mm flush mountable | 2000 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFS298 | 8 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFS299 | 10 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFS304 | 4 mm flush mountable | 2000 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFS305 | 8 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFS306 | 10 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFT200 | 7 mm non-flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 50 mm |
| IFT201 | 7 mm non-flush mountable | 800 Hz | normally closed | DC PNP | M12 x 1 / L = 50 mm |
| IFT202 | 7 mm non-flush mountable | 700 Hz | normally open | DC PNP/NPN | M12 x 1 / L = 70 mm |
| IFT203 | 4 mm flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFT204 | 4 mm flush mountable | 800 Hz | normally closed | DC PNP | M12 x 1 / L = 45 mm |
| IFT205 | 4 mm flush mountable | 500 Hz | normally open | DC PNP/NPN | M12 x 1 / L = 70 mm |
| IFT206 | 4 mm flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 50 mm |
| IFT207 | 4 mm flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 50 mm |
| IFT208 | 7 mm non-flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 61 mm |
| IFT209 | 7 mm non-flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 61 mm |
| IFT210 | 7 mm non-flush mountable | 700 Hz | normally open | DC PNP/NPN | Ø 12 / L = 70 mm |
| IFT216 | 4 mm flush mountable | 700 Hz | normally open | DC PNP | M12 x 1 / L = 70 mm |
| IFT217 | 7 mm non-flush mountable | 800 Hz | normally open | DC PNP | M12 x 1 / L = 70 mm |
| IFT222 | 7 mm non-flush mountable | 700 Hz | normally open | DC NPN | M12 x 1 / L = 50 mm |
| IFT235 | 2 mm flush mountable | 700 Hz | normally closed | DC PNP | M12 x 1 / L = 45 mm |
| IFT240 | 3 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFT243 | 3 mm flush mountable | 100 Hz | normally open | DC PNP | Ø 12 / L = 60 mm |
| IFT244 | 3 mm flush mountable | 100 Hz | normally open | DC NPN | M12 x 1 / L = 60 mm |
| IFT245 | 6 mm non-flush mountable | 250 Hz | normally open | DC PNP | M12 x 1 / L = 70 mm |
| IFT246 | 6 mm non-flush mountable | 500 Hz | normally open | DC NPN | M12 x 1 / L = 70 mm |
| IFT257 | 4 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFT258 | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M12 x 1 / L = 60 mm | |
| IFT259 | 5 mm quasi flush | 250 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFT260 | 6 mm non-flush mountable | 250 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IG5502 | 5 mm flush mountable | 500 Hz | normally open | DC PNP | M18 x 1 / L = 80 mm |
| IG5602 | 8 mm non-flush mountable | 300 Hz | normally open | DC PNP | M18 x 1 / L = 90 mm |
| IG5806 | 5 mm flush mountable | 700 Hz | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 90 mm |
| IG5813 | 5 mm flush mountable | 500 Hz | normally open | DC PNP | M18 x 1 / L = 76 mm |
| IG5817 | 8 mm non-flush mountable | 200 Hz | normally open | DC PNP | M18 x 1 / L = 48 mm |
| IG5846 | 10 mm non-flush mountable | 300 Hz | complementary | DC PNP | M18 x 1 / L = 45 mm |
| IGS287 | 8 mm flush mountable | 2000 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGS288 | 12 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGS289 | 15 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGS290 | 8 mm flush mountable | 2000 Hz | normally open | DC PNP | M18 x 1 / L = 60 mm |
| IGS291 | 12 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M18 x 1 / L = 60 mm |
| IGS292 | 15 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M18 x 1 / L = 60 mm |
| IGS306 | 8 mm flush mountable | 2000 Hz | normally closed | DC PNP | M18 x 1 / L = 60 mm |
| IGS307 | 15 mm non-flush mountable | 2000 Hz | normally closed | DC PNP | M18 x 1 / L = 60 mm |
| IGT001 | 12 mm non-flush mountable | 25 Hz AC / 300 Hz DC | normally open | AC/DC | M18 x 1 / L = 70 mm |
| IGT002 | 5 mm flush mountable | 25 Hz AC / 400 Hz DC | normally open | AC/DC | M18 x 1 / L = 70 mm |
| IGT200 | 12 mm non-flush mountable | 300 Hz | normally open | DC PNP | M18 x 1 / L = 51 mm |
| IGT201 | 12 mm non-flush mountable | 300 Hz | normally closed | DC PNP | M18 x 1 / L = 51 mm |
| IGT202 | 12 mm non-flush mountable | 300 Hz | normally open | DC PNP/NPN | M18 x 1 / L = 70 mm |
| IGT203 | 8 mm flush mountable | 600 Hz | normally open | DC PNP | M18 x 1 / L = 46 mm |
| IGT204 | 8 mm flush mountable | 600 Hz | normally closed | DC PNP | M18 x 1 / L = 46 mm |
| IGT205 | 8 mm flush mountable | 400 Hz | normally open | DC PNP/NPN | M18 x 1 / L = 70 mm |
| IGT206 | 8 mm flush mountable | 600 Hz | normally open | DC PNP | M18 x 1 / L = 57 mm |
| IGT207 | 8 mm flush mountable | 600 Hz | normally open | DC PNP | M18 x 1 / L = 57 mm |
| IGT208 | 12 mm non-flush mountable | 300 Hz | normally open | DC PNP | M18 x 1 / L = 62 mm |
| IGT209 | 12 mm non-flush mountable | 300 Hz | normally open | DC PNP | M18 x 1 / L = 62 mm |
| IGT211 | 12 mm non-flush mountable | 300 Hz | normally open | DC PNP/NPN | Ø 18 / L = 70 mm |
| IGT213 | 12 mm non-flush mountable | 300 Hz | normally open | DC PNP/NPN | M18 x 1 / L = 81 mm |
| IGT215 | 12 mm non-flush mountable | 300 Hz | normally open | DC PNP | M18 x 1 / L = 62 mm |
| IGT219 | 8 mm flush mountable | 400 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGT220 | 12 mm non-flush mountable | 300 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGT237 | 5 mm flush mountable | 500 Hz | normally open | DC PNP | M18 x 1 / L = 46 mm |
| IGT241 | 8 mm flush mountable | 400 Hz | normally open | DC PNP | M18 x 1 / L = 90 mm |
| IGT247 | 5 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGT248 | 5 mm flush mountable | 100 Hz | normally open | DC NPN | M18 x 1 / L = 70 mm |
| IGT249 | 12 mm non-flush mountable | 250 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGT250 | 12 mm non-flush mountable | 500 Hz | normally open | DC NPN | M18 x 1 / L = 70 mm |
| IGT258 | 8 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGT260 | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M18 x 1 / L = 60 mm | |
| IGT261 | 10 mm quasi flush | 200 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGT262 | 12 mm non-flush mountable | 250 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| II5689 | 10 mm flush mountable | 250 Hz | normally open | DC PNP | M30 x 1.5 / L = 92 mm |
| II5729 | 15 mm non-flush mountable | 200 Hz | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 81 mm |
| II5733 | 15 mm non-flush mountable | 200 Hz | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 78 mm |
| II5751 | 10 mm flush mountable | 450 Hz | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 92 mm |
| II5776 | 15 mm non-flush mountable | 200 Hz | normally open | DC PNP | M30 x 1.5 / L = 92 mm |
| IIS281 | 15 mm flush mountable | 2000 Hz | normally open | DC PNP | M30 x 1.5 / L = 45 mm |
| IIS282 | 15 mm flush mountable | 2000 Hz | normally open | DC PNP | M30 x 1.5 / L = 60 mm |
| IIS283 | 22 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M30 x 1.5 / L = 60 mm |
| IIS284 | 30 mm non-flush mountable | 2000 Hz | normally open | DC PNP | M30 x 1.5 / L = 60 mm |
| IIS301 | 15 mm flush mountable | 2000 Hz | normally closed | DC PNP | M30 x 1.5 / L = 60 mm |
| IIS302 | 30 mm non-flush mountable | 2000 Hz | normally closed | DC PNP | M30 x 1.5 / L = 60 mm |
| IIT001 | 14 mm flush mountable | 25 Hz AC / 100 Hz DC | normally open | AC/DC | M30 x 1.5 / L = 70 mm |
| IIT002 | 22 mm non-flush mountable | 25 Hz AC / 100 Hz DC | normally open | AC/DC | M30 x 1.5 / L = 70 mm |
| IIT200 | 22 mm non-flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIT202 | 22 mm non-flush mountable | 100 Hz | normally open | DC PNP/NPN | M30 x 1.5 / L = 70 mm |
| IIT204 | 14 mm flush mountable | 100 Hz | normally open | DC PNP/NPN | M30 x 1.5 / L = 70 mm |
| IIT205 | 14 mm flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIT206 | 14 mm flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 59 mm |
| IIT207 | 22 mm non-flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 59 mm |
| IIT208 | 22 mm non-flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 59 mm |
| IIT209 | 14 mm flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 59 mm |
| IIT210 | 14 mm flush mountable | 100 Hz | normally open | DC PNP/NPN | M30 x 1.5 / L = 81 mm |
| IIT212 | 15 mm flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 70 mm |
| IIT213 | 22 mm non-flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 70 mm |
| IIT218 | 15 mm flush mountable | 100 Hz | normally closed | DC PNP | M30 x 1.5 / L = 70 mm |
| IIT219 | 22 mm non-flush mountable | 100 Hz | normally closed | DC PNP | M30 x 1.5 / L = 70 mm |
| IIT228 | 10 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
| IIT230 | 10 mm flush mountable | 50 Hz | normally open | DC NPN | M30 x 1.5 / L = 70 mm |
| IIT231 | 25 mm non-flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
| IIT232 | 25 mm non-flush mountable | 100 Hz | normally open | DC NPN | M30 x 1.5 / L = 65 mm |
| IIT243 | 15 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIT244 | 50 Hz | normally open / closed; (configurable) | DC PNP/NPN | M30 x 1.5 / L = 65 mm | |
| IIT245 | 18 mm quasi flush | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIT246 | 25 mm non-flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
