Headline

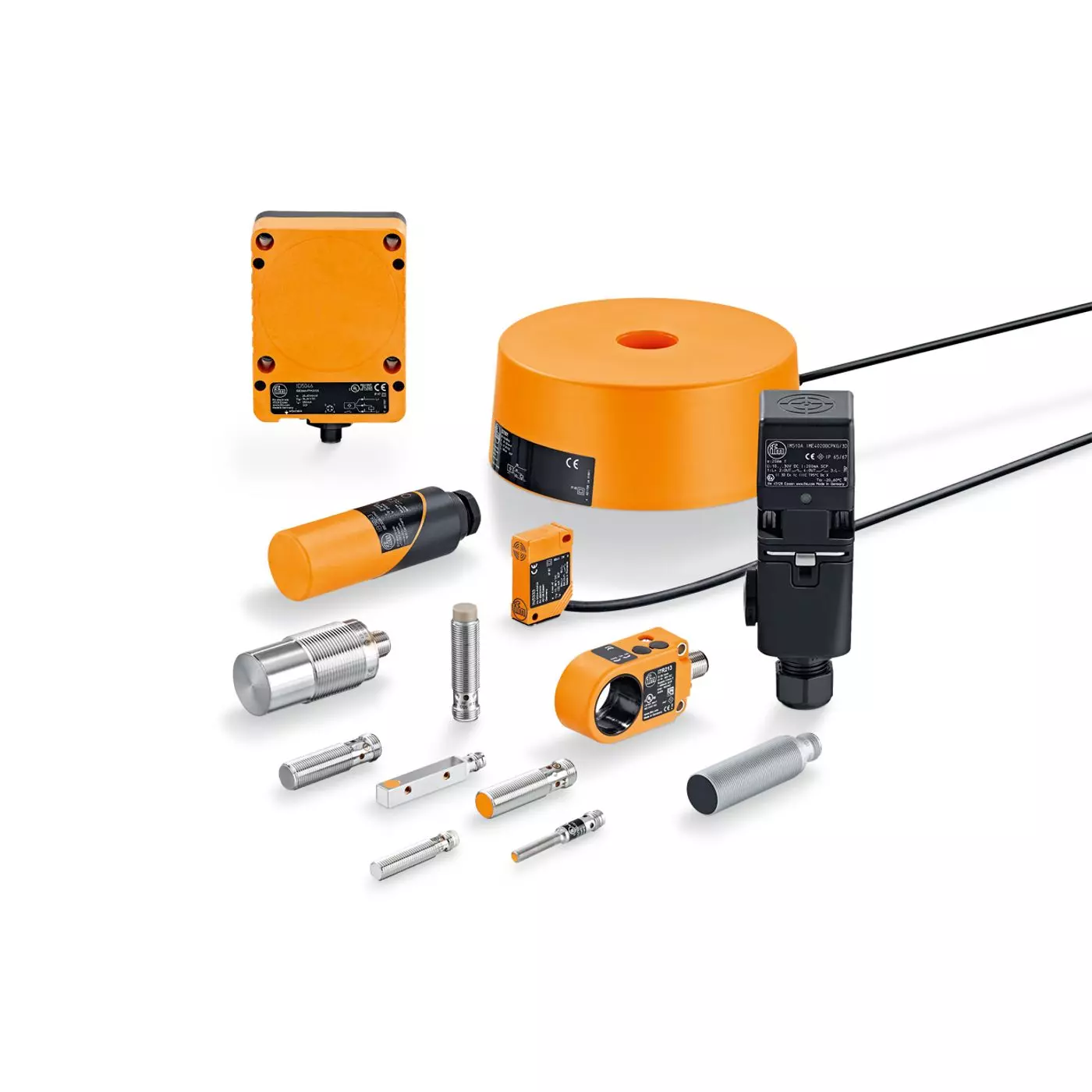

Inductive sensors
Inductive sensors are nowadays indispensable for industrial applications. As compared to mechanical switches they offer almost ideal conditions: non-contact operation free from any wear and tear, high switching frequencies and accuracy. In addition, they are insensitive to vibration, dust and moisture. Inductive sensors detect all metals without contact.
Features & Benefits
- For a precise position monitoring on machines
- Reliable transmission of the distance as linearized process value via IO-Link
- Wide operating temperature range
- Very high repeatability
- Normally closed / normally open and PNP/NPN adjustable via IO-Link
Additional Notes
| MPN | Measuring range IO-Link | Switching frequency | Output function | Output | Dimensions |
|---|---|---|---|---|---|
| IE5456 | 0.6...6 mm | 600 Hz | normally open / closed; (configurable) | DC PNP/NPN | M8 x 1 / L = 50 mm |
| IE5457 | 0.3...3 mm | 600 Hz | normally open / closed; (configurable) | DC PNP/NPN | M8 x 1 / L = 50 mm |
| IF6123 | 0.375...3.75 mm | 600 Hz | normally open / closed; (configurable) | DC PNP/NPN | M12 x 1 / L = 60 mm |
| IF6124 | 0.7...7 mm | 600 Hz | normally open / closed; (selectable) | DC PNP/NPN | M12 x 1 / L = 60 mm |
| IFC277 | 0.375...3.75 mm | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M12 x 1 / L = 60 mm |
| IFT258 | 0.375...3.75 mm | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M12 x 1 / L = 60 mm |
| IG6615 | 0.75...7.5 mm | 300 Hz | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 60 mm |
| IG6616 | 1.3...13 mm | 300 Hz | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 60 mm |
| IGC260 | 0.75...7.5 mm | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M18 x 1 / L = 60 mm |
| IGT260 | 0.75...7.5 mm | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M18 x 1 / L = 60 mm |
| II5973 | 1.3...13 mm | 100 Hz | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 65 mm |
| II5974 | 2.3...23 mm | 100 Hz | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 65 mm |
| IIC236 | 1.3...13 mm | 50 Hz | normally open / closed; (configurable) | DC PNP/NPN | M30 x 1.5 / L = 65 mm |
| IIT244 | 1.3...13 mm | 50 Hz | normally open / closed; (configurable) | DC PNP/NPN | M30 x 1.5 / L = 65 mm |
| IM5172 | 2.1...21 mm | 100 Hz | normally open / closed; (selectable) | DC PNP/NPN | 40 x 40 x 54 mm |
| IM5173 | 2.6...26 mm | 100 Hz | normally open / closed; (selectable) | DC PNP/NPN | 40 x 40 x 54 mm |
| IQ2008 | 0.75...7.5 mm | 300 Hz | normally open / closed; (configurable) | DC PNP/NPN | 20 x 8 x 32 mm |
| IQ2009 | 0.75...7.5 mm | 300 Hz | normally open / closed; (configurable) | DC PNP/NPN | 20 x 8 x 32 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010010010 | Position Sensors - Inductive - Industrial automation applications | $0.01 | |
| IFM-010010020 | Position Sensors - Inductive - Kplus - No correction factor | $0.01 | |
| IFM-010010030 | Position Sensors - Inductive - Coolant and machining applications | $0.01 | |
| IFM-010010040 | Position Sensors - Inductive - High pressure cleaning applications | $0.01 | |
| IFM-010010050 | Position Sensors - Inductive - Welding applications | $0.01 | |
| IFM-010010060 | Position Sensors - Inductive - Mobile equipment applications | $0.01 | |
| IFM-010010070 | Position Sensors - Inductive - Metal face solutions | $0.01 | |
| IFM-010010080 | Position Sensors - Inductive - Ring and tube sensors | $0.01 | |
| IFM-010010090 | Position Sensors - Inductive - Slot sensors | $0.01 | |
| IFM-010010100 | Position Sensors - Inductive - Analog sensors | $0.01 | |
| IFM-010010110 | Position Sensors - Inductive - Hazardous area applications | $0.01 | |
| IFM-010010120 | Position Sensors - Inductive - Fail-safe | $0.01 | |
| IFM-010010130 | Position Sensors - Inductive - Ferrous only solutions | $0.01 | |
| IFM-010010145 | Position Sensors - Inductive - Sensors for limited space | $0.01 | |
| IFM-010010165 | Position Sensors - Inductive - Sensors with long sensing range | $0.01 |
