Pictures may not be actual SKU

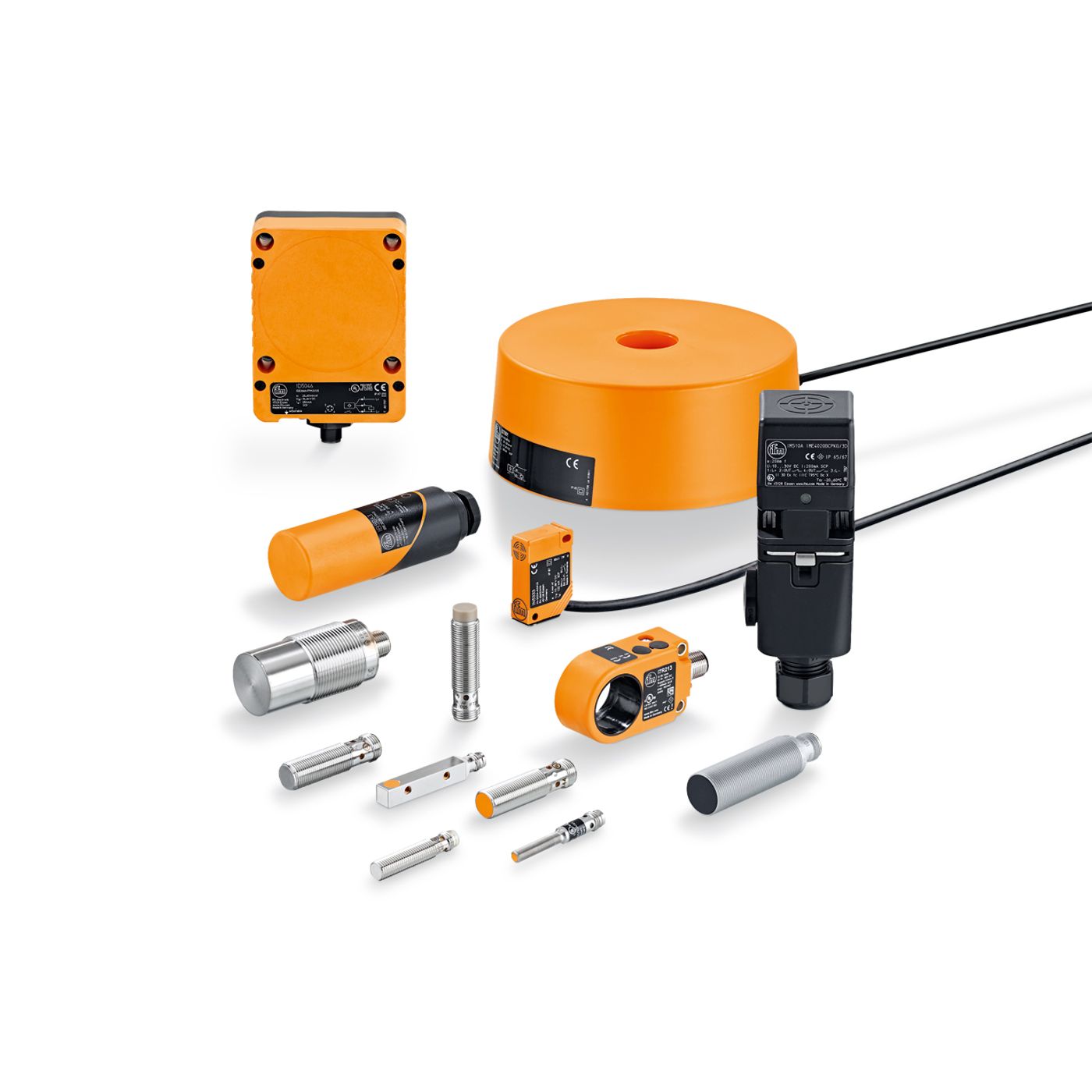

Position Sensors - Inductive - Industrial automation applications

Product info
IFM | ifm
010 | Position Sensors
Position Sensors - Inductive
IFM-010010010
ifm Logo
Description
IFM's 010.010.010 group of Position Sensors - Inductive sensors - Industrial automation applications
Configuration
Base Model
Collection
010 | Position Sensors
Group
010 | Inductive Sensors
Options
Options
010
Additional Options
_ | N/A
Availability Call to confirm
Available to Order
Ships from PA
Typically ships within [ 2 ] days
24/7 Sales & Support 484-544-0506
Price
Save Compare
− +
Get a Quote
Product details Spot an error? Let us know!
Headline

Industrial, mobile, cooling and lubricating applications

This generation of inductive sensors presents one sensor that can be used for three different applications. Whether in factory automation, in applications with coolants and lubricants or in mobile applications - this ifm technology platform distinguishes itself with universal and permanent usability while guaranteeing high performance, temperature stability and increased sensing ranges. A large temperature range of -40...85 °C and protection ratings IP 65, IP 66, IP 67, IP 68 and IP 69K guarantee maximum reliability.

Features & Benefits
  • Wide operating temperature range
  • High protection rating for the requirements of harsh industrial environments
  • Reliable detection due to low sensor tolerances
  • Reduced inventory due to wide range of applications
Additional Notes
MPN Sensing range Switching frequency Output function Output Dimensions
IES215 3 mm flush mountable 1500 Hz normally open DC PNP M8 x 1 / L = 30 mm
IES216 6 mm non-flush mountable 800 Hz normally open DC PNP M8 x 1 / L = 30 mm
IES217 3 mm flush mountable 1500 Hz normally closed DC PNP M8 x 1 / L = 30 mm
IES218 6 mm non-flush mountable 800 Hz normally closed DC PNP M8 x 1 / L = 30 mm
IES219 3 mm flush mountable 1500 Hz normally open DC NPN M8 x 1 / L = 30 mm
IES220 6 mm non-flush mountable 800 Hz normally open DC NPN M8 x 1 / L = 30 mm
IES221 3 mm flush mountable 1500 Hz normally closed DC NPN M8 x 1 / L = 30 mm
IES222 6 mm non-flush mountable 800 Hz normally closed DC NPN M8 x 1 / L = 30 mm
IES223 3 mm flush mountable 800 Hz normally open DC PNP/NPN M8 x 1 / L = 30 mm
IES224 6 mm non-flush mountable 800 Hz normally open DC PNP/NPN M8 x 1 / L = 30 mm
IES225 3 mm flush mountable 800 Hz normally closed DC PNP/NPN M8 x 1 / L = 30 mm
IES226 6 mm non-flush mountable 800 Hz normally closed DC PNP/NPN M8 x 1 / L = 30 mm
IFS240 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS241 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS242 4 mm flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFS243 7 mm non-flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFS244 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS245 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS246 4 mm flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 45 mm
IFS247 7 mm non-flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 45 mm
IFS248 4 mm flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 60 mm
IFS249 4 mm flush mountable 700 Hz normally closed DC NPN M12 x 1 / L = 60 mm
IFS250 7 mm non-flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 60 mm
IFS251 7 mm non-flush mountable 700 Hz normally closed DC NPN M12 x 1 / L = 60 mm
IFS252 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS253 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS254 4 mm flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFS255 7 mm non-flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 60 mm
IFS256 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 40 mm
IFS257 7 mm non-flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 40 mm
IFS258 4 mm flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 40 mm
IFS259 7 mm non-flush mountable 700 Hz normally open DC NPN M12 x 1 / L = 40 mm
IFS260 4 mm flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 45 mm
IFS261 7 mm non-flush mountable 700 Hz normally closed DC PNP M12 x 1 / L = 45 mm
IFS262 4 mm flush mountable 700 Hz normally closed DC NPN M12 x 1 / L = 45 mm
IFS263 7 mm non-flush mountable 700 Hz normally closed DC NPN M12 x 1 / L = 45 mm
IFS268 4 mm flush mountable 700 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS285 4 mm flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS286 10 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 60 mm
IFS289 4 mm flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS290 10 mm non-flush mountable 2000 Hz normally open DC PNP M12 x 1 / L = 45 mm
IFS727 4 mm flush mountable 700 Hz normally closed DC PNP/NPN M12 x 1 mm
IGS232 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS233 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS234 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 60 mm
IGS235 12 mm non-flush mountable 300 Hz normally open DC NPN M18 x 1 / L = 60 mm
IGS236 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS237 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS238 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 45 mm
IGS239 12 mm non-flush mountable 300 Hz normally open DC NPN M18 x 1 / L = 45 mm
IGS240 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 60 mm
IGS241 8 mm flush mountable 400 Hz normally closed DC NPN M18 x 1 / L = 60 mm
IGS242 12 mm non-flush mountable 300 Hz normally closed DC PNP M18 x 1 / L = 60 mm
IGS243 12 mm non-flush mountable 300 Hz normally closed DC NPN M18 x 1 / L = 60 mm
IGS244 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS245 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS246 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 60 mm
IGS247 12 mm non-flush mountable 300 Hz normally open DC NPN M18 x 1 / L = 60 mm
IGS248 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 40 mm
IGS249 12 mm non-flush mountable 300 Hz normally open DC PNP M18 x 1 / L = 40 mm
IGS250 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 40 mm
IGS251 12 mm non-flush mountable 300 Hz normally open DC NPN M18 x 1 / L = 40 mm
IGS252 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 45 mm
IGS253 12 mm non-flush mountable 300 Hz normally closed DC PNP M18 x 1 / L = 45 mm
IGS254 8 mm flush mountable 400 Hz normally closed DC NPN M18 x 1 / L = 45 mm
IGS255 12 mm non-flush mountable 300 Hz normally closed DC NPN M18 x 1 / L = 45 mm
IGS267 8 mm flush mountable 400 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS269 8 mm flush mountable 400 Hz normally closed DC PNP M18 x 1 / L = 60 mm
IGS277 8 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS278 15 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS279 8 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS280 15 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS287 8 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS288 12 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS289 15 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 45 mm
IGS290 8 mm flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS291 12 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS292 15 mm non-flush mountable 2000 Hz normally open DC PNP M18 x 1 / L = 60 mm
IGS320 8 mm flush mountable 400 Hz normally open DC NPN M18 x 1 / L = 60 mm
IIS226 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS227 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS228 15 mm flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 60 mm
IIS229 22 mm non-flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 60 mm
IIS230 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 50 mm
IIS231 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 50 mm
IIS232 15 mm flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 50 mm
IIS233 22 mm non-flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 50 mm
IIS234 15 mm flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 60 mm
IIS235 15 mm flush mountable 100 Hz normally closed DC NPN M30 x 1.5 / L = 60 mm
IIS236 22 mm non-flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 60 mm
IIS237 22 mm non-flush mountable 100 Hz normally closed DC NPN M30 x 1.5 / L = 60 mm
IIS238 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS239 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS240 15 mm flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 60 mm
IIS241 22 mm non-flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 60 mm
IIS242 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS243 22 mm non-flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS244 15 mm flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 45 mm
IIS245 22 mm non-flush mountable 100 Hz normally open DC NPN M30 x 1.5 / L = 45 mm
IIS246 15 mm flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 50 mm
IIS247 22 mm non-flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 50 mm
IIS248 15 mm flush mountable 100 Hz normally closed DC NPN M30 x 1.5 / L = 50 mm
IIS249 22 mm non-flush mountable 100 Hz normally closed DC NPN M30 x 1.5 / L = 50 mm
IIS260 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 75 mm
IIS261 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS264 15 mm flush mountable 100 Hz normally closed DC PNP M30 x 1.5 / L = 60 mm
IIS267 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS268 30 mm non-flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS269 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS281 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 45 mm
IIS282 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS283 22 mm non-flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS284 30 mm non-flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS315 15 mm flush mountable 2000 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
IIS316 15 mm flush mountable 100 Hz normally open DC PNP M30 x 1.5 / L = 60 mm
Alternate configurations
SKU Description List price -
IFM-010010020 Position Sensors - Inductive - Kplus - No correction factor $0.01
IFM-010010020 Detail
IFM-010010025 Position Sensors - Inductive - IO-Link enabled sensors $0.01
IFM-010010025 Detail
IFM-010010030 Position Sensors - Inductive - Coolant and machining applications $0.01
IFM-010010030 Detail
IFM-010010040 Position Sensors - Inductive - High pressure cleaning applications $0.01
IFM-010010040 Detail
IFM-010010050 Position Sensors - Inductive - Welding applications $0.01
IFM-010010050 Detail
IFM-010010060 Position Sensors - Inductive - Mobile equipment applications $0.01
IFM-010010060 Detail
IFM-010010070 Position Sensors - Inductive - Metal face solutions $0.01
IFM-010010070 Detail
IFM-010010080 Position Sensors - Inductive - Ring and tube sensors $0.01
IFM-010010080 Detail
IFM-010010090 Position Sensors - Inductive - Slot sensors $0.01
IFM-010010090 Detail
IFM-010010100 Position Sensors - Inductive - Analog sensors $0.01
IFM-010010100 Detail
IFM-010010110 Position Sensors - Inductive - Hazardous area applications $0.01
IFM-010010110 Detail
IFM-010010120 Position Sensors - Inductive - Fail-safe $0.01
IFM-010010120 Detail
IFM-010010130 Position Sensors - Inductive - Ferrous only solutions $0.01
IFM-010010130 Detail
IFM-010010145 Position Sensors - Inductive - Sensors for limited space $0.01
IFM-010010145 Detail
IFM-010010165 Position Sensors - Inductive - Sensors with long sensing range $0.01
IFM-010010165 Detail
