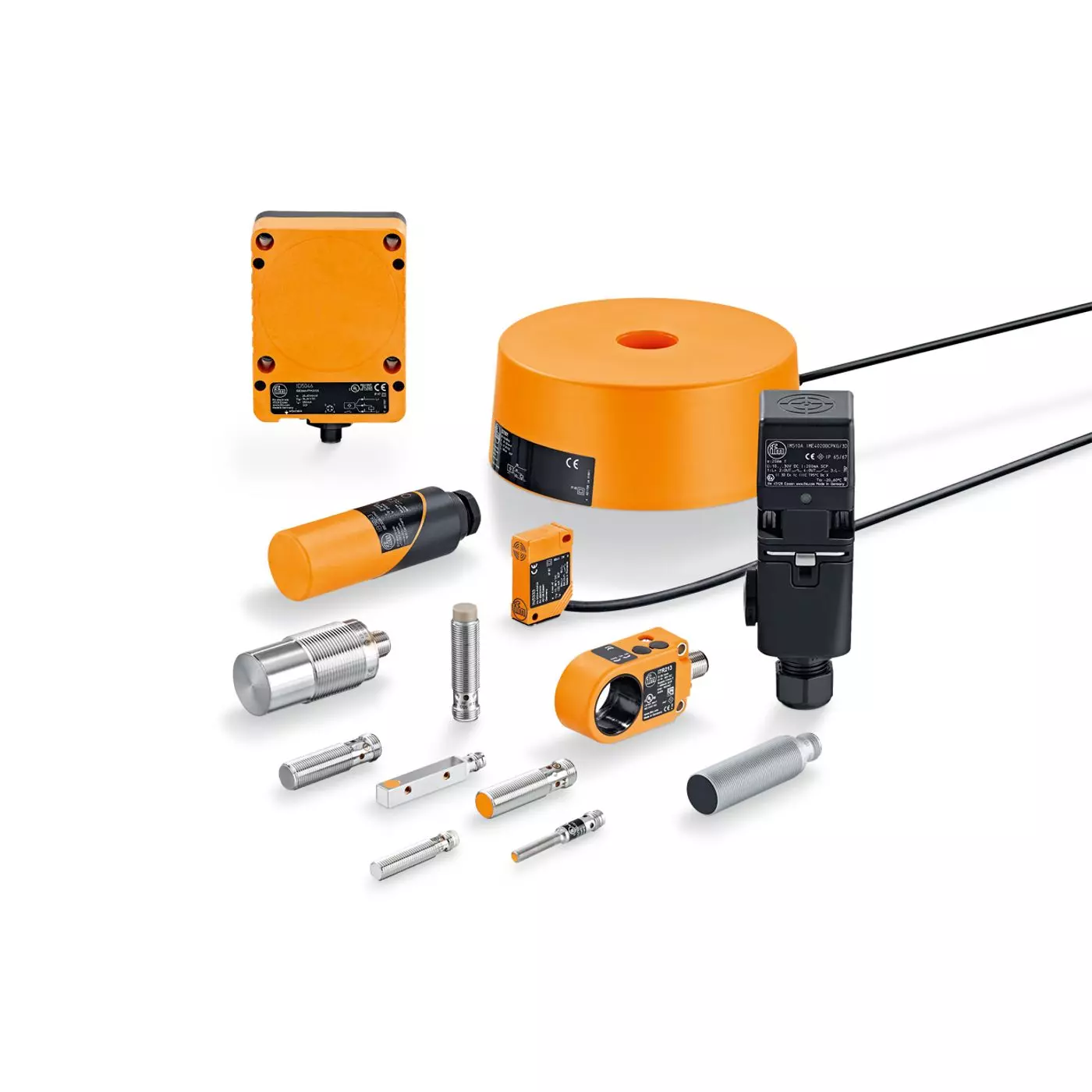

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Full-metal sensors
ifm offers several sensor series specially designed for extreme requirements: T series: These full-metal sensors are specially designed for use in hygienic and wet areas. They withstand frequent cleaning operations and are resistant to cleaning agents. Their wide temperature range of up to 100 °C and their insensitivity to fast temperature changes makes the sensors particularly suited for use in the food and beverage industry. C series: Oils and coolants heavily impact the components installed in machine tools. The O-ring seal made of Viton combined with the corresponding ecolink connector ensures maximum ingress resistance. C series with K = 0: These sensors only detect ferrous metals. Aluminium chips which build up on the active face during the process and lead to incorrect switching of conventional sensors are ignored due to this principle. R series: The non-stick coating allows weld spatter to roll off the sensor. The high temperature range of up to 85 °C also enables handling of critical applications.
Features & Benefits
- Excellent price/performance ratio
- Sensors and connectors in perfect combination for demanding applications
- Metal sensing face for heavy duty
- High shock and vibration resistance
- Permanently legible laser type label
Additional Notes
| MPN | Sensing range | Switching frequency | Output function | Output | Dimensions |
|---|---|---|---|---|---|
| IEC200 | 2 mm flush mountable | 100 Hz | normally open | DC PNP | M8 x 1 / L = 60 mm |
| IEC201 | 2 mm flush mountable | 100 Hz | normally open | DC PNP | M8 x 1 / L = 50 mm |
| IEC202 | 2 mm flush mountable | 100 Hz | normally open | DC NPN | M8 x 1 / L = 50 mm |
| IEC203 | 2 mm flush mountable | 100 Hz | normally open | DC NPN | M8 x 1 / L = 60 mm |
| IEC210 | 2 mm flush mountable | 100 Hz | normally closed | DC PNP | M8 x 1 / L = 60 mm |
| IEC211 | 3 mm quasi flush | 250 Hz | normally open | DC PNP | M8 x 1 / L = 45 mm |
| IEC212 | 5 mm non-flush mountable | 500 Hz | normally open | DC PNP | M8 x 1 / L = 45 mm |
| IEC213 | 2 mm flush mountable | 100 Hz | normally open | DC PNP | M8 x 1 / L = 37.5 mm |
| IEC214 | 2 mm flush mountable | 100 Hz | normally closed | DC PNP | M8 x 1 / L = 37.5 mm |
| IEC215 | 2 mm flush mountable | 100 Hz | normally open | DC NPN | M8 x 1 / L = 37.5 mm |
| IEC216 | 2 mm flush mountable | 100 Hz | normally closed | DC NPN | M8 x 1 / L = 37.5 mm |
| IER200 | 2 mm flush mountable | 100 Hz | normally open | DC PNP | M8 x 1 / L = 60 mm |
| IER201 | 2 mm flush mountable | 100 Hz | normally open | DC NPN | M8 x 1 / L = 60 mm |
| IER203 | 2 mm flush mountable | 150 Hz | normally open | DC PNP/NPN | M8 x 1 / L = 45 mm |
| IER204 | 2 mm flush mountable | 150 Hz | normally open | DC PNP/NPN | M8 x 1 / L = 45 mm |
| IER205 | 2 mm flush mountable | 150 Hz | normally open | DC PNP/NPN | M8 x 1 / L = 45 mm |
| IER206 | 2 mm flush mountable | 150 Hz | normally open | DC PNP/NPN | M8 x 1 / L = 45 mm |
| IET200 | 3 mm quasi flush | 250 Hz | normally open | DC PNP | M8 x 1 / L = 45 mm |
| IET201 | 5 mm non-flush mountable | 500 Hz | normally open | DC PNP | M8 x 1 / L = 45 mm |
| IF503A | 3 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IF504A | 3 mm flush mountable | 100 Hz | normally closed | DC PNP | M12 x 1 / L = 60 mm |
| IF505A | 6 mm non-flush mountable | 500 Hz | normally open | DC PNP | M12 x 1 / L = 70 mm |
| IF508A | 4 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IF509A | 4 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFC258 | 3 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFC261 | 3 mm flush mountable | 100 Hz | normally closed | DC PNP | M12 x 1 / L = 60 mm |
| IFC263 | 2.5 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFC264 | 2.5 mm flush mountable | 100 Hz | normally closed | DC PNP | M12 x 1 / L = 60 mm |
| IFC266 | 3 mm flush mountable | 100 Hz | normally open | DC NPN | M12 x 1 / L = 60 mm |
| IFC275 | 4 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFC276 | 4 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 70 mm |
| IFC277 | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M12 x 1 / L = 60 mm | |
| IFC278 | 4 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 40 mm |
| IFC279 | 4 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 40 mm |
| IFR200 | 4 mm flush mountable | 2 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFR202 | 4 mm flush mountable | 2 Hz | normally open | DC NPN | M12 x 1 / L = 60 mm |
| IFR203 | 4 mm flush mountable | 75 Hz | normally open | DC PNP/NPN | M12 x 1 / L = 40 mm |
| IFR204 | 4 mm flush mountable | 75 Hz | normally open | DC PNP/NPN | M12 x 1 / L = 40 mm |
| IFR205 | 4 mm flush mountable | 75 Hz | normally open | DC PNP/NPN | M12 x 1 / L = 40 mm |
| IFR206 | 4 mm flush mountable | 75 Hz | normally open | DC PNP/NPN | M12 x 1 / L = 40 mm |
| IFR207 | 4 mm flush mountable | 2 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFR212 | 4 mm flush mountable | 2 Hz | normally open | DC PNP | M12 x 1 / L = 40 mm |
| IFT240 | 3 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 60 mm |
| IFT243 | 3 mm flush mountable | 100 Hz | normally open | DC PNP | Ø 12 / L = 60 mm |
| IFT244 | 3 mm flush mountable | 100 Hz | normally open | DC NPN | M12 x 1 / L = 60 mm |
| IFT245 | 6 mm non-flush mountable | 250 Hz | normally open | DC PNP | M12 x 1 / L = 70 mm |
| IFT246 | 6 mm non-flush mountable | 500 Hz | normally open | DC NPN | M12 x 1 / L = 70 mm |
| IFT257 | 4 mm flush mountable | 100 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFT258 | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M12 x 1 / L = 60 mm | |
| IFT259 | 5 mm quasi flush | 250 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IFT260 | 6 mm non-flush mountable | 250 Hz | normally open | DC PNP | M12 x 1 / L = 45 mm |
| IG510A | 5 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IG511A | 12 mm non-flush mountable | 500 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IG512A | 5 mm flush mountable | 100 Hz | normally closed | DC PNP | M18 x 1 / L = 70 mm |
| IG519A | 8 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IG520A | 8 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGC248 | 5 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGC249 | 4.5 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGC250 | 4.5 mm flush mountable | 100 Hz | normally closed | DC PNP | M18 x 1 / L = 70 mm |
| IGC252 | 5 mm flush mountable | 100 Hz | normally open | DC NPN | M18 x 1 / L = 70 mm |
| IGC258 | 8 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGC260 | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M18 x 1 / L = 60 mm | |
| IGC261 | 8 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 40 mm |
| IGC262 | 8 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGC263 | 8 mm flush mountable | 100 Hz | normally closed | DC PNP | M18 x 1 / L = 45 mm |
| IGR200 | 6 mm flush mountable | 2 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGR202 | 6 mm flush mountable | 2 Hz | normally open | DC NPN | M18 x 1 / L = 70 mm |
| IGR203 | 6 mm flush mountable | 50 Hz | normally open | DC PNP/NPN | M18 x 1 / L = 40 mm |
| IGR204 | 6 mm flush mountable | 50 Hz | normally open | DC PNP/NPN | M18 x 1 / L = 40 mm |
| IGR205 | 6 mm flush mountable | 50 Hz | normally open | DC PNP/NPN | M18 x 1 / L = 40 mm |
| IGR206 | 6 mm flush mountable | 50 Hz | normally open | DC PNP/NPN | M18 x 1 / L = 40 mm |
| IGR207 | 8 mm flush mountable | 2 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGR212 | 8 mm flush mountable | 2 Hz | normally open | DC PNP | M18 x 1 / L = 40 mm |
| IGT247 | 5 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGT248 | 5 mm flush mountable | 100 Hz | normally open | DC NPN | M18 x 1 / L = 70 mm |
| IGT249 | 12 mm non-flush mountable | 250 Hz | normally open | DC PNP | M18 x 1 / L = 70 mm |
| IGT250 | 12 mm non-flush mountable | 500 Hz | normally open | DC NPN | M18 x 1 / L = 70 mm |
| IGT258 | 8 mm flush mountable | 100 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGT260 | 100 Hz | normally open / closed; (configurable) | DC PNP/NPN | M18 x 1 / L = 60 mm | |
| IGT261 | 10 mm quasi flush | 200 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| IGT262 | 12 mm non-flush mountable | 250 Hz | normally open | DC PNP | M18 x 1 / L = 45 mm |
| II502A | 10 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
| II503A | 25 mm non-flush mountable | 250 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
| II505A | 15 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| II506A | 15 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIC224 | 10 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
| IIC226 | 10 mm flush mountable | 50 Hz | normally open | DC NPN | M30 x 1.5 / L = 65 mm |
| IIC228 | 10 mm flush mountable | 50 Hz | normally closed | DC PNP | M30 x 1.5 / L = 65 mm |
| IIC233 | 15 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIC236 | 50 Hz | normally open / closed; (configurable) | DC PNP/NPN | M30 x 1.5 / L = 65 mm | |
| IIC237 | 15 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 45 mm |
| IIR200 | 12 mm flush mountable | 2 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
| IIR202 | 12 mm flush mountable | 2 Hz | normally open | DC NPN | M30 x 1.5 / L = 70 mm |
| IIR203 | 12 mm flush mountable | 25 Hz | normally open | DC PNP/NPN | M30 x 1.5 / L = 40 mm |
| IIR204 | 12 mm flush mountable | 25 Hz | normally open | DC PNP/NPN | M30 x 1.5 / L = 40 mm |
| IIR205 | 12 mm flush mountable | 25 Hz | normally open | DC PNP/NPN | M30 x 1.5 / L = 40 mm |
| IIR206 | 12 mm flush mountable | 25 Hz | normally open | DC PNP/NPN | M30 x 1.5 / L = 40 mm |
| IIR207 | 15 mm flush mountable | 2 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIR212 | 15 mm flush mountable | 2 Hz | normally open | DC PNP | M30 x 1.5 / L = 45 mm |
| IIT228 | 10 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
| IIT230 | 10 mm flush mountable | 50 Hz | normally open | DC NPN | M30 x 1.5 / L = 70 mm |
| IIT231 | 25 mm non-flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
| IIT232 | 25 mm non-flush mountable | 100 Hz | normally open | DC NPN | M30 x 1.5 / L = 65 mm |
| IIT243 | 15 mm flush mountable | 50 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIT244 | 50 Hz | normally open / closed; (configurable) | DC PNP/NPN | M30 x 1.5 / L = 65 mm | |
| IIT245 | 18 mm quasi flush | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 50 mm |
| IIT246 | 25 mm non-flush mountable | 100 Hz | normally open | DC PNP | M30 x 1.5 / L = 65 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010010010 | Position Sensors - Inductive - Industrial automation applications | $0.01 | |
| IFM-010010020 | Position Sensors - Inductive - Kplus - No correction factor | $0.01 | |
| IFM-010010025 | Position Sensors - Inductive - IO-Link enabled sensors | $0.01 | |
| IFM-010010030 | Position Sensors - Inductive - Coolant and machining applications | $0.01 | |
| IFM-010010040 | Position Sensors - Inductive - High pressure cleaning applications | $0.01 | |
| IFM-010010050 | Position Sensors - Inductive - Welding applications | $0.01 | |
| IFM-010010060 | Position Sensors - Inductive - Mobile equipment applications | $0.01 | |
| IFM-010010080 | Position Sensors - Inductive - Ring and tube sensors | $0.01 | |
| IFM-010010090 | Position Sensors - Inductive - Slot sensors | $0.01 | |
| IFM-010010100 | Position Sensors - Inductive - Analog sensors | $0.01 | |
| IFM-010010110 | Position Sensors - Inductive - Hazardous area applications | $0.01 | |
| IFM-010010120 | Position Sensors - Inductive - Fail-safe | $0.01 | |
| IFM-010010130 | Position Sensors - Inductive - Ferrous only solutions | $0.01 | |
| IFM-010010145 | Position Sensors - Inductive - Sensors for limited space | $0.01 | |
| IFM-010010165 | Position Sensors - Inductive - Sensors with long sensing range | $0.01 |
