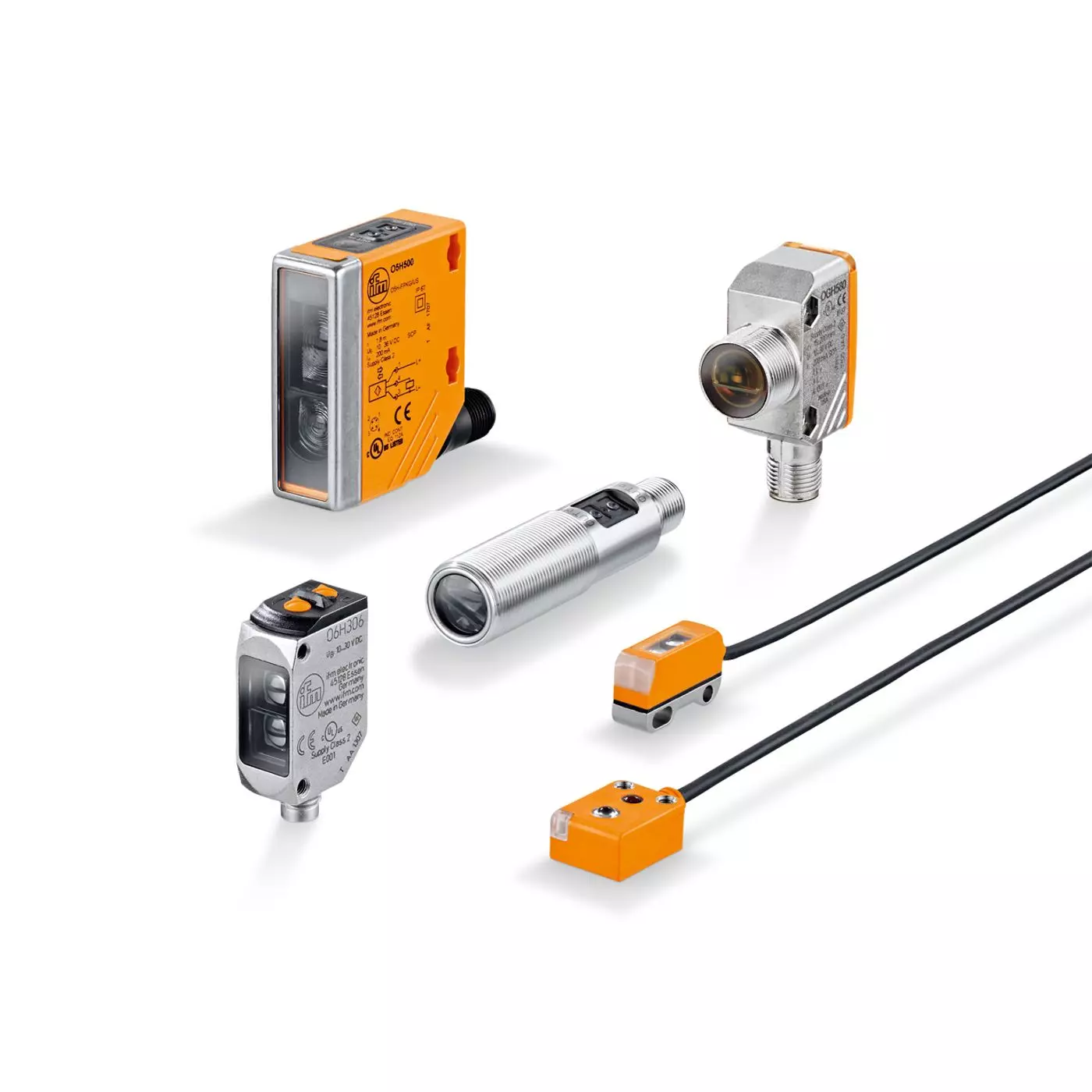

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Small rectangular OJ types for factory automation
The compact photoelectric OJ sensors are designed to provide reliable position detection in feeding, assembly and handling applications with limited space.
The product range includes through-beam sensors, retro-reflective sensors and diffuse reflection sensors with precise background suppression. Different versions with side or front lens ensure maximum installation flexibility.
For installation, the unit is either snapped onto a mounting bracket included in the delivery or fastened via the fixing holes, which are reinforced with a stainless steel sleeve. A wide range of system components ensures easy and fast integration into the application.
The sensors operate with visible red light. This facilitates alignment during commissioning.
With background suppression the diffuse reflection sensors can be set to ensure precise and reliable detection of objects with various surfaces.
Features & Benefits
- Excellent price/performance ratio
- Visible red light for simple alignment
- Low-cost systems for fixing and mounting
- High switching frequency for fast processes
- Robust stainless steel sleeves in the mounting holes
Additional Notes
| MPN | Product designation | Transmitter / receiver | Range | Range referred to prismatic reflector | Dimensions |
|---|---|---|---|---|---|
| OJ5000 | Diffuse reflection sensor | 1...600 mm | 35 x 24 x 11 mm | ||
| OJ5001 | Diffuse reflection sensor | 1...600 mm | 35 x 24 x 11 mm | ||
| OJ5004 | Retro-reflective sensor | 0...2 | 35 x 24 x 11 mm | ||
| OJ5005 | Retro-reflective sensor | 0...2 | 35 x 24 x 11 mm | ||
| OJ5006 | Retro-reflective sensor | 0...2 | 35 x 24 x 11 mm | ||
| OJ5008 | Through-beam sensor | transmitter | < 10 m | 35 x 24 x 11 mm | |
| OJ5009 | Through-beam sensor | receiver | < 10 m | 35 x 24 x 11 mm | |
| OJ5010 | Through-beam sensor | receiver | < 10 m | 35 x 24 x 11 mm | |
| OJ5011 | Through-beam sensor | transmitter | < 10 m | 35 x 24 x 11 mm | |
| OJ5012 | Through-beam sensor | receiver | < 10 m | 35 x 24 x 11 mm | |
| OJ5022 | Diffuse reflection sensor | 1...600 mm | 35 x 11 x 24 mm | ||
| OJ5023 | Diffuse reflection sensor | 1...600 mm | 35 x 11 x 24 mm | ||
| OJ5026 | Retro-reflective sensor | 0...2 | 35 x 11 x 24 mm | ||
| OJ5027 | Retro-reflective sensor | 0...2 | 35 x 11 x 24 mm | ||
| OJ5028 | Retro-reflective sensor | 0...2 | 35 x 11 x 24 mm | ||
| OJ5030 | Through-beam sensor | transmitter | < 10 m | 35 x 11 x 24 mm | |
| OJ5031 | Through-beam sensor | receiver | < 10 m | 35 x 11 x 24 mm | |
| OJ5032 | Through-beam sensor | receiver | < 10 m | 35 x 11 x 24 mm | |
| OJ5033 | Through-beam sensor | transmitter | < 10 m | 35 x 11 x 24 mm | |
| OJ5034 | Through-beam sensor | receiver | < 10 m | 35 x 11 x 24 mm | |
| OJ5042 | Through-beam sensor | receiver | < 1 m | 35 x 11 x 24 mm | |
| OJ5044 | Diffuse reflection sensor | 15...400 mm | 35 x 24 x 11 mm | ||
| OJ5048 | Diffuse reflection sensor | 15...400 mm | 35 x 11 x 24 mm | ||
| OJ5049 | Diffuse reflection sensor | 15...400 mm | 35 x 11 x 24 mm | ||
| OJ5060 | Diffuse reflection sensor | 1...600 mm | 35 x 24 x 11 mm | ||
| OJ5061 | Diffuse reflection sensor | 1...600 mm | 35 x 24 x 11 mm | ||
| OJ5062 | Retro-reflective sensor | 0...2 | 35 x 24 x 11 mm | ||
| OJ5063 | Retro-reflective sensor | 0...2 | 35 x 24 x 11 mm | ||
| OJ5065 | Through-beam sensor | transmitter | < 10 m | 35 x 24 x 11 mm | |
| OJ5067 | Through-beam sensor | receiver | < 10 m | 35 x 24 x 11 mm | |
| OJ5068 | Diffuse reflection sensor | 15...400 mm | 35 x 24 x 11 mm | ||
| OJ5069 | Diffuse reflection sensor | 15...400 mm | 35 x 24 x 11 mm | ||
| OJ5070 | Diffuse reflection sensor | 1...1000 mm | 35 x 24 x 11 mm | ||
| OJ5071 | Diffuse reflection sensor | 1...1000 mm | 35 x 11 x 24 mm | ||
| OJ5073 | Through-beam sensor | transmitter | < 5 m | 35 x 24 x 11 mm | |
| OJ5074 | Through-beam sensor | receiver | < 5 m | 35 x 24 x 11 mm | |
| OJ5078 | Diffuse reflection sensor | 15...400 mm | 35 x 11 x 24 mm | ||
| OJ5085 | Retro-reflective sensor for the detection of transparent objects | 0.2...1.5 | 35 x 24 x 11 mm | ||
| OJ5086 | Retro-reflective sensor for the detection of transparent objects | 0.2...1.5 | 35 x 11 x 24 mm | ||
| OJ5100 | Diffuse reflection sensor | 1...600 mm | 35 x 24 x 11 mm | ||
| OJ5104 | Retro-reflective sensor | 0...2 | 35 x 24 x 11 mm | ||
| OJ5108 | Through-beam sensor | transmitter | < 10 m | 35 x 24 x 11 mm | |
| OJ5109 | Through-beam sensor | receiver | < 10 m | 35 x 24 x 11 mm | |
| OJ5122 | Diffuse reflection sensor | 1...600 mm | 35 x 11 x 24 mm | ||
| OJ5126 | Retro-reflective sensor | 0...2 | 35 x 11 x 24 mm | ||
| OJ5130 | Through-beam sensor | transmitter | < 10 m | 35 x 11 x 24 mm | |
| OJ5131 | Through-beam sensor | receiver | < 10 m | 35 x 11 x 24 mm | |
| OJ5144 | Diffuse reflection sensor | 15...400 mm | 35 x 24 x 11 mm | ||
| OJ5148 | Diffuse reflection sensor | 15...400 mm | 35 x 11 x 24 mm | ||
| OJ5149 | Diffuse reflection sensor | 15...400 mm | 35 x 11 x 24 mm | ||
| OJ5185 | Retro-reflective sensor for the detection of transparent objects | 0.2...1.5 | 35 x 24 x 11 mm | ||
| OJ5186 | Retro-reflective sensor for the detection of transparent objects | 0.2...1.5 | 35 x 11 x 24 mm | ||
| OJ5189 | Retro-reflective sensor for the detection of transparent objects | 0.2...1.5 | 35 x 11 x 24 mm | ||
| OJ5190 | Retro-reflective sensor for the detection of transparent objects | 0.2...1.5 | 35 x 24 x 11 mm | ||
| OJ5191 | Retro-reflective sensor | 0.2...1.5 | 35 x 11 x 24 mm | ||
| OJE200 | Through-beam sensor | receiver | < 10 m | 35 x 11 x 24 mm | |
| OJH200 | Diffuse reflection sensor | < 100 mm | 35 x 11 x 24 mm | ||
| OJP200 | Retro-reflective sensor | 1.8 | 35 x 11 x 24 mm | ||
| OJR200 | Retro-reflective sensor | 1.8 | 35 x 11 x 24 mm | ||
| OJS200 | Through-beam sensor | transmitter | 0...10 m | 35 x 11 x 24 mm |
