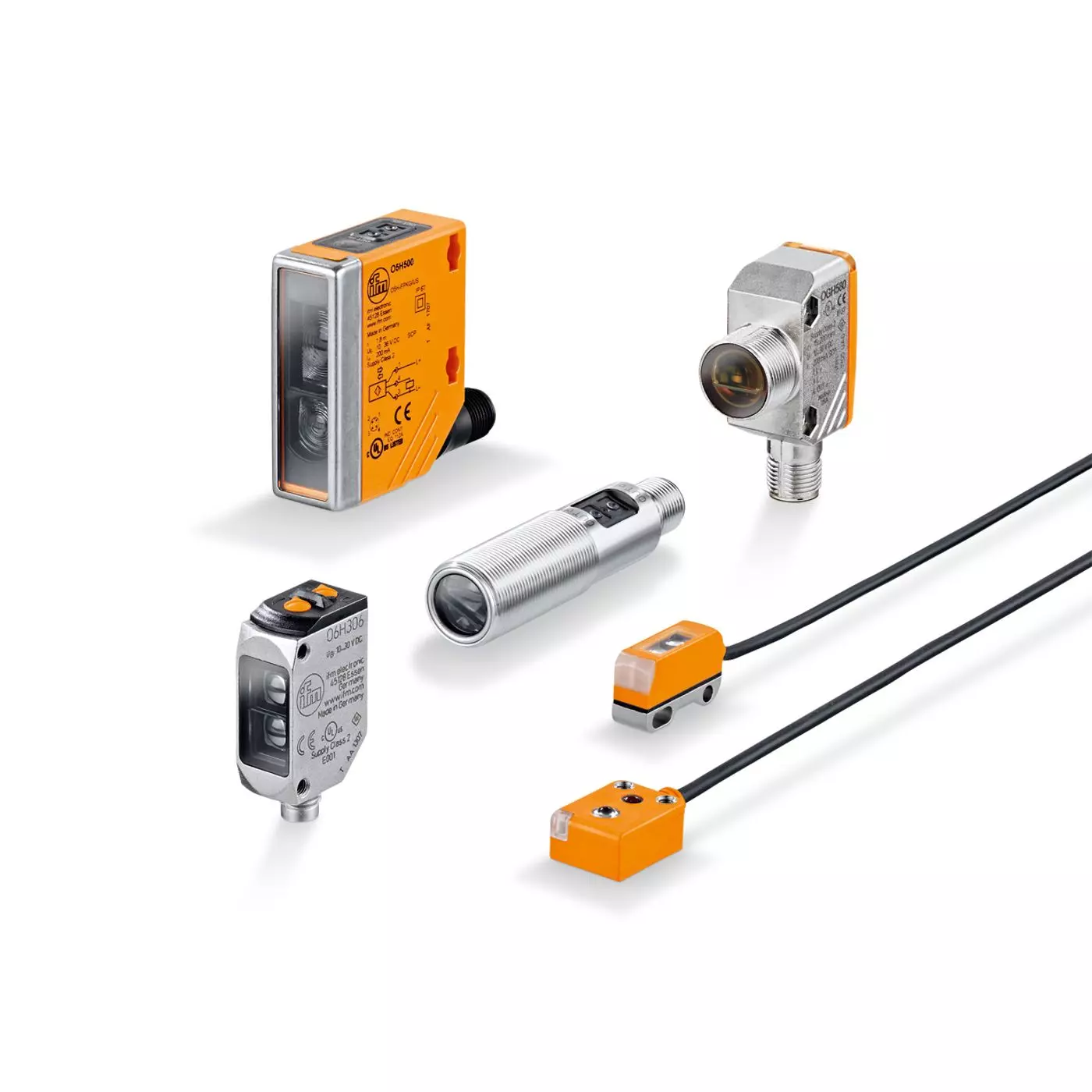

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Small rectangular design O6
Available as through-beam, retro-reflective or diffuse reflection types, the photoelectric sensors in O6 design offer an outstanding optical performance at a competitive price.
The clearly defined consistent light spot ensures precise object detection. There is no scattered light which could interfere with other photoelectric sensors in close vicinity.
Diffuse reflection sensors provide interference immune background suppression even in case of highly reflective backgrounds such as moving machine parts.
Units with visible red light facilitate installation and set-up. Where people are to be detected, e.g. in access control or escalator applications, visible light is often not wanted. This is a perfect field of application for sensor versions with non-visible infrared light.
The range can be set intuitively via potentiometer. Light-on / dark-on mode is selected via rotary switch.
Features & Benefits
- Diffuse reflection sensor with precise background suppression
- Intuitive, user-friendly handling
- Through beam and polarized retroreflective versions also available
- Versions with M8 connector, M12 pigtail or PUR connection cable
Additional Notes
| MPN | Product designation | Transmitter / receiver | Dimensions | Range | Range referred to prismatic reflector |
|---|---|---|---|---|---|
| O6E200 | Through-beam sensor | receiver | 35.4 x 13 x 21 mm | < 10 m | |
| O6E201 | Through-beam sensor | receiver | 35.4 x 13 x 21 mm | < 10 m | |
| O6E202 | Through-beam sensor | receiver | 46 x 13 x 21 mm | < 10 m | |
| O6E203 | Through-beam sensor | receiver | 46 x 13 x 21 mm | < 10 m | |
| O6E204 | Through-beam sensor | receiver | 35.4 x 13 x 21 mm | < 10 m | |
| O6E205 | Through-beam sensor | receiver | 35.4 x 13 x 21 mm | < 10 m | |
| O6E206 | Through-beam sensor | receiver | 46 x 13 x 21 mm | < 10 m | |
| O6E207 | Through-beam sensor | receiver | 46 x 13 x 21 mm | < 10 m | |
| O6E215 | Through-beam sensor | receiver | 46 x 13 x 21 mm | < 15 m | |
| O6E216 | Through-beam sensor | receiver | 46 x 13 x 21 mm | < 15 m | |
| O6E700 | Through-beam sensor | receiver | 35.4 x 13 x 21 mm | 15 m | |
| O6E701 | Through-beam sensor | receiver | 35.4 x 13 x 21 mm | 15 m | |
| O6E702 | Through-beam sensor | receiver | 46 x 13 x 21 mm | 15 m | |
| O6H200 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 2...200 mm | ||
| O6H201 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 2...200 mm | ||
| O6H202 | Diffuse reflection sensor | 46 x 13 x 21 mm | 2...200 mm | ||
| O6H203 | Diffuse reflection sensor | 46 x 13 x 21 mm | 2...200 mm | ||
| O6H204 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 2...200 mm | ||
| O6H205 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 2...200 mm | ||
| O6H206 | Diffuse reflection sensor | 46 x 13 x 21 mm | 2...200 mm | ||
| O6H207 | Diffuse reflection sensor | 46 x 13 x 21 mm | 2...200 mm | ||
| O6H210 | Diffuse reflection sensor | 46 x 13 x 21 mm | 2...200 mm | ||
| O6H211 | Diffuse reflection sensor | 46 x 13 x 21 mm | < 100 mm | ||
| O6H212 | Diffuse reflection sensor | 46 x 13 x 21 mm | < 200 mm | ||
| O6H213 | Diffuse reflection sensor | 46 x 13 x 21 mm | < 100 mm | ||
| O6H214 | Diffuse reflection sensor | 46 x 13 x 21 mm | < 200 mm | ||
| O6H700 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 1...100 mm | ||
| O6H701 | Diffuse reflection sensor | 41.3 x 13 x 21 mm | 1...100 mm | ||
| O6H702 | Diffuse reflection sensor | 46 x 13 x 21 mm | 1...100 mm | ||
| O6H703 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 1...100 mm | ||
| O6H704 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 1...100 mm | ||
| O6H705 | Diffuse reflection sensor | 46 x 13 x 21 mm | 1...100 mm | ||
| O6P200 | Retro-reflective sensor | 35.4 x 13 x 21 mm | 0.05...5 | ||
| O6P201 | Retro-reflective sensor | 35.4 x 13 x 21 mm | 0.05...5 | ||
| O6P202 | Retro-reflective sensor | 46 x 13 x 21 mm | 0.05...5 | ||
| O6P203 | Retro-reflective sensor | 46 x 13 x 21 mm | 0.05...5 | ||
| O6P204 | Retro-reflective sensor | 35.4 x 13 x 21 mm | 0.05...5 | ||
| O6P205 | Retro-reflective sensor | 35.4 x 13 x 21 mm | 0.05...5 | ||
| O6P206 | Retro-reflective sensor | 46 x 13 x 21 mm | 0.05...5 | ||
| O6P207 | Retro-reflective sensor | 46 x 13 x 21 mm | 0.05...5 | ||
| O6P211 | Retro-reflective sensor | 35.4 x 13 x 21 mm | 0.05...5 | ||
| O6P700 | Retro-reflective sensor | 35.4 x 13 x 21 mm | 0.075...8 m | ||
| O6P701 | Retro-reflective sensor | 35.4 x 13 x 21 mm | 0.075...8 m | ||
| O6P702 | Retro-reflective sensor | 46 x 13 x 21 mm | 0.075...8 m | ||
| O6P703 | Retro-reflective sensor | 35.4 x 13 x 21 mm | 0.075...8 m | ||
| O6P705 | Retro-reflective sensor | 46 x 13 x 21 mm | 0.075...8 m | ||
| O6S200 | Through-beam sensor | transmitter | 35.4 x 13 x 21 mm | < 10 m | |
| O6S201 | Through-beam sensor | transmitter | 35.4 x 13 x 21 mm | < 10 m | |
| O6S202 | Through-beam sensor | transmitter | 35.4 x 13 x 21 mm | < 10 m | |
| O6S203 | Through-beam sensor | transmitter | 35.4 x 13 x 21 mm | < 10 m | |
| O6S215 | Through-beam sensor | transmitter | 35.4 x 13 x 21 mm | < 15 m | |
| O6S700 | Through-beam sensor | transmitter | 35.4 x 13 x 21 mm | < 15 m | |
| O6S701 | Through-beam sensor | transmitter | 35.4 x 13 x 21 mm | < 15 m | |
| O6S702 | Through-beam sensor | transmitter | 46 x 13 x 21 mm | < 15 m | |
| O6T200 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 5...500 mm | ||
| O6T201 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 5...500 mm | ||
| O6T202 | Diffuse reflection sensor | 46 x 13 x 21 mm | 5...500 mm | ||
| O6T203 | Diffuse reflection sensor | 46 x 13 x 21 mm | 5...500 mm | ||
| O6T204 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 5...500 mm | ||
| O6T205 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 5...500 mm | ||
| O6T206 | Diffuse reflection sensor | 46 x 13 x 21 mm | 5...500 mm | ||
| O6T207 | Diffuse reflection sensor | 46 x 13 x 21 mm | 5...500 mm | ||
| O6T215 | Diffuse reflection sensor | 46 x 13 x 21 mm | 5...600 mm | ||
| O6T216 | Diffuse reflection sensor | 46 x 13 x 21 mm | 5...600 mm | ||
| O6T218 | Diffuse reflection sensor | 35.4 x 13 x 21 mm | 5...600 mm |
