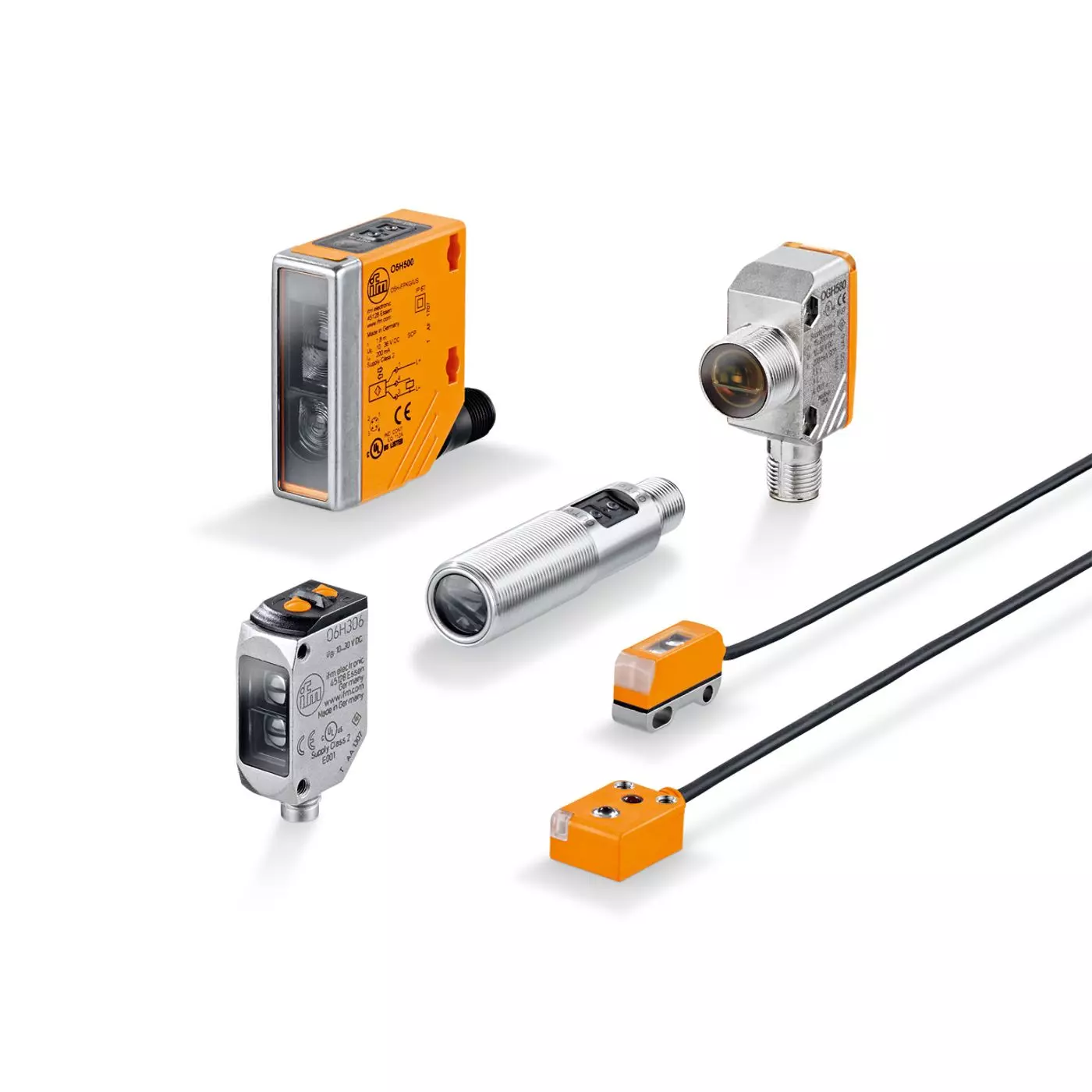

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Small rectangular design O7
The particularly small photoelectric O7 sensors are designed to provide reliable position detection in feeding, assembly and handling applications with limited space.
The product range includes through-beam sensors, retro-reflective sensors and diffuse reflection sensors with precise background suppression.
The visible red light simplifies installation and set-up. The small light spot and the narrow light cone enable the detection of very small objects even over long distances. Due to their fixed setting, the sensors are ready for operation immediately after installation.
A wide range of system components ensures easy and safe integration into the application.
Features & Benefits
- For reliable position detection
- Ready for operation immediately thanks to fixed setting
- Visible red light for simple alignment
- Diffuse reflection sensor with precise background suppression
- Small light spot for the detection of small objects
Additional Notes
| MPN | Product designation | Transmitter / receiver | Dimensions | Range | Range referred to prismatic reflector |
|---|---|---|---|---|---|
| O7E200 | Through-beam sensor | receiver | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7E201 | Through-beam sensor | receiver | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7E202 | Through-beam sensor | receiver | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7E203 | Through-beam sensor | receiver | 20.3 x 15 x 9 mm | 0...1.5 m | |
| O7H200 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...30 mm | ||
| O7H201 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...30 mm | ||
| O7H202 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7H203 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7H204 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7H205 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7H206 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...30 mm | ||
| O7H207 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...30 mm | ||
| O7H208 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7H209 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7H210 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7H211 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7H212 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 3...100 mm | ||
| O7H213 | Diffuse reflection sensor | 20.3 x 15 x 9 mm | 5...50 mm | ||
| O7P200 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7P201 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7P202 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7P203 | Retro-reflective sensor | 20.3 x 15 x 9 mm | 0.03...1 | ||
| O7S200 | Through-beam sensor | transmitter | 20.3 x 15 x 9 mm | 0...1.5 m |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010050010 | Position Sensors - Photoelectric - OG M18 for industrial automation | $0.01 | |
| IFM-010050020 | Position Sensors - Photoelectric - OG M18 for high pressure cleaning applications | $0.01 | |
| IFM-010050030 | Position Sensors - Photoelectric - OG Cube for industrial automation | $0.01 | |
| IFM-010050040 | Position Sensors - Photoelectric - OG Cube for high pressure cleaning applications | $0.01 | |
| IFM-010050050 | Position Sensors - Photoelectric - O5 for industrial automation | $0.01 | |
| IFM-010050060 | Position Sensors - Photoelectric - O4 with long range for industrial automation | $0.01 | |
| IFM-010050070 | Position Sensors - Photoelectric - O6 for industrial automation | $0.01 | |
| IFM-010050080 | Position Sensors - Photoelectric - O6 wetline for harsh applications | $0.01 | |
| IFM-010050085 | Position Sensors - Photoelectric - O6 for coolant applications | $0.01 | |
| IFM-010050095 | Position Sensors - Photoelectric - O8 for short range precise applications | $0.01 | |
| IFM-010050100 | Position Sensors - Photoelectric - OJ for industrial automation | $0.01 | |
| IFM-010050110 | Position Sensors - Photoelectric - OG basic for industrial automation | $0.01 | |
| IFM-010050120 | Position Sensors - Photoelectric - OG right angle for conveying applications | $0.01 | |
| IFM-010050140 | Position Sensors - Photoelectric - Sensors for use in hazardous locations | $0.01 | |
| IFM-010050150 | Position Sensors - Photoelectric - TW7 infrared temperature switches with display | $0.01 |
