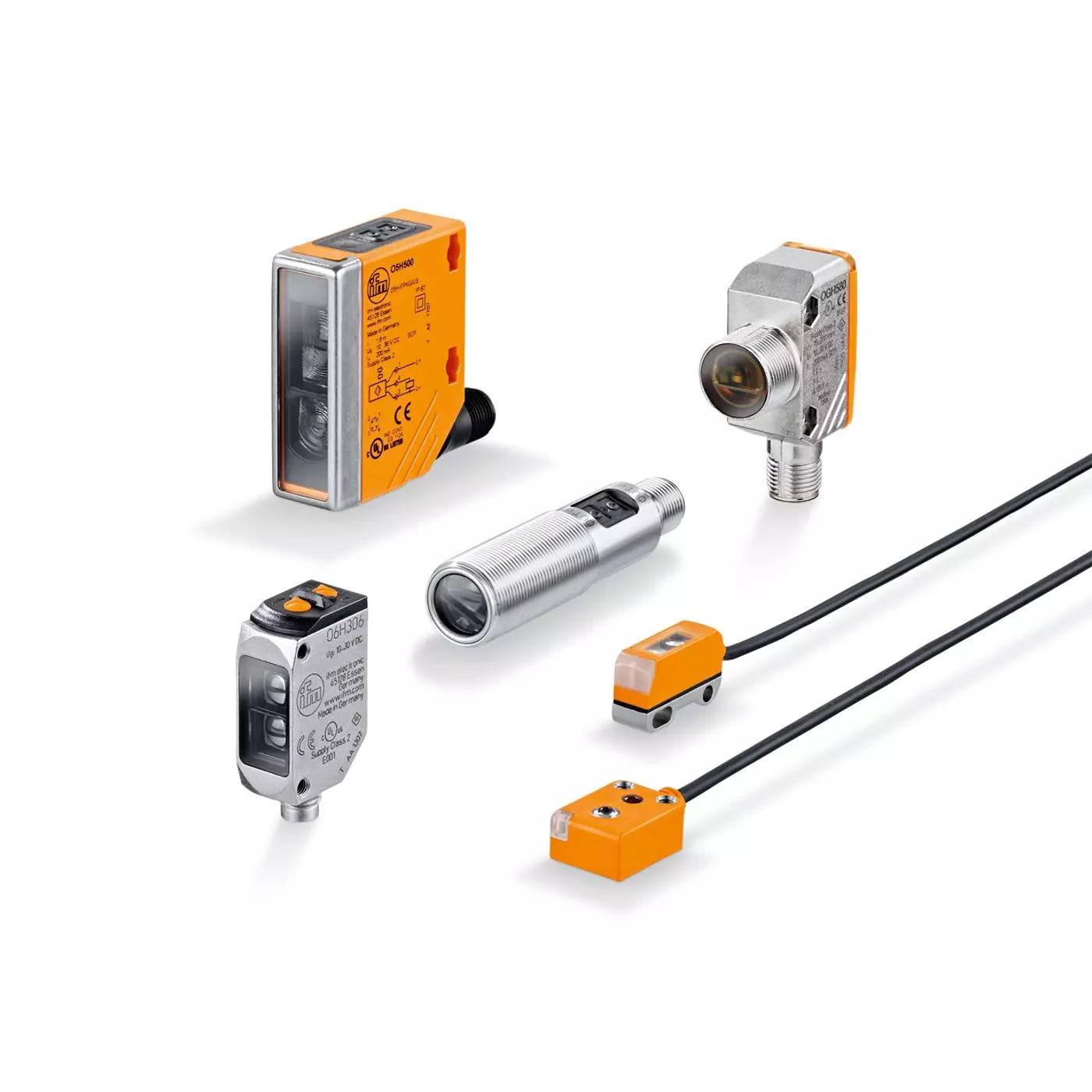

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Type M18 Cube in metal housing
The compact OG-Cube sensors have been designed for use in applications with limited installation space. Thanks to the lateral M18 thread and the connector facing downwards, this type is ideally suited for use in conveying applications.
The photoelectric sensors are distinguished by long ranges.
The teach mode and the extensive range of fixing components ensure fast and cost-saving installation and set-up.
Features & Benefits
- Compact and robust housing
- Excellent price/performance ratio
- Long ranges
- Setting process saves time and cost during set-up
- Extensive range of mounting components
Additional Notes
| MPN | Product designation | Transmitter / receiver | Dimensions | Range | Range referred to prismatic reflector |
|---|---|---|---|---|---|
| OGE080 | Through-beam sensor | receiver | M18 x 1 mm | < 20 m | |
| OGE081 | Through-beam sensor | receiver | M18 x 1 mm | < 20 m | |
| OGE280 | Through-beam sensor | receiver | M18 x 1 mm | 20 m | |
| OGE281 | Through-beam sensor | receiver | M18 x 1 mm | 20 m | |
| OGE282 | Through-beam sensor | receiver | < 20 m | ||
| OGH081 | Diffuse reflection sensor | M18 x 1 mm | < 100 mm | ||
| OGH280 | Diffuse reflection sensor | M18 x 1 mm | < 100 mm | ||
| OGH281 | Diffuse reflection sensor | M18 x 1 mm | < 200 mm | ||
| OGH282 | Diffuse reflection sensor | 52.6 x 19.1 x 35.9 mm | < 100 mm | ||
| OGH283 | Diffuse reflection sensor | < 200 mm | |||
| OGH380 | Diffuse reflection sensor | M18 x 1 mm | < 100 mm | ||
| OGH381 | Diffuse reflection sensor | M18 x 1 mm | < 200 mm | ||
| OGH382 | Diffuse reflection sensor | M18 x 1 mm | < 100 mm | ||
| OGH383 | Diffuse reflection sensor | M18 x 1 mm | < 200 mm | ||
| OGH580 | Diffuse reflection sensor | M18 x 1 mm | 15...200 mm | ||
| OGH581 | Diffuse reflection sensor | M18 x 1 mm | 15...200 mm | ||
| OGP081 | Retro-reflective sensor | M18 x 1 mm | 4 | ||
| OGP280 | Retro-reflective sensor | M18 x 1 mm | 0.1...4 | ||
| OGP281 | Retro-reflective sensor | M18 x 1 mm | 0.1...4 | ||
| OGP282 | Retro-reflective sensor | M18 x 1 mm | 0.1...4 | ||
| OGP283 | Retro-reflective sensor | 52.6 x 19.1 x 36.1 mm | 0.1...4 | ||
| OGS080 | Through-beam sensor | transmitter | M18 x 1 mm | < 20 m | |
| OGS280 | Through-beam sensor | transmitter | M18 mm | 20 m |
