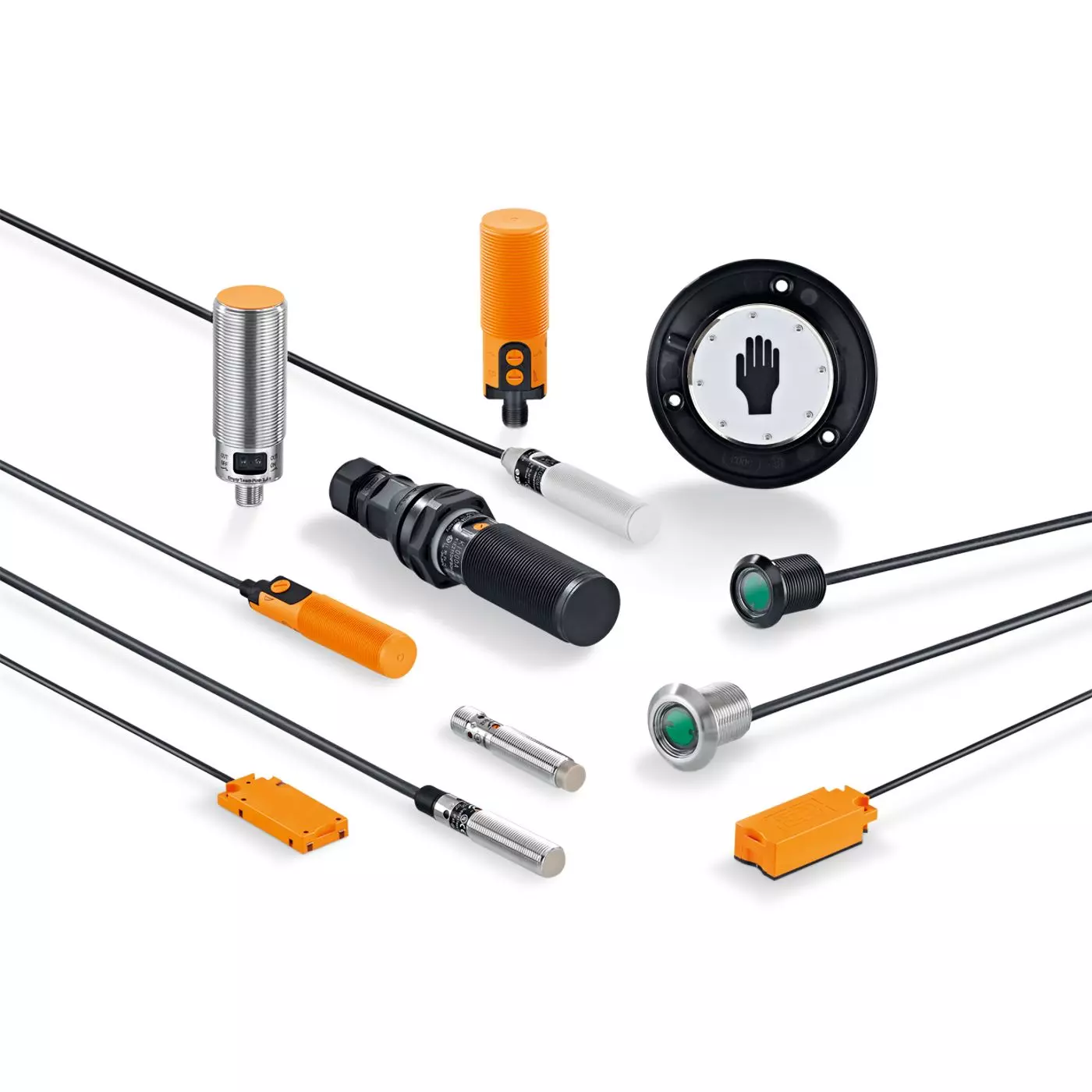

Capacitive Sensors - Touch Sensors
The capacitive measuring principle detects an approaching human hand. The ifm touch sensors are dynamically bult to suppress interference like water or layers of ice to a large extent. While working in these varying conditions, it can still sense a gloved hand and trigger when near, even working through glass. Comparatively, static touch sensors detect hands and objects for as long as the sensing face is pressed. Since the touch sensors from ifm react to contact, no pressure is required for activation. This feature makes them considerably easier to use and lowers the risk of failure due to use over time commonly associated with mechanical versions. The green LEDs can be controlled separately and used in many different situations, like to indicate the plant and machine condition or as start/stop indicators on machines. In various industries, LEDs are commonly used in many situations, such as optical feedback signals that indicate when the sensor has been activated, as buttons on mobile machines or trailers, as stop buttons, or as door openers.
- Non-contact switching without pressure
- LEDs for visual feedback
- Oil-resistant, impact and scratch resistant
- Surround available in different colors
- Simple installation on walls or rear panels
MPN | Principle of operation | Output function | Output | Display | Connection |
---|---|---|---|---|---|
KT5001 | dynamic | normally open | DC PNP | Switching status: 8 x LED red; Power: 8 x LED green | 2 m PUR-Cable |
KT5002 | dynamic | normally open | DC PNP | Switching status: 8 x LED red; Power: 8 x LED green | 0.3 m PUR-Cable; M8 Connector |
KT5005 | static | normally open | DC PNP | Switching status: 8 x LED red; Power: 8 x LED green | 2 m PUR-Cable |
KT5006 | static | normally open | DC PNP | Switching status: 8 x LED red; Power: 8 x LED green | 0.3 m PUR-Cable; M8 Connector |
KT5007 | dynamic | normally open | DC NPN | Switching status: 8 x LED red; Power: 8 x LED green | 0.3 m PUR-Cable; M8 Connector |
KT5009 | dynamic | normally open | DC PNP | Switching status: 8 x LED red; Function: 8 x LED green can be triggered | 2 m PUR-Cable |
KT5010 | dynamic | normally open | DC PNP | Switching status: 8 x LED red; Power: 8 x LED green | 2 m PUR-Cable |
KT5011 | dynamic | normally open | DC PNP | Switching status: 8 x LED red; Power: 8 x LED green | 0.3 m PUR-Cable; M8 Connector |
KT5012 | static | normally open | DC PNP | Switching status: 8 x LED red; Power: 8 x LED green | 2 m PUR-Cable |
KT5013 | static | normally open | DC PNP | Switching status: 8 x LED red; Power: 8 x LED green | 0.3 m PUR-Cable; M8 Connector |
KT5020 | dynamic | normally open | DC PNP | Switching status: 8 x LED red; Function: 8 x LED green can be activated via PIN 2 | 0.3 m PUR-Cable; M12 Connector |
SKU | Description | List price | - |
---|---|---|---|
IFM-010020010 | Position Sensors - Capacitive - Industrial automation applications | $0.01 | |
IFM-010020015 | Position Sensors - Capacitive - Non-contact level measurement | $0.01 | |
IFM-010020020 | Position Sensors - Capacitive - Sensors with metal housings | $0.01 | |
IFM-010020030 | Position Sensors - Capacitive - Low dielectric media applications | $0.01 | |
IFM-010020040 | Position Sensors - Capacitive - Sensors for high temperature applications | $0.01 | |
IFM-010020050 | Position Sensors - Capacitive - Sensors for aggressive media | $0.01 | |
IFM-010020060 | Position Sensors - Capacitive - Hazardous environments | $0.01 | |
IFM-010020070 | Position Sensors - Capacitive - Small rectangular housings | $0.01 | |
IFM-010020080 | Position Sensors - Capacitive - M12 sensors for industrial automation | $0.01 | |
IFM-010020090 | Position Sensors - Capacitive - IO-Link enabled sensors | $0.01 | |
IFM-010020095 | Position Sensors - Capacitive - Sensors with LED display | $0.01 | |
IFM-010020100 | Position Sensors - Capacitive - Large rectangular housings | $0.01 | |
IFM-010020110 | Position Sensors - Capacitive - AC sensors | $0.01 | |
IFM-010020130 | Position Sensors - Capacitive - illuminated pushbutton with touch surface in M22 design | $0.01 | |
IFM-010020150 | Position Sensors - Capacitive - Switching amplifiers for Namur sensors | $0.01 |
