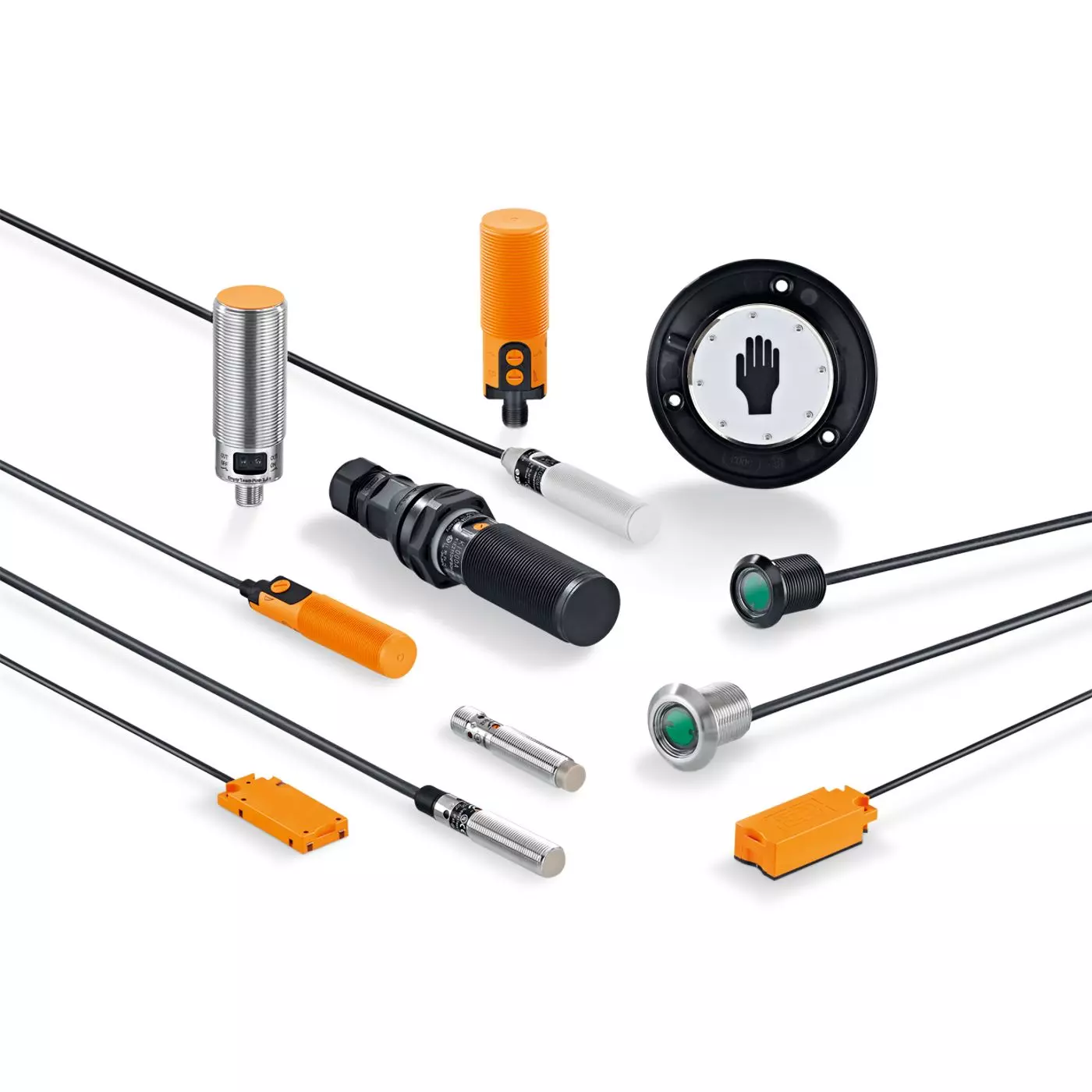

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
With IO-Link
Capacitive sensors detect bulk materials or liquids through non-metallic vessel walls. The parameters can either be set via the buttons on the sensor or via IO-Link interface using the USB interface E30396 or the memory plug E30398. The LINERECORDER SENSOR software is used to display the measured sensor values and set the parameters online as well as offline. Thanks to the visualisation of actual measured values tolerance limits can be defined around the set switch point.
Features & Benefits
- User-friendly communication via IO-Link
- Clearly visible indication of the switching status
- Easy installation with mounting adapters and cable ties
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| KG5065 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 87 mm | M12 Connector |
| KG5066 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 87 mm | M12 Connector |
| KG5067 | 8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 77 mm | 2 m PVC-Cable |
| KG5069 | 8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 77 mm | 2 m PVC-Cable |
| KG5071 | 8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 87 mm | M12 Connector |
| KG5300 | 0.5...30 mm non-flush mountable | normally open | DC NPN | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5301 | 0.5...30 mm non-flush mountable | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5302 | 0.5...30 mm non-flush mountable | normally closed | DC NPN | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5303 | 0.5...30 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5304 | 0.5...9 mm quasi flush | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5305 | 0.5...9 mm quasi flush | normally open | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5306 | 0.5...30 mm non-flush mountable | normally open | DC NPN | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5307 | 0.5...30 mm non-flush mountable | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5308 | 0.5...30 mm non-flush mountable | normally closed | DC NPN | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5309 | 0.5...30 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5310 | 0.5...9 mm quasi flush | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5311 | 0.5...9 mm quasi flush | normally open | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG6000 | 0.5...30 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG6001 | 0.5...30 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KI5082 | 20 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5083 | 20 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5084 | 8 mm flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5085 | 8 mm flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5086 | 15 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5087 | 15 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5300 | 0.5...40 mm non-flush mountable | normally open | DC NPN | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5301 | 0.5...40 mm non-flush mountable | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5302 | 0.5...40 mm non-flush mountable | normally closed | DC NPN | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5303 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5304 | 0.5...40 mm quasi flush | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5305 | 0.5...40 mm quasi flush | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5306 | 0.5...40 mm non-flush mountable | normally open | DC NPN | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5307 | 0.5...40 mm non-flush mountable | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5308 | 0.5...40 mm non-flush mountable | normally closed | DC NPN | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5309 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5310 | 0.5...24 mm quasi flush | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5311 | 0.5...24 mm quasi flush | normally open | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5324 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 5 m PUR-Cable |
| KI6000 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI6001 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI6002 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | 10 m PUR-Cable |
| KI6003 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC NPN | M30 x 1.5 / L = 92 mm | 10 m PUR-Cable |
| KQ5100 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 2 m PUR-Cable |
| KQ5101 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 0.1 m PUR-Cable; M12 Connector |
| KQ5102 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 0.04 m PUR-Cable; M8 Connector |
| KQ6001 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | 20 x 14 x 48 mm | 2 m PVC-Cable |
| KQ6002 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 2 m PVC-Cable |
| KQ6003 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | 20 x 14 x 48 mm | 0.04 m PVC-Cable; M8 Connector |
| KQ6004 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 0.04 m PVC-Cable; M8 Connector |
| KQ6005 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 0.1 m PVC-Cable; M12 Connector |
| KQ6006 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC NPN | 20 x 14 x 48 mm | 2 m PVC-Cable |
| KQ6010 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 0.04 m PVC-Cable; M8 Connector |
| KQ6016 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC NPN | 20 x 14 x 48 mm | 2 m PVC-Cable; M12 Connector |
| KT6100 | normally open / closed | DC PNP/NPN | 2 m PUR-Cable | ||
| KT6101 | normally open / closed | DC PNP/NPN | 0.3 m PUR-Cable; M12 Connector | ||
| KT6300 | normally open / closed | DC PNP/NPN | Ø 32 / L = 39 mm | 2 m PUR-Cable | |
| KT6301 | normally open / closed | DC PNP/NPN | Ø 32 / L = 39 mm | 0.3 m PUR-Cable; M12 Connector |
