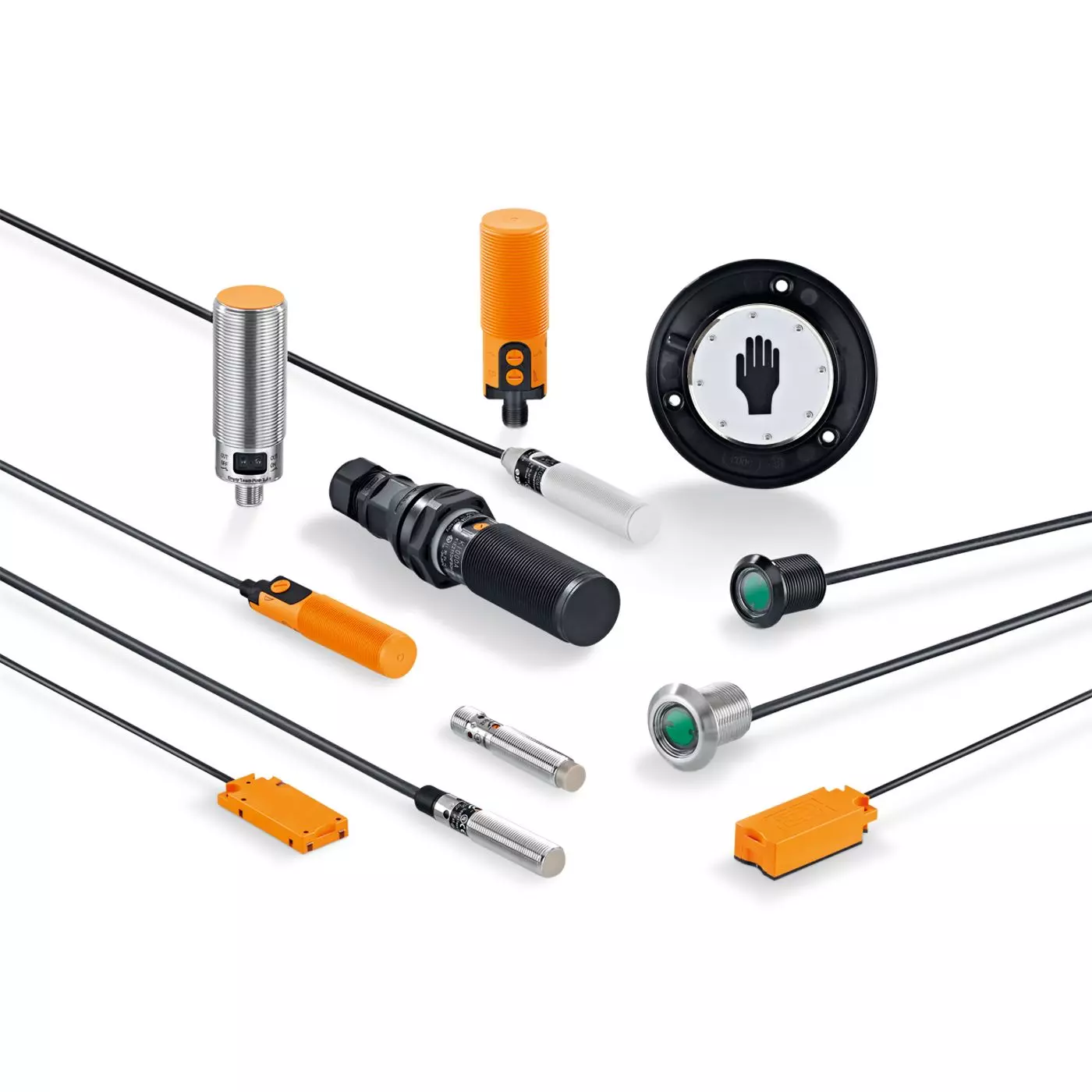

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Long sensing range for conveying applications
The adjustable sensing range of capacitive sensors of up to 60 mm enables maximum flexibility in mounting and at the same time high excess gain. The rectangular type with plastic housing is especially suitable for monitoring bucket elevators. The noise-immune electronics prevent incorrect switching of the sensor (e.g. due to interference caused by frequency converters). The sensors are equipped with a terminal chamber, a connection cable or an M12 connector.
Features & Benefits
- Easy setting of the sensing range via potentiometer
- High noise immunity
- Compact and robust housing
- Versions with combined AC/DC output and two-wire technology
- Versions with connectors, terminals or connection cable
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| KD0012 | 60 mm non-flush mountable | normally open | AC/DC | 120 x 80 x 30 mm | 2 m PVC-Cable |
| KD001A | 60 mm non-flush mountable | normally open / closed; (selectable) | AC/DC | 105 x 80 x 42 mm | terminals: 0,34...2,5 mm²; Cable sheath: Ø 5...9 mm |
| KD0024 | 60 mm non-flush mountable | normally open / closed; (selectable) | AC/DC | terminals: ...2,5 mm²; Cable sheath: Ø 7...13 mm | |
| KD5018 | 60 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 105 x 80 x 40 mm | terminals: ...2,5 mm²; Cable sheath: Ø 7...13 mm |
| KD5019 | 60 mm non-flush mountable | normally open / closed; (selectable) | DC NPN | 105 x 80 x 40 mm | terminals: ...2,5 mm²; Cable sheath: Ø 7...13 mm |
| KD501A | 60 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 105 x 80 x 42 mm | terminals: 0,34...2,5 mm²; Cable sheath: Ø 5...9 mm |
| KD5022 | 60 mm non-flush mountable | normally open | DC PNP | 120 x 80 x 30 mm | 2 m PVC-Cable |
| KD5039 | 60 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 105 x 80 x 40 mm | M12 Connector |
| KD5044 | 60 mm non-flush mountable | normally open | DC PNP | 105 x 80 x 40 mm | M12 Connector |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010020010 | Position Sensors - Capacitive - Industrial automation applications | $0.01 | |
| IFM-010020015 | Position Sensors - Capacitive - Non-contact level measurement | $0.01 | |
| IFM-010020020 | Position Sensors - Capacitive - Sensors with metal housings | $0.01 | |
| IFM-010020030 | Position Sensors - Capacitive - Low dielectric media applications | $0.01 | |
| IFM-010020040 | Position Sensors - Capacitive - Sensors for high temperature applications | $0.01 | |
| IFM-010020050 | Position Sensors - Capacitive - Sensors for aggressive media | $0.01 | |
| IFM-010020060 | Position Sensors - Capacitive - Hazardous environments | $0.01 | |
| IFM-010020070 | Position Sensors - Capacitive - Small rectangular housings | $0.01 | |
| IFM-010020080 | Position Sensors - Capacitive - M12 sensors for industrial automation | $0.01 | |
| IFM-010020090 | Position Sensors - Capacitive - IO-Link enabled sensors | $0.01 | |
| IFM-010020095 | Position Sensors - Capacitive - Sensors with LED display | $0.01 | |
| IFM-010020110 | Position Sensors - Capacitive - AC sensors | $0.01 | |
| IFM-010020120 | Position Sensors - Capacitive - Touch sensors | $0.01 | |
| IFM-010020130 | Position Sensors - Capacitive - illuminated pushbutton with touch surface in M22 design | $0.01 | |
| IFM-010020150 | Position Sensors - Capacitive - Switching amplifiers for Namur sensors | $0.01 |
