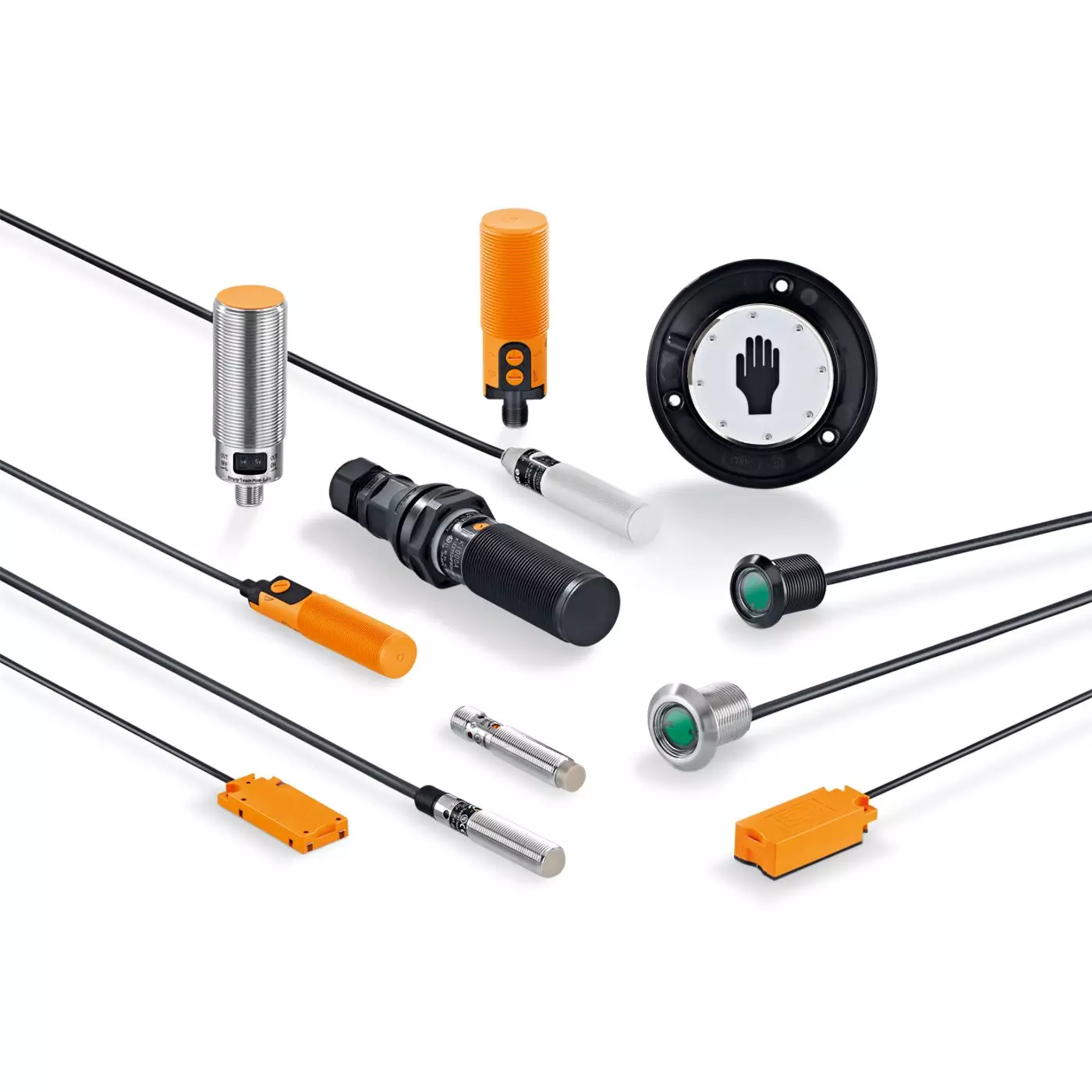

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Use in hazardous areas
Sensors for hazardous dust areas of categories 3G/3D must withstand extreme requirements. Any risk from sensors must be excluded by special test methods. Selected materials and a special sensor design ensure that prevention of ignition sources is guaranteed even in long-term use. This considerably increases plant safety. Namur sensors of the categories 1G/1D can be connected to intrinsically safe circuits. The connection to the required ifm switching amplifiers is made via connectors of the ENC ecolink series.
Features & Benefits
- Robust metal and plastic housings with 4 joules shock test
- Simple connection using connector or terminals
- Clearly visible indication of the switching status
- Direct connection to the plant control or to the switching amplifier
- High mechanical stability
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| KD001A | 60 mm non-flush mountable | normally open / closed; (selectable) | AC/DC | 105 x 80 x 42 mm | terminals: 0,34...2,5 mm²; Cable sheath: Ø 5...9 mm |
| KD501A | 60 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 105 x 80 x 42 mm | terminals: 0,34...2,5 mm²; Cable sheath: Ø 5...9 mm |
| KG5079 | 8 mm non-flush mountable | normally closed | DC NAMUR | M18 x 1 / L = 84 mm | 6 m PVC-Cable |
| KI000A | 15 mm non-flush mountable | normally open / closed; (selectable) | AC/DC | M30 x 1.5 / L = 150 mm | terminals: 0,34...2,5 mm²; Cable sheath: Ø 5...9 mm |
| KI001A | 15 mm non-flush mountable | normally open / closed; (selectable) | AC/DC | M30 x 1.5 / L = 125 mm | terminals: 0,34...2,5 mm²; Cable sheath: Ø 5...9 mm |
| KI5030 | 15 mm non-flush mountable | normally closed | DC NAMUR | M30 x 1.5 / L = 81 mm | 2 m PVC-Cable |
| KI5031 | 15 mm non-flush mountable | normally closed | DC NAMUR | M30 x 1.5 / L = 81 mm | 6 m PVC-Cable |
| KI503A | 15 mm non-flush mountable | complementary | DC PNP | M30 x 1.5 / L = 150 mm | terminals: 0,34...1,5 mm²; Cable sheath: Ø 5...9 mm |
| KI505A | 15 mm non-flush mountable | complementary | DC PNP | M30 x 1.5 / L = 125 mm | terminals: 0,34...1,5 mm²; Cable sheath: Ø 5...9 mm |
| KI530A | 3...26 mm non-flush mountable | complementary | DC PNP | M30 x 1.5 / L = 150 mm | terminals: 0,34...1,5 mm²; Cable sheath: Ø 5...9 mm |
| KI531A | 3...26 mm non-flush mountable | complementary | DC PNP | M30 x 1.5 / L = 150 mm | terminals: 0,34...1,5 mm²; Cable sheath: Ø 5...9 mm |
| KI532A | 3...26 mm non-flush mountable | complementary | DC PNP | M30 x 1.5 / L = 150 mm | M12 Connector |
| KI533A | 3...26 mm non-flush mountable | complementary | DC PNP | M30 x 1.5 / L = 150 mm | M12 Connector |
| KX5001 | 15 mm non-flush mountable | normally closed | DC NAMUR | M34 x 1.5 / L = 92 mm | 2 m PVC-Cable |
| KX5002 | 15 mm non-flush mountable | normally closed | DC NAMUR | M34 x 1.5 / L = 92 mm | 6 m PVC-Cable |
| KX5004 | 15 mm non-flush mountable | normally closed | DC NAMUR | M34 x 1.5 / L = 92 mm | 20 m PVC-Cable |
