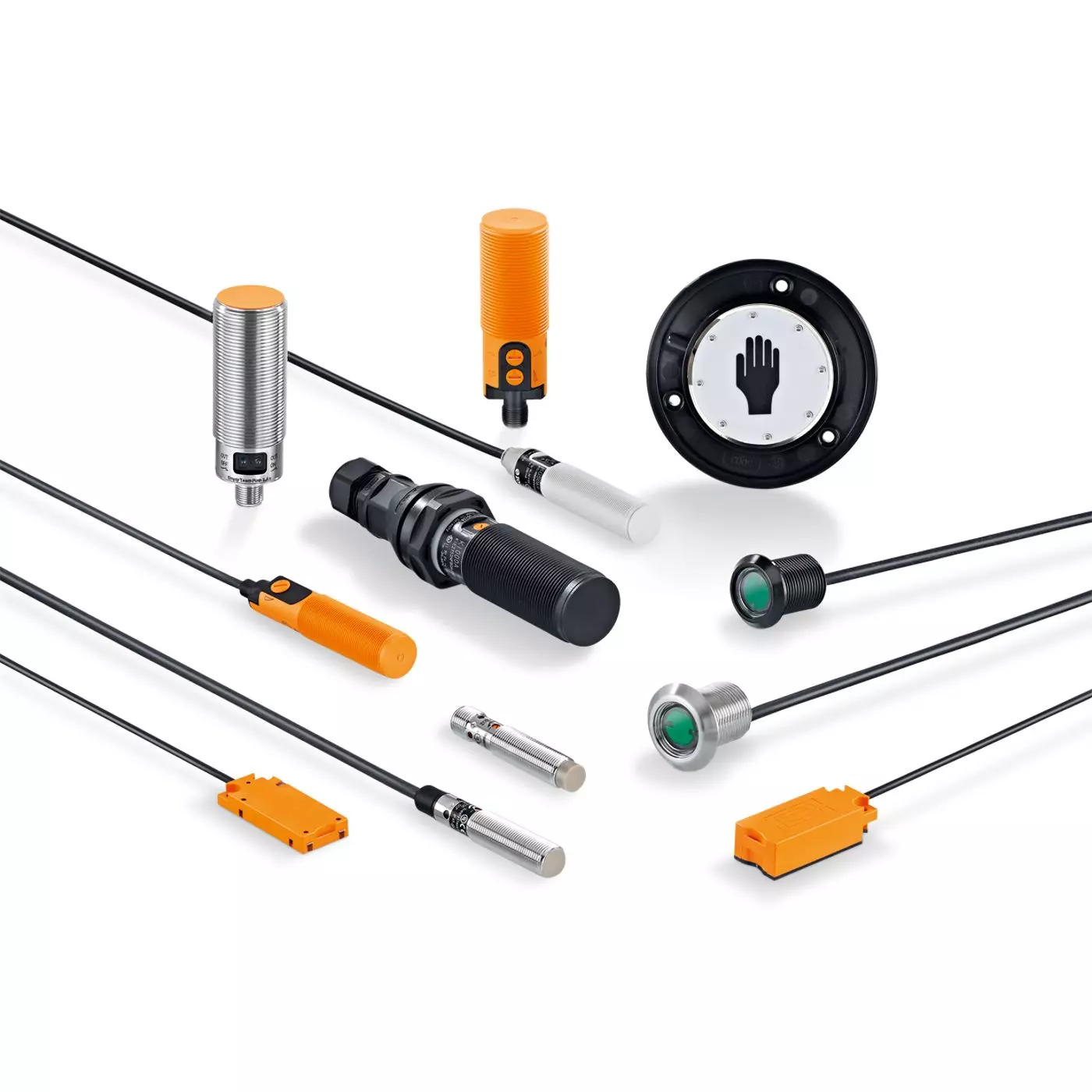

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Detection through non-metallic tank walls
Capacitive sensors detect bulk materials or liquids through non-metal tank walls or on bypasses. They are used to detect the minimum level, leakage or overflow of tanks. Typical applications are in the wood, paper, glass, plastic, food, chemical and semiconductor industries.
The parameters can either be set via the buttons on the sensor or via IO-Link interface. Variants with automatic load detection simplify configuration and set-up with different evaluation systems.
Features & Benefits
- Reliable level detection through non-metallic vessel walls
- Easy adjustment in the application via pushbutton or IO-Link
- Versions with automatic detection of PNP or NPN output loads
- Normally closed and normally open outputs available
- Clearly visible indication of the switching status
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| KG5040 | 2.5...8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 110 mm | terminals: ...2,5 mm²; Cable sheath: Ø 4,5...10 mm |
| KG5041 | 8 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 110 mm | terminals: ...2,5 mm²; Cable sheath: Ø 4,5...10 mm |
| KG5043 | 8 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 84 mm | 2 m PVC-Cable |
| KG5044 | 8 mm non-flush mountable | normally closed | DC PNP | M18 x 1 / L = 84 mm | 2 m PVC-Cable |
| KG5045 | 8 mm non-flush mountable | normally open | DC NPN | M18 x 1 / L = 84 mm | 2 m PVC-Cable |
| KG5046 | 8 mm non-flush mountable | normally closed | DC NPN | M18 x 1 / L = 84 mm | 2 m PVC-Cable |
| KG5047 | 8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 84 mm | 2 m PUR / PVC-Cable |
| KG5057 | 8 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 93.8 mm | M12 Connector |
| KG5065 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 87 mm | M12 Connector |
| KG5066 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 87 mm | M12 Connector |
| KG5067 | 8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M18 x 1 / L = 77 mm | 2 m PVC-Cable |
| KG5069 | 8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 77 mm | 2 m PVC-Cable |
| KG5070 | 8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 77 mm | 10 m PVC-Cable |
| KG5071 | 8 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 87 mm | M12 Connector |
| KG5300 | 0.5...30 mm non-flush mountable | normally open | DC NPN | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5301 | 0.5...30 mm non-flush mountable | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5302 | 0.5...30 mm non-flush mountable | normally closed | DC NPN | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5303 | 0.5...30 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5304 | 0.5...9 mm quasi flush | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5305 | 0.5...9 mm quasi flush | normally open | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5306 | 0.5...30 mm non-flush mountable | normally open | DC NPN | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5307 | 0.5...30 mm non-flush mountable | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5308 | 0.5...30 mm non-flush mountable | normally closed | DC NPN | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5309 | 0.5...30 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5310 | 0.5...9 mm quasi flush | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5311 | 0.5...9 mm quasi flush | normally open | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG6000 | 0.5...30 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG6001 | 0.5...30 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KI5082 | 20 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5083 | 20 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5084 | 8 mm flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5085 | 8 mm flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5086 | 15 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5087 | 15 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5300 | 0.5...40 mm non-flush mountable | normally open | DC NPN | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5301 | 0.5...40 mm non-flush mountable | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5302 | 0.5...40 mm non-flush mountable | normally closed | DC NPN | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5303 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5304 | 0.5...40 mm quasi flush | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5305 | 0.5...40 mm quasi flush | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5306 | 0.5...40 mm non-flush mountable | normally open | DC NPN | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5307 | 0.5...40 mm non-flush mountable | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5308 | 0.5...40 mm non-flush mountable | normally closed | DC NPN | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5309 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5310 | 0.5...24 mm quasi flush | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5311 | 0.5...24 mm quasi flush | normally open | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5324 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 5 m PUR-Cable |
| KI6000 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI6001 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI6002 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | 10 m PUR-Cable |
| KI6003 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC NPN | M30 x 1.5 / L = 92 mm | 10 m PUR-Cable |
| KQ5100 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 2 m PUR-Cable |
| KQ5101 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 0.1 m PUR-Cable; M12 Connector |
| KQ5102 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 0.04 m PUR-Cable; M8 Connector |
| KQ6001 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | 20 x 14 x 48 mm | 2 m PVC-Cable |
| KQ6002 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 2 m PVC-Cable |
| KQ6003 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | 20 x 14 x 48 mm | 0.04 m PVC-Cable; M8 Connector |
| KQ6004 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 0.04 m PVC-Cable; M8 Connector |
| KQ6005 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 0.1 m PVC-Cable; M12 Connector |
| KQ6006 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC NPN | 20 x 14 x 48 mm | 2 m PVC-Cable |
| KQ6010 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 0.04 m PVC-Cable; M8 Connector |
| KQ6016 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC NPN | 20 x 14 x 48 mm | 2 m PVC-Cable; M12 Connector |
