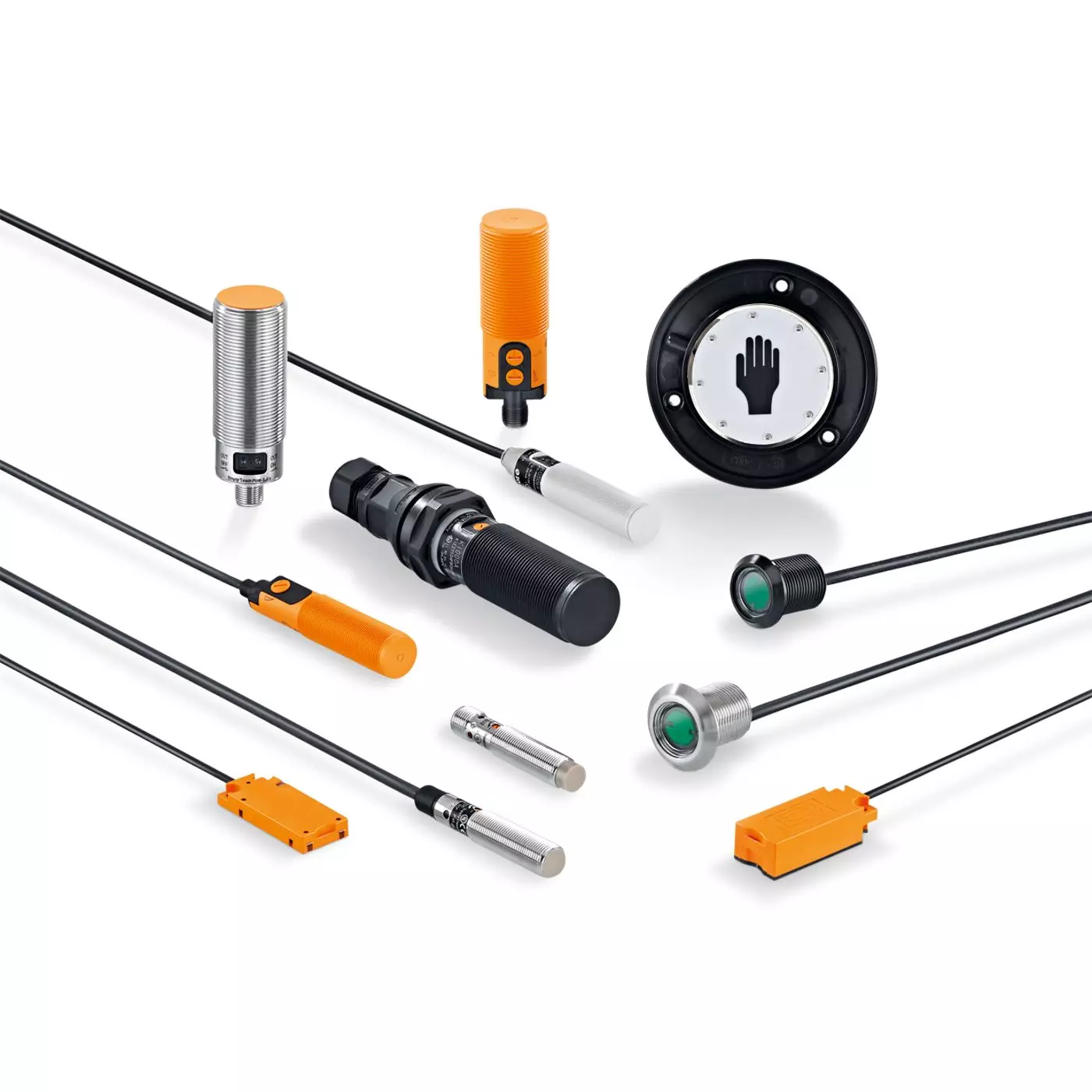

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Use in the plastics industry
Wherever plastic granulates are conveyed and processed, capacitive sensors are used to monitor levels in pipes and in silos or through sight glasses in loaders on injection moulding machines. The sensor must reliably detect a wide range of different plastics. On the one hand this means different materials, residual moistures and temperatures, on the other hand the grain sizes and surfaces of the basic substances vary considerably. Sensors with IO-Link allow tolerance limits to be defined in the area around the set switch point.
The operating concept enables setting and adjustment of the output function by pressing just one pushbutton. The automatic detection of the load simplifies the connection to common controllers.
Features & Benefits
- Easy pushbutton adjustment in the application
- Versions with automatic detection of PNP or NPN output loads
- Normally closed and normally open outputs available
- Clearly visible indication of the switching status
- Resistant to electrostatic discharge
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| KG0016 | 4...24 mm non-flush mountable | normally open / closed; (selectable) | AC/DC | M18 x 1 / L = 87 mm | 1/2" Connector |
| KG5066 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 87 mm | M12 Connector |
| KG5300 | 0.5...30 mm non-flush mountable | normally open | DC NPN | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5301 | 0.5...30 mm non-flush mountable | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5302 | 0.5...30 mm non-flush mountable | normally closed | DC NPN | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5303 | 0.5...30 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5304 | 0.5...9 mm quasi flush | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5305 | 0.5...9 mm quasi flush | normally open | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KG5306 | 0.5...30 mm non-flush mountable | normally open | DC NPN | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5307 | 0.5...30 mm non-flush mountable | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5308 | 0.5...30 mm non-flush mountable | normally closed | DC NPN | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5309 | 0.5...30 mm non-flush mountable | normally open | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5310 | 0.5...9 mm quasi flush | normally closed | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG5311 | 0.5...9 mm quasi flush | normally open | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG6000 | 0.5...30 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 92.5 mm | M12 Connector |
| KG6001 | 0.5...30 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M18 x 1 / L = 92.5 mm | 2 m PUR-Cable |
| KI5082 | 20 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5083 | 20 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5084 | 8 mm flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5085 | 8 mm flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5086 | 15 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5087 | 15 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5300 | 0.5...40 mm non-flush mountable | normally open | DC NPN | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5301 | 0.5...40 mm non-flush mountable | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5302 | 0.5...40 mm non-flush mountable | normally closed | DC NPN | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5303 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5304 | 0.5...40 mm quasi flush | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5305 | 0.5...40 mm quasi flush | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI5306 | 0.5...40 mm non-flush mountable | normally open | DC NPN | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5307 | 0.5...40 mm non-flush mountable | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5308 | 0.5...40 mm non-flush mountable | normally closed | DC NPN | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5309 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5310 | 0.5...24 mm quasi flush | normally closed | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5311 | 0.5...24 mm quasi flush | normally open | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI5324 | 0.5...40 mm non-flush mountable | normally open | DC PNP | M30 x 1.5 / L = 92 mm | 5 m PUR-Cable |
| KI6000 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | M12 Connector |
| KI6001 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | 2 m PUR-Cable |
| KI6002 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 92 mm | 10 m PUR-Cable |
| KI6003 | 0.5...40 mm non-flush mountable | normally open / closed; (selectable) | DC NPN | M30 x 1.5 / L = 92 mm | 10 m PUR-Cable |
| KN5121 | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 116 mm | 2 m; M12 Connector | |
| KQ5100 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 2 m PUR-Cable |
| KQ5101 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 0.1 m PUR-Cable; M12 Connector |
| KQ5102 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 7 x 48 mm | 0.04 m PUR-Cable; M8 Connector |
| KQ6002 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 2 m PVC-Cable |
| KQ6004 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 0.04 m PVC-Cable; M8 Connector |
| KQ6005 | 12 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | 20 x 14 x 48 mm | 0.1 m PVC-Cable; M12 Connector |
