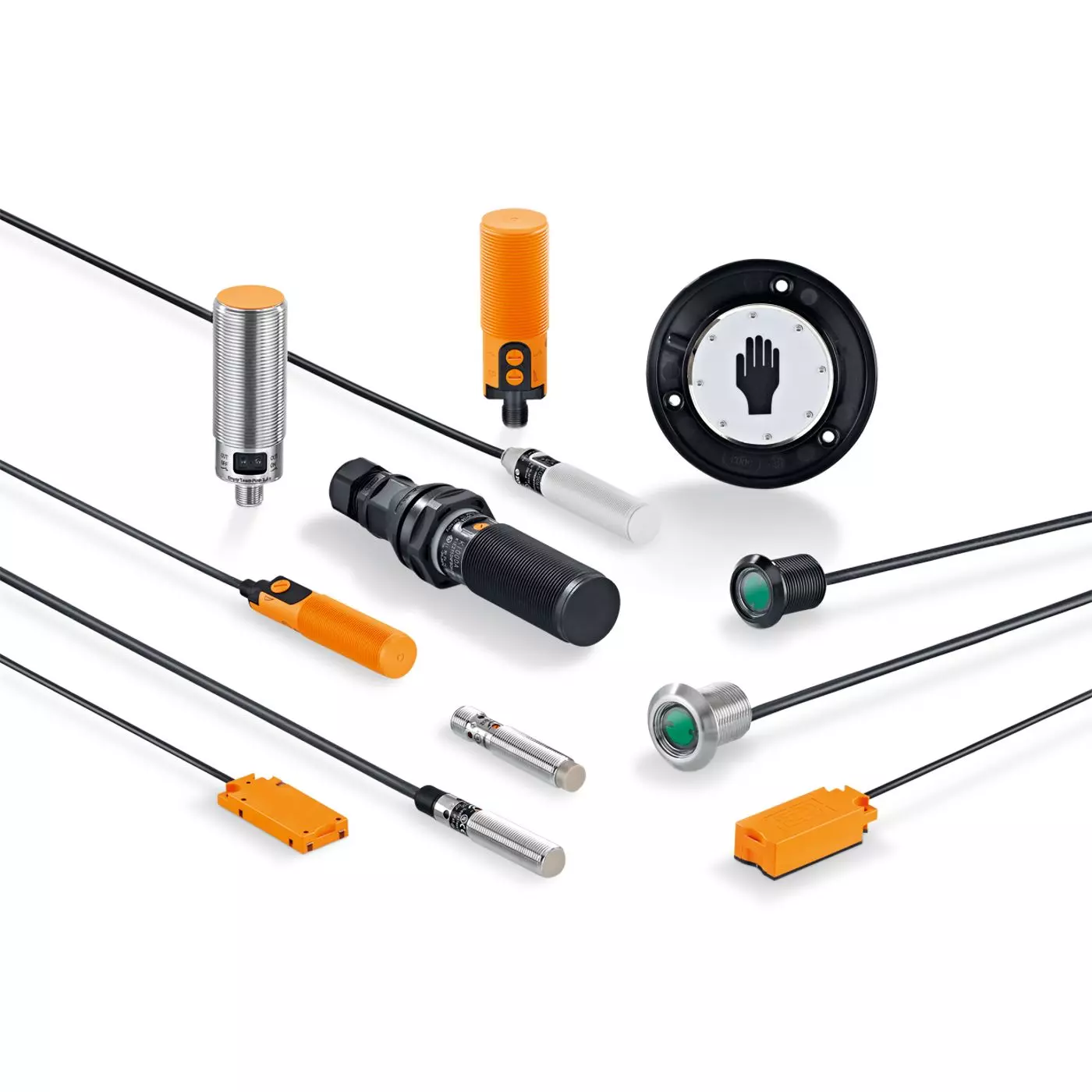

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Metal housing
Capacitive sensors detect metallic and non-metallic materials in different applications. The robust metal housing protects the sensor against mechanical damage.
The output function (normally open or normally closed) and the switch point can be set via two pushbuttons. A brief push of the button will set the switch point. An electronic lock can be activated to safeguard settings.
The automatic detection of a PNP or NPN load, the variable setting of the switching function and the fast connection via connector facilitate the set-up and reduce the number of different versions.
Features & Benefits
- Compact and robust housing
- Easy adjustment in the application via pushbutton or IO-Link
- Versions with automatic detection of PNP or NPN output loads
- Clearly visible indication of the switching status
- Flush and non-flush versions
Additional Notes
| MPN | Sensing range | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| KF5001 | 1...6 mm flush mountable | normally open | DC PNP | M12 x 1 / L = 60 mm | M12 Connector |
| KF5002 | 3...12 mm non-flush mountable | normally open | DC PNP | M12 x 1 / L = 61 mm | M12 Connector |
| KF5013 | 1...6 mm flush mountable | normally open | DC NPN | M12 x 1 / L = 60 mm | M12 Connector |
| KF5014 | 4 mm flush mountable | normally open | DC PNP | M12 x 1 / L = 69 mm | 2 m PUR-Cable |
| KI5084 | 8 mm flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5085 | 8 mm flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5086 | 15 mm non-flush mountable | normally open / closed; (selectable) | DC PNP/NPN | M30 x 1.5 / L = 90 mm | M12 Connector |
| KI5087 | 15 mm non-flush mountable | normally open / closed; (selectable) | DC PNP | M30 x 1.5 / L = 90 mm | M12 Connector |
| KX5001 | 15 mm non-flush mountable | normally closed | DC NAMUR | M34 x 1.5 / L = 92 mm | 2 m PVC-Cable |
| KX5002 | 15 mm non-flush mountable | normally closed | DC NAMUR | M34 x 1.5 / L = 92 mm | 6 m PVC-Cable |
| KX5004 | 15 mm non-flush mountable | normally closed | DC NAMUR | M34 x 1.5 / L = 92 mm | 20 m PVC-Cable |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010020010 | Position Sensors - Capacitive - Industrial automation applications | $0.01 | |
| IFM-010020015 | Position Sensors - Capacitive - Non-contact level measurement | $0.01 | |
| IFM-010020030 | Position Sensors - Capacitive - Low dielectric media applications | $0.01 | |
| IFM-010020040 | Position Sensors - Capacitive - Sensors for high temperature applications | $0.01 | |
| IFM-010020050 | Position Sensors - Capacitive - Sensors for aggressive media | $0.01 | |
| IFM-010020060 | Position Sensors - Capacitive - Hazardous environments | $0.01 | |
| IFM-010020070 | Position Sensors - Capacitive - Small rectangular housings | $0.01 | |
| IFM-010020080 | Position Sensors - Capacitive - M12 sensors for industrial automation | $0.01 | |
| IFM-010020090 | Position Sensors - Capacitive - IO-Link enabled sensors | $0.01 | |
| IFM-010020095 | Position Sensors - Capacitive - Sensors with LED display | $0.01 | |
| IFM-010020100 | Position Sensors - Capacitive - Large rectangular housings | $0.01 | |
| IFM-010020110 | Position Sensors - Capacitive - AC sensors | $0.01 | |
| IFM-010020120 | Position Sensors - Capacitive - Touch sensors | $0.01 | |
| IFM-010020130 | Position Sensors - Capacitive - illuminated pushbutton with touch surface in M22 design | $0.01 | |
| IFM-010020150 | Position Sensors - Capacitive - Switching amplifiers for Namur sensors | $0.01 |
