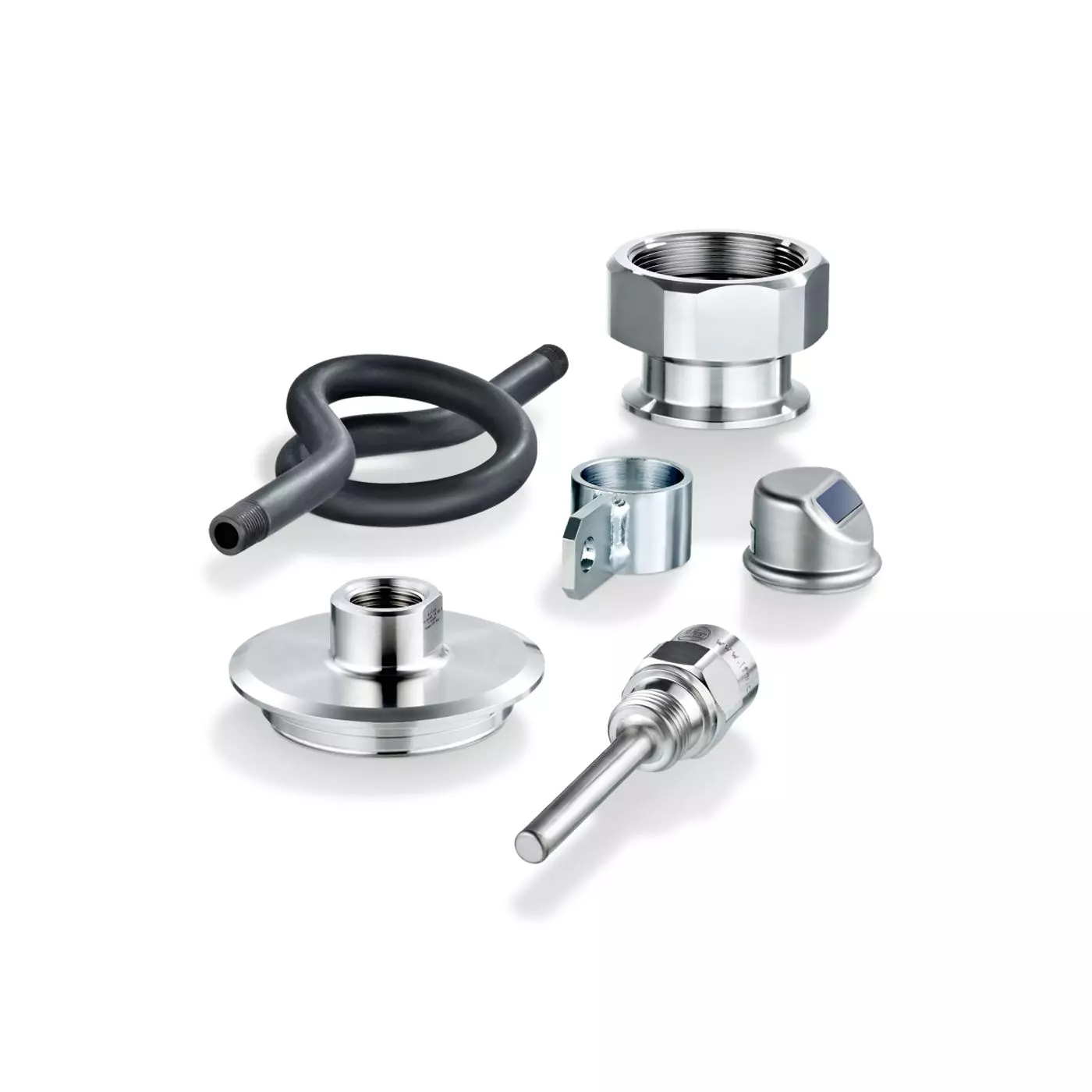

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Mounting accessories for infrared temperature sensors
Mounting fixtures, clamps, sleeves and brackets ensure easy, fast and safe installation of infrared temperature sensors. With their robust design, all mounting elements are suited for use in harsh industrial environments.
Features & Benefits
- Safe fastening
- Robust design for use in harsh industrial environments
- Big cost reduction compared to switchbox mounting
Additional Notes
| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| E10077 | Mounting clamp | 56 x 58 x 20 mm | 34 mm | PBT | |
| E10737 | Angle brackets | 58 x 58 x 28 mm | stainless steel (1.4301 / 304) | ||
| E10808 | Mounting sleeve | M36 x 1.5 mm | 30 mm | brass white bronze coated; Nuts: brass white bronze coated | |
| E11049 | Mounting clamp | 30 mm | PC | ||
| E35060 | Measuring head | 45 mm | AlMg3 black anodized; stainless steel (1.4305 / 303); lock nuts: stainless steel (1.4301 / 304); O-ring: FKM | ||
| E35065 | Mounting bracket | 30 mm | steel (1.0037 / S235JR) galvanized |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110140020 | ifm Accessories - for process sensors - Welding adapter | $0.01 | |
| IFM-110140021 | ifm Accessories - for process sensors - Mounting adapters for the food and beverage industry | $0.01 | |
| IFM-110140022 | ifm Accessories - for process sensors - Mounting adapters for industrial applications | $0.01 | |
| IFM-110140040 | ifm Accessories - for process sensors - Sealing plug | $0.01 | |
| IFM-110140041 | ifm Accessories - for process sensors - Device protection | $0.01 | |
| IFM-110140060 | ifm Accessories - for process sensors - Push-in air fittings for pressure sensors | $0.01 | |
| IFM-110140080 | ifm Accessories - for process sensors - T-pieces | $0.01 | |
| IFM-110140090 | ifm Accessories - for process sensors - Adapters for small volumetric flow quantities | $0.01 | |
| IFM-110140100 | ifm Accessories - for process sensors - Probes for level sensors LR | $0.01 | |
| IFM-110140120 | ifm Accessories - for process sensors - Coaxial tubes for level sensors | $0.01 | |
| IFM-110140130 | ifm Accessories - for process sensors - Flange plates for level sensors | $0.01 | |
| IFM-110140160 | ifm Accessories - for process sensors - Thermowells for temperature sensors | $0.01 | |
| IFM-110140210 | ifm Accessories - for process sensors - Device protection for infrared temperature sensors | $0.01 | |
| IFM-110140220 | ifm Accessories - for process sensors - Mounting accessories for submersible pressure transmitters | $0.01 | |
| IFM-110140230 | ifm Accessories - for process sensors - Teach buttons | $0.01 |
