Headline

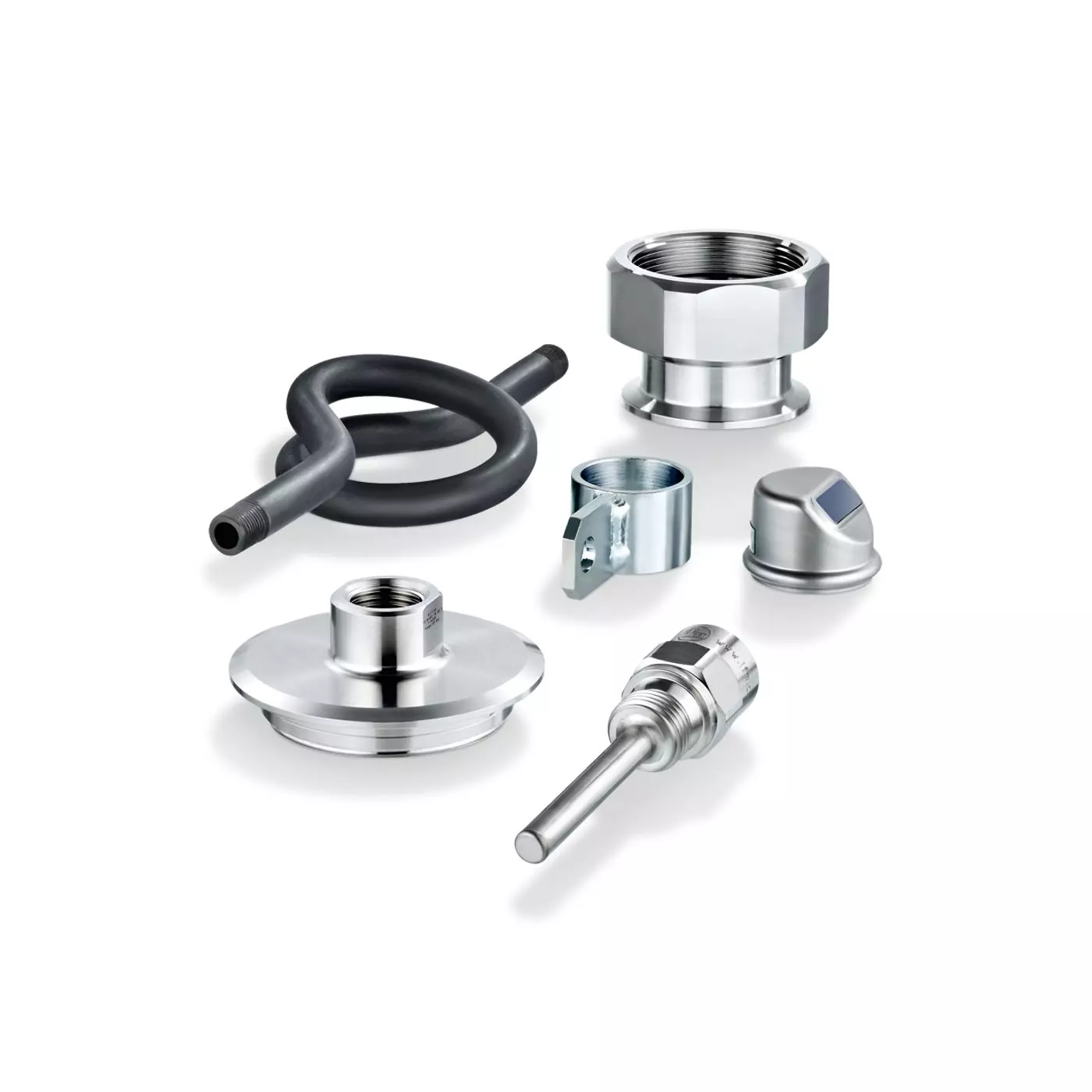

Accessories for process sensors
Adapters and T-pieces provide easy, fast and reliable installation of process sensors in tanks or piping systems. ifm offers a wide range of process connections for use in industrial or hygienic applications. Protective devices shield the electronics, housings and displays of pressure, flow, level and temperature sensors from dirt, overheating, shocks and impacts. Device-specific accessories enable quick set-up and safe operation of the sensors.
Features & Benefits
- For the installation of sensors in tanks or pipes
- Easy, quick and secure mounting
- Large variety of process connections
- Stable fixing by screwing in or clamping
Additional Notes
| MPN | Product designation | Process connection | Sensor connection | Insertion depth | Material |
|---|---|---|---|---|---|
| E21224 | Mounting adapter for photoelectric level sensors | flange: stainless steel (1.4404 / 316L); sealing: FKM; Protective cover: PMMA transparent; screws: stainless steel; washers: stainless steel | |||
| E30000 | Screw-in adapter for process sensors | G 1/2 | G 1/4 | stainless steel (1.4305 / 303); sealing: FKM | |
| E30003 | Flange adapter for process sensors | flange | G 1/4 | sealing: NBR; flange: aluminum; hollow screw: brass | |
| E30016 | Progressive ring fitting | G 1/2 | Ø 10 mm | stainless steel (1.4571/316Ti ) | |
| E30018 | Clamp fitting for process sensors | G 1/2 | Ø 6 mm / Ø 8 mm / Ø 10 mm | stainless steel (1.4305 / 303); FKM | |
| E30024 | Progressive ring fitting | 1/2" NPT | Ø 10 mm | stainless steel (1.4571/316Ti ) | |
| E30025 | Clamp fitting for process sensors | 1/2" NPT | Ø 6 mm / Ø 8 mm / Ø 10 mm | stainless steel (1.4305 / 303); FKM | |
| E30047 | Progressive ring fitting | G 1/2 | Ø 6 mm | stainless steel (1.4571/316Ti ) | |
| E30049 | Progressive ring fitting | 1/4" NPT | Ø 6 mm | stainless steel (1.4571/316Ti ) | |
| E30050 | Screw-in adapter for process sensors | G 1/2 | G 1/4 | stainless steel (1.4305 / 303); sealing: FKM | |
| E30058 | Screw-in adapter for process sensors | 1/4" NPT | G 1/4 | stainless steel (1.4571/316Ti ) | |
| E30059 | Screw-in adapter for process sensors | G 1/2 | 1/4" NPT | stainless steel (1.4571/316Ti ) | |
| E30075 | Thread extension | G 1/8 | G 1/8 | brass nickel-plated; sealing: NBR | |
| E30107 | Screw-in adapter for process sensors | G 1/4 | G 1/4 | stainless steel (1.4404 / 316L) | |
| E30116 | Screw-in adapter for process sensors | G 1/2 | G 1 | stainless steel (1.4404 / 316L); sealing: FKM | |
| E30131 | Screw-in adapter for process sensors | G 1/2 | G 1 Aseptoflex Vario | stainless steel (1.4404 / 316L) | |
| E30133 | Screw-in adapter for process sensors | 1/2" NPT | G 1/4 | stainless steel (1.4404 / 316L) | |
| E30135 | Screw-in adapter for process sensors | G 1/2 | G 1/4 external thread | stainless steel (1.4571/316Ti ); sealing: FKM | |
| E30143 | Screw-in adapter for process sensors | G 1/4 external thread | G 1/4 external thread | Adapter: stainless steel (1.4404 / 316L); Gasket: FKM | |
| E30418 | Screw-in adapter for process sensors | G 1/2 | M18 x 1,5 Internal thread | 21; (Measuring probes SID, SFD, TN) mm | stainless steel (1.4404 / 316L) |
| E30427 | Screw-in adapter for process sensors | R 1/4 | G 1/4 | steel (1.0718 / 12L13); Process connection sealing: FKM (DIN 3869) | |
| E30450 | Screw-in adapter for process sensors | G 1/2 | G 1/4 | stainless steel (1.4305 / 303); sealing: EPDM | |
| E30460 | Screw-in adapter for process sensors | G 1/4 external thread | M16 x 1,5 | steel (1.0718 / 12L13); FKM; Zn-Ni coating | |
| E30461 | Screw-in adapter for process sensors | R 1/4 external thread | M16 x 1,5 | steel (1.0718 / 12L13); Zn-Ni coating | |
| E30462 | Screw-in adapter for process sensors | 1/4" NPT external thread | M16 x 1,5 | steel (1.0718 / 12L13); Zn-Ni coating | |
| E30463 | Screw-in adapter for process sensors | M14 x 1,5 Internal thread | G 1/4 external thread | steel (1.0718 / 12L13); stainless steel (1.4305 / 303); steel (1.0216); FKM; Zn-Ni coating | |
| E30464 | Screw-in adapter for process sensors | M16 x 1,5 Internal thread | G 1/4 external thread | steel (1.0718 / 12L13); stainless steel (1.4305 / 303); steel (1.0216); FKM; Zn-Ni coating | |
| E33431 | Progressive ring fitting | G 1/4 | Ø 6 mm | stainless steel (1.4571/316Ti ) | |
| E33627 | Screw-in adapter for process sensors | 1 1/2" NPT | G 1 sealing cone | stainless steel (1.4404 / 316L) | |
| E37350 | Screw-in adapter for process sensors | R 1/8 | R 1/8 | brass nickel-plated | |
| E40096 | Screw-in adapter for process sensors | G 1/2 | M18 x 1,5 Internal thread | 21; (Measuring probes SID, SFD, TN) mm | stainless steel (1.4404 / 316L) |
| E40097 | Screw-in adapter for process sensors | G 1/2 | M18 x 1,5 Internal thread | 21; (Measuring probes SID, SFD, TN) mm | brass (2.0401) |
| E40099 | Screw-in adapter for process sensors | G 1/4 | M18 x 1,5 Internal thread | 13.5; (Measuring probes SID, SFD, TN) mm | stainless steel (1.4404 / 316L) |
| E40100 | Screw-in adapter for process sensors | M12 x 1 | M18 x 1,5 Internal thread | 13.5; (Measuring probes SID, SFD, TN) mm | brass (2.0401) |
| E40101 | Screw-in adapter for process sensors | M12 x 1 | M18 x 1,5 Internal thread | 13.5; (Measuring probes SID, SFD, TN) mm | stainless steel (1.4404 / 316L) |
| E40104 | Screw-in adapter for process sensors | M26 x 1,5 | M18 x 1,5 | 28.5; (Measuring probes SID, SFD, TN) mm | knurled nut: stainless steel (1.4571/316Ti ); Adapter: stainless steel (1.4404 / 316L); O-ring: FKM 70 Shore A |
| E40106 | Screw-in adapter for process sensors | 1/4" NPT | M18 x 1,5 Internal thread | 13.9; (Measuring probes SID, SFD, TN) mm | stainless steel (1.4404 / 316L) |
| E40107 | Screw-in adapter for process sensors | 1/2" NPT | M18 x 1,5 Internal thread | 23; (Measuring probes SID, SFD, TN) mm | stainless steel (1.4404 / 316L) |
| E40114 | Screw-in adapter for process sensors | G 1/2 | M18 x 1,5 | 21; (Measuring probes SID, SFD, TN) mm | titanium (3.7035) |
| E40115 | Screw-in adapter for process sensors | G 1/4 | M18 x 1,5 | 13.5; (Measuring probes SID, SFD, TN) mm | titanium (3.7235) |
| E40119 | Screw-in adapter for process sensors | G 1 | M18 x 1,5 Internal thread | 21; (Measuring probes SID, SFD, TN) mm | stainless steel (1.4404 / 316L) |
| E40127 | Screw-in adapter for process sensors | 1/2" NPT | M18 x 1,5 | 23; (Measuring probes SID, SFD, TN) mm | titanium (3.7235) |
| E40128 | Screw-in adapter for process sensors | M12 x 1 | M18 x 1,5 | 13.5; (Measuring probes SID, SFD, TN) mm | titanium (3.7235) |
| E40134 | Screw-in adapter for process sensors | G 3/4 external thread | M18 x 1,5 Internal thread | 21; (Measuring probes SID, SFD, TN) mm | stainless steel (1.4404 / 316L) |
| E40151 | Mounting adapter for flow sensors | R 1/2 | G 3/4 | brass | |
| E40152 | Mounting adapter for flow sensors | R 1/2 | G 1 | brass | |
| E40153 | Mounting adapter for flow sensors | R 3/4 | G 1 | brass | |
| E40154 | Mounting adapter for flow sensors | 1/2" NPT | G 3/4 | brass | |
| E40160 | Clamp fitting for process sensors | R 1/2 | Ø 10 mm | stainless steel | |
| E40174 | Clamp fitting for process sensors | 1/2" NPT | Ø 10 mm | stainless steel | |
| E40175 | Screw-in adapter for process sensors | G 1/2 | M18 x 1,5 | 21; (Measuring probes SID, SFD, TN) mm | Hastelloy C-4 (2.4610) |
| E40176 | Screw-in adapter for process sensors | G 1/4 | M18 x 1,5 | 13.5; (Measuring probes SID, SFD, TN) mm | Hastelloy C-4 (2.4610) |
| E40178 | Mounting adapter for flow sensors | R 1/2 | G 3/4 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 17 x 24 x 3 mm | |
| E40179 | Mounting adapter for flow sensors | R 1/2 | G 1 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm | |
| E40180 | Mounting adapter for flow sensors | R 3/4 | G 1 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm | |
| E40189 | Mounting adapter for flow sensors | G 3/4 external thread | G 1/2 | Adapter: stainless steel (1.4404 / 316L); O-ring: FKM 24 x 2 mm; Gasket: Centellen | |
| E40191 | Mounting adapter for flow sensors | 1/2" NPT | G 3/4 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 17 x 24 x 3 mm | |
| E40192 | Mounting adapter for flow sensors | 1/2" NPT | G 1 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm | |
| E40193 | Mounting adapter for flow sensors | 3/4" NPT | G 1 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm | |
| E40199 | Mounting adapter for flow sensors | R 1/2 | G 1/2 | Adapter: stainless steel (1.4571/316Ti ); Gasket: Centellen 18,5 x 12 x 3 mm | |
| E40200 | Mounting adapter for flow sensors | 1/2" NPT | G 1/2 | Adapter: stainless steel (1.4571/316Ti ); Gasket: Centellen 18,5 x 12 x 3 mm | |
| E40205 | Mounting adapter for flow sensors | R 1 | G 1 1/4 | stainless steel (1.4404 / 316L) | |
| E40206 | Mounting adapter for flow sensors | 1" NPT | G 1 1/4 | stainless steel (1.4404 / 316L) | |
| E40213 | Mounting adapter for flow sensors | G 1/2 | G 1/2 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 18,5 x 12 x 3 mm | |
| E40215 | Mounting adapter for flow sensors | G 3/4 | G 1 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm | |
| E40216 | Mounting adapter for flow sensors | G 3/4 | G 3/4 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 17 x 24 x 3 mm | |
| E40217 | Mounting adapter for flow sensors | G 1 | G 1 | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm | |
| E40228 | Mounting adapter for flow sensors | 2" NPT | G 2 | Adapter: stainless steel (1.4571/316Ti ); O-ring: FKM 47,22 x 3,53 mm | |
| E40229 | Mounting adapter for flow sensors | 1 1/2" NPT | G 2 | Adapter: stainless steel (1.4571/316Ti ); Gasket: Centellen 55 x 43 x 3 mm | |
| E40230 | Mounting adapter for flow sensors | G 1 1/2 | G 2 | Adapter: stainless steel (1.4571/316Ti ); Gasket: Centellen 55 x 43 x 3 mm | |
| E40231 | Mounting adapter for flow sensors | R 2 external thread | G 2 | Adapter: stainless steel (1.4571/316Ti ); O-ring: FKM 47,22 x 3,53 mm | |
| E40242 | Screw-in adapter for process sensors | 1/4" NPT | M18 x 1,5 | stainless steel (1.4404 / 316L) | |
| E40258 | Progressive ring fitting | G 1/2 | Ø 8 mm | stainless steel (1.4404 / 316L); Gasket: FKM | |
| E40259 | Progressive ring fitting | G 1/4 | Ø 8 mm | stainless steel (1.4404 / 316L); Gasket: FKM | |
| E40260 | Progressive ring fitting | G 3/4 | Ø 8 mm | stainless steel (1.4404 / 316L); Gasket: FKM | |
| E40261 | Progressive ring fitting | 1/2" NPT | Ø 8 mm | stainless steel (1.4404 / 316L) | |
| E40262 | Progressive ring fitting | 1/4" NPT | Ø 8 mm | stainless steel (1.4404 / 316L) | |
| E40263 | Progressive ring fitting | R 1/2 | Ø 8 mm | stainless steel (1.4404 / 316L) | |
| E40264 | Progressive ring fitting | R 1/4 | Ø 8 mm | stainless steel (1.4404 / 316L) | |
| E40267 | Progressive ring fitting | G 1/2 | Ø 8 mm | stainless steel (1.4404 / 316L) | |
| E40268 | Progressive ring fitting | G 3/4 | Ø 8 mm | stainless steel (1.4404 / 316L) | |
| E40269 | Progressive ring fitting | Ø 23 mm | Ø 8 mm | stainless steel (1.4404 / 316L) | |
| E40440 | Mounting adapter for flow sensors | R 1/2 | G 3/4 | brass | |
| E40442 | Mounting adapter for flow sensors | R 3/4 | G 1 | brass | |
| E43003 | Clamp fitting for process sensors | G 3/4 external thread | Ø 16 mm | flange: stainless steel; knurled nut: stainless steel; Spacer: brass; clamping ring: FKM; sealing: Tesnit | |
| E43004 | Clamp fitting for process sensors | G 1 external thread | Ø 16 mm | flange: stainless steel; knurled nut: stainless steel; Spacer: brass; clamping ring: FKM; sealing: Tesnit | |
| E43008 | Clamp fitting for process sensors | G 3/4 external thread | Ø 22 mm | stainless steel; NBR; Tesnit; brass | |
| E43009 | Clamp fitting for process sensors | G 1 external thread | Ø 22 mm | stainless steel; NBR; Tesnit; brass | |
| E43012 | Clamp fitting for process sensors | 3/4" NPT external thread | Ø 16 mm | flange: stainless steel; knurled nut: stainless steel; Spacer: brass; clamping ring: FKM | |
| E43013 | Clamp fitting for process sensors | 1" NPT external thread | Ø 16 mm | flange: stainless steel; knurled nut: stainless steel; Spacer: brass; clamping ring: FKM | |
| E43014 | Clamp fitting for process sensors | 3/4" NPT external thread | Ø 22 mm | stainless steel; NBR; brass | |
| E43015 | Clamp fitting for process sensors | 1" NPT | Ø 22 mm | stainless steel; NBR; brass | |
| E43019 | Clamp fitting for process sensors | G 3/4 external thread | Ø 16 mm | brass nickel-plated; TPE; sealing: FKM | |
| E43313 | Screw-in adapter for process sensors | 3/4" NPT | G 1/2 sealing cone | stainless steel (1.4404 / 316L) | |
| E43383 | Screw-in adapter for process sensors | G 1 | G 1/2 | Adapter: stainless steel (1.4404 / 316L); Cover: PVC | |
| E43400 | Process adapter block | G 3/4 | aluminum | ||
| E43908 | Mounting adapter for flow sensors | M18 x 1,5 | stainless steel (1.4404 / 316L); stainless steel (1.4435 / 316L) | ||
| E43909 | Mounting adapter for flow sensors | Ø 8 mm | stainless steel (1.4404 / 316L); stainless steel (1.4435 / 316L) | ||
| U20171 | Screw-in adapter for process sensors | SAE 7/16" - 20 | G 1/4 Internal thread | Adapter: stainless steel (1.4401 / 316); sealing: stainless steel / Viton | |
| U20172 | Screw-in adapter for process sensors | 1/4" NPT external thread | G 1/4 external thread | Adapter: stainless steel (1.4401 / 316); sealing: stainless steel / Viton | |
| U25003 | Screw-in adapter for process sensors | 1/4" NPT | G 1/4 external thread | Adapter: stainless steel (1.4401 / 316); sealing: stainless steel / Viton | |
| U30026 | Screw-in adapter for process sensors | 1/4" NPT | G 1 | stainless steel (1.4401 / 316); sealing: EPDM | |
| U30033 | Screw-in adapter for process sensors | 3/4" NPT | G 1 | stainless steel (1.4401 / 316); sealing: EPDM | |
| U30039 | Screw-in adapter for process sensors | 1/4" NPT | 1/4" NPT | stainless steel (1.4401 / 316) | |
| U40080 | Screw-in adapter for process sensors | 1" NPT | M18 x 1,5 | brass; stainless steel (1.4301 / 304); O-ring: NBR | |
| U40085 | Screw-in adapter for process sensors | 3/4" NPT | M18 x 1,5 | stainless steel (1.4301 / 304) | |
| U60102 | Screw-in adapter for process sensors | steel galvanized | |||
| UP0021 | Screw-in adapter for process sensors | stainless steel (1.4401 / 316) | |||
| US0030 | Mounting adapter for inline flow sensors | Tri-Clamp 2" | G 1 | stainless steel (1.4404 / 316L) | |
| US0041 | Mounting adapter for inline flow sensors | 1" NPT Internal thread | G 1 | stainless steel (1.4404 / 316L) | |
| US0043 | Mounting adapter for inline flow sensors | Tri-Clamp 2" | G 2 | stainless steel (1.4404 / 316L) | |
| US0045 | Mounting adapter for inline flow sensors | 2" 150 | G 2 | stainless steel (1.4404 / 316L) | |
| US0049 | Mounting adapter for inline flow sensors | Tri-Clamp 1,5" | G 1 | stainless steel (1.4404 / 316L) | |
| US0053 | Mounting adapter for flow sensors | Tri-Clamp 1,5" | G 2 | stainless steel (1.4404 / 316L) | |
| US0059 | Mounting adapter for flow sensors | Adapter: stainless steel (1.4401 / 316) | |||
| UT0038 | Compression fitting for temperature sensors | 1/2" NPT | Ø 6 mm | stainless steel (1.4571/316Ti ) | |
| UT0039 | Thermowell for temperature sensors | 1 1/4" - 18 UNEF | Clamp fitting Ø 6 mm | stainless steel (1.4404 / 316L); clamping ring: PA 6.6 | |
| UT0042 | Compression fitting for temperature sensors | 1/2" NPT | Ø 6 mm | stainless steel (1.4571/316Ti ); PA 6.6 | |
| UT0067 | Compression fitting for temperature sensors | 1/8" NPT | Ø 6 mm | stainless steel (1.4571/316Ti ) |
