Headline

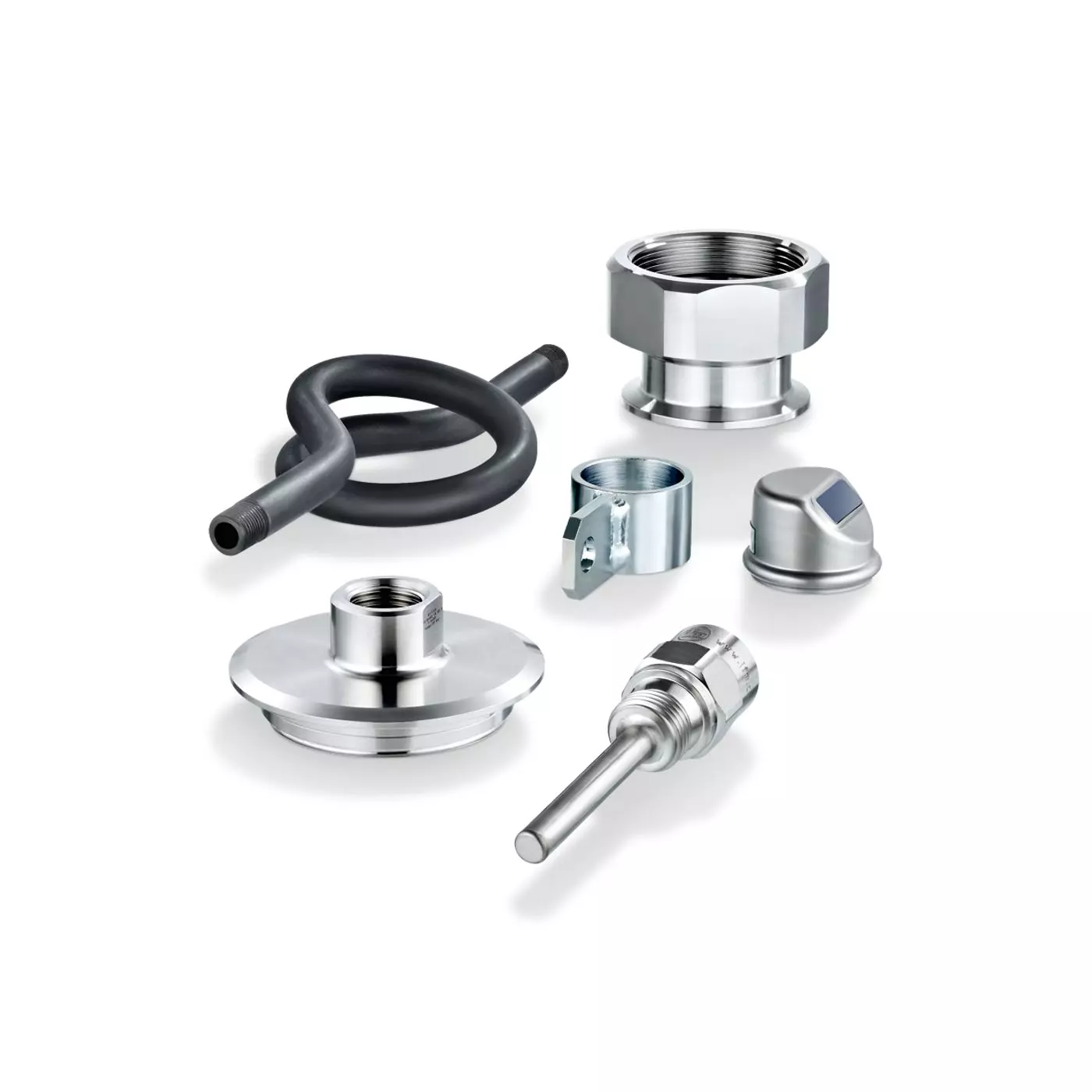

Accessories for process sensors
Adapters and T-pieces provide easy, fast and reliable installation of process sensors in tanks or piping systems. ifm offers a wide range of process connections for use in industrial or hygienic applications. Protective devices shield the electronics, housings and displays of pressure, flow, level and temperature sensors from dirt, overheating, shocks and impacts. Device-specific accessories enable quick set-up and safe operation of the sensors.
Features & Benefits
- Easy, quick and secure mounting
- Particularly suited for use in sanitary applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure resistance
Additional Notes
| MPN | Process connection | Sensor connection | Design | Material | Pressure rating |
|---|---|---|---|---|---|
| E30144 | G 1/2 sealing cone | Ø 6 mm | stainless steel (1.4404 / 316L); clamping ring: PEEK | ||
| E30482 | G 3/4 | G 1/2 sealing cone | stainless steel (1.4404 / 316L) | ||
| E33201 | Clamp DN25...DN40 (1...1,5") | G 1 Aseptoflex Vario | |||
| E33202 | Clamp DN50 (2") | G 1 Aseptoflex Vario | |||
| E33208 | Clamp DN25...DN40 (1...1,5") | G 1 Aseptoflex Vario | with leakage port | ||
| E33209 | Clamp DN50 (2") | G 1 Aseptoflex Vario | with leakage port | ||
| E33211 | Hygienic pipe fitting DN32 (1,25") | G 1 Aseptoflex Vario | |||
| E33212 | Hygienic pipe fitting DN40 (1,5") | G 1 Aseptoflex Vario | |||
| E33213 | Hygienic pipe fitting DN50 (2") | G 1 Aseptoflex Vario | |||
| E33221 | Varivent Form F, DN25 (1"), Ø 50 mm | G 1 Aseptoflex Vario | |||
| E33222 | Varivent Form N, DN40...DN150 (1,5...6"), Ø 68 mm | G 1 Aseptoflex Vario | |||
| E33228 | Varivent Form F, DN25 (1"), Ø 50 mm | G 1 Aseptoflex Vario | with leakage port | ||
| E33229 | Varivent Form N, DN40...DN150 (1,5...6"), Ø 68 mm | G 1 Aseptoflex Vario | with leakage port | ||
| E33242 | DRD-Flansch Ø 65 mm | G 1 Aseptoflex Vario | |||
| E33297 | SMS pipe fitting DN40 (1,5") | G 1 Aseptoflex Vario | stainless steel (1.4435 / 316L) | ||
| E33298 | SMS pipe fitting DN50 (2") | G 1 Aseptoflex Vario | stainless steel (1.4435 / 316L) | ||
| E33302 | Pipe fitting DN40 | G 1 Aseptoflex Vario | with leakage port | ||
| E33304 | Pipe fitting DN33,7 | G 1 Aseptoflex Vario | for ISO pipes (series B) | ||
| E33308 | Clamp DN40 | G 1 Aseptoflex Vario | with leakage port | ||
| E33309 | Clamp DN50 | G 1 Aseptoflex Vario | with leakage port | ||
| E33340 | universal process adapter Rd 52 | G 1 Aseptoflex Vario | |||
| E33341 | universal process adapter Rd 52 | G 1 Aseptoflex Vario | |||
| E33349 | universal process adapter Rd 52 | G 1 Aseptoflex Vario | accessories for, PM17xx: (Endress+Hauser universal process adapter RD52), PY200x: (Endress+Hauser universal process adapter Uni 6" D85) | ||
| E33350 | universal process adapter | G 1 Aseptoflex Vario | accessories for, PY200x, : (Anderson Weld-In Tank Shell: 71060A0003), PM17xx, : (Anderson Weld-In Tank Shell:71060A0004) | ||
| E33401 | Clamp DN25...DN40 (1...1,5") | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E33402 | Clamp DN50 (2") | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E33403 | Aseptoflex | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E33430 | SMS pipe fitting DN25 | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E33434 | Tank Spud | G 1 Aseptoflex Vario | accessories for, PY200x, PM17xx, PI27xx, PG27xx, : Rosemount 1199 (SSW) Tank Spud Seal | ||
| E33601 | Clamp DN25...DN40 (1...1,5") | G 1 sealing cone | |||
| E33602 | Clamp DN25...DN40 (1...1,5") | G 1 sealing cone | |||
| E33622 | Varivent Form N, DN40...DN150 (1,5...6"), Ø 68 mm | G 1 sealing cone | |||
| E33701 | Clamp DN25...DN40 (1...1,5") | G 1 Aseptoflex Vario | |||
| E33702 | Clamp DN50 (2") | G 1 Aseptoflex Vario | |||
| E33711 | Hygienic pipe fitting DN32 (1,25") | G 1 Aseptoflex Vario | |||
| E33721 | Varivent Form F, DN25 (1"), Ø 50 mm | G 1 Aseptoflex Vario | |||
| E33731 | SMS pipe fitting DN40 (1,5") | G 1 Aseptoflex Vario | |||
| E33732 | SMS pipe fitting DN50 (2") | G 1 Aseptoflex Vario | |||
| E33901 | Clamp DN25...DN40 (1...1,5") | G 3/4 | |||
| E33910 | Hygienic pipe fitting DN25 (1") | G 3/4 | |||
| E43020 | G 1/2 sealing cone | Ø 8 mm | stainless steel (1.4404 / 316L); clamping ring: PEEK | ||
| E43302 | G 3/4 | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E43303 | G 1 | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E43304 | Hygienic pipe fitting DN25 (1") | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E43306 | Varivent Form F, DN25 (1"), Ø 50 mm | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E43307 | Varivent Form N, DN40...DN150 (1,5...6"), Ø 68 mm | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E43311 | Clamp DN25...DN40 (1...1,5") | G 1/2 sealing cone | with leakage port | stainless steel (1.4435 / 316L) | |
| E43312 | Clamp DN50 (2") | G 1/2 sealing cone | with leakage port | stainless steel (1.4435 / 316L) | |
| E43322 | G 1/2 sealing cone | Ø 14 mm | for sanitary adaptations G 1/2, for level sensor LMT105, for level sensor LMT105 | PEEK-GF30; stainless steel (1.4404 / 316L) | |
| E43329 | UPJ Ø 42 mm | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E43344 | SMS pipe fitting DN50 (2") | G 1/2 sealing cone | with leakage port | stainless steel (1.4404 / 316L) | |
| E43349 | G 1/2 sealing cone | Ø 14 mm | for sanitary adaptations G 1/2, for level sensor LMT104 | PEEK-GF30; stainless steel (1.4404 / 316L) | |
| E43360 | Clamp DN20 | G 1/2 sealing cone | with leakage port | stainless steel (1.4435 / 316L) |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110140020 | ifm Accessories - for process sensors - Welding adapter | $0.01 | |
| IFM-110140022 | ifm Accessories - for process sensors - Mounting adapters for industrial applications | $0.01 | |
| IFM-110140040 | ifm Accessories - for process sensors - Sealing plug | $0.01 | |
| IFM-110140041 | ifm Accessories - for process sensors - Device protection | $0.01 | |
| IFM-110140060 | ifm Accessories - for process sensors - Push-in air fittings for pressure sensors | $0.01 | |
| IFM-110140080 | ifm Accessories - for process sensors - T-pieces | $0.01 | |
| IFM-110140090 | ifm Accessories - for process sensors - Adapters for small volumetric flow quantities | $0.01 | |
| IFM-110140100 | ifm Accessories - for process sensors - Probes for level sensors LR | $0.01 | |
| IFM-110140120 | ifm Accessories - for process sensors - Coaxial tubes for level sensors | $0.01 | |
| IFM-110140130 | ifm Accessories - for process sensors - Flange plates for level sensors | $0.01 | |
| IFM-110140160 | ifm Accessories - for process sensors - Thermowells for temperature sensors | $0.01 | |
| IFM-110140190 | ifm Accessories - for process sensors - Mounting accessories for infrared temperature sensors | $0.01 | |
| IFM-110140210 | ifm Accessories - for process sensors - Device protection for infrared temperature sensors | $0.01 | |
| IFM-110140220 | ifm Accessories - for process sensors - Mounting accessories for submersible pressure transmitters | $0.01 | |
| IFM-110140230 | ifm Accessories - for process sensors - Teach buttons | $0.01 |
