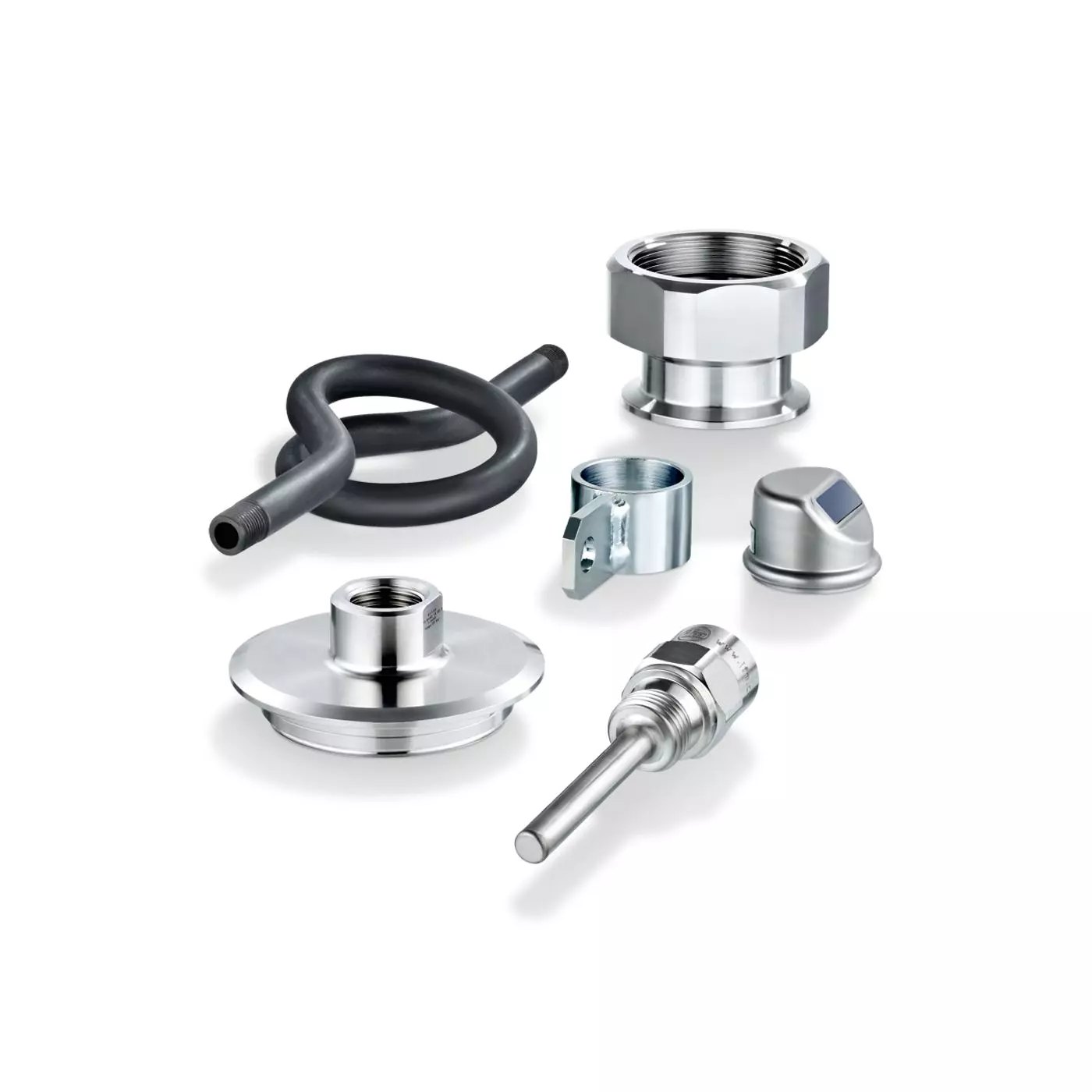

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Push-in fittings for pressure sensors
Push-in fittings are used for the connection of pressure sensors with standard tubing in pneumatic applications. A stainless steel retaining claw holds the tube securely without damaging the surface of the fitting. Vibration and pressure surges are safely absorbed. A nitrile rubber sealing ring guarantees a perfect seal between standard tubing and the body of the fitting.
Features & Benefits
- User-friendly fitting in pneumatic applications
- Safe fixing of the tube
- Reliable O-ring seal
- Suited for compressed air and vacuum
Additional Notes
| MPN | Product designation | Design | Process connection | Sensor connection | Material |
|---|---|---|---|---|---|
| E30076 | Connector | for tube Ø 6 mm | Clamp fitting Ø 6 mm | threaded connection G 1/8 external thread | steel; PBT; brass; aluminum |
| E30077 | Connector | for tube Ø 8 mm | Clamp fitting Ø 8 mm | threaded connection G 1/8 external thread | steel; PBT; brass; aluminum |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110140020 | ifm Accessories - for process sensors - Welding adapter | $0.01 | |
| IFM-110140021 | ifm Accessories - for process sensors - Mounting adapters for the food and beverage industry | $0.01 | |
| IFM-110140022 | ifm Accessories - for process sensors - Mounting adapters for industrial applications | $0.01 | |
| IFM-110140040 | ifm Accessories - for process sensors - Sealing plug | $0.01 | |
| IFM-110140041 | ifm Accessories - for process sensors - Device protection | $0.01 | |
| IFM-110140080 | ifm Accessories - for process sensors - T-pieces | $0.01 | |
| IFM-110140090 | ifm Accessories - for process sensors - Adapters for small volumetric flow quantities | $0.01 | |
| IFM-110140100 | ifm Accessories - for process sensors - Probes for level sensors LR | $0.01 | |
| IFM-110140120 | ifm Accessories - for process sensors - Coaxial tubes for level sensors | $0.01 | |
| IFM-110140130 | ifm Accessories - for process sensors - Flange plates for level sensors | $0.01 | |
| IFM-110140160 | ifm Accessories - for process sensors - Thermowells for temperature sensors | $0.01 | |
| IFM-110140190 | ifm Accessories - for process sensors - Mounting accessories for infrared temperature sensors | $0.01 | |
| IFM-110140210 | ifm Accessories - for process sensors - Device protection for infrared temperature sensors | $0.01 | |
| IFM-110140220 | ifm Accessories - for process sensors - Mounting accessories for submersible pressure transmitters | $0.01 | |
| IFM-110140230 | ifm Accessories - for process sensors - Teach buttons | $0.01 |
