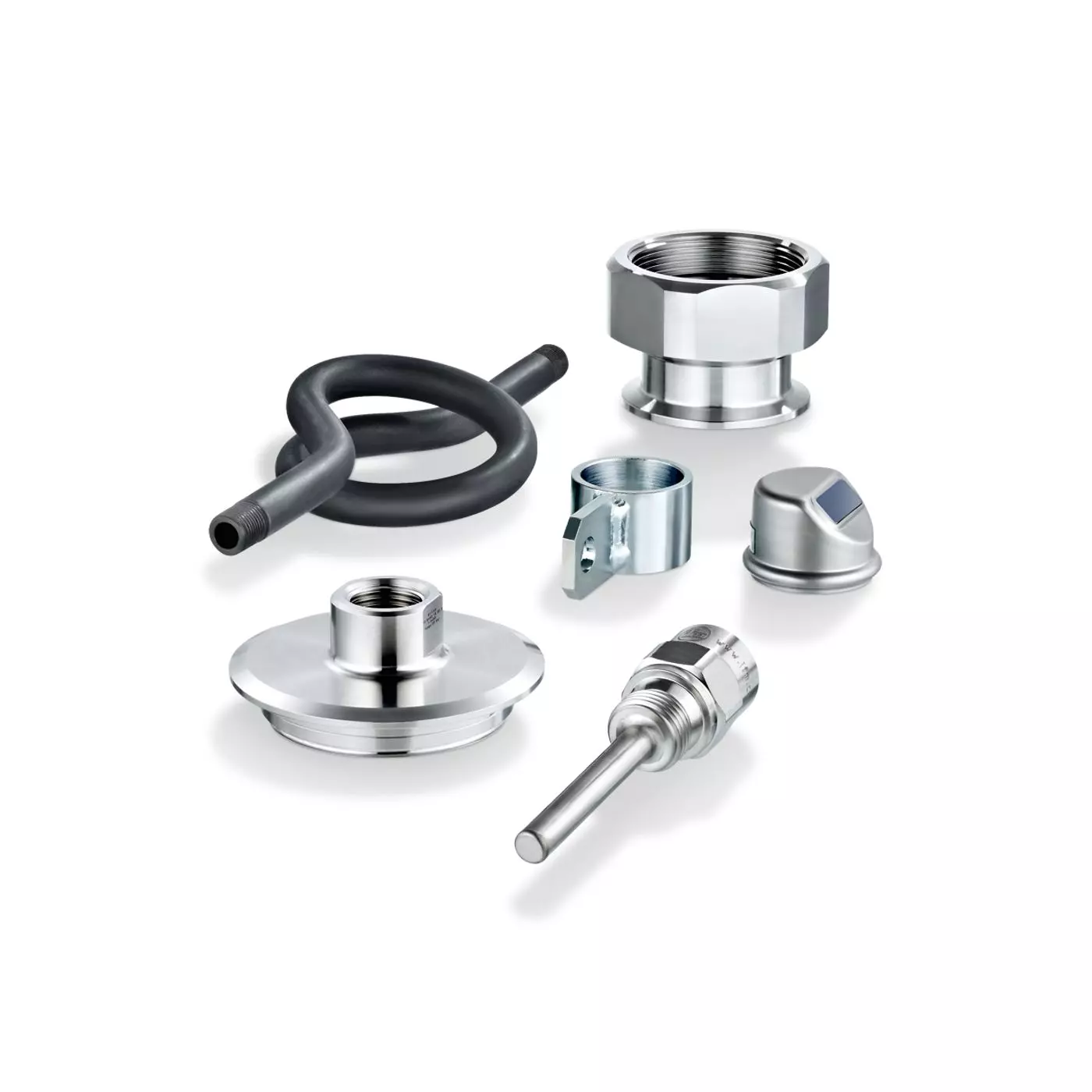

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Thermowells for temperature sensors
Thermowells protect temperature sensors against aggressive media, high process pressures and high flow speeds. Thermowells make it possible to replace sensors in the running process.
Features & Benefits
- Efficient long-time protection of the temperature sensor
- Protection against aggressive media and high process pressures
- Easy replacement of the temperature sensor during operation
Additional Notes
| MPN | Product designation | Installation | Sensor connection | Process connection | Material |
|---|---|---|---|---|---|
| E30393 | Thermowell for temperature sensors | TA34xx, TAA431, TAD191 | G 1/2 sealing cone Ø 8,2 mm | G 1/2 | stainless steel (1.4404 / 316L) |
| E30397 | Thermowell for temperature sensors | TA34xx, TAA4xx | G 1/2 sealing cone Ø 8,2 mm | 1/2" NPT | stainless steel (1.4404 / 316L) |
| E30403 | Welding thermowell for temperature sensors | TA343x, TAA431, TAD191 | G 1/2 sealing cone Ø 8,2 mm | Ø 35 mm | stainless steel (1.4404 / 316L) |
| E35010 | Thermowell for temperature sensors | G 1/2 Ø 10 mm | G 1/2 | stainless steel (1.4404 / 316L) | |
| E35020 | Thermowell for temperature sensors | G 1/2 Ø 10 mm | G 1/2 | stainless steel (1.4404 / 316L) | |
| E35030 | Thermowell for temperature sensors | G 1/2 Ø 10 mm | G 1/2 | stainless steel (1.4404 / 316L) | |
| E35050 | Thermowell for temperature sensors | G 1/2 Ø 10 mm | G 1/2 | stainless steel (1.4404 / 316L) | |
| E35210 | Welding thermowell for temperature sensors | G 1/2 | Welding adapter Ø 30 mm | stainless steel (1.4571/316Ti ) | |
| E35220 | Welding thermowell for temperature sensors | G 1/2 | Welding adapter Ø 30 mm | stainless steel (1.4571/316Ti ) | |
| E37010 | Thermowell for temperature sensors | Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37210 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | 1/2" NPT | stainless steel (1.4404 / 316L) | |
| E37211 | Thermowell for temperature sensors | G 1/2 sealing cone Ø 6 mm | 1/2" NPT | stainless steel (1.4404 / 316L) | |
| E37220 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | 1/2" NPT | stainless steel (1.4404 / 316L) | |
| E37221 | Thermowell for temperature sensors | G 1/2 sealing cone Ø 6 mm | 1/2" NPT | stainless steel (1.4404 / 316L) | |
| E37230 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | 1/2" NPT | stainless steel (1.4404 / 316L) | |
| E37250 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | 1/2" NPT | stainless steel (1.4404 / 316L) | |
| E37411 | Welding thermowell for temperature sensors | G 1/2 sealing cone Ø 6 mm | Welding adapter Ø 34 mm | stainless steel (1.4404 / 316L) | |
| E37421 | Welding thermowell for temperature sensors | G 1/2 sealing cone Ø 6 mm | Welding adapter Ø 34 mm | stainless steel (1.4404 / 316L) | |
| E37430 | Welding thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Welding adapter Ø 38,1 mm | stainless steel (1.4404 / 316L) | |
| E37431 | Welding thermowell for temperature sensors | G 1/2 sealing cone Ø 6 mm | Welding adapter Ø 34 mm | stainless steel (1.4404 / 316L) | |
| E37450 | Welding thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Welding adapter Ø 38,1 mm | stainless steel (1.4404 / 316L) | |
| E37511 | Thermowell for temperature sensors | G 1/2 sealing cone Ø 6 mm | G 1/2 | stainless steel (1.4404 / 316L) | |
| E37521 | Thermowell for temperature sensors | G 1/2 sealing cone Ø 6 mm | G 1/2 | stainless steel (1.4404 / 316L) | |
| E37600 | Thermowell for temperature sensors | G 1/2 Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37603 | Thermowell for temperature sensors | Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37610 | Thermowell for temperature sensors | G 1/2 Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37613 | Thermowell for temperature sensors | Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37620 | Thermowell for temperature sensors | G 1/2 Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37623 | Thermowell for temperature sensors | Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37630 | Thermowell for temperature sensors | G 1/2 Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37643 | Thermowell for temperature sensors | Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37663 | Thermowell for temperature sensors | Ø 6 mm | G 1/2 | stainless steel (1.4571/316Ti ) | |
| E37810 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) | stainless steel (1.4404 / 316L) | |
| E37820 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) | stainless steel (1.4404 / 316L) | |
| E37830 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) | stainless steel (1.4404 / 316L) | |
| E37850 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) | stainless steel (1.4404 / 316L) | |
| E37910 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Clamp DN50 (2") DIN 32676 (ISO 2852) | stainless steel (1.4404 / 316L) | |
| E37920 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Clamp DN50 (2") DIN 32676 (ISO 2852) | stainless steel (1.4404 / 316L) | |
| E37930 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Clamp DN50 (2") DIN 32676 (ISO 2852) | stainless steel (1.4404 / 316L) | |
| E37950 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Clamp DN50 (2") DIN 32676 (ISO 2852) | stainless steel (1.4404 / 316L) | |
| E38395 | Welding thermowell for temperature sensors | G 3/8 Internal thread Ø 3 mm | Welding adapter Ø 12 mm | stainless steel (1.4435 / 316L) | |
| E38425 | Welding thermowell for temperature sensors | G 3/8 Internal thread Ø 3 mm | Welding adapter Ø 25 mm | stainless steel (1.4435 / 316L) | |
| E38505 | Thermowell for temperature sensors | G 3/8 Internal thread Ø 3 mm | G 1/2 | stainless steel (1.4435 / 316L) | |
| E38515 | Thermowell for temperature sensors | G 3/8 Internal thread Ø 3 mm | G 1/2 | stainless steel (1.4435 / 316L) | |
| E38795 | Thermowell for temperature sensors | G 3/8 Internal thread Ø 3 mm | Clamp DN10...DN20 (1/2...3/4") DIN 32676 (ISO 2852) | stainless steel (1.4435 / 316L) | |
| E38825 | Thermowell for temperature sensors | G 3/8 Internal thread Ø 3 mm | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) | stainless steel (1.4435 / 316L) | |
| E38826 | Thermowell for temperature sensors | G 3/8 Internal thread Ø 3 mm | Ingold Ø 25 mm | stainless steel (1.4435 / 316L) | |
| UT0009 | Thermowell for temperature sensors | 1/2" NPT Ø 10 mm | 1/2" NPT | stainless steel (1.4401 / 316) | |
| UT0010 | Thermowell for temperature sensors | 1/2" NPT Ø 10 mm | 1/2" NPT | stainless steel (1.4401 / 316) | |
| UT0011 | Thermowell for temperature sensors | 1/2" NPT Ø 10 mm | 1/2" NPT | stainless steel (1.4401 / 316) | |
| UT0012 | Thermowell for temperature sensors | 1/2" NPT Ø 10 mm | 1/2" NPT | stainless steel (1.4401 / 316) | |
| UT0022 | Thermowell for temperature sensors | 1/4" NPT Ø 6 mm | 1/2" NPT | stainless steel (1.4401 / 316) | |
| UT0028 | Thermowell for temperature sensors | TN | M18 x 1,5 | 1/2" NPT | stainless steel (1.4401 / 316) |
| UT0050 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Welding adapter | stainless steel (1.4404 / 316L) | |
| UT0051 | Thermowell for temperature sensors | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT | Welding adapter | stainless steel (1.4404 / 316L) | |
| UT0060 | Thermowell for temperature sensors | stainless steel (1.4404 / 316L) | |||
| UT0061 | Thermowell for temperature sensors | stainless steel (1.4404 / 316L) |
