Headline

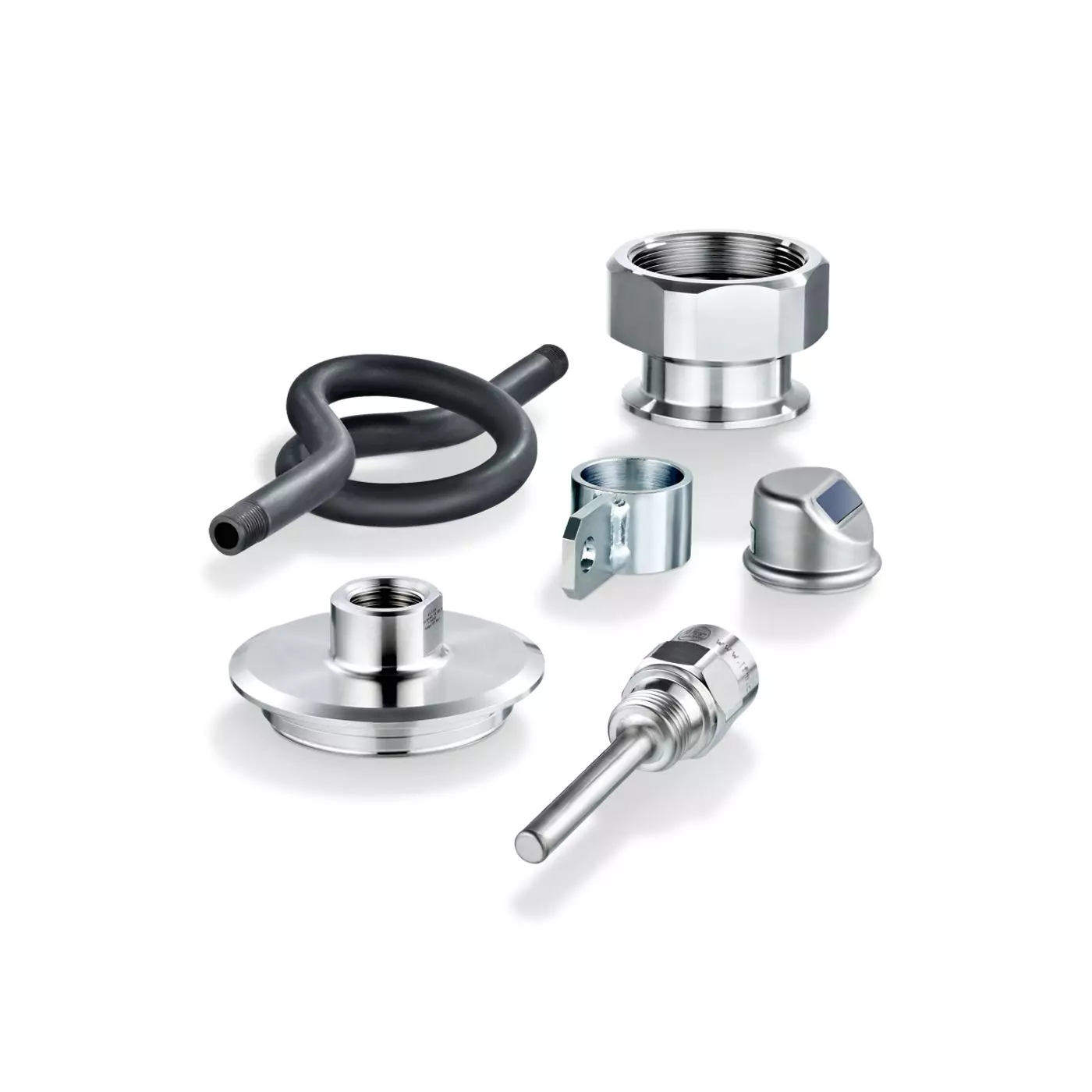

Accessories for process sensors
Adapters and T-pieces provide easy, fast and reliable installation of process sensors in tanks or piping systems. ifm offers a wide range of process connections for use in industrial or hygienic applications. Protective devices shield the electronics, housings and displays of pressure, flow, level and temperature sensors from dirt, overheating, shocks and impacts. Device-specific accessories enable quick set-up and safe operation of the sensors.
Features & Benefits
- Easy, quick and inexpensive installation of sensors
- Adapter for ensuring the correct immersion depth
- High permissible overload pressure resistance
Additional Notes
| MPN | Product designation | Design | Process connection | Sensor connection | Material |
|---|---|---|---|---|---|
| E33252 | T-piece | G1 Aseptoflex Vario - DN15 | Welding adapter Ø 19 mm | G 1 Aseptoflex Vario | |
| E40078 | Progressive ring T-piece DIN 2353 | QL 18-18-18 | Ø 18 mm | M26 x 1,5 | stainless steel (1.4571/316Ti ) |
| E40079 | Progressive ring T-piece DIN 2353 | QL 22-18-22 | Ø 22 mm | M26 x 1,5 | stainless steel (1.4571/316Ti ) |
| E40080 | Progressive ring T-piece DIN 2353 | QL 28-18-28 | Ø 28 mm | M26 x 1,5 | stainless steel (1.4571/316Ti ) |
| E40081 | Progressive ring T-piece DIN 2353 | QL 18-18-18 | Ø 18 mm | M26 x 1,5 | brass (2.0401) |
| E40082 | Progressive ring T-piece DIN 2353 | QL 22-18-22 | Ø 22 mm | M26 x 1,5 | brass (2.0401) |
| E40083 | Progressive ring T-piece DIN 2353 | QL 28-18-28 | Ø 28 mm | M26 x 1,5 | brass (2.0401) |
| E40102 | Progressive ring T-piece DIN 2353 | QL 18-18-18/G ½ | G 1/2 | M26 x 1,5 Internal thread | stainless steel (1.4571/316Ti ) |
| E40136 | T-piece | R½ - M26 x 1,5 - R½ | R 1/2 | M26 x 1,5 | stainless steel (1.4404 / 316L) |
| E40137 | T-piece | R¾ - M26 x 1,5 - R¾ | R 3/4 | M26 x 1,5 | stainless steel (1.4571/316Ti ) |
| E40139 | T-piece | R1 - M26 x 1,5 - R1 | R 1 | M26 x 1,5 | stainless steel (1.4571/316Ti ) |
| E40207 | T-piece | D 35 x 3 - M18 x 1,5 | Welding adapter Ø 35 mm | M18 x 1,5 | stainless steel (1.4571/316Ti ) |
| E40277 | T-piece | R½ - M26 x 1,5 - R½ | R 1/2 | M18 x 1,5 | stainless steel (1.4404 / 316L) |
| E40278 | T-piece | R¾ - M26 x 1,5 - R¾ | R 3/4 | M18 x 1,5 | stainless steel (1.4571/316Ti ) |
| E40279 | T-piece | R1 - M26 x 1,5 - R1 | R 1 | M18 x 1,5 | stainless steel (1.4571/316Ti ) |
| E43316 | T-piece | G ½ I - DN25 | Welding adapter Ø 29 mm | G 1/2 sealing cone | stainless steel (1.4404 / 316L) |
| E43317 | T-piece | G ½ I - DN40 | Welding adapter Ø 41 mm | G 1/2 sealing cone | stainless steel (1.4404 / 316L) |
| E43318 | T-piece | G ½ I - DN50 | Welding adapter Ø 53 mm | G 1/2 sealing cone | stainless steel (1.4404 / 316L) |
| EM0013 | manifold | G 1/2 | G 3/4 | aluminum anodized | |
| U40029 | T-piece | ½" NPT | brass | ||
| U40030 | T-piece | ½" NPT | stainless steel (1.4401 / 316) | ||
| U40080 | Adapter | M 18x1,5 - 1" NPT | 1" NPT | M18 x 1,5 | brass; stainless steel (1.4301 / 304); O-ring: NBR |
| U40085 | Adapter | M 18x1,5 - 3/4" NPT | 3/4" NPT | M18 x 1,5 | stainless steel (1.4301 / 304) |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110140020 | ifm Accessories - for process sensors - Welding adapter | $0.01 | |
| IFM-110140021 | ifm Accessories - for process sensors - Mounting adapters for the food and beverage industry | $0.01 | |
| IFM-110140022 | ifm Accessories - for process sensors - Mounting adapters for industrial applications | $0.01 | |
| IFM-110140040 | ifm Accessories - for process sensors - Sealing plug | $0.01 | |
| IFM-110140041 | ifm Accessories - for process sensors - Device protection | $0.01 | |
| IFM-110140060 | ifm Accessories - for process sensors - Push-in air fittings for pressure sensors | $0.01 | |
| IFM-110140090 | ifm Accessories - for process sensors - Adapters for small volumetric flow quantities | $0.01 | |
| IFM-110140100 | ifm Accessories - for process sensors - Probes for level sensors LR | $0.01 | |
| IFM-110140120 | ifm Accessories - for process sensors - Coaxial tubes for level sensors | $0.01 | |
| IFM-110140130 | ifm Accessories - for process sensors - Flange plates for level sensors | $0.01 | |
| IFM-110140160 | ifm Accessories - for process sensors - Thermowells for temperature sensors | $0.01 | |
| IFM-110140190 | ifm Accessories - for process sensors - Mounting accessories for infrared temperature sensors | $0.01 | |
| IFM-110140210 | ifm Accessories - for process sensors - Device protection for infrared temperature sensors | $0.01 | |
| IFM-110140220 | ifm Accessories - for process sensors - Mounting accessories for submersible pressure transmitters | $0.01 | |
| IFM-110140230 | ifm Accessories - for process sensors - Teach buttons | $0.01 |
