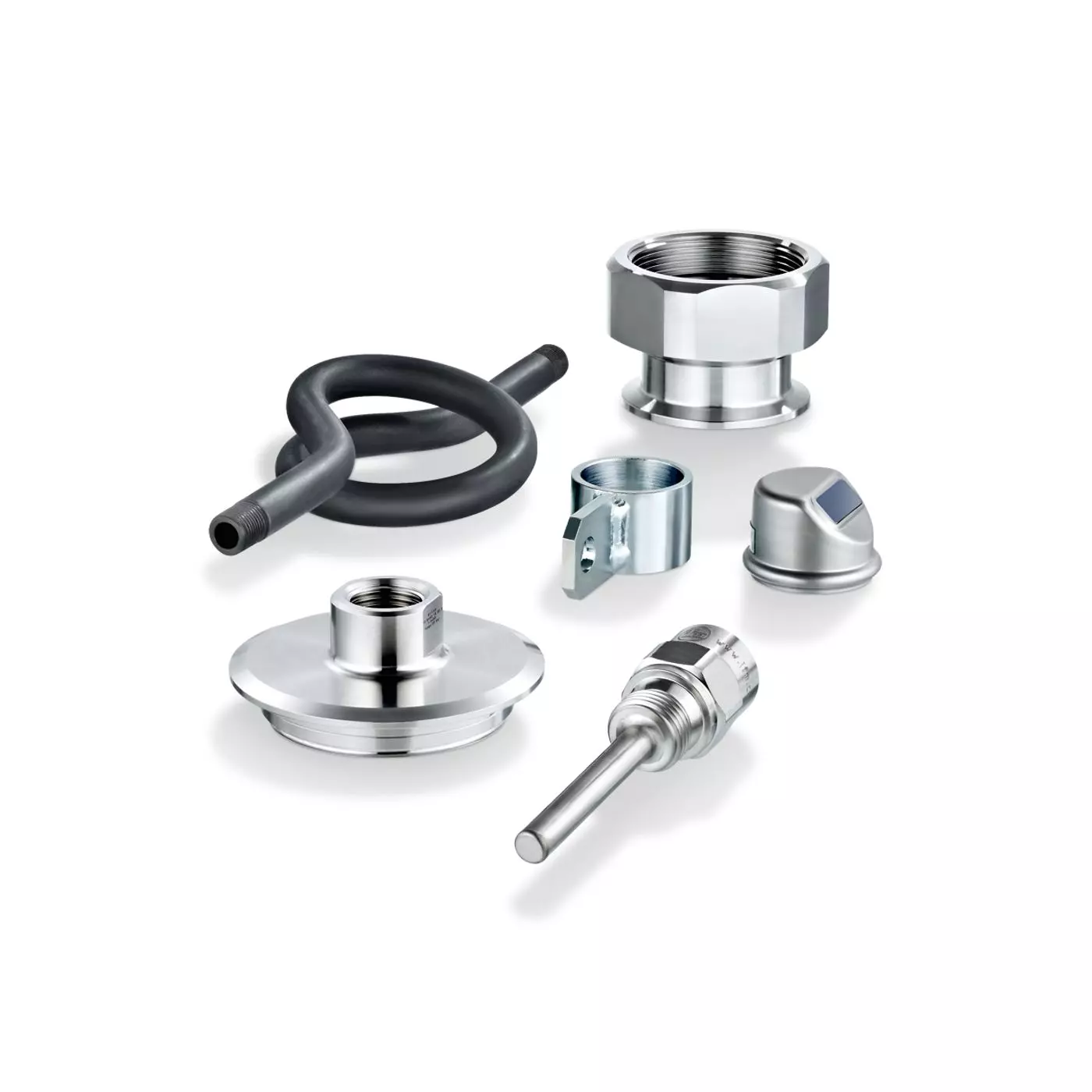

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Welding adapters
Welding adapters are used to install sensors in tanks or piping systems. ifm offers a wide range of process connections for use in industrial or hygienic applications. Welding adapters guarantee high pressure resistance and a perfect seal.
Features & Benefits
- Safe installation of process sensors in tanks or pipes
- For use in industrial and sanitary applications
- Large variety of process connections
Additional Notes
| MPN | Process connection | Sensor connection | Sealing | Design | Material |
|---|---|---|---|---|---|
| E30009 | Welding adapter Ø 50 mm | G 3/4 | |||
| E30013 | Welding adapter Ø 50 mm | G 1 sealing cone | |||
| E30055 | Welding adapter Ø 35 mm | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E30056 | Welding adapter Ø 45 mm | G 1/2 sealing cone | stainless steel (1.4435 / 316L) | ||
| E30060 | Welding adapter Ø 50 mm | G 1 sealing cone | |||
| E30072 | Welding adapter Ø 50 mm | G 1 sealing cone | |||
| E30108 | Welding adapter Ø 24,7 mm | Ø 6 mm | for temperature sensors Ø 6 mm | stainless steel (1.4404 / 316L) | |
| E30122 | Welding adapter Ø 50 mm | G 1 Aseptoflex Vario | Gasket | ||
| E30130 | Welding adapter Ø 50 mm | G 1 Aseptoflex Vario | Gasket | with leakage port | |
| E30151 | Welding adapter Ø 19 mm | M12 x 1,5 sealing cone | stainless steel (1.4404 / 316L) | ||
| E30152 | Welding adapter Ø 19 mm | M12 x 1,5 sealing cone | with leakage port | stainless steel (1.4404 / 316L) | |
| E30153 | Welding adapter Ø 25 mm | M12 x 1,5 sealing cone | stainless steel (1.4404 / 316L) | ||
| E30155 | Welding adapter Ø 25 mm | M12 x 1,5 sealing cone | stainless steel (1.4404 / 316L) | ||
| E30157 | Welding adapter Ø 65 mm | G 1 Aseptoflex Vario | Gasket | with leakage port | |
| E30407 | Welding adapter Ø 25 mm | Ø 6 mm | for temperature sensors Ø 6 mm | stainless steel (1.4404 / 316L); clamping ring: PEEK | |
| E30435 | G 1 | 2.0401 (brass / CW614N) | |||
| E30452 | G 1 Aseptoflex Vario | brass (2.0321 / CW508L); stainless steel | |||
| E30500 | Welding adapter Ø 38 mm | G 1 Aseptoflex Vario | Gasket | with leakage port | |
| E30501 | Welding adapter Ø 85 mm | G 1 Aseptoflex Vario | Gasket | with leakage port | |
| E30503 | Welding adapter Ø 35 mm | G 1/4 | Gasket | stainless steel (1.4404 / 316L) | |
| E40113 | Welding adapter Ø 22 mm | M18 x 1,5 Internal thread | steel (1.0570 / S355J2) bronzed | ||
| E40124 | Welding adapter Ø 24 mm | M18 x 1,5 Internal thread | stainless steel (1.4404 / 316L) | ||
| E40148 | Welding adapter Ø 23 mm | M18 x 1,5 Internal thread | PVC | ||
| E40195 | Welding adapter Ø 20 mm | G 1 Internal thread | for compressed air meters SD | stainless steel (1.4404 / 316L) | |
| E40265 | Welding adapter Ø 13,7 mm | Ø 8 mm | stainless steel (1.4404 / 316L) | ||
| E43002 | Welding adapter Ø 50 mm | Ø 16 mm | for capacitive level sensors LK, LI, LT, LL | flange: stainless steel; knurled nut: stainless steel; Spacer: brass; clamping ring: FKM | |
| E43300 | Welding adapter Ø 30 mm | G 1/2 sealing cone | for tanks | stainless steel (1.4435 / 316L) | |
| E43301 | Welding adapter Ø 29 mm | G 1/2 sealing cone | for pipes | stainless steel (1.4435 / 316L) | |
| E43309 | Welding adapter Ø 30 mm | G 1/2 sealing cone | for tanks, with leakage port | stainless steel (1.4435 / 316L) | |
| E43310 | Welding adapter Ø 29 mm | G 1/2 sealing cone | for pipes, with leakage port | stainless steel (1.4435 / 316L) | |
| E43314 | G 1/2 sealing cone | brass (2.0401) | |||
| E43315 | Welding adapter Ø 45 mm | G 1/2 sealing cone | with leakage port | stainless steel (1.4435 / 316L) | |
| E43319 | Welding adapter Ø 50 mm | G 1/2 sealing cone | long design for deeper installation | stainless steel (1.4435 / 316L) | |
| E43375 | Welding adapter Ø 26,4 mm | G 1/2 | stainless steel (1.4404 / 316L) | ||
| E43379 | Welding adapter | G 3/4 | stainless steel (1.4571/316Ti ) | ||
| E43382 | G 1/2 | brass (2.0401) | |||
| E43407 | Welding adapter Ø 38 mm | G 1/2 sealing cone | with leakage port | stainless steel (1.4435 / 316L) | |
| E43412 | Welding adapter Ø 29 mm | G 1/2 sealing cone | for pipes, with leakage port | stainless steel (1.4435 / 316L) |
