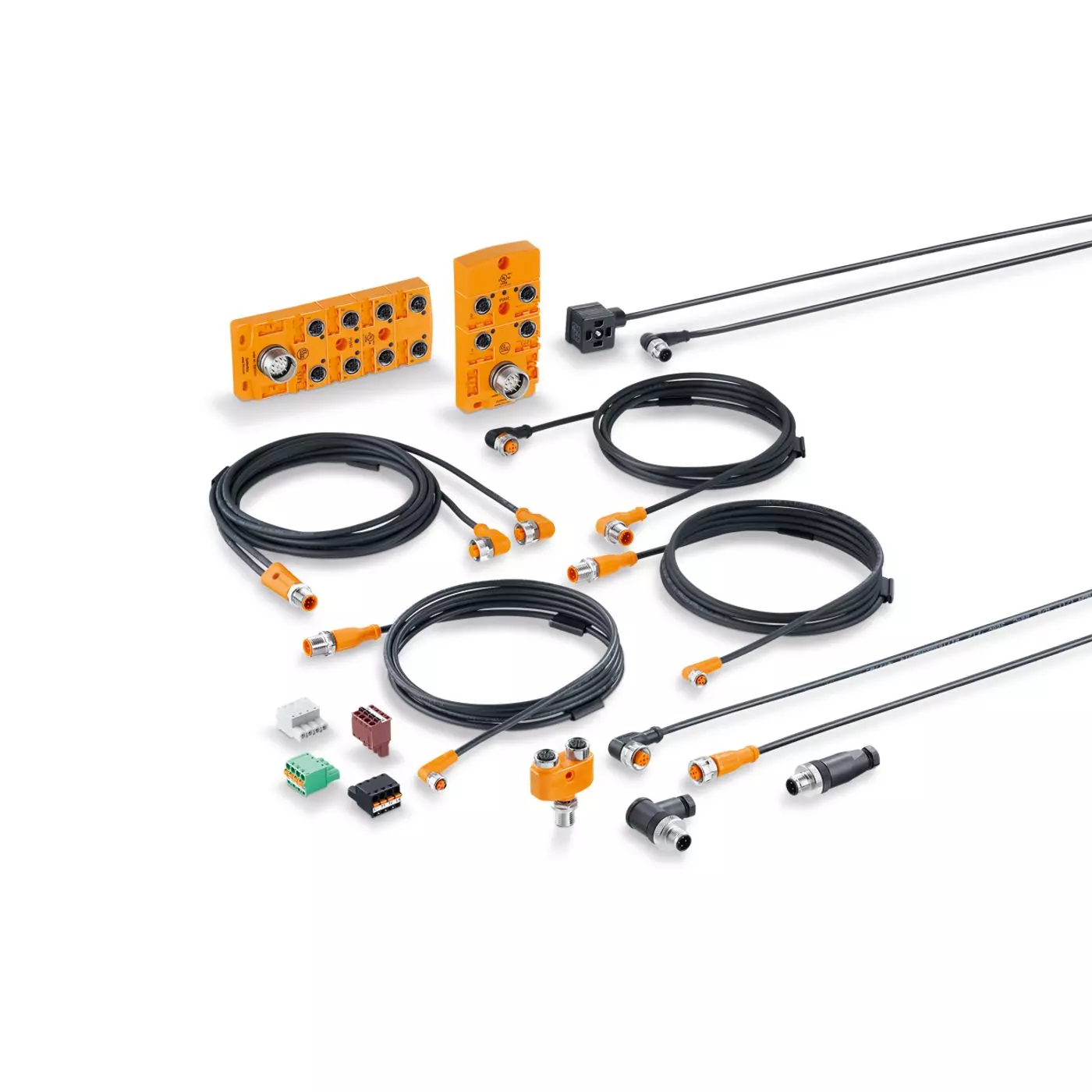

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Connection cables with valve plug
Connection cables with valve plug are used to connect solenoid valves to splitter boxes and modules or to dual inductive sensors for quarter-turn actuators. The robust rectangular connectors are available in the forms A, B and C.
Features & Benefits
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Clearly visible LED
- Robust rectangular connectors
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E10817 | Connection cable | 0.3 m PUR-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (16 x Ø 0,2 mm) | Power: 1 x LED yellow | 3 |
| E10818 | Connection cable | 0.6 m PUR-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (16 x Ø 0,2 mm) | Power: 1 x LED yellow | 3 |
| E10819 | Connection cable | 0.3 m PUR-Cable; M12 / valve type B industrial standard Connector | 3 x 0,5 mm² (16 x Ø 0,2 mm) | Power: 1 x LED yellow | 3 |
| E10820 | Connection cable | 0.6 m PUR-Cable; M12 / valve type B industrial standard Connector | 3 x 0,5 mm² (16 x Ø 0,2 mm) | Power: 1 x LED yellow | 3 |
| E10821 | Connection cable | 0.3 m PVC-Cable; M12 / valve type A DIN Connector | 2 x 0,5 mm² | 2 | |
| E10844 | Connection cable | 0.3 m PUR-Cable; M12 / valve type C DIN Connector | 3 x 0,5 mm² (16 x Ø 0,2 mm) | Power: 1 x LED yellow | 3 |
| E11187 | Connection cable | 1 m PUR-Cable; M12 / valve type A DIN Connector | 2 x 0,75 mm² | 2 | |
| E11277 | Connection cable | 0.75 m PUR-Cable; M12 / valve type A DIN Connector | 2 x 0,75 mm² | 2 | |
| E11416 | Connection cable | 0.3 m PUR-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11417 | Connection cable | 0.6 m PUR-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11418 | Connection cable | 1 m PUR-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11419 | Connection cable | 2 m PUR-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11420 | Connection cable | 5 m PUR-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11421 | Connection cable | 0.3 m PUR-Cable; M12 / valve type B DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11422 | Connection cable | 0.6 m PUR-Cable; M12 / valve type B DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11423 | Connection cable | 1 m PUR-Cable; M12 / valve type B DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11424 | Connection cable | 2 m PUR-Cable; M12 / valve type B DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11425 | Connection cable | 5 m PUR-Cable; M12 / valve type B DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11426 | Connection cable | 0.3 m PUR-Cable; M12 / valve type C DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11427 | Connection cable | 0.6 m PUR-Cable; M12 / valve type C DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11428 | Connection cable | 1 m PUR-Cable; M12 / valve type C DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11429 | Connection cable | 2 m PUR-Cable; M12 / valve type C DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11430 | Connection cable | 5 m PUR-Cable; M12 / valve type C DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED yellow | 3 |
| E11431 | Connection cable | 0.3 m PUR-Cable; M12 / valve type B industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11432 | Connection cable | 0.6 m PUR-Cable; M12 / valve type B industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11433 | Connection cable | 1 m PUR-Cable; M12 / valve type B industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11434 | Connection cable | 2 m PUR-Cable; M12 / valve type B industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11435 | Connection cable | 5 m PUR-Cable; M12 / valve type B industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11436 | Connection cable | 0.3 m PUR-Cable; M12 / valve type C industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11437 | Connection cable | 0.6 m PUR-Cable; M12 / valve type C industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11438 | Connection cable | 1 m PUR-Cable; M12 / valve type C industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11439 | Connection cable | 2 m PUR-Cable; M12 / valve type C industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11440 | Connection cable | 5 m PUR-Cable; M12 / valve type C industrial standard Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow | 3 |
| E11622 | Connection cable | 2 m PUR-Cable; M12 / valve type A DIN Connector | 2 x 0,75 mm² | 2 | |
| E11651 | Valve plug type A (according to DIN EN 175301-803) | 5 m PUR-Cable; valve type A DIN Connector | 3 x 0,5 mm² | Switching status: 1 x LED yellow | 3 |
| E11652 | Valve plug type B (according to DIN EN 175301-803) | 5 m PUR-Cable; valve type B DIN Connector | 3 x 0,5 mm² | Switching status: 1 x LED yellow | 3 |
| E11991 | Valve plug type A (according to DIN EN 175301-803) | 10 m PUR-Cable; valve type A DIN Connector | 3 x 0,5 mm² | Switching status: 1 x LED yellow | 3 |
| E11992 | Valve plug type B (according to DIN EN 175301-803) | 10 m PUR-Cable; valve type B DIN Connector | 3 x 0,5 mm² | Switching status: 1 x LED yellow | 3 |
| E12727 | Connection cable | 0.4 m PUR-Cable; valve type A DIN / M12 Connector | 5 x 0,50 mm² | 5 | |
| E30436 | Connection cable | 0.4 m PUR-Cable; valve type A DIN / M12 Connector | 5 x 0,50 mm² | 5 | |
| E70350 | Connection cable | 2 m PUR / PVC-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (42 x Ø 0,1 mm) | Power: 1 x LED green | 3 |
