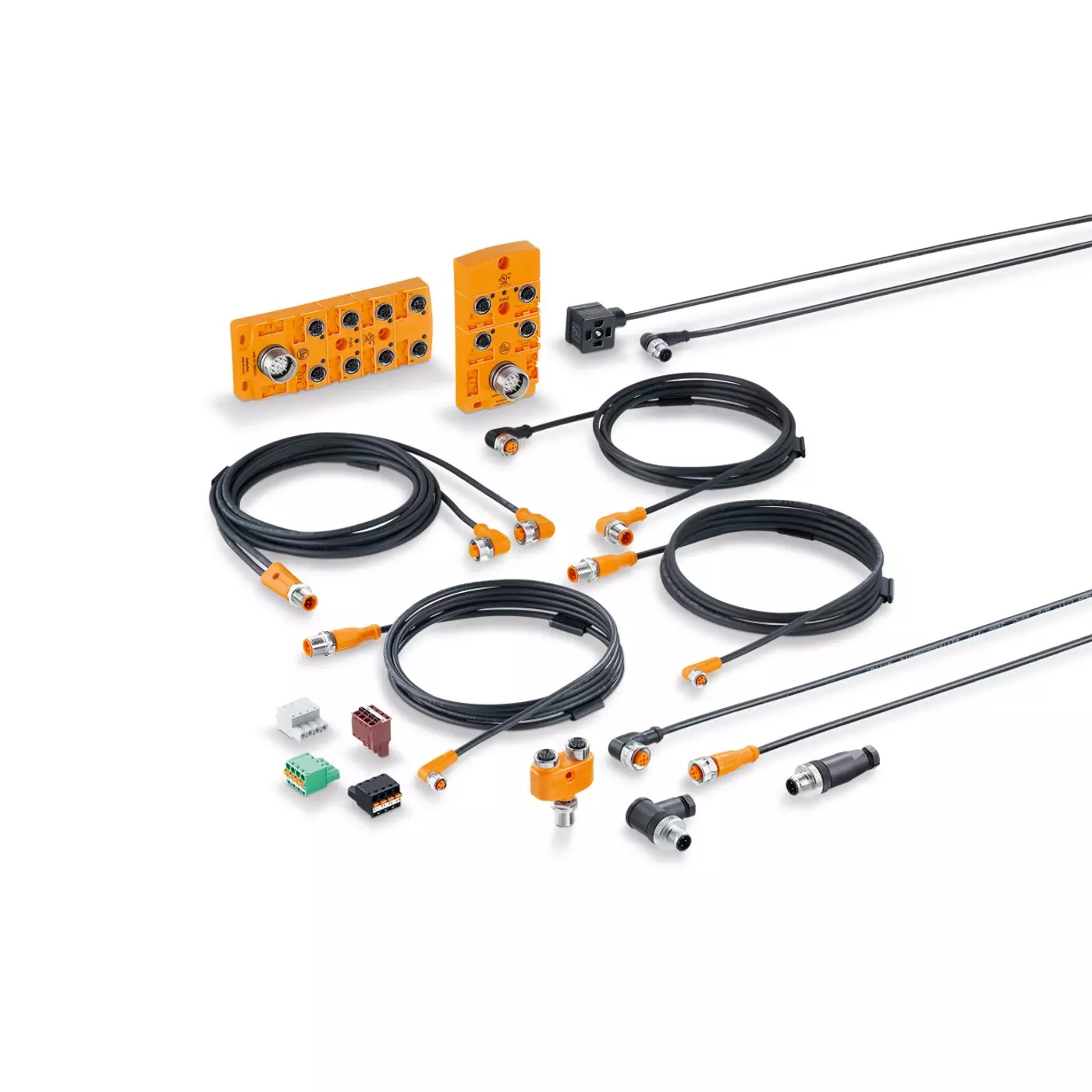

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Passive wiring blocks
Pasive wiring blocks are used where several sensor signals are collected and forwarded to the control system via a common cable. They offer high protection against moisture ingress and high material resistance to aggressive liquids. Some types are fitted with highly visible LEDs for operation and switching status indication. The full potting provides shock and vibration resistance, making the splitters ideally suited for field use in harsh industrial environments.Even when fastened by hand, a perfect lasting seal of the splitter connections is guaranteed. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut.
Features & Benefits
- Mechanical end stop to protect the O-ring from destruction
- Correct mounting possible without an expensive torque wrench
- Materials for different application requirements
- High shock and vibration resistance
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E10437 | Wiring block | 5 m PUR-Cable; M12 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EBC001 | Wiring block | M23 / M12 Connector | |||
| EBC002 | Wiring block | M23 / M12 Connector | Switching status: 4 x LED yellow; Power: 1 x LED green | ||
| EBC003 | Wiring block | M23 / M12 Connector | |||
| EBC004 | Wiring block | M23 / M12 Connector | Switching status: 8 x LED yellow; Power: 1 x LED green | ||
| EBC005 | Wiring block | M23 / M12 Connector | |||
| EBC006 | Wiring block | M23 / M12 Connector | Switching status: 6 x LED yellow; Power: 1 x LED green | ||
| EBC007 | Wiring block | M23 / M12 Connector | |||
| EBC008 | Wiring block | M23 / M12 Connector | Switching status: 12 x LED yellow; Power: 1 x LED green | ||
| EBC009 | Wiring block | M23 / M12 Connector | |||
| EBC010 | Wiring block | M23 / M12 Connector | Switching status: 8 x LED yellow; Power: 1 x LED green | ||
| EBC011 | Wiring block | M23 / M12 Connector | |||
| EBC012 | Wiring block | M23 / M12 Connector | Switching status: 16 x LED yellow; Power: 1 x LED green | ||
| EBC013 | Wiring block | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (55 x Ø 0,15 mm) | 7 | |
| EBC014 | Wiring block | 5 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1,0 mm² (55 x Ø 0,15 mm) | 11 | |
| EBC015 | Wiring block | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (55 x Ø 0,15 mm) | Switching status: 4 x LED yellow; Power: 1 x LED green | 7 |
| EBC016 | Wiring block | 5 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1,0 mm² (55 x Ø 0,15 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 11 |
| EBC017 | Wiring block | 5 m PUR-Cable; M12 Connector | 6 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (55 x Ø 0,15 mm) | 9 | |
| EBC018 | Wiring block | 5 m PUR-Cable; M12 Connector | 12 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | 15 | |
| EBC019 | Wiring block | 5 m PUR-Cable; M12 Connector | 6 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (55 x Ø 0,15 mm) | Switching status: 6 x LED yellow; Power: 1 x LED green | 9 |
| EBC020 | Wiring block | 5 m PUR-Cable; M12 Connector | 12 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | Switching status: 12 x LED yellow; Power: 1 x LED green | 15 |
| EBC021 | Wiring block | 5 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (95 x Ø 0,1 mm) | 11 | |
| EBC022 | Wiring block | 5 m PUR-Cable; M12 Connector | 16 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 0,75 mm² (95 x Ø 0,1 mm) | 19 | |
| EBC023 | Wiring block | 5 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 0,75 mm² (95 x Ø 0,1 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 11 |
| EBC024 | Wiring block | 5 m PUR-Cable; M12 Connector | 16 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | Switching status: 16 x LED yellow; Power: 1 x LED green | 19 |
| EBC025 | Wiring block | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (55 x Ø 0,15 mm) | 7 | |
| EBC026 | Wiring block | 10 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1,0 mm² (55 x Ø 0,15 mm) | 11 | |
| EBC027 | Wiring block | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (55 x Ø 0,15 mm) | Switching status: 4 x LED yellow; Power: 1 x LED green | 7 |
| EBC028 | Wiring block | 10 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1,0 mm² (55 x Ø 0,15 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 11 |
| EBC029 | Wiring block | 10 m PUR-Cable; M12 Connector | 6 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (55 x Ø 0,15 mm) | 9 | |
| EBC030 | Wiring block | 10 m PUR-Cable; M12 Connector | 12 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | 15 | |
| EBC031 | Wiring block | 10 m PUR-Cable; M12 Connector | 6 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 1 mm² (55 x Ø 0,15 mm) | Switching status: 6 x LED yellow; Power: 1 x LED green | 9 |
| EBC032 | Wiring block | 10 m PUR-Cable; M12 Connector | 12 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | Switching status: 12 x LED yellow; Power: 1 x LED green | 15 |
| EBC033 | Wiring block | 10 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 0,75 mm² (95 x Ø 0,1 mm) | 11 | |
| EBC034 | Wiring block | 10 m PUR-Cable; M12 Connector | 16 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 0,75 mm² (95 x Ø 0,1 mm) | 19 | |
| EBC035 | Wiring block | 10 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 0,75 mm² (95 x Ø 0,1 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 11 |
| EBC036 | Wiring block | 10 m PUR-Cable; M12 Connector | 16 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | Switching status: 16 x LED yellow; Power: 1 x LED green | 19 |
| EBC039 | Wiring block | 25 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 0,75 mm² (95 x Ø 0,1 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 11 |
| EBC040 | Wiring block | 10 m PUR-Cable; M23 / M12 Connector | 12 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | 15 | |
| EBC042 | Wiring block | 15 m PUR-Cable; M12 Connector | 16 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | Switching status: 16 x LED yellow; Power: 1 x LED green | 19 |
| EBC045 | Wiring block | M12 / M8 Connector | Switching status: 8 x LED yellow; Power: 1 x LED green | ||
| EBC046 | Wiring block | 20 m PUR-Cable; M12 Connector | 16 x 0,34 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) | Switching status: 16 x LED yellow; Power: 1 x LED green | 19 |
| EBC047 | Wiring block | 15 m PUR-Cable; M12 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 3 x 0,75 mm² (95 x Ø 0,1 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 11 |
| EBC048 | Wiring block | 5 m PUR-Cable; M8 Connector | 4 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 4 x LED yellow; Power: 1 x LED green | 6 |
| EBC049 | Wiring block | 10 m PUR-Cable; M8 Connector | 4 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 4 x LED yellow; Power: 1 x LED green | 6 |
| EBC050 | Wiring block | M12 / M8 Connector | Switching status: 4 x LED yellow; Power: 1 x LED green | ||
| EBC051 | Wiring block | 5 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC052 | Wiring block | 10 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC054 | Wiring block | 5 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC055 | Wiring block | 10 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC056 | Wiring block | 5 m PUR-Cable; M8 Connector | 16 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 16 x LED yellow; Power: 1 x LED green | 18 |
| EBC057 | Wiring block | 10 m PUR-Cable; M8 Connector | 16 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 16 x LED yellow; Power: 1 x LED green | 18 |
| EBC058 | Wiring block | 5 m PUR-Cable; M8 Connector | 4 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 4 x LED yellow; Power: 1 x LED green | 6 |
| EBC059 | Wiring block | 10 m PUR-Cable; M8 Connector | 4 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 4 x LED yellow; Power: 1 x LED green | 6 |
| EBC060 | Wiring block | M12 / M8 Connector | Switching status: 4 x LED yellow; Power: 1 x LED green | ||
| EBC061 | Wiring block | 5 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC062 | Wiring block | 10 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC064 | Wiring block | 5 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (42 x Ø 0,1 mm) / 2 x 0,75 mm² (96 x Ø 0,1 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC065 | Wiring block | 10 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (42 x Ø 0,1 mm) / 2 x 0,75 mm² (96 x Ø 0,1 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC066 | Wiring block | 5 m PUR-Cable; M8 Connector | 16 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 16 x LED yellow; Power: 1 x LED green | 18 |
| EBC067 | Wiring block | 10 m PUR-Cable; M8 Connector | 16 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 16 x LED yellow; Power: 1 x LED green | 18 |
| EBC070 | Wiring block | 2 m PUR-Cable; M8 Connector | 8 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 8 x LED yellow; Power: 1 x LED green | 10 |
| EBC136 | Wiring block | 5 m PUR-Cable; M8 Connector | 10 x 0,34 mm² (43 x Ø 0,1 mm) / 2 x 0,75 mm² (21 x Ø 0,2 mm) | Switching status: 10 x LED yellow; Power: 1 x LED green | 12 |
| EBC138 | Wiring block | M12 / M8 Connector | Switching status: 8 x LED yellow; Power: 1 x LED green | ||
| EBC139 | Wiring block | M12 / M8 Connector | Switching status: 10 x LED yellow; Power: 1 x LED green |
