Headline

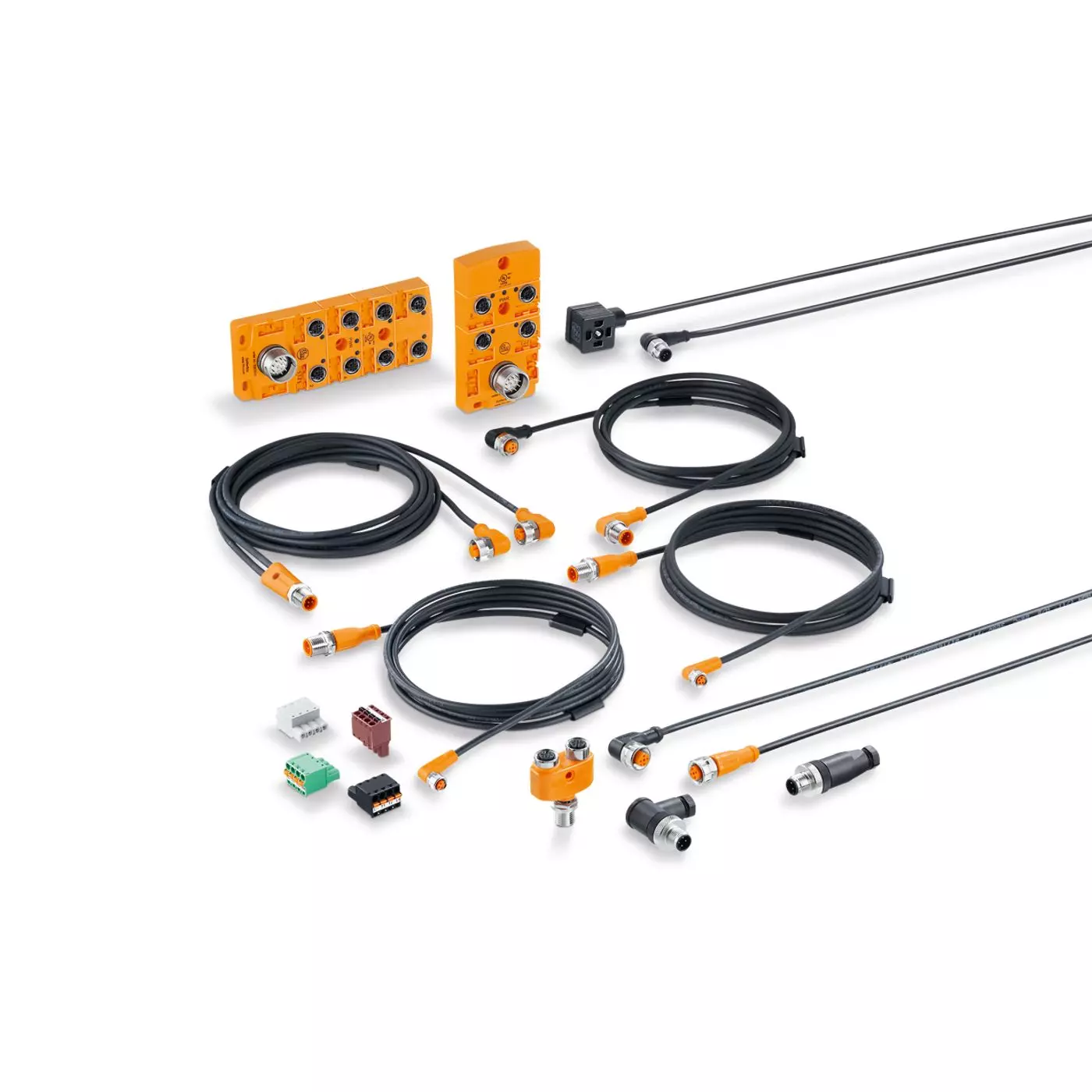

Male cordsets
Male cordsets are frequently used for connecting sensors and actuators with connection terminals to splitter boxes or modules in automation technology. Even when fastened by hand, a perfect lasting seal of splitter and module connections is guaranteed. They offer high protection against moisture ingress and high material resistance to aggressive liquids.
Features & Benefits
- Connection technology meets the M12 and M8 standard (EN 61076)
- Reliable sealing even when mounted without tools
- Mechanical end stop to protect the O-ring from destruction
- Sawtooth design protects against shock and vibration
- LEDs clearly visible even under bright lighting
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E12215 | Male cordsets | 6 m PVC-Cable; M12 Connector | 2 x 0,34 mm² / 2 x 0,25 mm² | 4 | |
| E12315 | Terminating resistor plug | M12 Connector | |||
| E12318 | Male cordsets | 2 m PUR-Cable; M12 Connector | 2 x 0,25 mm² | 2 | |
| E12319 | Male cordsets | 10 m PUR-Cable; M12 Connector | 2 x 0,25 mm² | 2 | |
| E12333 | Male cordsets | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| E12346 | Male cordsets | 1.5 m PVC-Cable; M12 Connector | 2 x 0,34 mm² / 2 x 0,25 mm² | 4 | |
| E12347 | Male cordsets | 10 m PVC-Cable; M12 Connector | 2 x 0,34 mm² / 2 x 0,25 mm² | 4 | |
| E12436 | Male cordsets | 2 m PUR-Cable; M12 Connector | 8 x 0,25 mm² | 8 | |
| E12437 | Male cordsets | 5 m PUR-Cable; M12 Connector | 8 x 0,25 mm² | 8 | |
| E12455 | Male cordsets | 5 m PUR-Cable; M12 Connector | 12 x 0,25 mm² (19 x Ø 0,13 mm) | 12 | |
| E12732 | Male cordsets | 10 m PVC-Cable; M12 Connector | 8 x 0,25 mm² (14 x Ø 0,15 mm) | 8 | |
| EC2077 | Cable with connector | 2 m | |||
| EC2081 | Cable with connector | 2 m | |||
| EVC076 | Male cordsets | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC077 | Male cordsets | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC078 | Male cordsets | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC079 | Male cordsets | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC080 | Male cordsets | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC081 | Male cordsets | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC092 | Male cordsets | 2 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVC093 | Male cordsets | 2 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVC094 | Male cordsets | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVC095 | Male cordsets | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVC112 | Male cordsets | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC139 | Male cordsets | 0.3 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVC159 | Male cordsets | 1.5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC172 | Male cordsets | 20 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC177 | Male cordsets | 20 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC17A | Male cordsets | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC183 | Male cordsets | 2 m PUR-Cable; M12 Connector | 2 x 0,34 mm² (42 x Ø 0,1 mm) | 2 | |
| EVC184 | Male cordsets | 0.5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC185 | Male cordsets | 15 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC343 | Male cordsets | 10 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVC344 | Male cordsets | 2 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVC345 | Male cordsets | 2 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVC346 | Male cordsets | 2 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC347 | Male cordsets | 2 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC429 | Male cordsets | 5 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVC469 | Male cordsets | 5 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC470 | Male cordsets | 10 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC479 | Male cordsets | 5 m PUR-Cable; M12 Connector | 5 x 0,34 mm² | 5 | |
| EVC480 | Male cordsets | 5 m PUR-Cable; M8 Connector | 3 x 0,25 mm² | 3 | |
| EVC495 | Male cordsets | 5 m PUR-Cable; M12 Connector | 3 x 0,34 mm² | 3 | |
| EVC550 | Male cordsets | 3 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVC556 | Male cordsets | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC557 | Male cordsets | 10 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVC558 | Male cordsets | 15 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVC628 | Male cordsets | 3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC812 | Wirable plug | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVC819 | Male cordsets | 4 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVC820 | Male cordsets | 6 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVC835 | Male cordsets | 4 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC836 | Male cordsets | 6 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC839 | Male cordsets | 10 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVC841 | Male cordsets | 4 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVC842 | Male cordsets | 6 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVC943 | Male cordsets | 2 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC944 | Male cordsets | 5 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC945 | Male cordsets | 2 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC946 | Male cordsets | 5 m PUR-Cable; M12 Connector | 2 x 0,75 mm² (42 x Ø 0,15 mm) / 2 x 0,5 mm² (19 x Ø 0,19 mm) / 1 x 0,75 mm² (42 x Ø 0,15 mm) | 5 | |
| EVC986 | Male cordsets | 6 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC987 | Male cordsets | 8 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC988 | Male cordsets | 12 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC989 | Male cordsets | 15 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC990 | Male cordsets | 18 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC991 | Male cordsets | 20 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVC992 | Male cordsets | 25 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVCA05 | Male cordsets | 25 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW018 | Male cordsets | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW019 | Male cordsets | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW020 | Male cordsets | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW159 | Male cordsets | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| ZH4117 | Male cordsets | 3 m PUR-Cable; M12 Connector | 12 x 0,14 mm² (18 x Ø 0,1 mm) | 12 | |
| ZH4118 | Male cordsets | 5 m PUR-Cable; M12 Connector | 12 x 0,14 mm² (18 x Ø 0,1 mm) | 12 | |
| ZH4119 | Male cordsets | 10 m PUR-Cable; M12 Connector | 12 x 0,14 mm² (18 x Ø 0,1 mm) | 12 |
