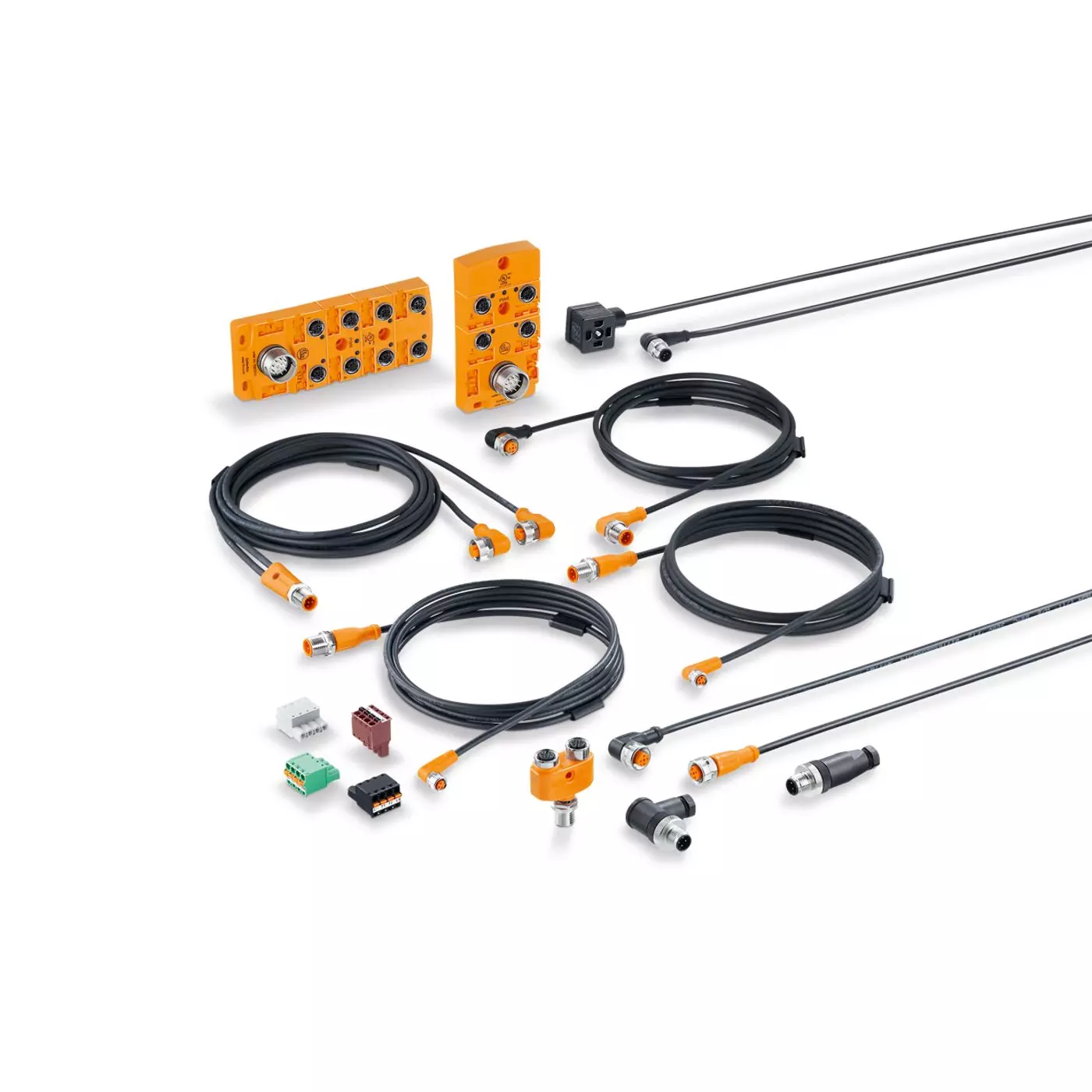

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Male wirable connectors
Male wirable connectors are used for the connection of sensors or actuators to splitter boxes or modules. They are used if a specific cable length or cable is required. The connection is made via screw terminals or insulation displacement technology.
Features & Benefits
- Straight or right angle design
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E10919 | Wirable plug | M8 Connector; screw terminals: 0,14...0,5 mm²; Cable sheath: Ø 3,5...5 mm | |||
| E11144 | Wirable plug | M12 Connector; insulation displacement technology: 0,34...0,75 mm²; (Ø ...2,5 mm); Cable sheath: Ø 4...7,5 mm | |||
| E11255 | Wirable plug | M8 Connector; screw terminals: 0,14...0,5 mm²; Cable sheath: Ø 3,5...5 mm | |||
| E11550 | Wirable plug | M8 Connector; insulation displacement technology: 0,14...0,38 mm²; (Ø 1,0...1,6 mm); Cable sheath: Ø 3...5 mm | |||
| E11551 | Wirable plug | M8 Connector; insulation displacement technology: 0,14...0,38 mm²; (Ø 1,0...1,6 mm); Cable sheath: Ø 3...5 mm | |||
| E12261 | Wirable plug | M12 Connector; screw terminals: ...0,75 mm²; Cable sheath: Ø 6...8 mm | |||
| E12355 | Wirable plug | M12 Connector; screw terminals: ...0,75 mm²; Cable sheath: Ø 6...8 mm | |||
| E12500 | Wirable plug | M12 Connector; screw terminals: 0,75...1,5 mm²; Cable sheath: Ø 8...10 mm | |||
| E12673 | Wirable plug | M12 Connector; screw terminals: 1,5...2,5 mm²; Cable sheath: Ø 8...13 mm | |||
| E18060 | Wirable plug | M12 Connector; insulation displacement technology: 0,14...0,34 mm²; (Ø 1,0...1,55 mm); Cable sheath: Ø 4...5 mm | |||
| E18162 | Wirable plug | M12 Connector; terminals: ...0,75 mm²; Cable sheath: Ø 6...8 mm | |||
| E18163 | Wirable plug | M12 Connector; terminals: ...0,75 mm²; Cable sheath: Ø 4...6 mm | |||
| E18343 | Wirable plug | M12 Connector; terminals: ...0,75 mm²; Cable sheath: Ø 6...8 mm | |||
| E30019 | Wirable plug | M12 Connector; terminals: ...0,75 mm²; Cable sheath: Ø 4...6 mm | |||
| E60123 | Wirable plug | M23 Connector; soldering: ...1 mm² | |||
| E60128 | Wirable plug | M23 Connector; soldering: ...1 mm² | |||
| E70176 | Wirable plug | 7/8" Connector; terminals: ...1,5 mm²; Cable sheath: Ø 8...10 mm | |||
| EVC812 | Wirable plug | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVC813 | Wirable plug | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVC816 | Wirable plug | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVC817 | Wirable plug | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| L33600 | Wirable plug | M8 Connector; soldering: ...0,34 mm²; Cable sheath: Ø 3,5...5 mm | |||
| L34104 | Wirable plug | 1/2" Connector; terminals: ...0,75 mm²; Cable sheath: Ø 6...8 mm | |||
| L34112 | Wirable plug | 7/8" Connector; terminals: ...1,5 mm²; Cable sheath: Ø 6...8 mm | |||
| L34120 | Wirable plug | 7/8" Connector; terminals: ...1,5 mm²; Cable sheath: Ø 6...8 mm |
