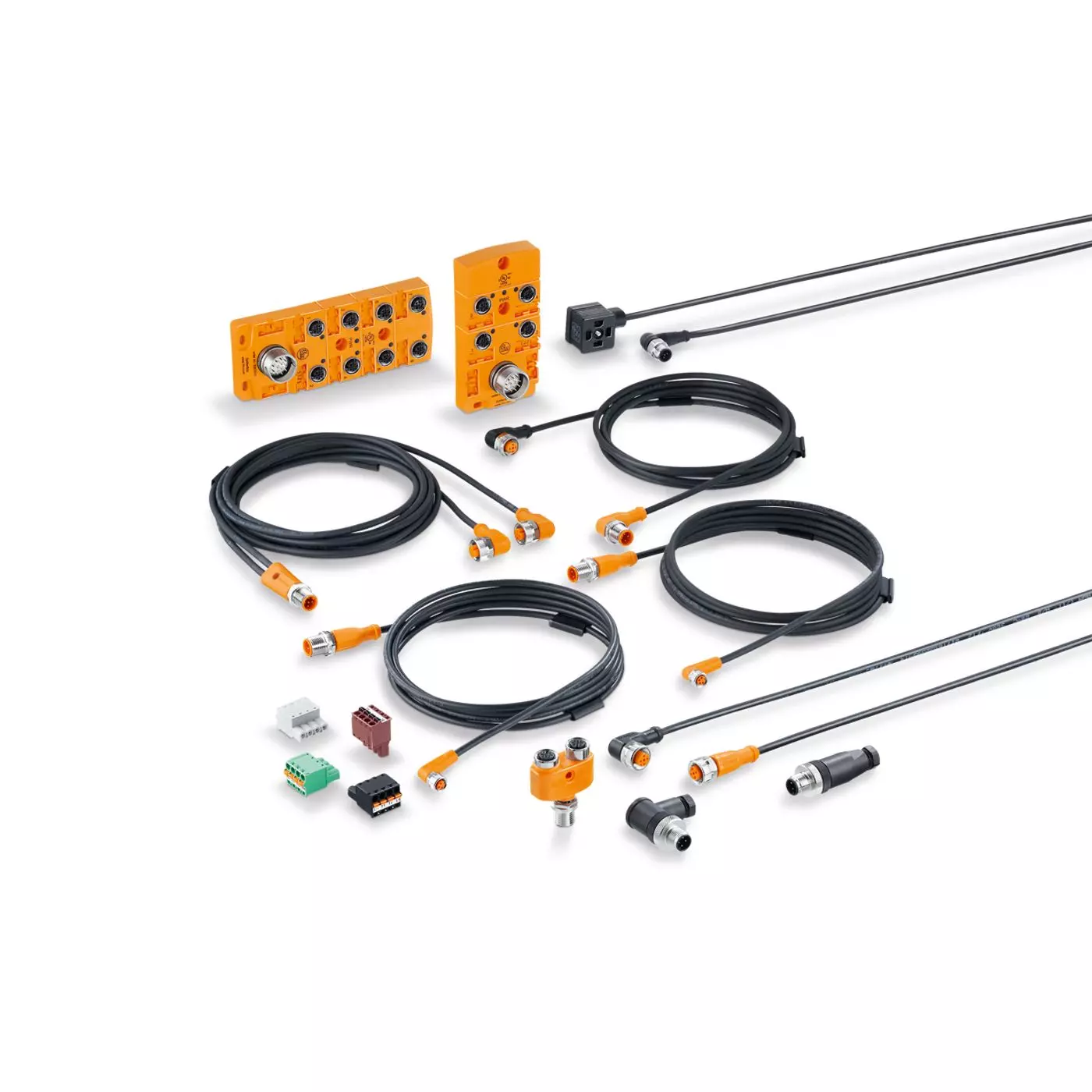

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Y connection cables
Y connection cables feature a male connection to two female connections. They are used for the connection of two sensors or actuators to a splitter box and module. The connections of sensors and Y distributors guarantee a perfect lasting seal even when fastened by hand. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut. Even in harsh industrial environments, the connectors are protected against unintended loosening by a special vibration protection. Some types are fitted with highly visible LEDs for operation and switching status indication.
Features & Benefits
- Connection technology meets the M12 and M8 standard (EN 61076)
- Reliable sealing even when mounted without tools
- Mechanical end stop to protect the O-ring from destruction
- Sawtooth design protects against shock and vibration
- LEDs clearly visible even under bright lighting
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Ambient temperature |
|---|---|---|---|---|---|
| E11228 | Y connection cable | 0.15 m PUR-Cable; M12 Connector | 8 x 0,25 mm² | -25...80 °C | |
| E12405 | Y connection cable | 0.25 m PUR-Cable; M12 Connector | 5 x 0,25 mm² (32 x Ø 0,1 mm) | -25...90 °C | |
| E12546 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12547 | Y connection cable | 2 m PUR-Cable; DEUTSCH connector Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12548 | Y connection cable | 5 m PUR-Cable; DEUTSCH connector Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12552 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector Connector | 2 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12553 | Y connection cable | 2 m PUR-Cable; DEUTSCH connector Connector | 2 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12554 | Y connection cable | 5 m PUR-Cable; DEUTSCH connector Connector | 2 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12561 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12562 | Y connection cable | 2 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12563 | Y connection cable | 5 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12682 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12685 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12723 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | -25...85 °C | |
| E20983 | Switching status: 1 x LED yellow | -25...80 °C | |||
| E70203 | Y connection cable | 1 m PUR-Cable; M12 / valve type A DIN Connector | 3 x 0,5 mm² (16 x Ø 0,2 mm) | Switching status: 2 x LED yellow | -25...90 °C |
| E80411 | Y connection cable | 1 m; M12 Connector | |||
| EVC431 | Y connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC432 | Y connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC433 | Y connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC434 | Y connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC435 | Y connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC436 | Y connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC437 | Y connection cable | 1 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow; Power: 1 x LED green | -25...90 °C |
| EVC438 | Y connection cable | 2 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow; Power: 1 x LED green | -25...90 °C |
| EVC439 | Y connection cable | 5 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow; Power: 1 x LED green | -25...90 °C |
| EVC496 | Y connection cable | 0.15 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC503 | Y connection cable | 0.25 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) / 3 x 0,25 mm² (32 x Ø 0,1mm) | -25...90 °C | |
| EVC508 | Y connection cable | 0.6 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow; Power: 1 x LED green | -25...90 °C |
| EVC510 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC517 | Y connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC614 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC618 | Y connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC619 | Y connection cable | 3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC621 | Y connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC693 | Y connection cable | 1 m PUR-Cable; M12 Connector | 2 x 0,34 mm² (42 x Ø 0,1 mm) / 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC694 | Y connection cable | 2 m PUR-Cable; M12 Connector | 2 x 0,34 mm² (42 x Ø 0,1 mm) / 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC695 | Y connection cable | 5 m PUR-Cable; M12 Connector | 2 x 0,34 mm² (42 x Ø 0,1 mm) / 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC696 | Y connection cable | 10 m PUR-Cable; M12 Connector | 2 x 0,34 mm² (42 x Ø 0,1 mm) / 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC801 | Y connection cable | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC808 | Y connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) / 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC843 | Y connection cable | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) / 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC847 | Y connection cable | 0.4 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) / 3 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC848 | Y connection cable | 0.4 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) / 3 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC862 | Y connection cable | 0.5 m PUR-Cable; M12 Connector | 2 x 0,34 mm² (42 x Ø 0,1 mm) / 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVCA04 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVF329 | Y connection cable | 1 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...100 °C | |
| EVF330 | Y connection cable | 2 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...100 °C | |
| EVF331 | Y connection cable | 5 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...100 °C | |
| EVF332 | Y connection cable | 1 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...100 °C | |
| EVF333 | Y connection cable | 2 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...100 °C | |
| EVF334 | Y connection cable | 5 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...100 °C | |
| EVW108 | Y connection cable | 0.3 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | -25...90 °C | |
| EVW110 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVW164 | Y connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C |
