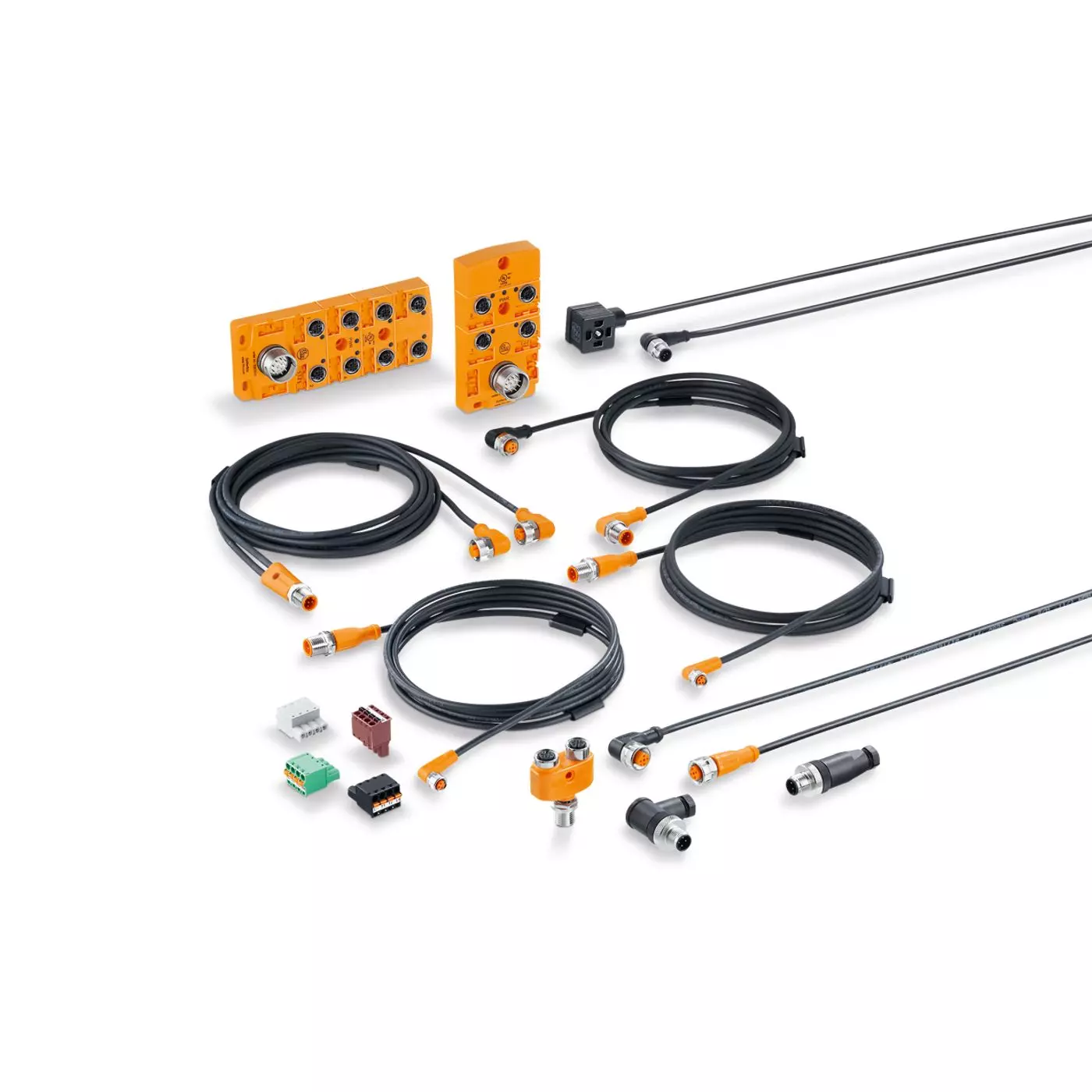

Pictures may not be actual SKU

Cables and Connections - Industrial - Female cordsets

Product info
IFM | ifm
090 | Connection Technology
Cables and Connections - Industrial
IFM-090010010
ifm Logo
Description
IFM's 090.010.010 group of Connection Technology - Female cordsets for industrial automation
Configuration
Base Model
Collection
090
Group
010
Options
Options
010
Additional Options
_
Availability Call to confirm
Available to Order
Ships from PA
Typically ships within [ 2 ] days
24/7 Sales & Support 484-544-0506
Price
Save Compare
− +
Get a Quote
Product details Spot an error? Let us know!
Headline

Female cordsets

Female cordsets are generally used in automation technology to connect sensors and actuators with connectors to splitter boxes. Even when fastened by hand, a perfect lasting seal of sensor and actuator connections is guaranteed. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut. Even in harsh industrial environments, the connectors are protected against unintended loosening by a special vibration protection. Some types are fitted with highly visible LEDs for operation and switching status indication.

Features & Benefits
  • Connection technology meets the M12 and M8 standard (EN 61076)
  • Reliable sealing even when mounted without tools
  • Mechanical end stop to protect the O-ring from destruction
  • Sawtooth design protects against shock and vibration
  • LEDs clearly visible even under bright lighting
Additional Notes
MPN Product designation Connection Cable structure Display Number of cores
E10866 Female cordset 5 m PVC-Cable; M12 Connector 3 x 0,34 mm² (19 x Ø 0,16 mm) 3
E10868 Female cordset 5 m PVC-Cable; M12 Connector 3 x 0,34 mm² (19 x Ø 0,16 mm) 3
E10976 Female cordset 5 m PUR-Cable; M12 Connector 6 x 0,34 mm² (42 x Ø 0,1 mm) 6
E10977 Female cordset 10 m PUR-Cable; M12 Connector 6 x 0,34 mm² (42 x Ø 0,1 mm) 6
E10980 Female cordset 10 m PUR-Cable; M12 Connector 6 x 0,34 mm² (42 x Ø 0,1 mm) 6
E11231 Female cordset 2 m PUR-Cable; M12 Connector 8 x 0,25 mm² 8
E11232 Female cordset 5 m PUR-Cable; M12 Connector 8 x 0,25 mm² 8
E11311 Female cordset 10 m PUR-Cable; M12 Connector 8 x 0,25 mm² 8
E11589 female terminating resistor M12 Connector
E11596 Female cordset 2 m PUR-Cable; M12 Connector 2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm) 5
E11597 Female cordset 5 m PUR-Cable; M12 Connector 2 x 0,25 mm² (19 x Ø 0,13 mm) / 2 x 0,34 mm² (19 x Ø 0,16 mm) / 1 x 0,34 mm² (19 x Ø 0,16 mm) 5
E11645 Female cordset 2 m PUR-Cable; M16 Connector 2 x 0,34 mm² (14 x Ø 0,15 mm) / 9 x 0,25 mm² (7 x Ø 0,2 mm) 11
E11697 Female cordset 5 m PUR-Cable; M16 Connector 2 x 0,34 mm² (14 x Ø 0,15 mm) / 9 x 0,25 mm² (7 x Ø 0,2 mm) 11
E11736 Female cordset 5 m PUR-Cable; M23 Connector 8 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 11
E11737 Female cordset 10 m PUR-Cable; M23 Connector 8 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 11
E11738 Female cordset 15 m PUR-Cable; M23 Connector 8 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 11
E11739 Female cordset 5 m PUR-Cable; M23 Connector 8 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 11
E11740 Female cordset 10 m PUR-Cable; M23 Connector 8 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 11
E11741 Female cordset 15 m PUR-Cable; M23 Connector 8 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 11
E11742 Female cordset 5 m PUR-Cable; M23 Connector 16 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 19
E11743 Female cordset 10 m PUR-Cable; M23 Connector 16 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 19
E11744 Female cordset 15 m PUR-Cable; M23 Connector 16 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 19
E11745 Female cordset 5 m PUR-Cable; M23 Connector 16 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 19
E11746 Female cordset 10 m PUR-Cable; M23 Connector 16 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 19
E11747 Female cordset 15 m PUR-Cable; M23 Connector 16 x 0,5 mm² (63 x Ø 0,1 mm) / 3 x 1,0 mm² (127 x Ø 0,1 mm) 19
E11806 Female cordset 10 m PUR-Cable; M12 Connector 8 x 0,25 mm² 8
E11807 Female cordset 5 m PUR-Cable; M12 Connector 8 x 0,25 mm² 8
E11809 Female cordset 10 m PUR-Cable; M16 Connector 2 x 0,34 mm² (14 x Ø 0,15 mm) / 9 x 0,25 mm² (7 x Ø 0,2 mm) 11
E11855 Female cordset 10 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E11856 Female cordset 15 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E11950 Female cordset 2 m PUR-Cable; M12 Connector 8 x 0,25 mm² 8
E12166 Female cordset 5 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E12167 Female cordset 10 m PUR-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12168 Female cordset 5 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E12169 Female cordset 10 m PUR-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12237 Female cordset 15 m PUR-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12238 Female cordset 25 m PUR-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12260 Female cordset 10 m PUR-Cable; M12 Connector 8 x 0,25 mm² 8
E12295 Female cordset 5 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12296 Female cordset 10 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12320 Female cordset 2 m PUR-Cable; M12 Connector 2 x 0,25 mm² 2
E12321 Female cordset 10 m PUR-Cable; M12 Connector 2 x 0,25 mm² 2
E12339 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
E12340 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
E12341 Female cordset 30 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
E12343 Female cordset 25 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12344 Female cordset 25 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12376 Female cordset 15 m PUR-Cable; M12 Connector 8 x 0,25 mm² 8
E12387 Female cordset 25 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12400 Female cordset 15 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12401 Female cordset 40 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12402 Female cordset 2 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E12403 Female cordset 5 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E12404 Female cordset 10 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E12409 Female cordset 70 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12433 Female cordset 10 m PVC-Cable; M12 Connector 8 x 0,25 mm² (32 x Ø 0,1 mm) 8
E12457 Female cordset 5 m PUR-Cable; M12 Connector 12 x 0,25 mm² 12
E12502 Female cordset 5 m PUR-Cable; M12 Connector 12 x 0,25 mm² 12
E12503 Female cordset 10 m PUR-Cable; M12 Connector 12 x 0,25 mm² 12
E12504 Female cordset 15 m PUR-Cable; M12 Connector 12 x 0,25 mm² 12
E12505 Female cordset 10 m PUR-Cable; M12 Connector 12 x 0,25 mm² 12
E12506 Female cordset 15 m PUR-Cable; M12 Connector 12 x 0,25 mm² 12
E12543 Female cordset 1 m PUR-Cable; DEUTSCH connector Connector 3 x 0,50 mm² (28 x Ø 0,15 mm) 3
E12544 Female cordset 2 m PUR-Cable; DEUTSCH connector Connector 3 x 0,50 mm² (28 x Ø 0,15 mm) 3
E12545 Female cordset 5 m PUR-Cable; DEUTSCH connector Connector 3 x 0,50 mm² (28 x Ø 0,15 mm) 3
E12549 Female cordset 1 m PUR-Cable; DEUTSCH connector Connector 2 x 0,50 mm² (28 x Ø 0,15 mm) 2
E12550 Female cordset 2 m PUR-Cable; DEUTSCH connector Connector 2 x 0,50 mm² (28 x Ø 0,15 mm) 2
E12551 Female cordset 5 m PUR-Cable; DEUTSCH connector Connector 2 x 0,50 mm² (28 x Ø 0,15 mm) 2
E12638 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
E12641 Female cordset 2 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12642 Female cordset 5 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12643 Female cordset 10 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12644 Female cordset 20 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12645 Female cordset 50 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12646 Female cordset 2 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12647 Female cordset 5 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12648 Female cordset 10 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12649 Female cordset 20 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12650 Female cordset 50 m PUR-Cable; M12 Connector 5 x 2,5 mm² 5
E12751 Female cordset 10 m PVC-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E18026 Female cordset 4 m PUR-Cable; 1/2" Connector 5 x 0,34 mm² (19 x Ø 0,16 mm) 5
E18027 Female cordset 4 m PUR-Cable; 1/2" Connector 5 x 0,34 mm² (19 x Ø 0,16 mm) 5
E18200 Female cordset 2 m TPE-S-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18201 Female cordset 5 m TPE-S-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18202 Female cordset 10 m TPE-S-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18203 Female cordset 2 m TPE-S-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18204 Female cordset 5 m TPE-S-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18205 Female cordset 10 m TPE-S-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18206 Female cordset 5 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18207 Female cordset 10 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18208 Female cordset 25 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18209 Female cordset 5 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18210 Female cordset 10 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18211 Female cordset 25 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18212 Female cordset 2 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18213 Female cordset 5 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18214 Female cordset 2 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18215 Female cordset 5 m PVC-Cable; 1/2" Connector 3 x 0,34 mm² 3
E18242 Female cordset 10 m PVC-Cable; 1/2" Connector 5 x 0,34 mm² (19 x Ø 0,16 mm) 5
E18243 Female cordset 9 m PUR-Cable; 1/2" Connector 5 x 0,34 mm² (19 x Ø 0,16 mm) 5
E20738 Female cordset 2 m PUR-Cable; M12 Connector 7 x 0,25 mm² (14 x Ø 0,15 mm) 7
E20838 Female cordset 5 m PUR-Cable; M12 Connector 7 x 0,25 mm² (14 x Ø 0,15 mm) 7
E2M251 Female cordset 3.85 m PUR-Cable; M16 Connector 7 x 0,34 mm² 7
E3M131 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,75 mm² 4
E3M132 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,75 mm² 4
E3M133 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,75 mm² 4
E60303 Female cordset 10 m PUR-Cable; AMP Connector 4 x 0,5 mm² 4
E80021 Female cordset 2 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
E80022 Female cordset 2 m PUR-Cable; M12 Connector 8 x 0,25 mm² (14 x Ø 0,15 mm) 8
EVC001 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC002 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC003 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC004 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC005 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC006 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC007 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) Switching status: 2 x LED yellow; Power: 1 x LED green 4
EVC008 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) Switching status: 2 x LED yellow; Power: 1 x LED green 4
EVC009 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) Switching status: 2 x LED yellow; Power: 1 x LED green 4
EVC04A Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC05A Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC06A Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC070 Female cordset 2 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC071 Female cordset 5 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC072 Female cordset 10 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC073 Female cordset 2 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC074 Female cordset 5 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC075 Female cordset 10 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC082 Female cordset 15 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC083 Female cordset 20 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC084 Female cordset 25 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC085 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC086 Female cordset 15 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC087 Female cordset 20 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC088 Female cordset 25 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC089 Female cordset 6 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC091 Female cordset 25 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) Switching status: 2 x LED yellow; Power: 1 x LED green 4
EVC129 Female cordset 15 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) Switching status: 2 x LED yellow; Power: 1 x LED green 4
EVC141 Female cordset 2 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC142 Female cordset 5 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC143 Female cordset 10 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC144 Female cordset 2 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC145 Female cordset 5 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC146 Female cordset 10 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC147 Female cordset 2 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) Switching status: 1 x LED yellow; Power: 1 x LED green 3
EVC148 Female cordset 5 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) Switching status: 1 x LED yellow; Power: 1 x LED green 3
EVC149 Female cordset 10 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) Switching status: 1 x LED yellow; Power: 1 x LED green 3
EVC14A Female cordset 25 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC150 Female cordset 2 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC151 Female cordset 5 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC152 Female cordset 10 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC153 Female cordset 2 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC154 Female cordset 5 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC155 Female cordset 10 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC158 Female cordset 1.1 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC15A Female cordset 40 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC161 Female cordset 2 m PUR-Cable; M12 Connector 2 x 0,34 mm² (42 x Ø 0,1 mm) 2
EVC162 Female cordset 5 m PUR-Cable; M12 Connector 2 x 0,34 mm² (42 x Ø 0,1 mm) 2
EVC163 Female cordset 10 m PUR-Cable; M12 Connector 2 x 0,34 mm² (42 x Ø 0,1 mm) 2
EVC164 Female cordset 2 m PUR-Cable; M12 Connector 2 x 0,34 mm² (42 x Ø 0,1 mm) 2
EVC165 Female cordset 5 m PUR-Cable; M12 Connector 2 x 0,34 mm² (42 x Ø 0,1 mm) 2
EVC166 Female cordset 10 m PUR-Cable; M12 Connector 2 x 0,34 mm² (42 x Ø 0,1 mm) 2
EVC186 Female cordset 2.5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC196 Female cordset 1 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC197 Female cordset 15 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC198 Female cordset 20 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC199 Female cordset 25 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC207 Female cordset 5.8 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC29A Female cordset 50 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC30A Female cordset 80 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC348 Female cordset 35 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC349 Female cordset 3 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC387 Female cordset 15 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC388 Female cordset 20 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC401 Female cordset 5 m PUR-Cable; M12 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC406 Female cordset 3 m PUR-Cable; M8 Connector 4 x 0,25 mm² (32 x Ø 0,1 mm) 4
EVC423 Female cordset 15 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC471 Female cordset 1 m PUR-Cable; M12 Connector 4 x 0,34 mm² 4
EVC490 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC491 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² 4
EVC492 Female cordset 5 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC497 Female cordset 3 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC501 Female cordset 20 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC502 Female cordset 45 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC526 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC527 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC528 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC529 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC530 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC531 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC532 Female cordset 2 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC533 Female cordset 5 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC534 Female cordset 10 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC535 Female cordset 2 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC536 Female cordset 5 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC537 Female cordset 10 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC538 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC539 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC540 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC541 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC542 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC543 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC544 Female cordset 2 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC545 Female cordset 5 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC546 Female cordset 10 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC547 Female cordset 2 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC548 Female cordset 5 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC549 Female cordset 10 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC551 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC561 Female cordset 30 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC562 Female cordset 50 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC563 Female cordset 15 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC591 Female cordset 60 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC597 Female cordset 20 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC629 Female cordset 20 m PUR-Cable; M12 Connector 5 x 0,25 mm² (32 x Ø 0,1 mm) 5
EVC633 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC643 Female cordset 14 m PUR-Cable; M8 Connector 3 x 0,25 mm² (32 x Ø 0,1 mm) 3
EVC644 Female cordset 2 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) Switching status: 4 x LED yellow; Power: 2 x LED green 4
EVC645 Female cordset 5 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) Switching status: 4 x LED yellow; Power: 2 x LED green 4
EVC646 Female cordset 10 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) Switching status: 4 x LED yellow; Power: 2 x LED green 4
EVC651 Female cordset 15 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC683 Female cordset 10 m PUR-Cable; M12 Connector 5 x 0,34 mm² (42 x Ø 0,1 mm) 5
EVC698 Female cordset 15 m PUR-Cable; M12 Connector 4 x 0,34 mm² (42 x Ø 0,1 mm) 4
EVC706 Female cordset 2 m PUR-Cable; M12 Connector 4 x 1,00 mm² (32 x Ø 0,2 mm) 4
EVC707 Female cordset 5 m PUR-Cable; M12 Connector 4 x 1,00 mm² (32 x Ø 0,2 mm) 4
EVC708 Female cordset 10 m PUR-Cable; M12 Connector 4 x 1,00 mm² (32 x Ø 0,2 mm) 4
EVC709 Female cordset 20 m PUR-Cable; M12 Connector 4 x 1,00 mm² (32 x Ø 0,2 mm) 4
EVC710 Female cordset 50 m PUR-Cable; M12 Connector 4 x 1,00 mm² (32 x Ø 0,2 mm) 4
[EVC711](https://www.if
Alternate configurations
SKU Description List price -
IFM-090010020 Cables and Connections - Industrial - Male cordsets $0.01
IFM-090010020 Detail
IFM-090010030 Cables and Connections - Industrial - Patchcords $0.01
IFM-090010030 Detail
IFM-090010040 Cables and Connections - Industrial - Y/T-splitters $0.01
IFM-090010040 Detail
IFM-090010050 Cables and Connections - Industrial - Wiring blocks $0.01
IFM-090010050 Detail
IFM-090010060 Cables and Connections - Industrial - Female receptacles $0.01
IFM-090010060 Detail
IFM-090010070 Cables and Connections - Industrial - Male receptacles $0.01
IFM-090010070 Detail
IFM-090010080 Cables and Connections - Industrial - COMBICON connectors $0.01
IFM-090010080 Detail
IFM-090010090 Cables and Connections - Industrial - Female wirable connectors $0.01
IFM-090010090 Detail
IFM-090010100 Cables and Connections - Industrial - Male wirable connectors $0.01
IFM-090010100 Detail
IFM-090010110 Cables and Connections - Industrial - Patchcords with valve plug $0.01
IFM-090010110 Detail
IFM-090010120 Cables and Connections - Industrial - Y-splitters $0.01
IFM-090010120 Detail
IFM-090010130 Cables and Connections - Industrial - Ethernet and patchcords $0.01
IFM-090010130 Detail
Call or text: +1 (484) 544-0506

The Supplyline team is here to help!

Click to Call
Tap to Text
Live Chat
Email Us
