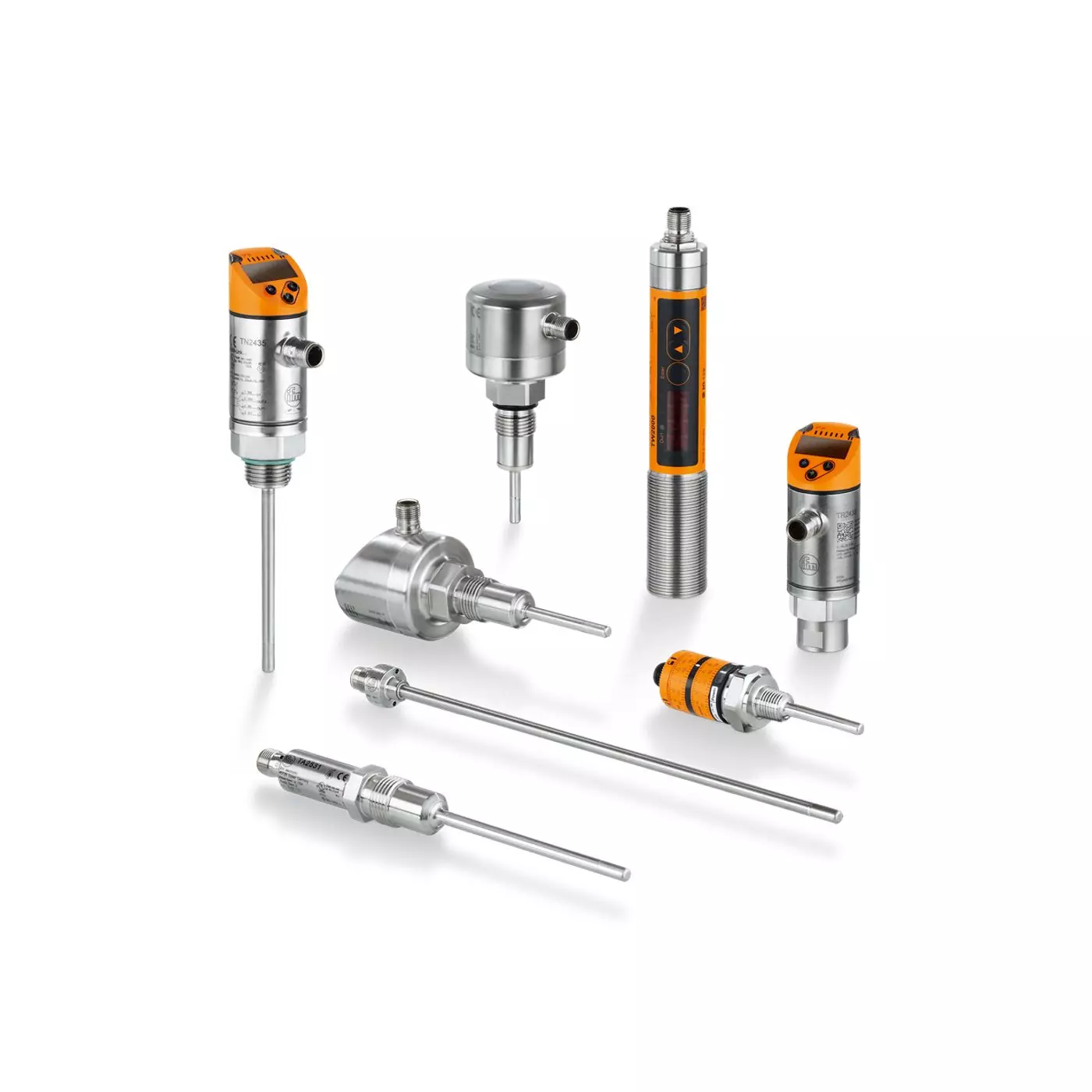

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Infrared temperature sensors with display
Sensors for infrared temperature measurement provide reliable position detection of high-temperature objects in the steel or glass industries. The sensors detect the infrared radiation emitted by the objects and convert them into an output signal. If the detected temperature is above the set switching threshold, the switching output is set and the switching status of the LEDs is displayed. The switching thresholds and output configurations can be set easily by means of the buttons and the display. During operation the display shows the current measured value. Thanks to their robust housing and high-quality precision lens, the sensors can be used in extremely harsh industrial environments.
Features & Benefits
- Two independent switching outputs, universal programming
- Scratch-resistant precision lenses for minimum sensitivity to scattered light
- Intuitive, user-friendly handling
- Test function can be triggered at the sensor or via external control signal
- Reliable temperature measurement up to 1350 °C
Additional Notes
| MPN | Measuring range temperature | Wave length range | Output function |
|---|---|---|---|
| TW7000 | 50...500 °C / 122...932 °F | 8...14 µm | normally open / closed; (configurable) |
| TW7001 | 250...1250 °C / 482...2282 °F | 1...1.7 µm | normally open / closed; (configurable) |
| TW7011 | 350...1350 °C / 662...2462 °F | 1...1.7 µm | normally open / closed; (configurable) |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040050010 | Process Sensors - Temperature - Transmitters with display for sanitary applications - Type TD | $0.01 | |
| IFM-040050020 | Process Sensors - Temperature - Compact transmitters for general applications - Type TA | $0.01 | |
| IFM-040050030 | Process Sensors - Temperature - Compact transmitters for sanitary applications - Type TA | $0.01 | |
| IFM-040050035 | Process Sensors - Temperature - Compact transmitters for mobile machines | $0.01 | |
| IFM-040050040 | Process Sensors - Temperature - Flush sensors for sanitary applications - Type TA / TM | $0.01 | |
| IFM-040050050 | Process Sensors - Temperature - Smart diagnostic transmitters with calibration check | $0.01 | |
| IFM-040050060 | Process Sensors - Temperature - Cabled RTD probes - Type TS | $0.01 | |
| IFM-040050070 | Process Sensors - Temperature - RTD probes - Type TM / TT | $0.01 | |
| IFM-040050080 | Process Sensors - Temperature - RTD probes for sanitary applications - Type TM / TT | $0.01 | |
| IFM-040050090 | Process Sensors - Temperature - Control monitors with display - Type TR | $0.01 | |
| IFM-040050100 | Process Sensors - Temperature - Control monitors without display - Type TP | $0.01 | |
| IFM-040050110 | Process Sensors - Temperature - Sensors with process connection, probe and display - Type TN | $0.01 | |
| IFM-040050120 | Process Sensors - Temperature - Switches with adjustment dials - Type TK | $0.01 | |
| IFM-040050130 | Process Sensors - Temperature - Thermowells | $0.01 | |
| IFM-040050150 | Process Sensors - Temperature - Infrared transmitters with display - Type TW2 | $0.01 |
