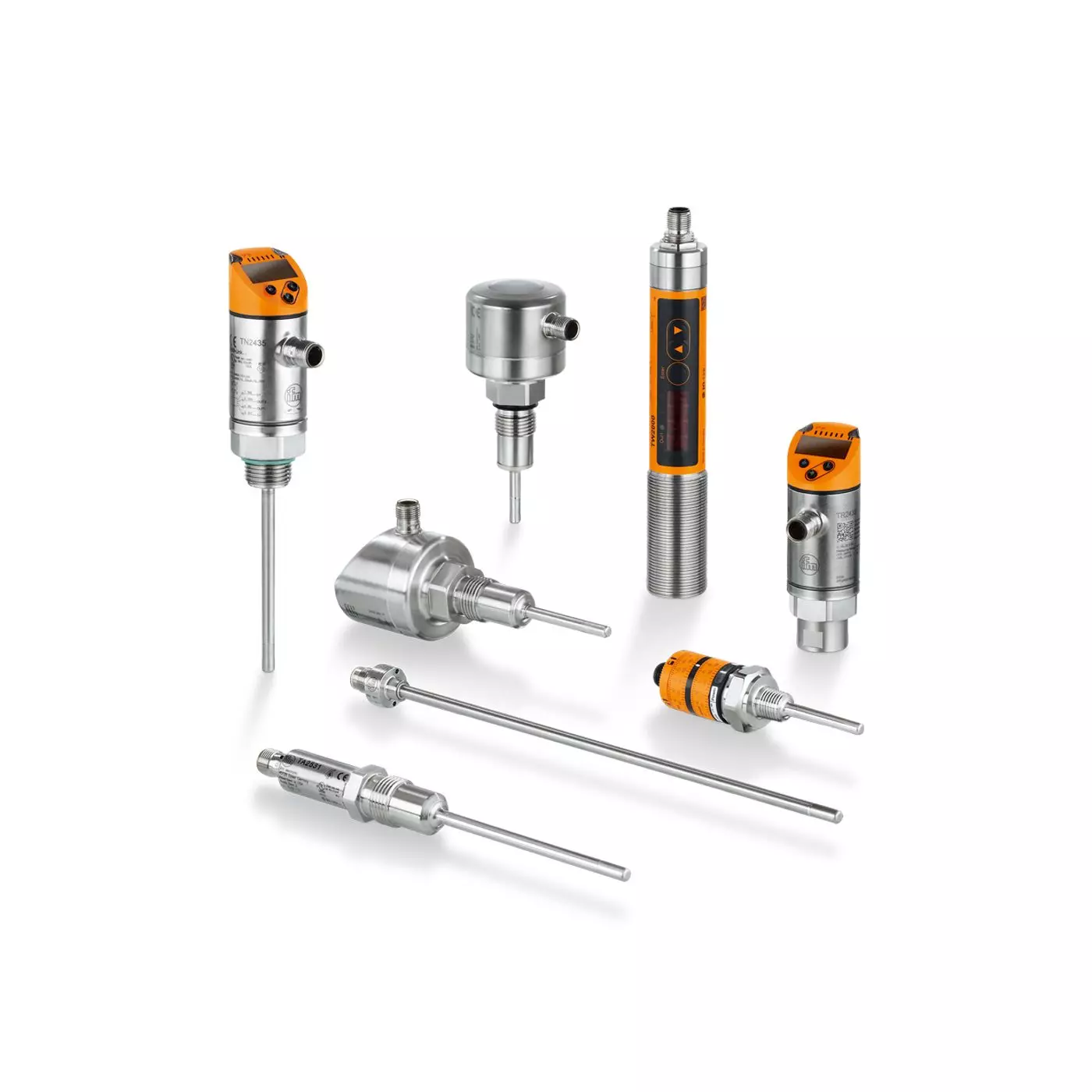

Temperature sensors - Compact transmitters for mobile machines
The compact transmitters of the TA/TU/TM series are specially designed for use in for mobile machines. The class A Pt1000 measuring element achieves a high precision with the factory-internal calibration. The innovation besides the wide measuring range is the excellent response time. Thanks to their high protection rating, fully welded stainless steel housing and high pressure resistance, the transmitters are particularly suited for use in harsh industrial environments. They are particularly suited for hydraulic and pneumatic applications with high operating pressures thanks to their high vibration and shock resistance. A voltage range of 10 to 60 V for temperature transmitters ensures that even high fluctuations of the on-board system do not affect the function. To comply with the ever increasing EMC requirements in mobile applications the devices feature an increased EMC resistance. Many sensors have the e1 type approval. The sensors are available with different probe lengths, process connections and measuring ranges. A variety of adapters facilitates integration into the machine.
- High precision across the entire temperature measurement range
- Protection rating for the requirements of mobile machines
- Robust stainless steel housing with high pressure resistance
- AMP or DEUTSCH connector for a fast and simple connection
- Fast response dynamics and very short power-on delay time
MPN | Measuring range temperature | Analog output | Process connection | Installation length EL | Type of connector |
---|---|---|---|---|---|
TA3105 | -50...150 °C / -58...302 °F | 4...20 mA | G 1/4 external thread | 25 mm | M12 |
TA3115 | -50...150 °C / -58...302 °F | 4...20 mA | G 1/4 external thread | 50 mm | M12 |
TA3155 | -50...150 °C / -58...302 °F | 4...20 mA | G 1/4 external thread | 200 mm | M12 |
TA3313 | -18...149 °C / 0...300 °F | 4...20 mA | 1/4" NPT | 50 mm | M12 |
TA3317 | 0...100 °C / 32...212 °F | 4...20 mA | 1/4" NPT | 50 mm | M12 |
TA4105 | -50...150 °C / -58...302 °F | 4...20 mA | G 1/4 external thread | 25 mm | DEUTSCH connector |
TA4115 | -50...150 °C / -58...302 °F | 4...20 mA | G 1/4 external thread | 50 mm | DEUTSCH connector |
TA5105 | -50...150 °C / -58...302 °F | 4...20 mA | G 1/4 external thread | 25 mm | AMP-Superseal |
TA5115 | -50...150 °C / -58...302 °F | 4...20 mA | G 1/4 external thread | 50 mm | AMP-Superseal |
TU3105 | -50...150 °C / -58...302 °F | 0.5...4.5 V | G 1/4 external thread | 25 mm | M12 |
TU4105 | -50...150 °C / -58...302 °F | 0.5...4.5 V | G 1/4 external thread | 25 mm | DEUTSCH connector |
TU4707 | 0...100 °C | 0.5...4.5 V | SAE 6 external thread | 25 mm | DEUTSCH connector |
TY0058 | 0...125 °C / 32...257 °F | 0.5...4.5 V | 1/4" NPT external thread | 25 mm | DEUTSCH connector |
