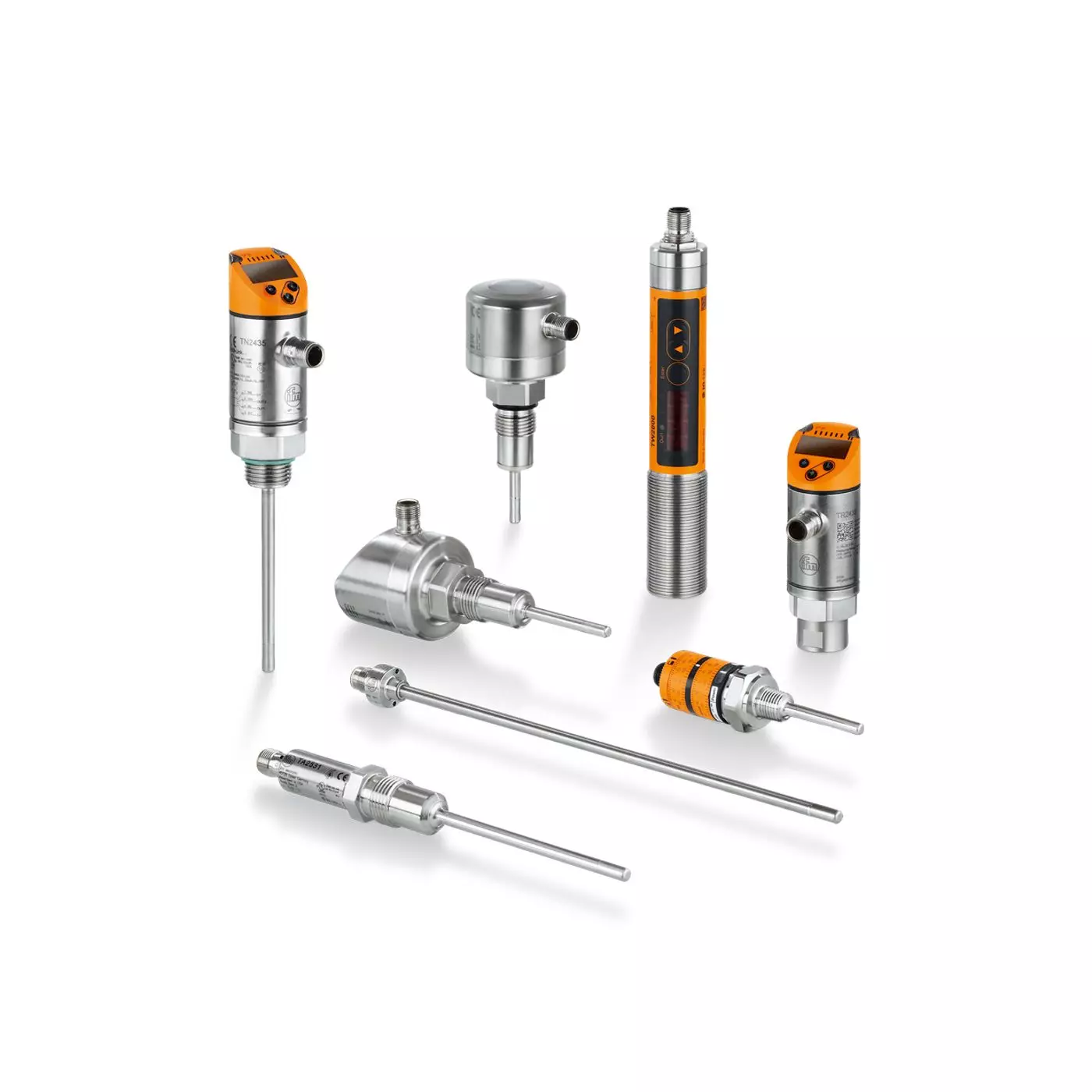

Sensor with temperature probe and display
Temperature sensors of the TN series reliably detect and evaluate the process temperature. They are used when local temperature indication is desired. The units are distinguished by excellent response times, high pressure resistance and wide measuring ranges. Critical process states, e.g. reaching of minimum or maximum limit temperatures, can be directly monitored by means of the switching output. For continuous temperature measurement, units with a high-resolution and scalable analogue output are offered. The integrated display allows direct readout of the current process temperature at any time. Set-up, maintenance and operation are facilitated by a 4-digit LED display, which is visible from all sides even at greater distances, and two switching status LEDs on the sensor head. The display can be switched from the indication of “red” to an alternating indication of “red – green”. So, switching states can be highlighted or an independent colour window can be created. Parameter setting is effected via the buttons on the sensor or via IO-Link, e.g. using a USB interface. The LINERECORDER SENSOR software is used to visualise, transfer and archive parameter sets.
- Analog output or switching output for monitoring
- User-friendly communication via IO-Link
- Wide temperature evaluation range
- Intuitive, user-friendly handling
- Local display of the current temperature values
MPN | Measuring range temperature | Factory setting | Output function | Analog output | Process connection |
---|---|---|---|---|---|
TN2105 | -50...150 °C / -58...302 °F | -50...150 °C | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | G 1/4 |
TN2115 | -50...150 °C / -58...302 °F | -50...150 °C | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | G 1/4 |
TN2303 | -50...150 °C / -58...302 °F | 0...300 °F | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | 1/2" NPT |
TN2313 | -50...150 °C / -58...302 °F | 0...300 °F | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | 1/2" NPT |
TN2333 | -50...150 °C / -58...302 °F | 0...300 °F | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | 1/2" NPT |
TN2343 | -50...150 °C / -58...302 °F | 0...300 °F | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | 1/2" NPT |
TN2405 | -50...150 °C / -58...302 °F | -50...150 °C | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | G 1/2 |
TN2415 | -50...150 °C / -58...302 °F | -50...150 °C | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | G 1/2 |
TN2435 | -50...150 °C / -58...302 °F | -50...150 °C | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | G 1/2 |
TN2445 | -50...150 °C / -58...302 °F | -50...150 °C | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | G 1/2 |
TN2511 | -50...150 °C / -58...302 °F | -40...150 °C / -40...302 °F | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | M18 x 1,5 Internal thread |
TN2603 | -50...150 °C / -58...302 °F | 0...300 °F | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | 1/4" NPT |
TN2613 | -50...150 °C / -58...302 °F | 0...300 °F | normally open / closed; (configurable); analog | 4...20 mA / 0...10 V | 1/4" NPT |
TN7511 | -50...150 °C / -58...302 °F | normally open / closed; (configurable) | M18 x 1,5 Internal thread |
SKU | Description | List price | - |
---|---|---|---|
IFM-040050010 | Process Sensors - Temperature - Transmitters with display for sanitary applications - Type TD | $0.01 | |
IFM-040050020 | Process Sensors - Temperature - Compact transmitters for general applications - Type TA | $0.01 | |
IFM-040050030 | Process Sensors - Temperature - Compact transmitters for sanitary applications - Type TA | $0.01 | |
IFM-040050035 | Process Sensors - Temperature - Compact transmitters for mobile machines | $0.01 | |
IFM-040050040 | Process Sensors - Temperature - Flush sensors for sanitary applications - Type TA / TM | $0.01 | |
IFM-040050050 | Process Sensors - Temperature - Smart diagnostic transmitters with calibration check | $0.01 | |
IFM-040050060 | Process Sensors - Temperature - Cabled RTD probes - Type TS | $0.01 | |
IFM-040050070 | Process Sensors - Temperature - RTD probes - Type TM / TT | $0.01 | |
IFM-040050080 | Process Sensors - Temperature - RTD probes for sanitary applications - Type TM / TT | $0.01 | |
IFM-040050090 | Process Sensors - Temperature - Control monitors with display - Type TR | $0.01 | |
IFM-040050100 | Process Sensors - Temperature - Control monitors without display - Type TP | $0.01 | |
IFM-040050120 | Process Sensors - Temperature - Switches with adjustment dials - Type TK | $0.01 | |
IFM-040050130 | Process Sensors - Temperature - Thermowells | $0.01 | |
IFM-040050140 | Process Sensors - Temperature - Infrared temperature switches with display - Type TW7 | $0.01 | |
IFM-040050150 | Process Sensors - Temperature - Infrared transmitters with display - Type TW2 | $0.01 |
