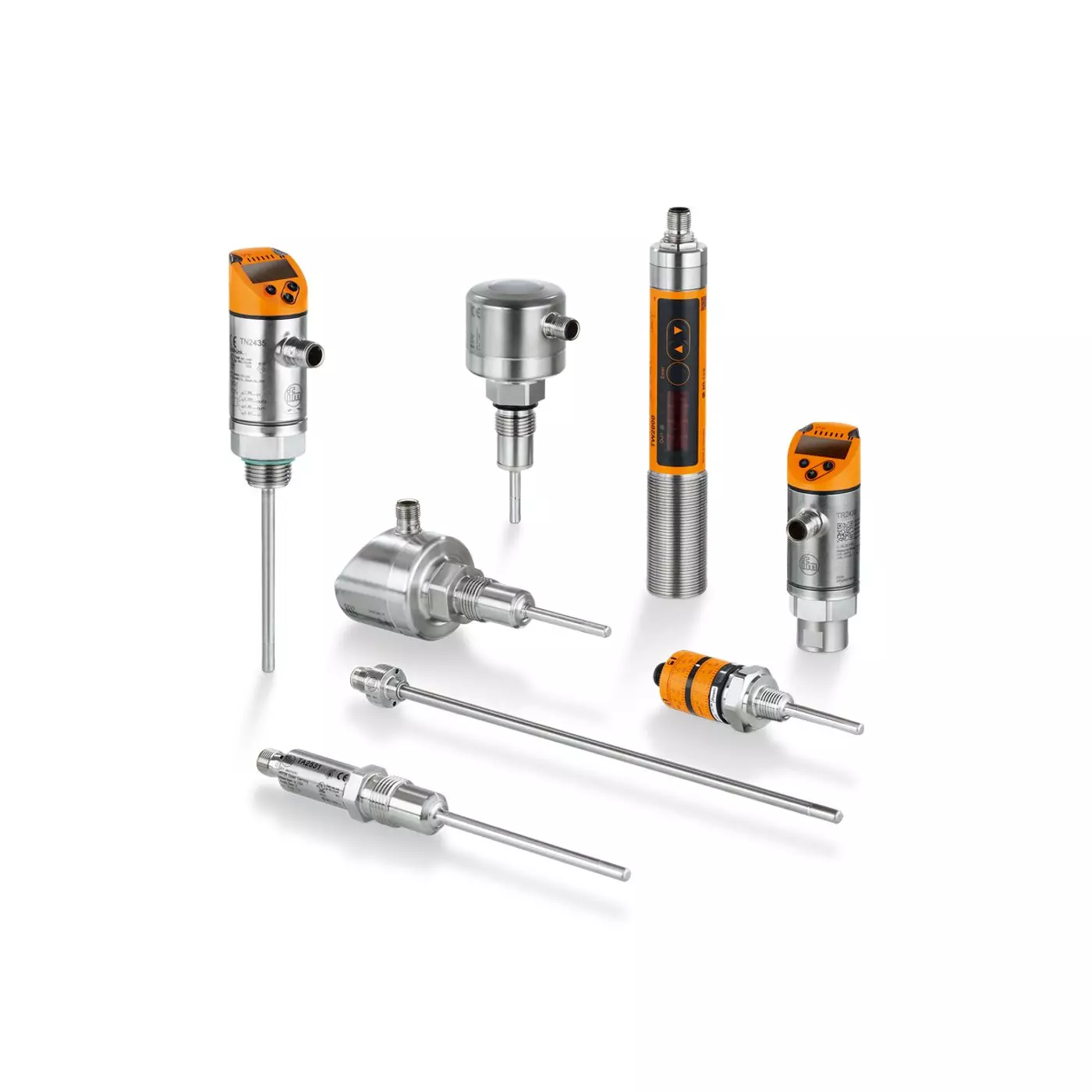

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Intuitive switch point setting
The TK temperature sensor is characterised by its intuitive operation, excellent response time and compact housing. The easy handling via two radial setting rings on the sensor enables quick and precise setting of the switch points, also without system temperature being applied. Mechanical locking prevents unintentional maladjustment of the sensor. The protective cap, which can be obtained as an option, ensures protection against tampering.
Features & Benefits
- Simple switch point setting by means of two setting rings allowing optimum reading
- Very short response time
- Mechanical locking prevents inadvertent switch point manipulation
- Switch points freely adjustable from -25 °C to 140 °C
- Setting of the switch points without system temperature being applied
Additional Notes
| MPN | Measuring range temperature | Output function | Process connection | Installation length EL | Pressure rating |
|---|---|---|---|---|---|
| TK6110 | -20...140 °C / -4...284 °F | complementary | G 1/4 | 50 mm | 400 bar |
| TK6130 | -25...140 °C / -13...284 °F | complementary | G 1/4 external thread | 39 mm | 300 bar |
| TK6310 | -20...140 °C / -4...284 °F | complementary | 1/4" NPT | 50 mm | 400 bar |
| TK6330 | -25...140 °C / -13...284 °F | complementary | 1/4" NPT | 39 mm | 300 bar |
| TK7110 | -25...140 °C / -13...284 °F | normally open | G 1/4 | 50 mm | 400 bar |
| TK7130 | -25...140 °C / -13...284 °F | normally open | G 1/4 external thread | 39 mm | 300 bar |
| TK7310 | -25...140 °C / -13...284 °F | normally open | 1/4" NPT | 50 mm | 400 bar |
| TK7330 | -25...140 °C / -13...284 °F | normally open | 1/4" NPT | 39 mm | 300 bar |
| TK7460 | -25...140 °C / -13...284 °F | normally open / closed | G 1/2 | 250 mm | 300 bar |
| TK7480 | -25...140 °C / -13...284 °F | normally open / closed | G 1/2 external thread | 267 mm | 300 bar |
