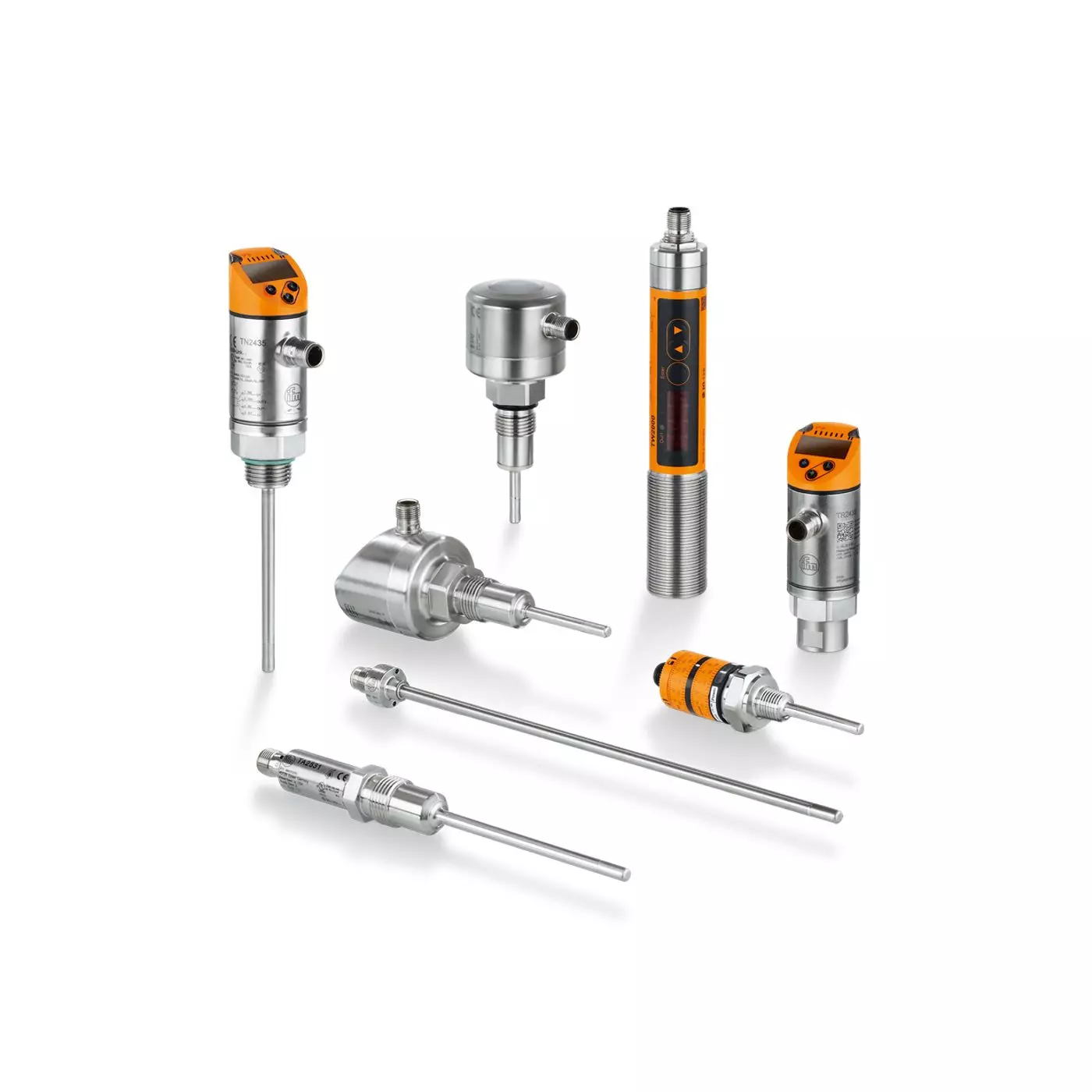

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Compact transmitters for the food industry
The compact temperature transmitters are specially designed for the food and beverage industry. They have an analogue output with 4...20 mA. The Pt1000 measuring element of class A achieves a high precision with the factory-internal calibration. The innovation besides the wide measuring range is the excellent response time. Thanks to their high protection rating, fully welded stainless steel housing and high pressure resistance, the transmitters are particularly suited for use in hygienic environments. An LED clearly signals the readiness for operation. The sensors are available with different probe lengths, process connections and measuring ranges. A variety of adapters facilitates integration into the process. The units can either be used as 2-wire or 4-wire units. When used as a 4-wire unit, the transmitter can be configured via IO-Link, e.g. using a USB interface. The LINERECORDER SENSOR software is used to visualise, transfer and archive parameter sets.
Features & Benefits
- User-friendly communication via IO-Link
- Very short response time
- LED for visualization of the operating status
- Versions for the use in high pressure cleaning applications
- Installation lengths from 25…350 mm
Additional Notes
| MPN | Measuring range temperature | Factory setting | Analog output | Process connection | Installation length EL |
|---|---|---|---|---|---|
| TA1101 | -50...200 °C | -10...150 °C | 4...20 mA | M12 x 1,5 sealing cone | 17 mm |
| TA1102 | -50...200 °C | 0...200 °C | 4...20 mA | M12 x 1,5 sealing cone | 17 mm |
| TA1107 | -50...200 °C | 0...100 °C | 4...20 mA | M12 x 1,5 sealing cone | 17 mm |
| TA1321 | -50...200 °C | -10...150 °C | 4...20 mA | G 3/8 Internal thread | 83 mm |
| TA1322 | -50...200 °C | 0...200 °C | 4...20 mA | G 3/8 Internal thread | 83 mm |
| TA1327 | -50...200 °C | 0...100 °C | 4...20 mA | G 3/8 Internal thread | 83 mm |
| TA2002 | -50...200 °C | 0...200 °C | 4...20 mA | Clamp DN10...DN20 (1/2...3/4") | 25 mm |
| TA2012 | -50...200 °C | 0...200 °C | 4...20 mA | Clamp DN10...DN20 (1/2...3/4") | 60 mm |
| TA2212 | -50...200 °C | 0...200 °C | 4...20 mA | Diameter Ø 6 mm | 50 mm |
| TA2232 | -50...200 °C | 0...200 °C | 4...20 mA | Diameter Ø 6 mm | 100 mm |
| TA2241 | -50...200 °C | -10...150 °C | 4...20 mA | Diameter Ø 6 mm | 150 mm |
| TA2242 | -50...200 °C | 0...200 °C | 4...20 mA | Diameter Ø 6 mm | 150 mm |
| TA2262 | -50...200 °C | 0...200 °C | 4...20 mA | Diameter Ø 6 mm | 250 mm |
| TA2292 | -50...200 °C | 0...200 °C | 4...20 mA | Diameter Ø 6 mm | 350 mm |
| TA2502 | -50...200 °C | 0...200 °C | 4...20 mA | G 1/2 sealing cone | 30 mm |
| TA2511 | -50...200 °C | -10...150 °C | 4...20 mA | G 1/2 sealing cone | 50 mm |
| TA2512 | -50...200 °C | 0...200 °C | 4...20 mA | G 1/2 sealing cone | 50 mm |
| TA2517 | -50...200 °C | 0...100 °C | 4...20 mA | G 1/2 sealing cone | 50 mm |
| TA2531 | -50...200 °C | -10...150 °C | 4...20 mA | G 1/2 sealing cone | 100 mm |
| TA2532 | -50...200 °C | 0...200 °C | 4...20 mA | G 1/2 sealing cone | 100 mm |
| TA2537 | -50...200 °C | 0...100 °C | 4...20 mA | G 1/2 sealing cone | 100 mm |
| TA2542 | -50...200 °C | 0...200 °C | 4...20 mA | G 1/2 sealing cone | 150 mm |
| TA2802 | -50...200 °C | 0...200 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 30 mm |
| TA2804 | 0...350 °F | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 30 mm | |
| TA2812 | -50...200 °C | 0...200 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 50 mm |
| TA2814 | 0...350 °F | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 50 mm | |
| TA2832 | -50...200 °C | 0...200 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 100 mm |
| TA2834 | 0...350 °F | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 100 mm | |
| TA2842 | -50...200 °C | 0...200 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 150 mm |
| TA2844 | 0...350 °F | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 150 mm |
