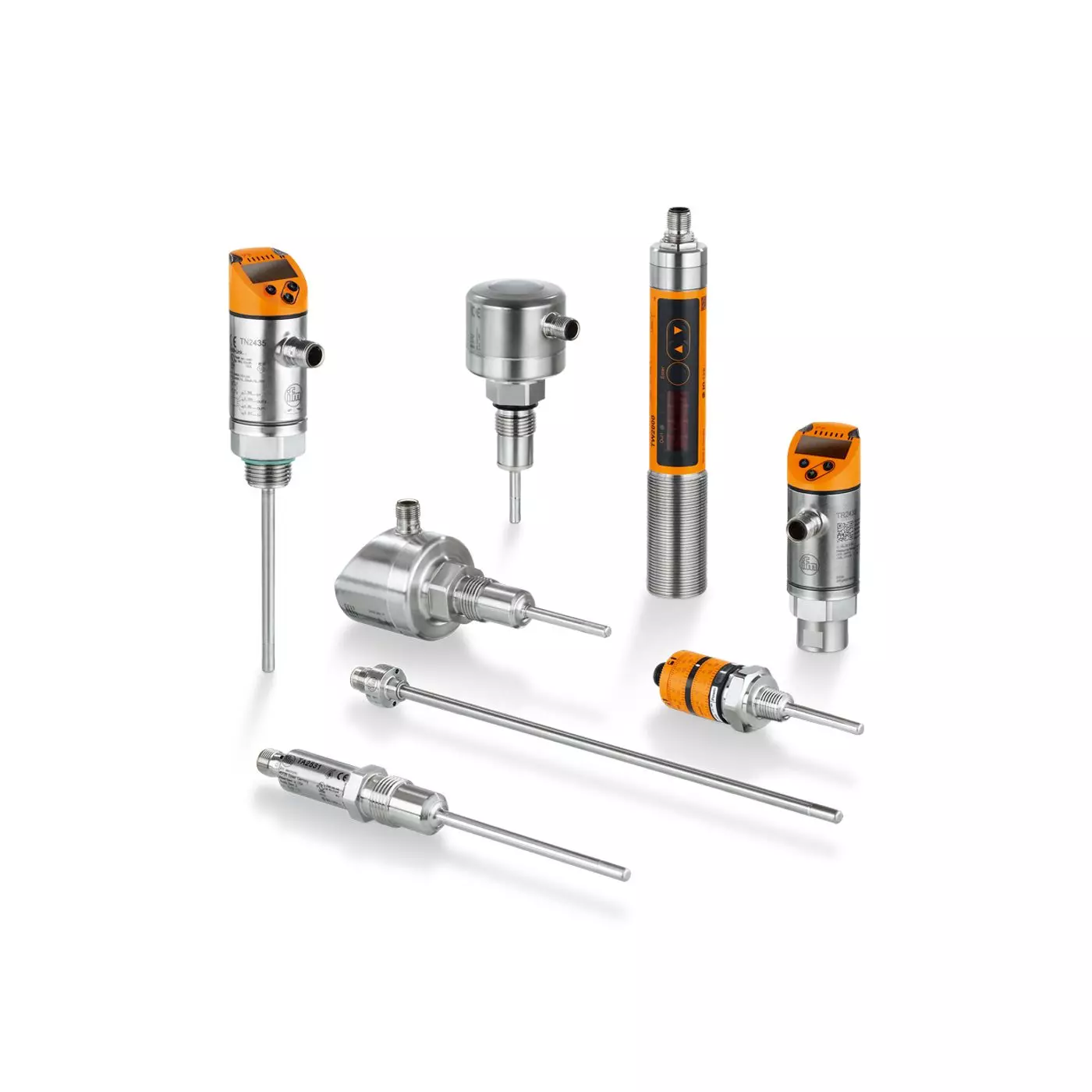

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Transmitters with display for food & beverage production
The TD temperature transmitter series measures and provides precise media temperature value in vessels and tanks. Designed for the sanitary conditions of the food and beverage industry, TD sensors are compact and have an integrated process connection. This hygienic sensor design achieves the highest IP69K and 3A approval ratings due to their fully welded stainless steel housing and high-pressure resistance.
With an easy-to-read LED display, the temperature transmitters provide local indication of temperature. TD sensors are available with different probe lengths, process connections, and measuring ranges for a variety of applications. ifm offers a variety of adapters to ensure seamless integration into your machine design.
Units are configurable as 2-wire or 4-wire units. When configured as a 4-wire unit, use the embedded IO-Link technology to set parameters remotely and to use the LR device software to visualize, transfer, and archive parameter settings
Features & Benefits
- Clearly visible LED display
- Very short response time
- User-friendly communication via IO-Link
- Probe lengths of 30...350 mm
- Hygienic and robust design
Additional Notes
| MPN | Measuring range temperature | Factory setting | Analog output | Process connection | Installation length EL |
|---|---|---|---|---|---|
| TD2211 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Diameter Ø 6 mm | 50 mm |
| TD2213 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Diameter Ø 6 mm | 50 mm |
| TD2217 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Diameter Ø 6 mm | 50 mm |
| TD2231 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Diameter Ø 6 mm | 100 mm |
| TD2233 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Diameter Ø 6 mm | 100 mm |
| TD2237 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Diameter Ø 6 mm | 100 mm |
| TD2241 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Diameter Ø 6 mm | 150 mm |
| TD2243 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Diameter Ø 6 mm | 150 mm |
| TD2247 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Diameter Ø 6 mm | 150 mm |
| TD2251 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Diameter Ø 6 mm | 200 mm |
| TD2253 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Diameter Ø 6 mm | 200 mm |
| TD2257 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Diameter Ø 6 mm | 200 mm |
| TD2261 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Diameter Ø 6 mm | 250 mm |
| TD2263 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Diameter Ø 6 mm | 250 mm |
| TD2267 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Diameter Ø 6 mm | 250 mm |
| TD2271 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Diameter Ø 6 mm | 300 mm |
| TD2273 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Diameter Ø 6 mm | 300 mm |
| TD2277 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Diameter Ø 6 mm | 300 mm |
| TD2291 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Diameter Ø 6 mm | 350 mm |
| TD2293 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Diameter Ø 6 mm | 350 mm |
| TD2297 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Diameter Ø 6 mm | 350 mm |
| TD2501 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | G 1/2 sealing cone | 30 mm |
| TD2507 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | G 1/2 sealing cone | 30 mm |
| TD2511 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | G 1/2 sealing cone | 50 mm |
| TD2517 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | G 1/2 sealing cone | 50 mm |
| TD2531 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | G 1/2 sealing cone | 100 mm |
| TD2537 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | G 1/2 sealing cone | 100 mm |
| TD2541 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | G 1/2 sealing cone | 150 mm |
| TD2547 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | G 1/2 sealing cone | 150 mm |
| TD2801 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 30 mm |
| TD2803 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 30 mm |
| TD2807 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 30 mm |
| TD2811 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 50 mm |
| TD2813 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 50 mm |
| TD2817 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 50 mm |
| TD2831 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 100 mm |
| TD2833 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 100 mm |
| TD2837 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 100 mm |
| TD2841 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 150 mm |
| TD2843 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 150 mm |
| TD2847 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Clamp DN25...DN40 (1...1,5") | 150 mm |
| TD2901 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Clamp DN50 (2") | 30 mm |
| TD2903 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Clamp DN50 (2") | 30 mm |
| TD2907 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Clamp DN50 (2") | 30 mm |
| TD2911 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Clamp DN50 (2") | 50 mm |
| TD2913 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Clamp DN50 (2") | 50 mm |
| TD2917 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Clamp DN50 (2") | 50 mm |
| TD2931 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Clamp DN50 (2") | 100 mm |
| TD2933 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Clamp DN50 (2") | 100 mm |
| TD2937 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Clamp DN50 (2") | 100 mm |
| TD2941 | -50...150 °C / -58...302 °F | -10...150 °C | 4...20 mA | Clamp DN50 (2") | 150 mm |
| TD2943 | -50...150 °C / -58...302 °F | 0...300 °F | 4...20 mA | Clamp DN50 (2") | 150 mm |
| TD2947 | -50...150 °C / -58...302 °F | 0...100 °C | 4...20 mA | Clamp DN50 (2") | 150 mm |
