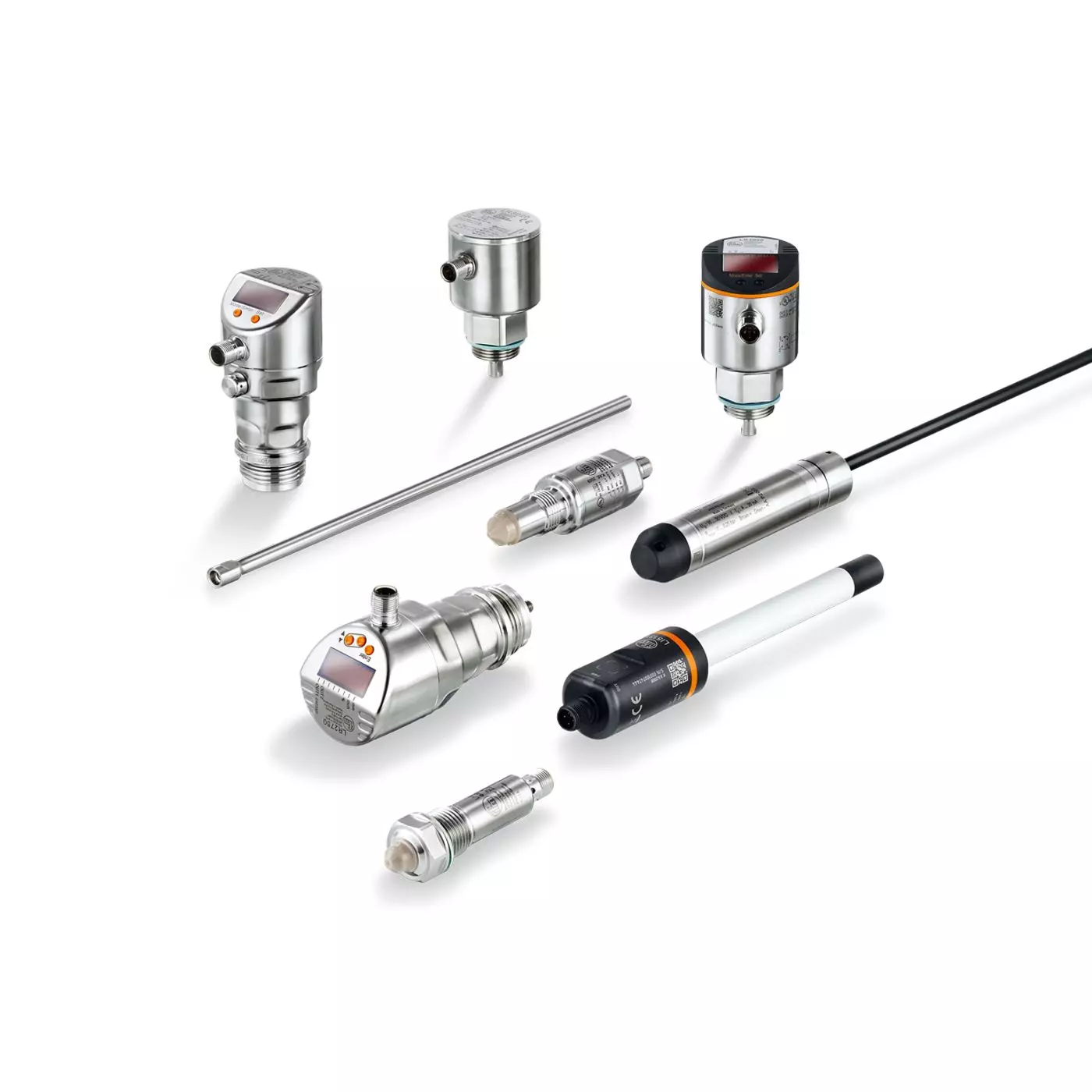

Level sensors – use in hygienic applications
The level sensors of the LMT series monitor levels in vessels and tanks or ensure run-dry protection of pumps. Featuring high-quality housing materials such as stainless steel or PEEK as well as hygienic process connections, the sensors are particularly suited for the food and beverage industry. Numerous international approvals or certifications such as EHEDG, 3A and FDA allow the use of the sensors in hygienic applications. The units can be used in almost all liquids, viscous media and bulk materials. They even detect extremely adhering (e.g. ketchup) or non-conductive media (e.g. vegetable oil). Deposits and foam are suppressed reliably. The device provides two switching outputs that can be set independently of each other so it is even possible to differentiate between two media. The sensors are offered with different probe lengths. Each LMT sensor is factory-set to a specific medium. For special requirements, the sensitivity and further functions can be adjusted to the corresponding application. Splashes, wave movements and air bubbles can be compensated, for example, by setting a switching delay. The parameters can be set using, for example, a USB interface. The LINERECORDER SENSOR software is used to visualise, transfer and archive parameter sets.
- Flexible installation independent of the orientation
- Robust stainless steel housing
- Ready for operation immediately thanks to fixed setting
- Differentiation of media by parameterization of the switching outputs
- Specially for the use in hygienic applications
MPN | Process connection | Probe length | Application | Factory setting | Electrical design |
---|---|---|---|---|---|
LMT100 | G 1/2 sealing cone | 11 mm | Liquids,viscous media,powder | water-based media | PNP/NPN |
LMT102 | G 1/2 sealing cone | 38 mm | Liquids,viscous media,powder | water-based media | PNP/NPN |
LMT104 | G 1/2 sealing cone | 153 mm | Liquids,viscous media,powder | water-based media | PNP/NPN |
LMT105 | G 1/2 sealing cone | 253 mm | Liquids,viscous media,powder | water-based media | PNP/NPN |
LMT110 | G 1/2 sealing cone | 11 mm | Liquids,viscous media,powder | oils, oil-based media | PNP/NPN |
LMT121 | G 1/2 sealing cone | 11 mm | Liquids,viscous media,powder | Media with low water content | PNP/NPN |
LMT191 | G 1/2 sealing cone | 11 mm | Liquids | water-based media | PNP |
LMT192 | G 1/2 sealing cone | 38 mm | Liquids | water-based media | PNP |
LMT194 | G 1/2 sealing cone | 153 mm | Liquids | water-based media | PNP |
LMT202 | G 3/4 external thread | 28 mm | Liquids,viscous media,powder; suited for installation in existing tuning fork adapters | water-based media | PNP/NPN |
LMT292 | G 3/4 external thread | 28 mm | Liquids; suited for installation in existing tuning fork adapters | water-based media | PNP |
LMT302 | G 1 external thread | 38 mm | Liquids,viscous media,powder; suited for installation in existing tuning fork adapters | water-based media | PNP/NPN |
LX0020 | G 1/2 external thread | 153 mm | Liquids | oil-based media | PNP/NPN |
SKU | Description | List price | - |
---|---|---|---|
IFM-040040010005 | Process Sensors - Level - Continuous - Capacitive non-contact level measurement | $0.01 | |
IFM-040040010010 | Process Sensors - Level - Continuous - Capacitive probes - Type Lx | $0.01 | |
IFM-040040010015 | Process Sensors - Level - Continuous - Capacitive probes with integrated temperature - Type LT | $0.01 | |
IFM-040040010020 | Process Sensors - Level - Continuous - Guided wave radar probes - Type LR | $0.01 | |
IFM-040040010030 | Process Sensors - Level - Continuous - Guided wave radar probes for sanitary applications - Type LR | $0.01 | |
IFM-040040010040 | Process Sensors - Level - Continuous - Flush pressure sensors with display for sanitary applications - Type PI | $0.01 | |
IFM-040040010050 | Process Sensors - Level - Continuous - Flush pressure sensors with gauge display for sanitary applications - Type PG | $0.01 | |
IFM-040040010060 | Process Sensors - Level - Continuous - Flush pressure transmitters for sanitary applications - Type PM | $0.01 | |
IFM-040040010080 | Process Sensors - Level - Continuous - Submersible pressure transmitters - Type PS | $0.01 | |
IFM-040040010090 | Process Sensors - Level - Continuous - Non-contact distance measurement - Type O1D | $0.01 | |
IFM-040040010100 | Process Sensors - Level - Continuous - Ultrasonic sensors | $0.01 | |
IFM-040040020100 | Process Sensors - Level - Point level measurement -Capacitive probes - Type Lx | $0.01 | |
IFM-040040020105 | Process Sensors - Level - Point level measurement - Residue suppression level switches for industrial applications - Type LM | $0.01 | |
IFM-040040020120 | Process Sensors - Level - Point level measurement - Capacitive switches - Type K… | $0.01 | |
IFM-040040020130 | Process Sensors - Level - Point level measurement - Evaluation units for level control | $0.01 |
