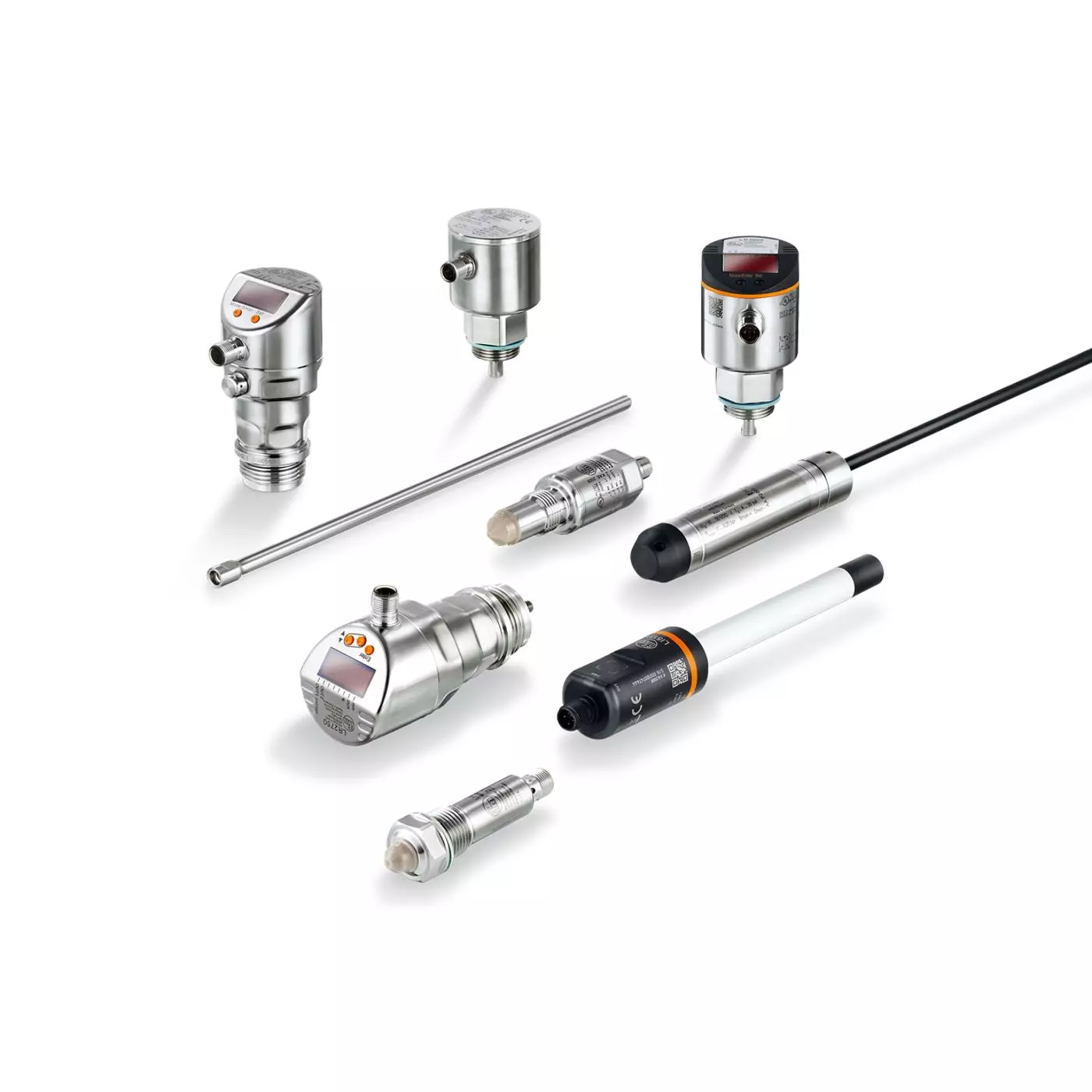

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Laser distance sensors for non-contact measurement
The O1D300 is a level sensor with time-of-flight measurement based on PMD technology (PMD = Photonic Mixer Device). It detects the levels of bulk materials and opaque liquids without contact on the basis of the time-of-flight measurement of a laser beam. Measuring only 42 x 42 x 52 mm, the sensor offers a very long range, a visible red laser light spot and a high excess gain. It can be installed at a safe distance from the goods to be detected using the offered fixing elements. Parameter and switching point setting is achieved via programming buttons and a 4-digit alphanumeric display.
Features & Benefits
- Reliable optical level measurement with high ranges up to 9.8 m
- Scalable measuring range and window function
- Two switching outputs, one of them programmable as analog output
- Extensive range of mounting components
Additional Notes
| MPN | Probe length L | Level measurement | Factory setting | Probe length | Electrical design |
|---|---|---|---|---|---|
| O1D300 | PNP |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040040010005 | Process Sensors - Level - Continuous - Capacitive non-contact level measurement | $0.01 | |
| IFM-040040010010 | Process Sensors - Level - Continuous - Capacitive probes - Type Lx | $0.01 | |
| IFM-040040010015 | Process Sensors - Level - Continuous - Capacitive probes with integrated temperature - Type LT | $0.01 | |
| IFM-040040010020 | Process Sensors - Level - Continuous - Guided wave radar probes - Type LR | $0.01 | |
| IFM-040040010030 | Process Sensors - Level - Continuous - Guided wave radar probes for sanitary applications - Type LR | $0.01 | |
| IFM-040040010040 | Process Sensors - Level - Continuous - Flush pressure sensors with display for sanitary applications - Type PI | $0.01 | |
| IFM-040040010050 | Process Sensors - Level - Continuous - Flush pressure sensors with gauge display for sanitary applications - Type PG | $0.01 | |
| IFM-040040010060 | Process Sensors - Level - Continuous - Flush pressure transmitters for sanitary applications - Type PM | $0.01 | |
| IFM-040040010080 | Process Sensors - Level - Continuous - Submersible pressure transmitters - Type PS | $0.01 | |
| IFM-040040010100 | Process Sensors - Level - Continuous - Ultrasonic sensors | $0.01 | |
| IFM-040040020100 | Process Sensors - Level - Point level measurement -Capacitive probes - Type Lx | $0.01 | |
| IFM-040040020105 | Process Sensors - Level - Point level measurement - Residue suppression level switches for industrial applications - Type LM | $0.01 | |
| IFM-040040020110 | Process Sensors - Level - Point level measurement - Residue suppression level switches for sanitary applications - Type LM | $0.01 | |
| IFM-040040020120 | Process Sensors - Level - Point level measurement - Capacitive switches - Type K… | $0.01 | |
| IFM-040040020130 | Process Sensors - Level - Point level measurement - Evaluation units for level control | $0.01 |
