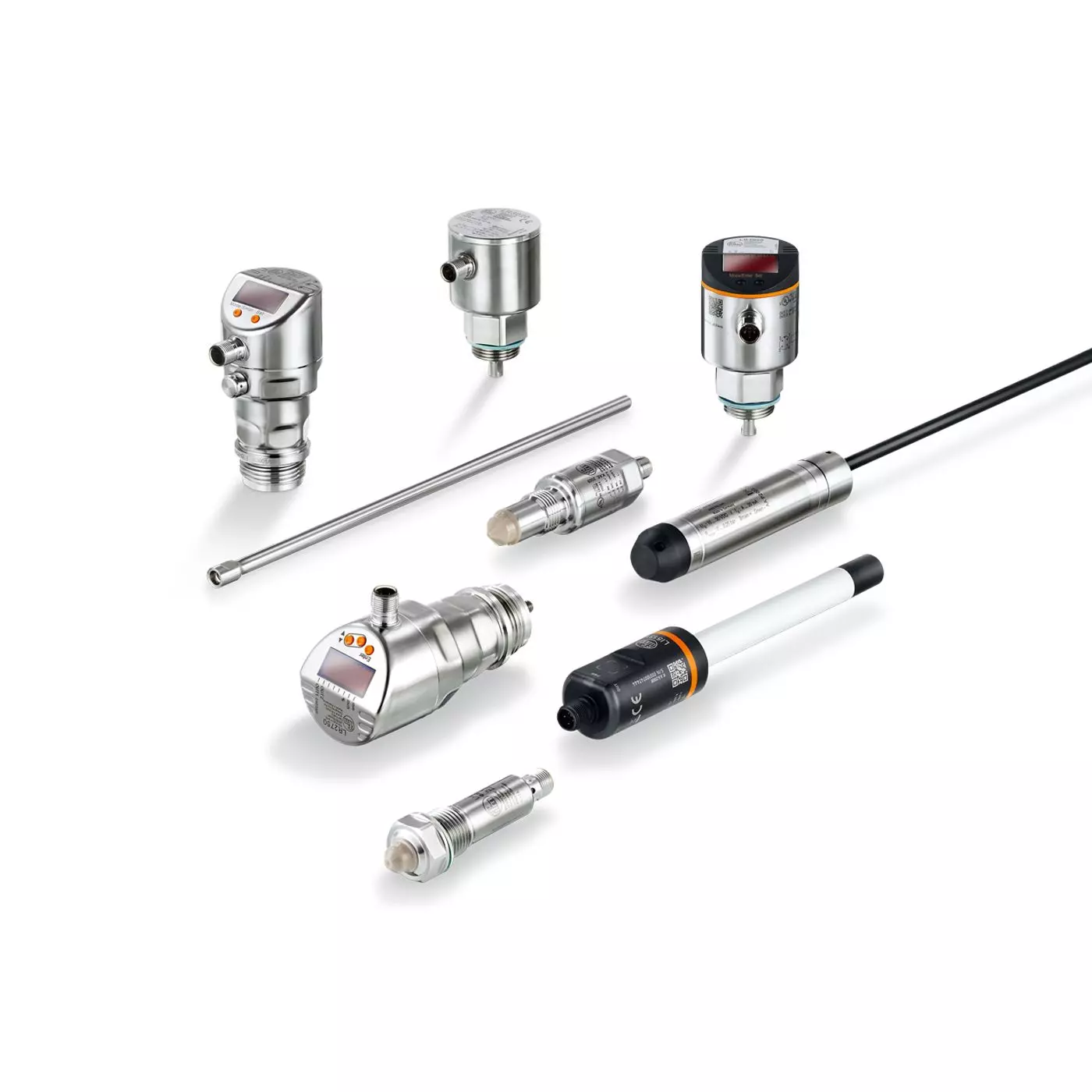

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Flush pressure transmitters
Flush-mount transmitters of the PL and PM series are used for reliable hydrostatic level measurement and system pressure measurement in pipes. Flush-mount installation in the tank or vessel wall ensures reliable cleaning and sterilisation in the process. The compact stainless steel housing is potted, offering optimum protection against ingress of moisture and aggressive media. Thanks to a broad selection of process adapters, the sensors can be used in nearly all industrial applications. Remote parameter setting of the units is possible. The measuring range is defined by setting the zero point and the span.
Features & Benefits
- Overload-resistant ceramic measuring cell
- Resistant to pressure peaks and vacuum
- Fast installation and maintenance-free operation
- Scalable analog output
- Intuitive, user-friendly handling
Additional Notes
| MPN | Measuring range | Process connection | Analog current output | Analog voltage output | Output function |
|---|---|---|---|---|---|
| PM1503 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1/2 external thread sealing cone | 4...20 mA | analog | |
| PM1505 | -1...4 bar / -14.5...58 psi / -100...400 kPa | G 1/2 external thread sealing cone | 4...20 mA | analog | |
| PM1514 | -1...16 bar / -14.6...232 psi / -0.1...1.6 MPa | G 1/2 external thread sealing cone | 4...20 mA | analog | |
| PM1515 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1/2 external thread sealing cone | 4...20 mA | analog | |
| PM1602 | -1...100 bar / -15...1450 psi / -0.1...10 MPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1603 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1604 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1605 | -1...4 bar / -14.5...58 psi / -100...400 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1606 | -0.125...2.5 bar / -125...2500 mbar / -1.82...36.26 psi / -12.5...250 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1607 | -0.05...1 bar / -50...1000 mbar / -0.73...14.5 psi / -5...100 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1608 | -0.0125...0.25 bar / -12.5...250 mbar / -0.182...3.626 psi / -1.25...25 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1609 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1614 | -1...16 bar / -14.6...232 psi / -0.1...1.6 MPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1615 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1617 | -0.1...1.6 bar / -100...1600 mbar / -1.45...23.21 psi / -10...160 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1618 | -0.05...0.4 bar / -50...400 mbar / -0.725...5.8 psi / -5...40 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1689 | -0.005...0.1 bar / -5...100 mbar / -0.073...1.45 psi / -0.5...10 kPa | G 1 external thread sealing cone | 4...20 mA | analog | |
| PM1703 | -1...25 bar / -14.6...362.6 psi / -0.1...2.5 MPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1704 | -1...10 bar / -14.5...145 psi / -100...1000 kPa / -0.1...1 MPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1705 | -1...4 bar / -14.5...58 psi / -100...400 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1706 | -0.125...2.5 bar / -125...2500 mbar / -1.82...36.26 psi / -12.5...250 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1707 | -0.05...1 bar / -50...1000 mbar / -0.73...14.5 psi / -5...100 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1708 | -0.0125...0.25 bar / -12.5...250 mbar / -0.182...3.626 psi / -1.25...25 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1709 | -1...1 bar / -1000...1000 mbar / -14.5...14.5 psi / -100...100 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1714 | -1...16 bar / -14.6...232 psi / -0.1...1.6 MPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1715 | -1...6 bar / -14.5...87 psi / -100...600 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1717 | -0.1...1.6 bar / -100...1600 mbar / -1.45...23.21 psi / -10...160 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1718 | -0.05...0.4 bar / -50...400 mbar / -0.725...5.8 psi / -5...40 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PM1789 | -0.005...0.1 bar / -5...100 mbar / -0.073...1.45 psi / -0.5...10 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PY2006 | -125...2500 mbar / -1.82...36.26 psi / -12.5...250 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog | |
| PY2007 | -50...1000 mbar / -0.73...14.5 psi / -5...100 kPa | G 1 external thread Aseptoflex Vario | 4...20 mA | analog |
